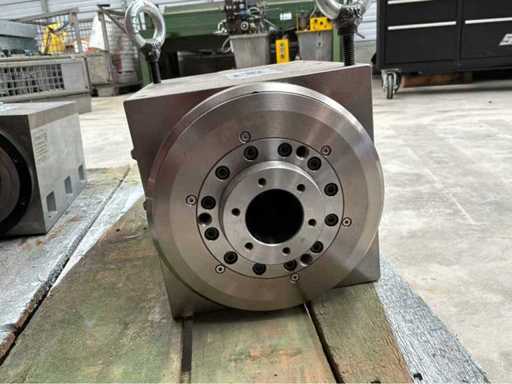

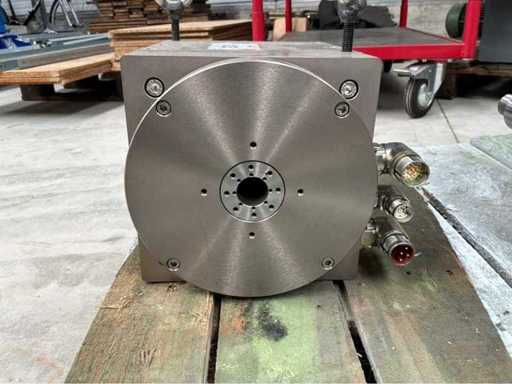

2022 HOWAMIT CNC 160.2/TMI5/WS CNC Spindle Axis
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HOWAMIT
- Type
- CNC 160.2/TMI5/WS
- Year of build
- 2022
- Serial number
- 105799
- Electric connection
- 600V
- Manual present
- Yes
- Own weight
- 52kg
- Dimension l
- 300mm
- Dimension w
- 200mm
- Dimension h
- 200mm
- Terms of delivery
- Loaded on truck
Description
Model: HOWIMAT CNC 160.2TMI55WS - NEW
Design: Special version as a workpiece headstock with direct drive (torque motor)
GP Item No.: 3988
Electrical connections
* Connection Circuit Voltage: 600 V
* Pluggable connections for motor and measuring system temperature sensor
* Preparation for connection of a water cooling system
Measuring system
Displacement measuring system: HEIDENHAIN ECN 113
Absolute encoder, directly on the shaft
Option 1 – ECN 113
displacement measuring system
* Data interface: EnDat 02
* Accuracy: ±20 arc seconds
* Number of strokes: 2048 revolutions
* Gear ratio: i = 192
* Positioning Accuracy: ±0.3mm
* Customer-side tie rod for clamping device
Option 2 – Increased concentricity
Concentricity for CNC 160.2: 0.001 mm Option 3 – Special adjustments Test mandrel ground on the fly, distance to spindle nose: 100 mm
KKS spindle size K5
ISO railing: 80 mm
Extension of the special base housing to 185 mm instead of the standard 120 mm
Performance data
Partial accuracy: ≤ 0.0075 mm
Table diameter: 290 mm
Rated speed: max. 500 rpm
Version: chilled
Peak torque: 48 Nm
Peak torque: 75 Nm
Maximum payload (centered): 75 kg
Maximum transport load (between tips): 150 kg
Maximum tilting torque on the workpiece stock: 350 Nm
Connection Circuit Voltage: 600 V
Displacement measuring system: HEIDENHAIN ECN 113 absolute encoder
Measuring accuracy of the displacement measuring system: ± 20 arc seconds
Data interface: EnDat 02
Number of strokes: 2048 revolutions
Gear ratio: i = 192
Positioning accuracy: ± 0.3 mm
Increased concentricity (option): 0.001 mm
Test mandrel distance to spindle nose: 100 mm
PPS Spindle Size: K5
ISO railing: 80 mm
Special base housing: 185 mm (standard: 120 mm)
Design: Special version as a workpiece headstock with direct drive (torque motor)
GP Item No.: 3988
Electrical connections
* Connection Circuit Voltage: 600 V
* Pluggable connections for motor and measuring system temperature sensor
* Preparation for connection of a water cooling system
Measuring system
Displacement measuring system: HEIDENHAIN ECN 113
Absolute encoder, directly on the shaft
Option 1 – ECN 113
displacement measuring system
* Data interface: EnDat 02
* Accuracy: ±20 arc seconds
* Number of strokes: 2048 revolutions
* Gear ratio: i = 192
* Positioning Accuracy: ±0.3mm
* Customer-side tie rod for clamping device
Option 2 – Increased concentricity
Concentricity for CNC 160.2: 0.001 mm Option 3 – Special adjustments Test mandrel ground on the fly, distance to spindle nose: 100 mm
KKS spindle size K5
ISO railing: 80 mm
Extension of the special base housing to 185 mm instead of the standard 120 mm
Performance data
Partial accuracy: ≤ 0.0075 mm
Table diameter: 290 mm
Rated speed: max. 500 rpm
Version: chilled
Peak torque: 48 Nm
Peak torque: 75 Nm
Maximum payload (centered): 75 kg
Maximum transport load (between tips): 150 kg
Maximum tilting torque on the workpiece stock: 350 Nm
Connection Circuit Voltage: 600 V
Displacement measuring system: HEIDENHAIN ECN 113 absolute encoder
Measuring accuracy of the displacement measuring system: ± 20 arc seconds
Data interface: EnDat 02
Number of strokes: 2048 revolutions
Gear ratio: i = 192
Positioning accuracy: ± 0.3 mm
Increased concentricity (option): 0.001 mm
Test mandrel distance to spindle nose: 100 mm
PPS Spindle Size: K5
ISO railing: 80 mm
Special base housing: 185 mm (standard: 120 mm)
Remarks
New - Unused
