2022 Optiturn TM3310D Horizontal Lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- Yes
- Brand
- Optiturn
- Type
- TM3310D
- Year of build
- 2022

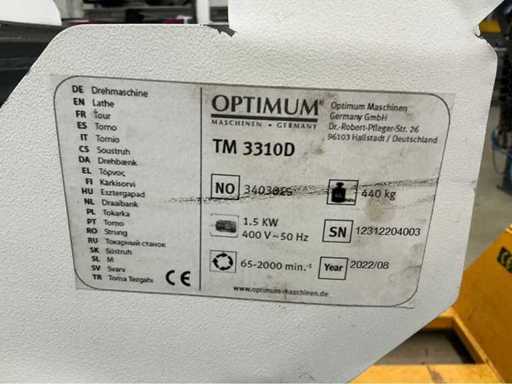

- Serial number
- 12312204003
- Turning length
- 1000mm
- Electric connection
- 400V
- Machine weight
- 440kg
- Dimension l
- 1760mm
- Dimension w
- 745mm
- Dimension h
- 1320mm

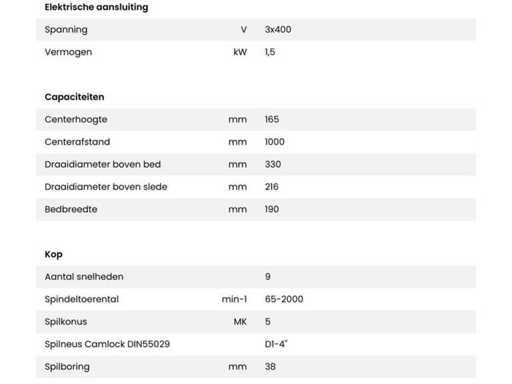

Description

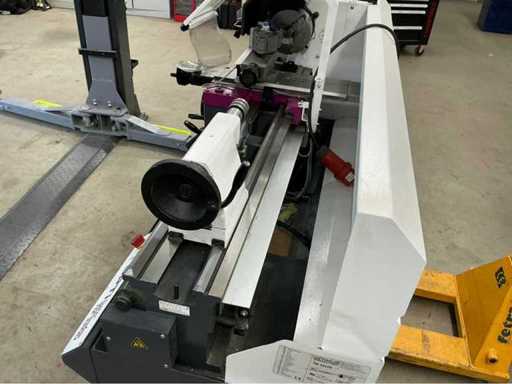

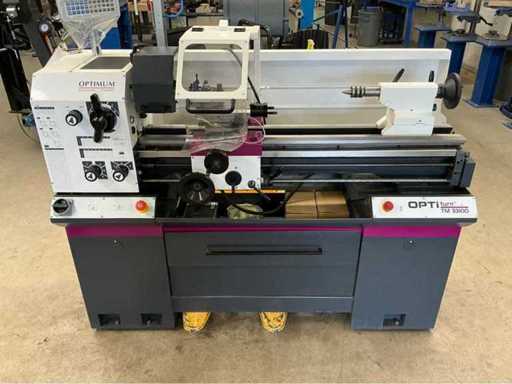

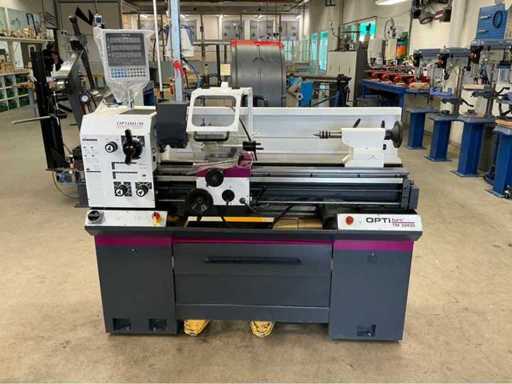

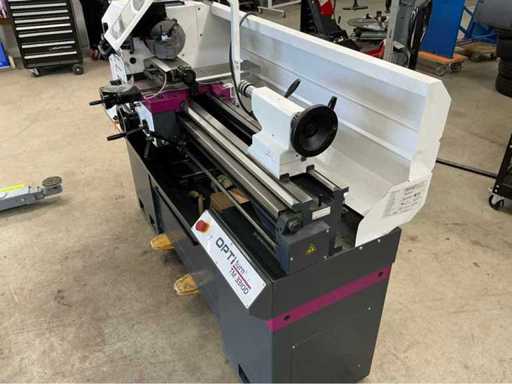

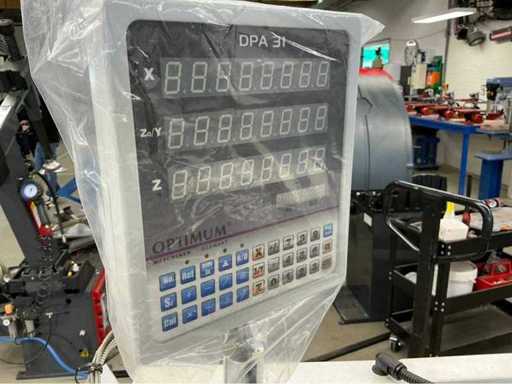

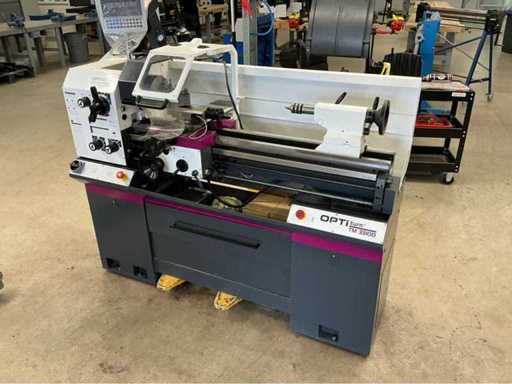

Type: OptiTurn TM3310D metal lathe with digital readout (3-axis)
Connection voltage: 400 V
Motor power: approx. 1.5 kW
Center height: 165 mm
Center distance: 1000 mm
Max. swivel diameter above bed: approx. 330 mm
Max. turning diameter above cross slide: approx. 216 mm
Spindle bore: 38 mm
Spindle holder: Camlock DIN ISO 702-2 No. 4
Spindle Taper: MK5

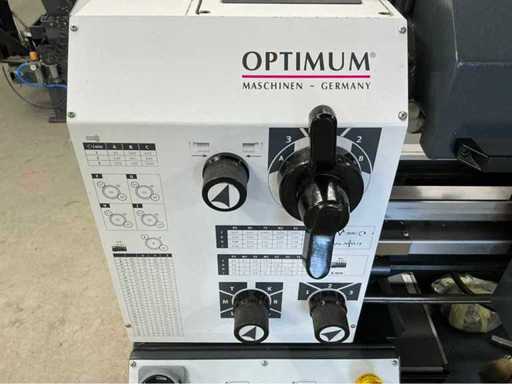

Speed range: approx. 65 – 2000 rpm (9 levels)

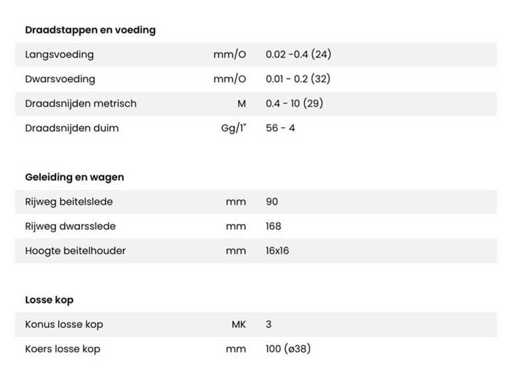

Longitudinal feed: approx. 0.02 – 0.4 mm/rev
Cross feed: approx. 0.01 – 0.2 mm/rev
Thread cutting: metric and inch
Cross carriage travel: approx. 168 mm
Travel of the upper slide: approx. 90 mm
Tailstock mount: MK3
Pile stroke: approx. 100 mm
Guides: hardened and ground prism bed
Accuracy (spindle run): < 0.015 mm
Dimensions (lxwxh): approx. 1760 × 745 × 1320 mm
Weight: approx. 470 kg
Features:

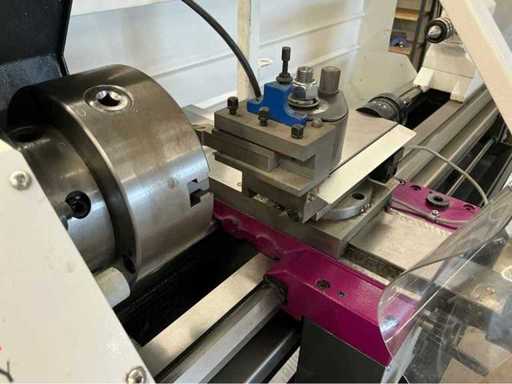

1 x Kit 5-piece quick-change holder
1 x Turning Tool Set WP 16 mm 7pcs, 790034324
1 x Quick-release chuck up to 16 mm
1 x Drill Head Tail
1 x Rotating center point extended tip MK 3
6 x Vibration dampers
Connection voltage: 400 V
Motor power: approx. 1.5 kW
Center height: 165 mm
Center distance: 1000 mm
Max. swivel diameter above bed: approx. 330 mm
Max. turning diameter above cross slide: approx. 216 mm
Spindle bore: 38 mm
Spindle holder: Camlock DIN ISO 702-2 No. 4
Spindle Taper: MK5
Speed range: approx. 65 – 2000 rpm (9 levels)
Longitudinal feed: approx. 0.02 – 0.4 mm/rev
Cross feed: approx. 0.01 – 0.2 mm/rev
Thread cutting: metric and inch
Cross carriage travel: approx. 168 mm
Travel of the upper slide: approx. 90 mm
Tailstock mount: MK3
Pile stroke: approx. 100 mm
Guides: hardened and ground prism bed
Accuracy (spindle run): < 0.015 mm
Dimensions (lxwxh): approx. 1760 × 745 × 1320 mm
Weight: approx. 470 kg
Features:
1 x Kit 5-piece quick-change holder
1 x Turning Tool Set WP 16 mm 7pcs, 790034324
1 x Quick-release chuck up to 16 mm
1 x Drill Head Tail
1 x Rotating center point extended tip MK 3
6 x Vibration dampers
Remarks
NOTE: No forklift available at the seller. Provide your own transport with tailgate!
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
