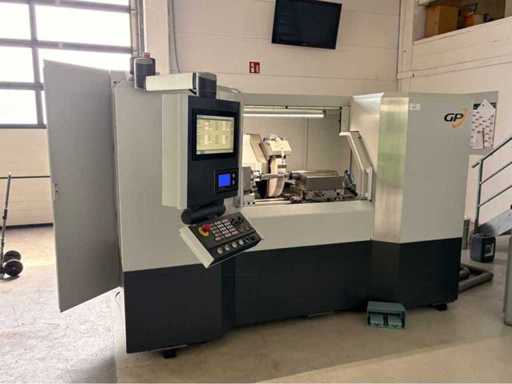

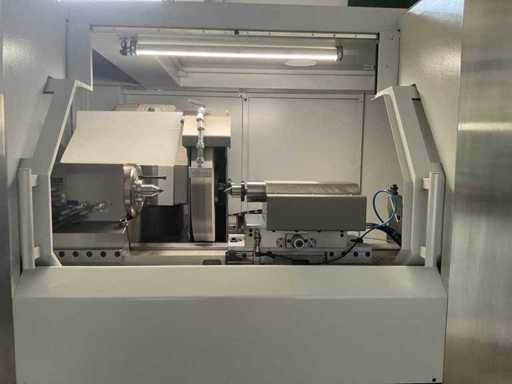

2025 GP P60-1000 CNC Cylindrical Grinding Machine
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- GP
- Type
- P60-1000
- Year of build
- 2025

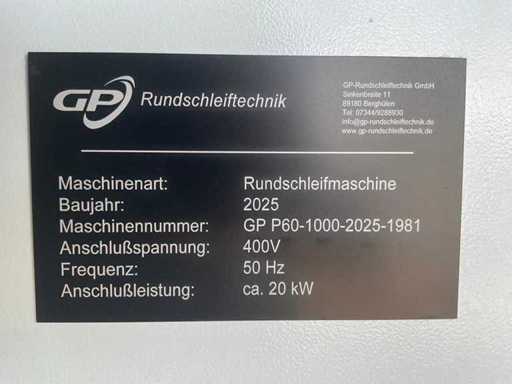

- Serial number
- GPP60-1000-2025-1981
- CNC
- Yes
- Centre height
- 200mm
- Digital display
- Yes
- Control, brand, type

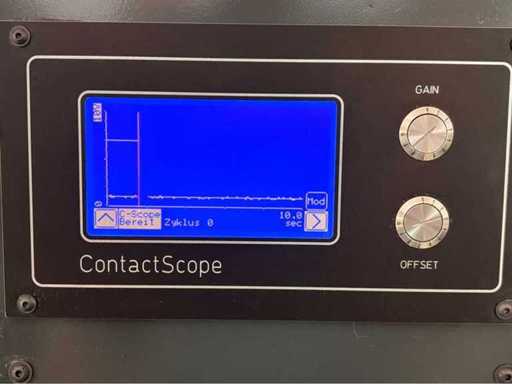

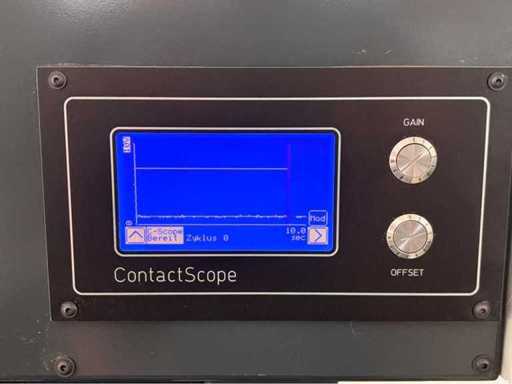

- Siemens/ Contact-Scope
- Engine power (kW)
- 20kW
- Electric connection
- 400V
- Machine weight
- 8300kg
- Dimension l
- 2800mm
- Dimension w
- 2050mm
- Dimension h
- 1950mm
- Terms of delivery
- Free on truck
Description
Working range
Center width: 1,100 mm
Grinding length: 1,000 mm
Center height: 200 mm
X-axis: Distance: maximum. 400 mm
resolution measuring system: 0.0001 mm Z-axis
travel: max. 1,070 mm
Speed: 0.001 - 12,000 mm/min
Resolution measuring system: 0.0001 mm

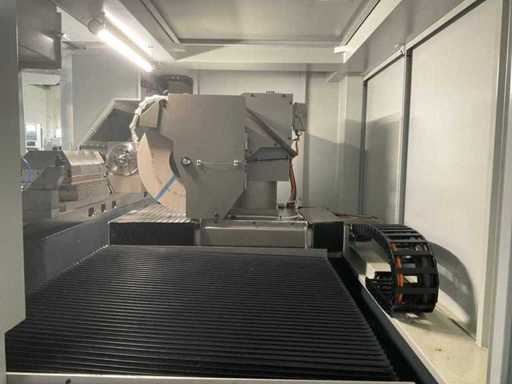

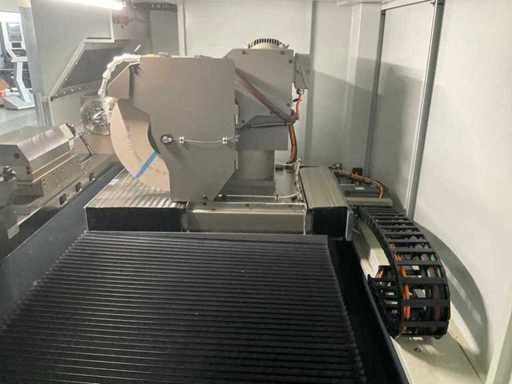

Grinding headstock: Grinding spindle motor: 7.5 kW
Readjustment grinding wheel circumferential Speed: automatic
Workpiece headstock: Speed range: 0 - 500 1/min
Spindle passage: 30 mm

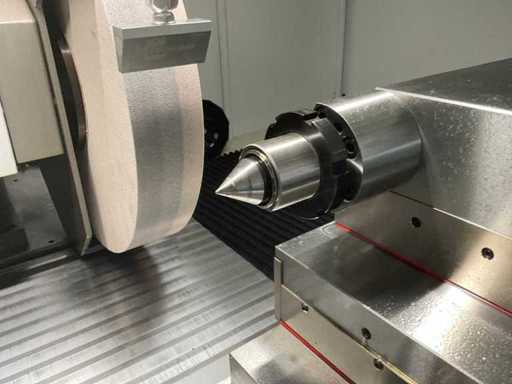

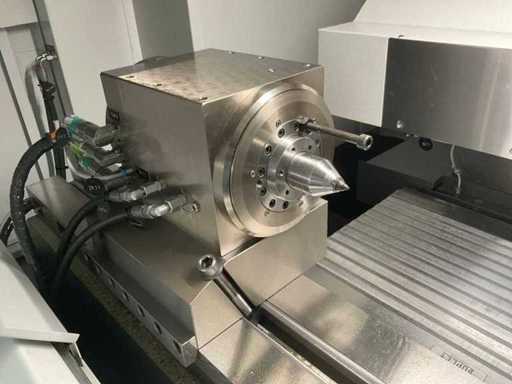

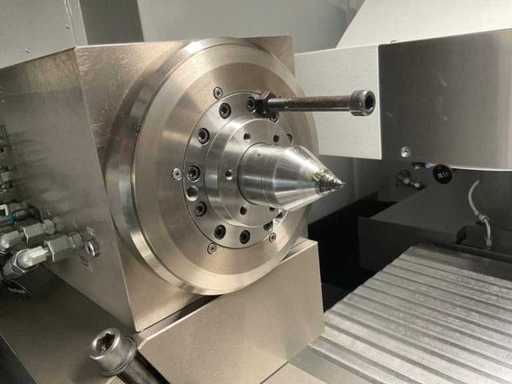

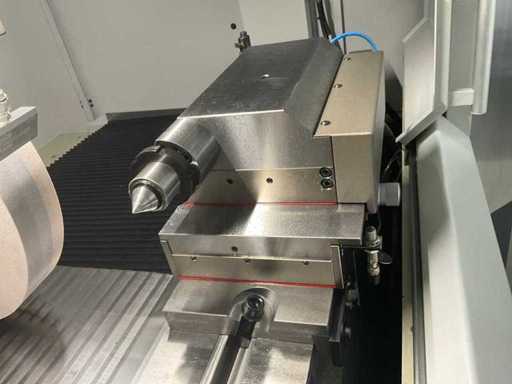

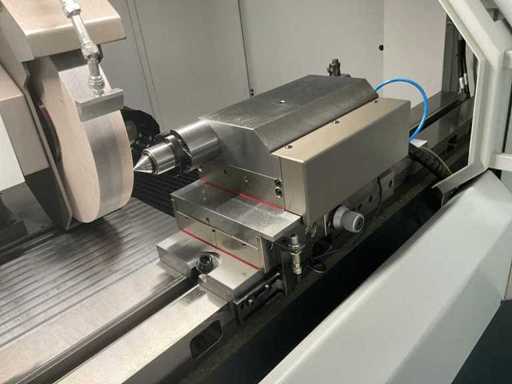

Tailstock: hydraulic control with foot pedal
Stroke: 50 mm
Fine adjustment: ±1.5 mm

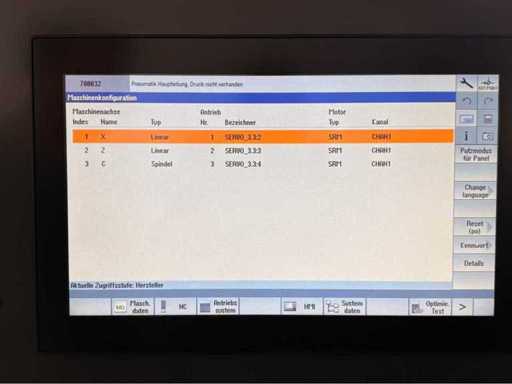

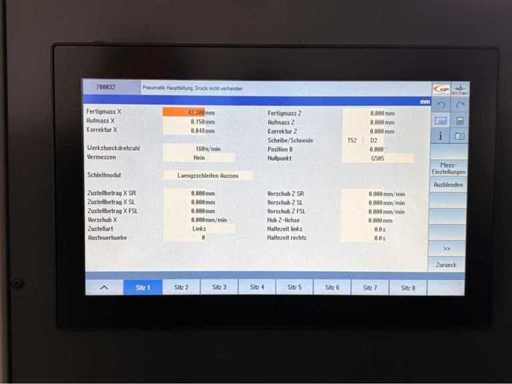

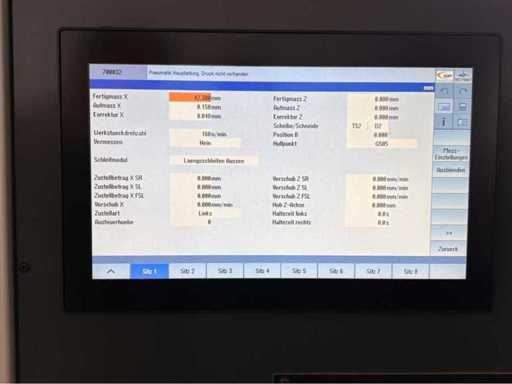

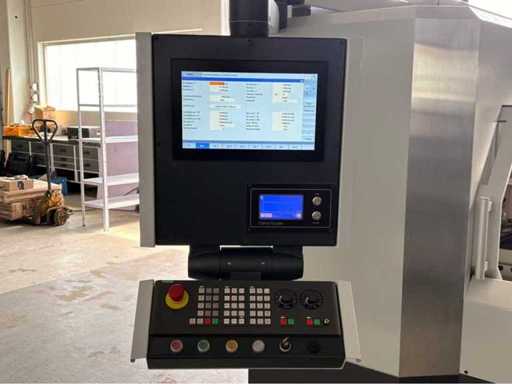

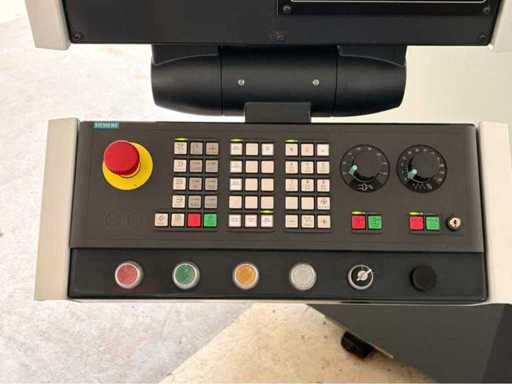

Control: Siemens 840 Dsl with GP, grinding software/grinding modules

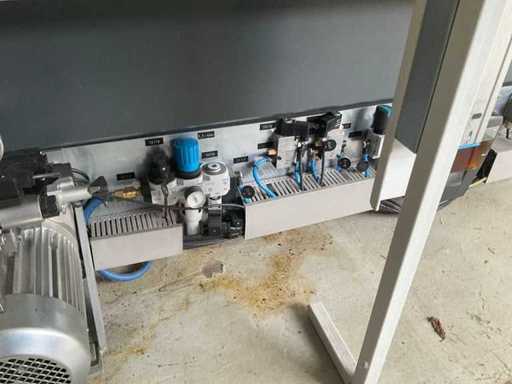

Air pressure: 6 bar
Workpiece weight: max. 500 kg

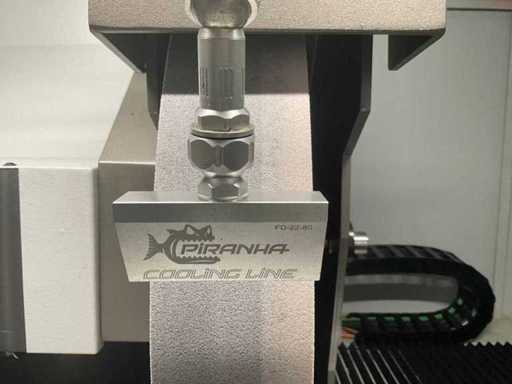

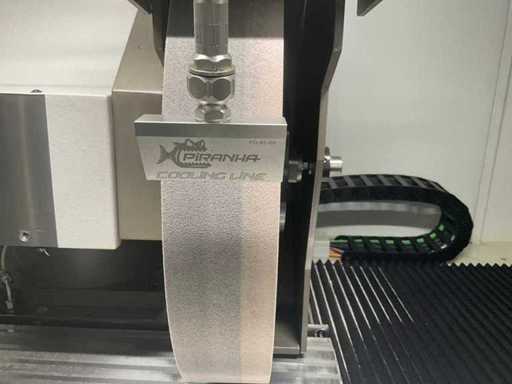

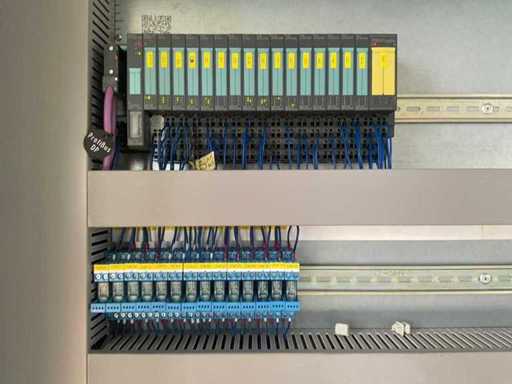

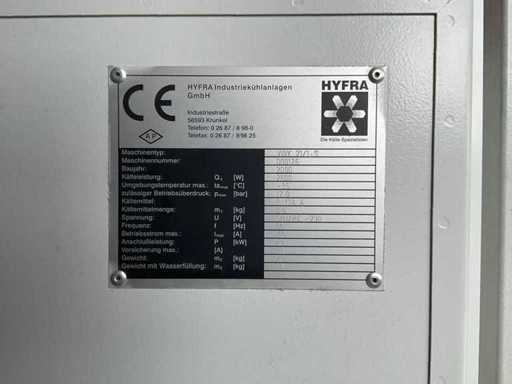

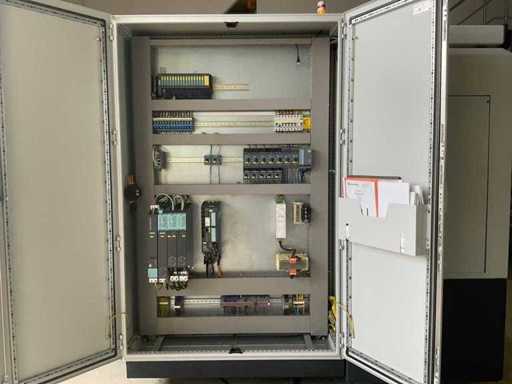

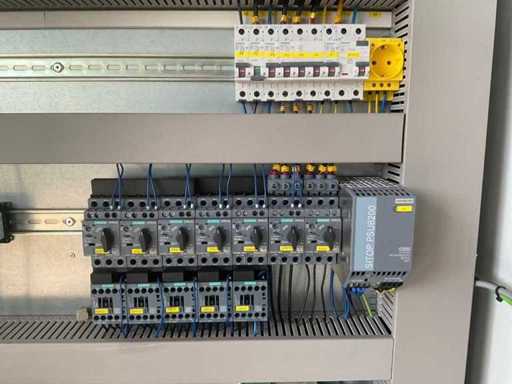

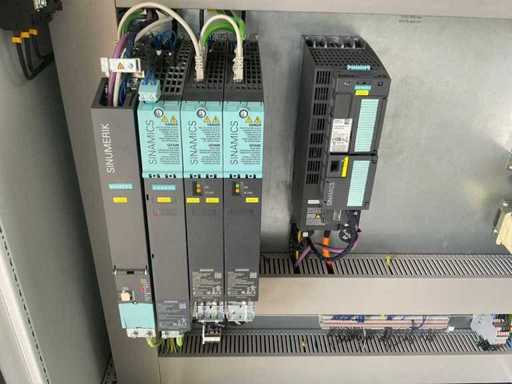

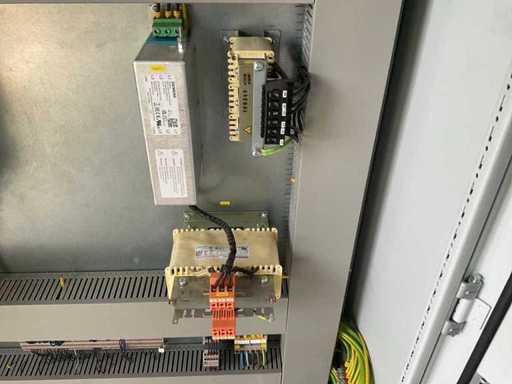

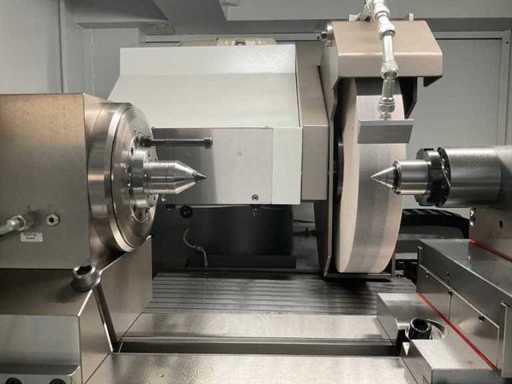

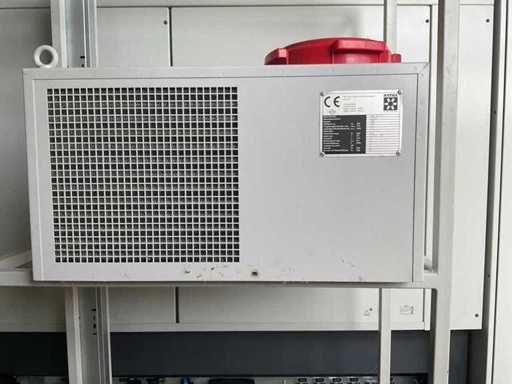

Grinding wheel diameter: 500 mm, right with control cabinet, wiring diagram: SE 5841.500 serial number: 4-1006708223, cooling Hyfra WWK-21/1-2.
Transport dimensions: 3200 cm long
Center width: 1,100 mm
Grinding length: 1,000 mm
Center height: 200 mm
X-axis: Distance: maximum. 400 mm
resolution measuring system: 0.0001 mm Z-axis
travel: max. 1,070 mm
Speed: 0.001 - 12,000 mm/min
Resolution measuring system: 0.0001 mm
Grinding headstock: Grinding spindle motor: 7.5 kW
Readjustment grinding wheel circumferential Speed: automatic
Workpiece headstock: Speed range: 0 - 500 1/min
Spindle passage: 30 mm
Tailstock: hydraulic control with foot pedal
Stroke: 50 mm
Fine adjustment: ±1.5 mm
Control: Siemens 840 Dsl with GP, grinding software/grinding modules
Air pressure: 6 bar
Workpiece weight: max. 500 kg
Grinding wheel diameter: 500 mm, right with control cabinet, wiring diagram: SE 5841.500 serial number: 4-1006708223, cooling Hyfra WWK-21/1-2.
Transport dimensions: 3200 cm long
Remarks
Function checked, inspection desired.
Additional details
The auctions are public and voluntary.
All items are sold in the condition in which they lie and stand. It is expressly pointed out that no complete inventory and verification of the functionality of the auction objects will be carried out.
Bidders are strongly advised to make use of the opportunity granted to them to inspect/examine the purchased items before submitting bids.
No warranty.
VAT DEPOSIT: Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Germany on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

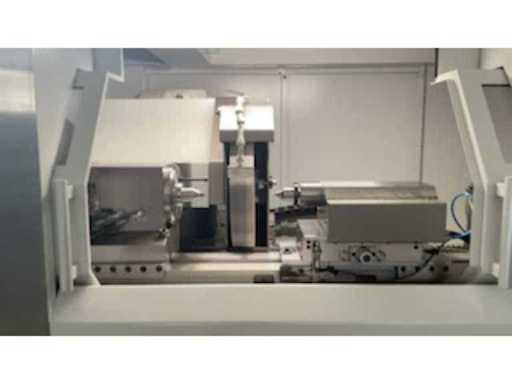

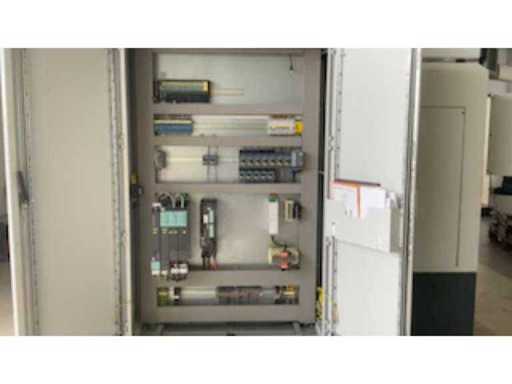

Video
