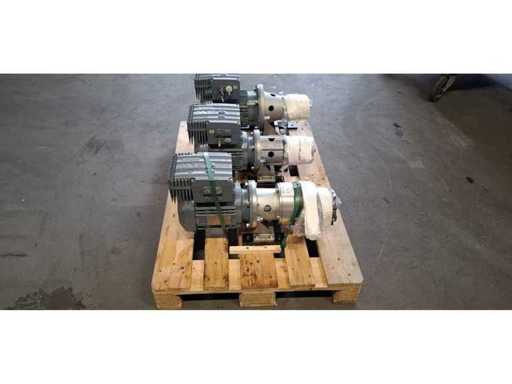

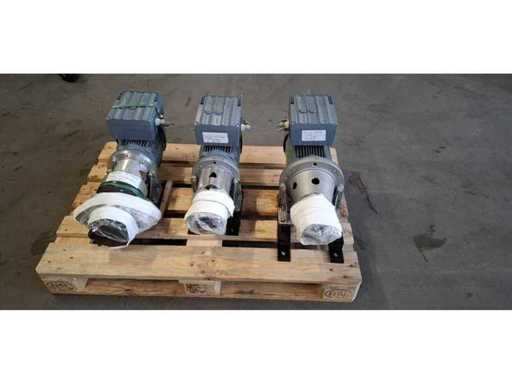

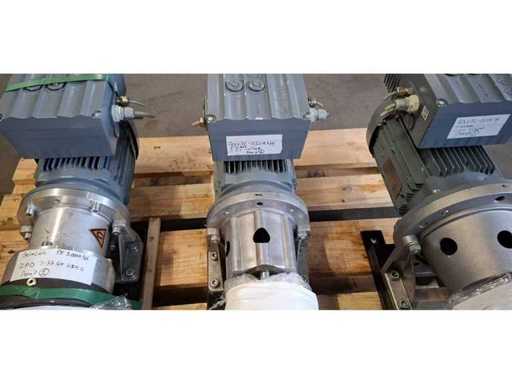

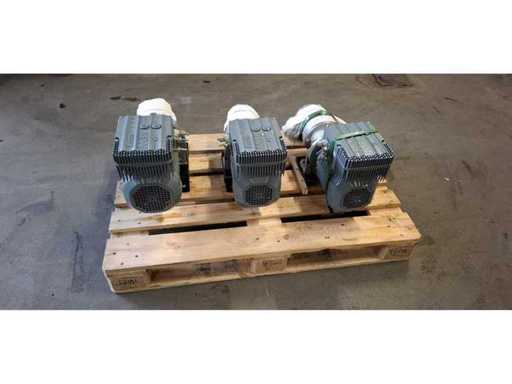

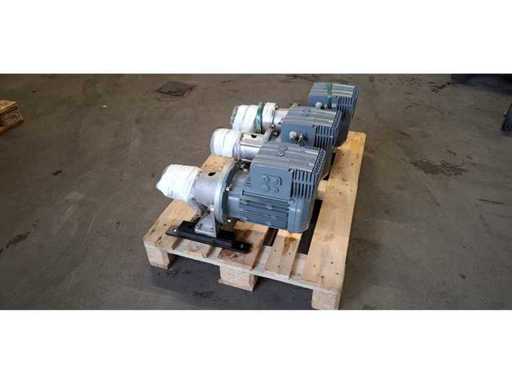

3x electric motor with corresponding hydraulic pump (different type) (3x)
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 3
- Margin
- No
Description
Pump 3

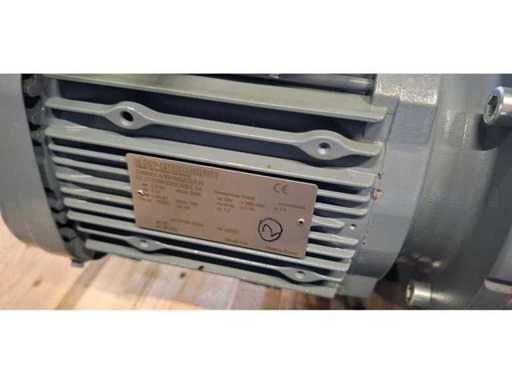

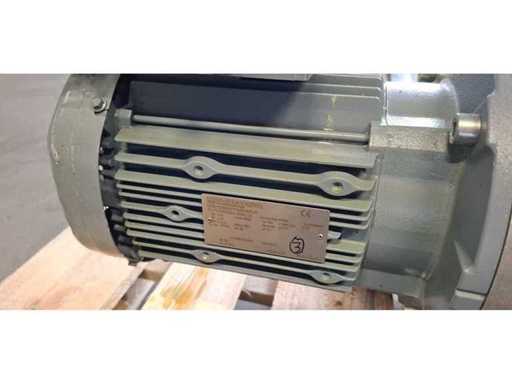

● Motor: DRE100M4EE IMM30/LN is a specific configuration of a
SEW-EURODRIVE drive, consisting of an energy-efficient three-phase motor with
an integrated frequency converter (MOVIMOT)® and a low-noise option.
● Engine performance (DRE100M4EE)
Power: Rated approx. 2.2 kW to 3.0 kW.
Speed: Approx. 1400–1500 RPM (at 50 Hz, 4-pole). With the controller, this is variable
often in a range of 280 to 2900 RPM.
Efficiency: IE2 (High Efficiency).
Configuration: 4-pole version (M4).
Build size: 100M (medium shaft length).
● Pump: QXV32-010R179 is a type designation for a hydraulic
Inner cogwheel pump from the brand Bucher Hydraulics.
The specifications of this pump are as follows:
Series (QXV): Specially designed for low viscosity fluids, such as
kerosene, diesel, brake fluid or gas turbine fuel.
Size (32): Frame size 3, print area 2.
Displacement (-010): A displacement of 10.0 cm³/rev.
Direction of rotation (R): clockwise
Pump 1

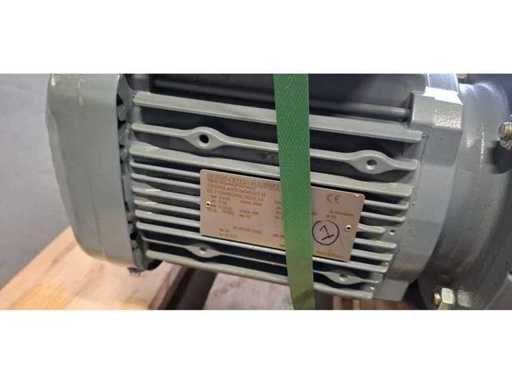

● Motor: SEW-Eurodrive Model: DRE90L4/FT/MM22/LN
● Power: 2.2 kW
Motor Speed: 2900 r/min

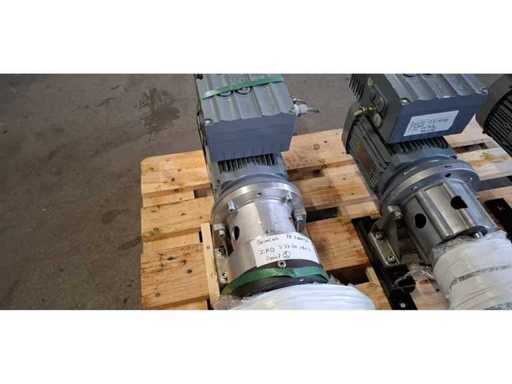

● Pump: Beinlich 10000516 with type designation PE ZPD 3-37.40 KIH-L
● Beinlich ZPD 3-37.40-KIH-L-FCV/TAMAG130-G dosing pump.
Article number: PE 10000516
Serial Number: 14/02104-01.1
Rotation direction: CCW (counterclockwise)
● Designed for high precision and low pulsation
Suitable for both low and high viscosity liquids by using
Different tolerance classes
● Series (ZPD 3): A robust series of externally serrated gear pumps for medium to high
volumes.
Capacity: 37.40 cc/rev.
Remarks
Pump 2
? SEW-EURODRIVE 90L4 FF MM22 (often referred to as DRN90L4 or DT90L4) is a
DR series electric motor, equipped with an integrated frequency converter
(MOVIMOT).
? Model: DRE90L4/FT/MM22/LN
? Power: 1.5 kW (2 HP)
? Voltage: 380-500 V
? Speed: Rated approx. 1400–1450 RPM (at 50 Hz), but adjustable between 290 and
2900 RPM via the MOVIMOT control.
? Design: The designation FF stands for a flange version with continuous holes
(similar to IEC flange B5).
? Number of poles: 4-pole (indicated by the "4" in 90L4).
? Voltage: 3-phase AC 380V - 500V (50/60 Hz).
? Integrated control: The MM22 module on top of the terminal box replaces a
External frequency converter in the control cabinet, which saves cabling.

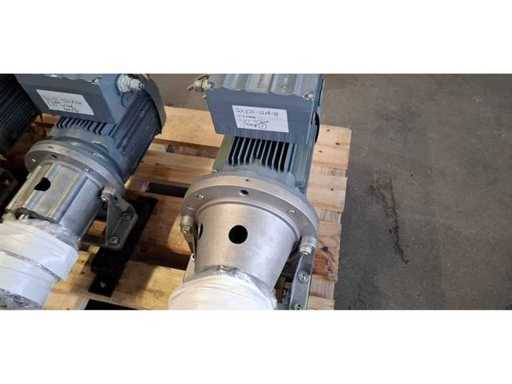

? Pump: QXV32-010R179 is a type designation for a hydraulic
Inner cogwheel pump from the brand Bucher Hydraulics.
The specifications of this pump are as follows:
Series (QXV): Specially designed for low viscosity fluids, such as
kerosene, diesel, brake fluid or gas turbine fuel.
Size (32): Frame size 3, print area 2.
Displacement (-010): A displacement of 10.0 cm³/rev.
Direction of rotation (R): clockwise
