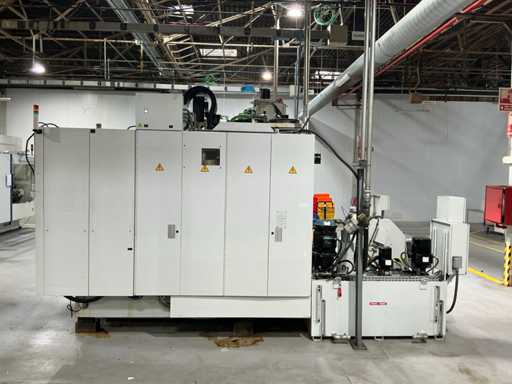

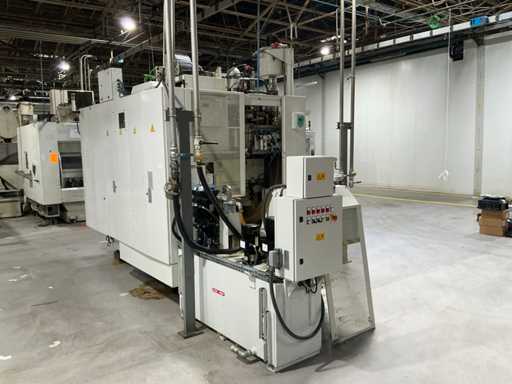

5-axis vertical machining center SW BA S 03-12
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- SW
- Type
- BA S 03-12
- Year of build
- 2002
- Serial number
- Centro de mecanizado vertical de 5 ejes SW BA S 03-12
- Taper iso
- HSK 63
- Travel x-axis
- 600mm
- Travel y-axis
- 400mm
- Travel z-axis
- 400mm
- Total dimension Height
- 3100mm
- Total dimension W
- 2750mm
- Total dimension L
- 3650mm
- Machine weight
- 7300kg
- Terms of delivery
- Loaded on truck
Description

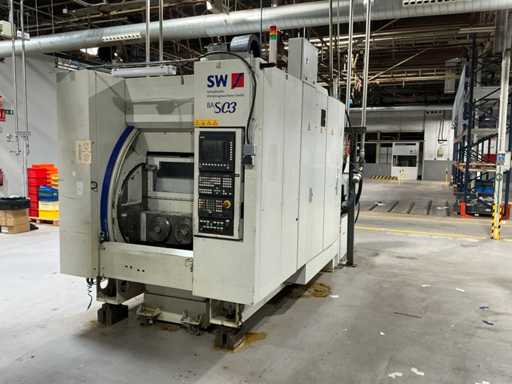

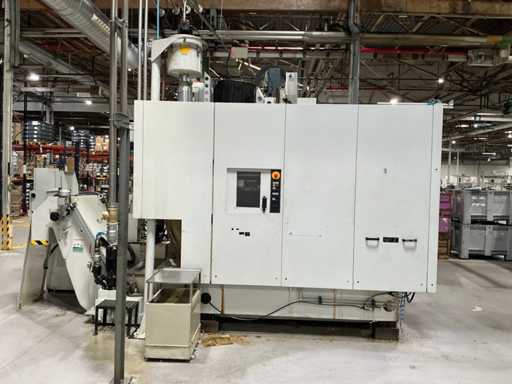

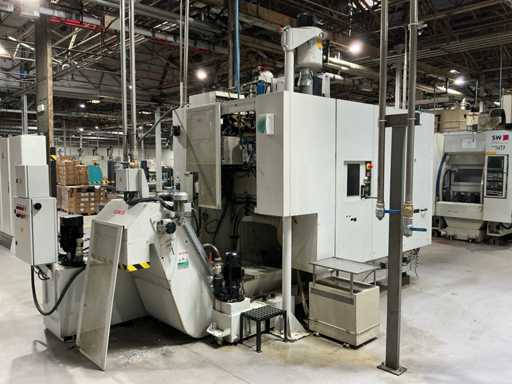

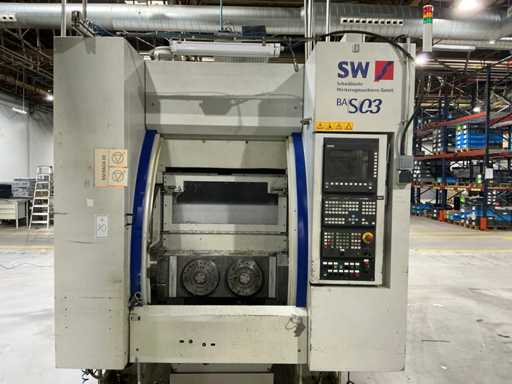

CNC machining center sw ba s 03-12
Type: Vertical machining center (3+2 axes)

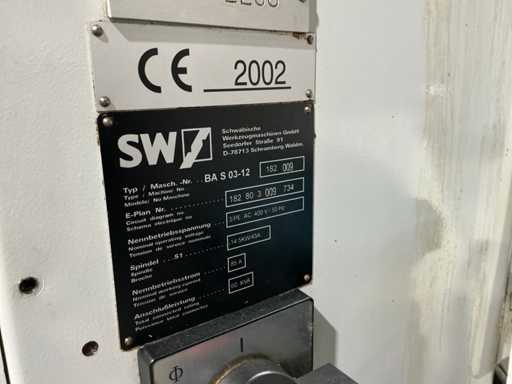

Manufacturer: Schwäbische Werkzeugmaschinen GmbH (SW), Germany
Year of manufacture: 2002
Number of spindles: 1
Spindle speed: 1–17,500 rpm
Spindle power: 15.5 kW
Torque: 60 Nm
Spindle lubrication: Lubrication with minimal amount of oil
Spindle taper: HSK 63
Axle Travels (X/Y/Z): 600 / 400 / 400 mm
Fast feeds: 1–75,000 mm/min

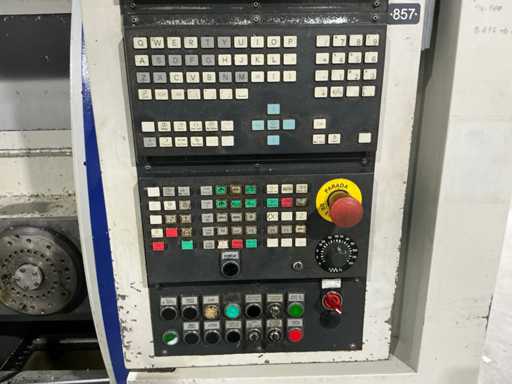

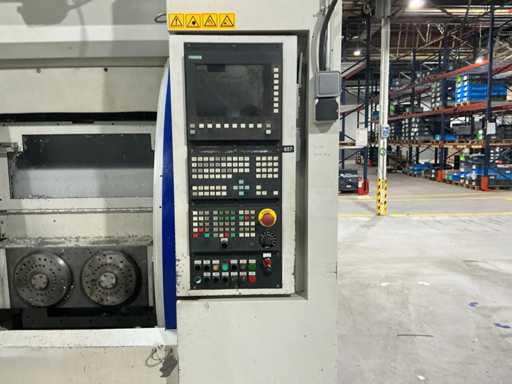

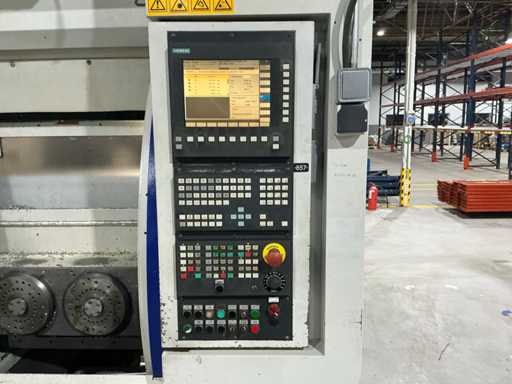

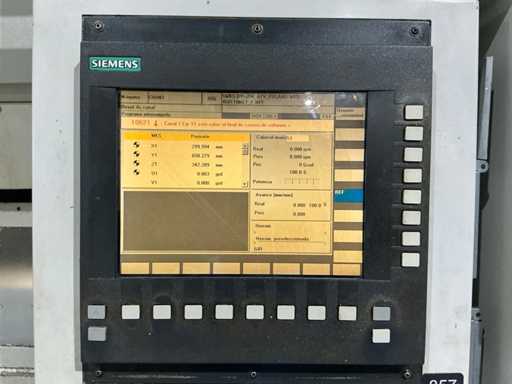

CNC Control: Siemens 840D

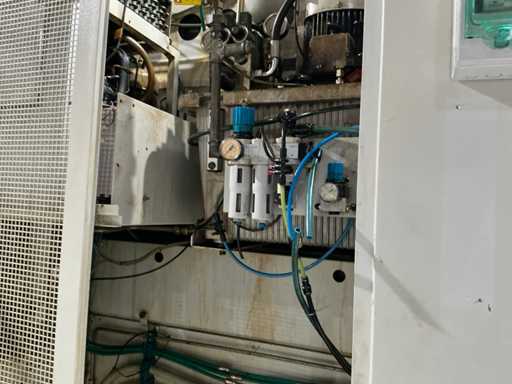

Pneumatic pressure: 6 bar
Installed electrical power: 70 kVA
Dimensions (L x W x H): 3.65 x 2.75 x 3.10 m
Untested functionality
Remarks
External elements not included
Additional details
Attention!
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Norbert Munyamasoko
Email: n.munyamasoko@tbauctions.com
Pick-up is only possible on the following dates and by appointment with the Surplex logistics department: from 09.02.2026 to 13.02.2026
