Almax - Wire Straightening and Cutting Line

Technical details
Manufacturer: ALMAR
Model: GAL-002 (model designation appears from nameplate)
Type: Rail-mounted wire feeding and positioning machine
Configuration:

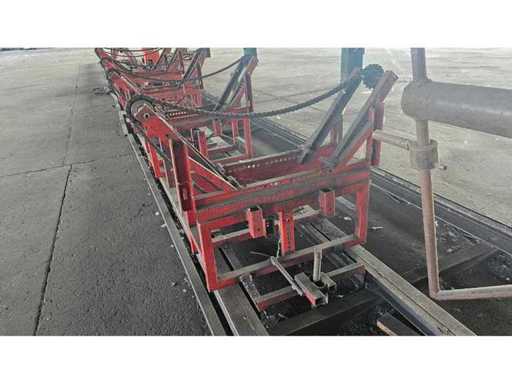

- Motorized positioning carriage
- Rack-and-pinion rail drive system
- Linear guide rails
- Wire feeding rollers
- Guide roller assemblies
- Multiple articulated support arms
- Wire support and positioning cradles
- Wire coil pay-off station
- Electrical control cabinet
- Automated wire transport system
Application:
- Wire mesh production
- Cross-wire feeding and positioning
- Reinforcement mesh manufacturing
- Automated wire handling
- Wire transport to welding stations
- Industrial mesh production systems
Function:
- Automatic wire positioning
- Controlled wire feeding
- Rail-guided transport of wire handling assemblies
- Integration with mesh welding production lines
Construction:
- Heavy-duty welded steel structure
- Rack-and-pinion positioning system
- Modern electromechanical automation
- Industrial production-line equipment
Dimensions:
- Length: Approx. 15000 mm
- Width: Approx. 2500 mm
- Height: Approx. 2200 mm
Weight: Approx. 4500 kg
Condition: Used
Observed condition:

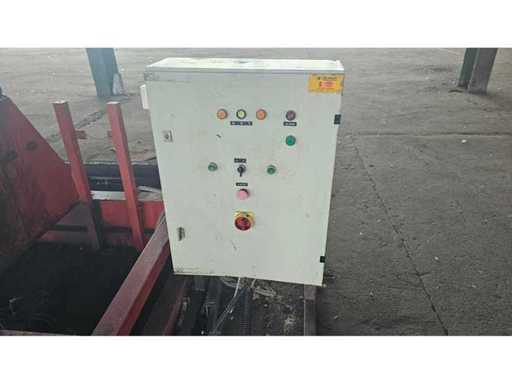

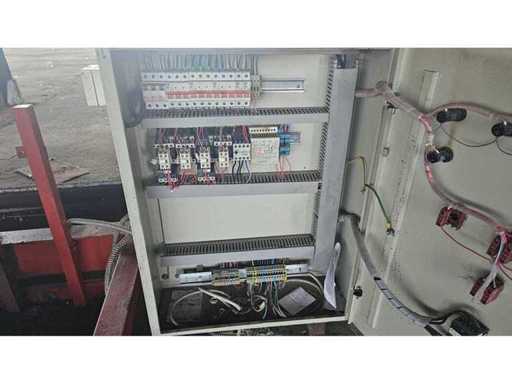

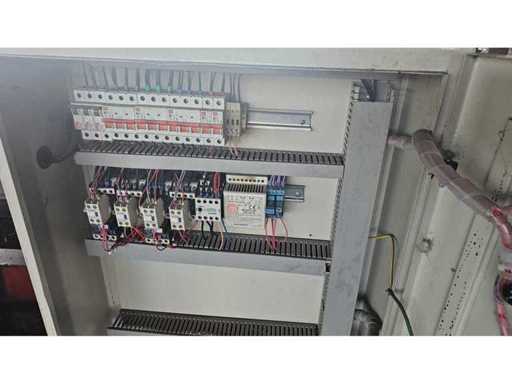

- Control cabinet present

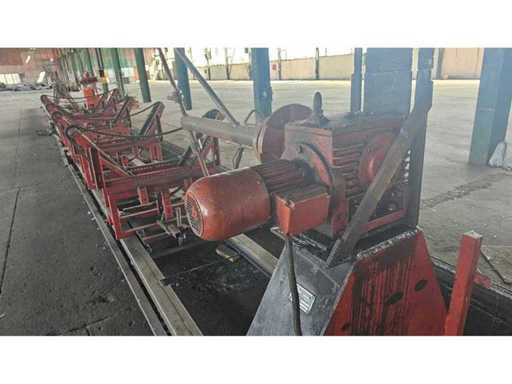

- Motors installed
- Feed heads and guide rollers present
- Rail system intact
- Machine appears substantially complete
- Dust accumulation visible

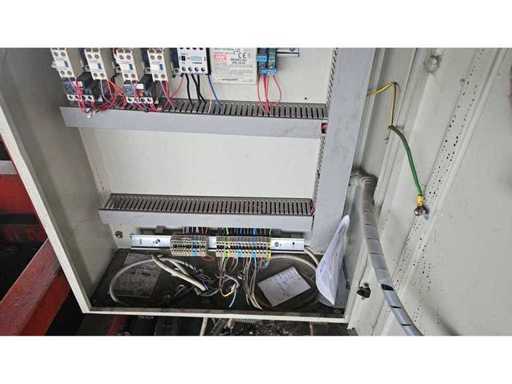

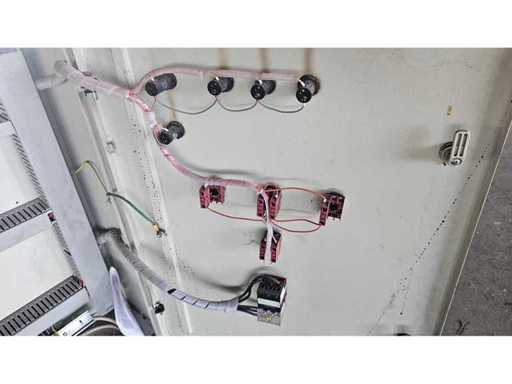

- Some exposed wiring visible
- No obvious structural damage observed
- Operational status unknown
