AXA VHC 3-XTS CNC 5-axis machining center
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- AXA
- Type
- VHC 3-XTS
- Year of build
- 2012
- Serial number
- 87308
- Travel x-axis
- 2600mm
- Travel y-axis
- 900mm
- Travel z-axis
- 600mm
- Taper iso
- SK 40
- Taper
- SK 40
- Number of speeds
- 1
- Speed from n=
- 0rpm
- Speed till n=
- 12000rpm
- T-slot fixture table size L
- 2000mm
- T-slot fixture table size W
- 800mm
- CNC control, brand, type
- Heidenhain TNC 530 Heros 5

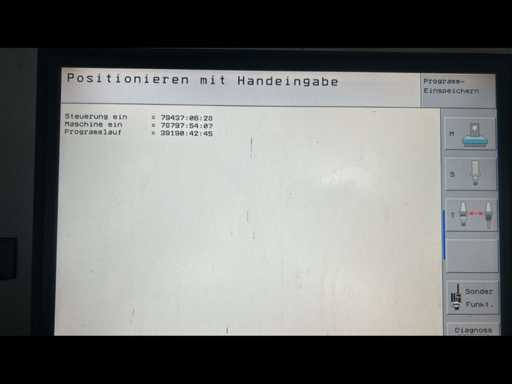

- Hours on display
- 39190
- Electric connection
- 400V
- Machine weight
- 26000kg
- Dimension l
- 6000mm
- Dimension w
- 4100mm
- Dimension h
- 3500mm
- HS Code
- 84571090
- Terms of delivery
- Ex foundation-unpackaged
Description

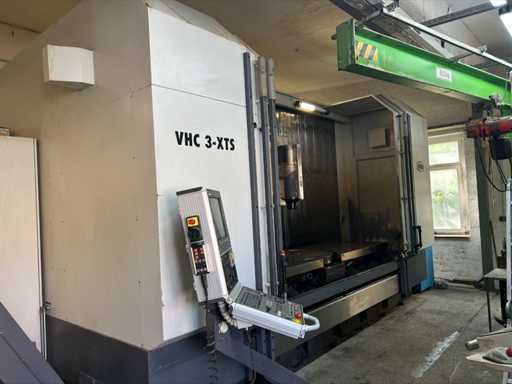

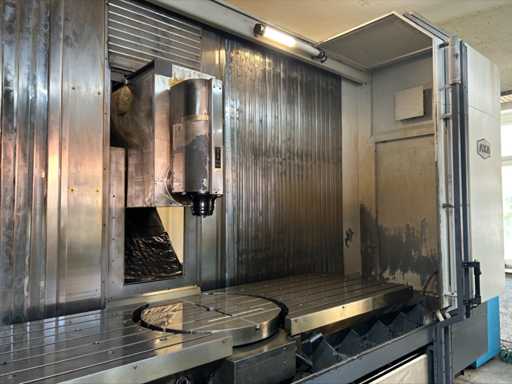

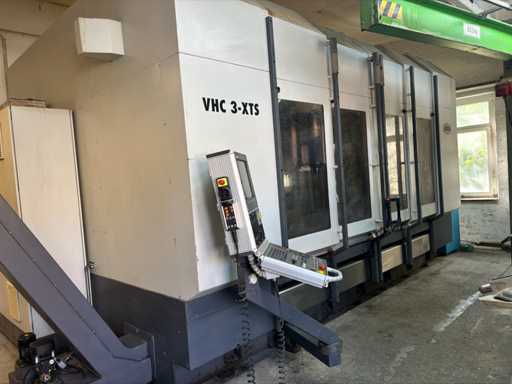

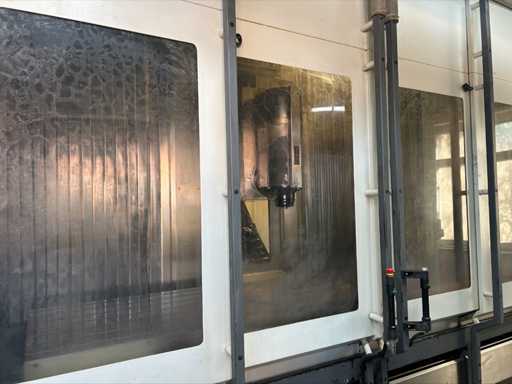

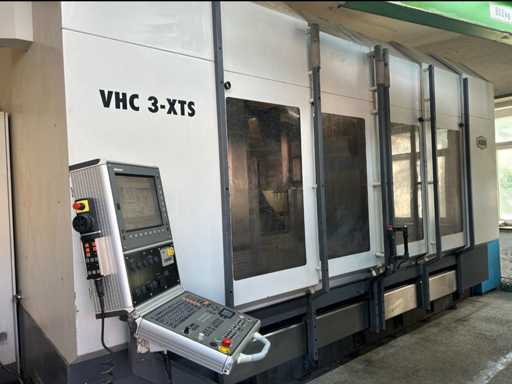

AXA VHC 3-XTS – 5-axis CNC machining center

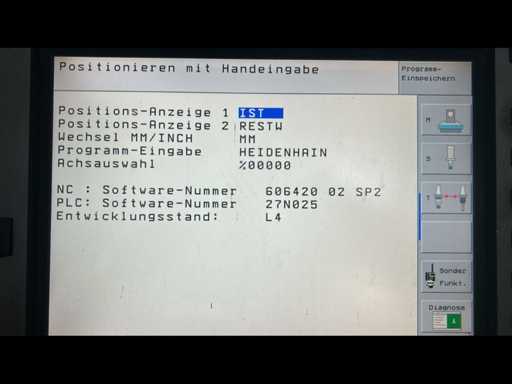

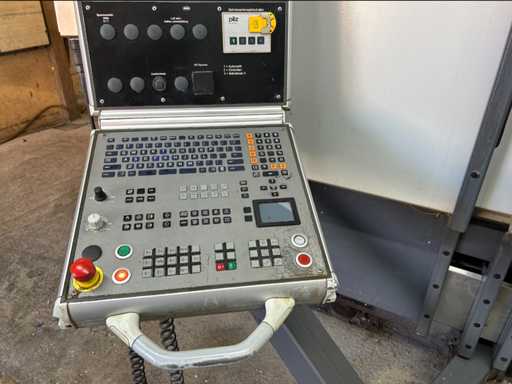

Heidenhain TNC 530 Heros 5 Control – NC Rotary Table RTA 4L-800
Specifications:
• Year of manufacture: 2012
• Control runtime: approx. 79,500 hours

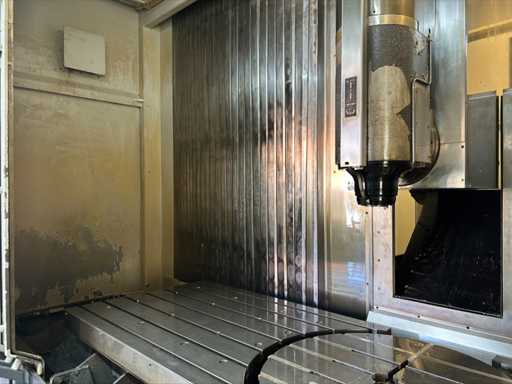

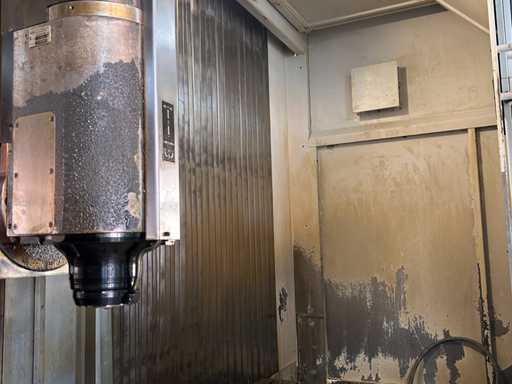

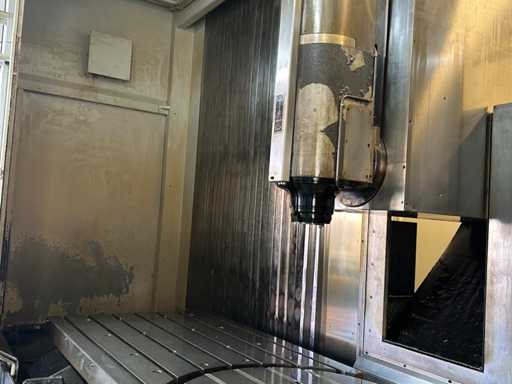

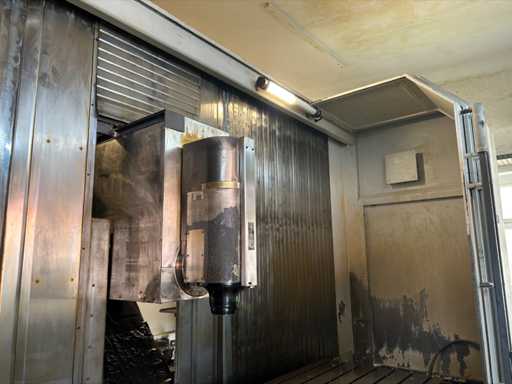

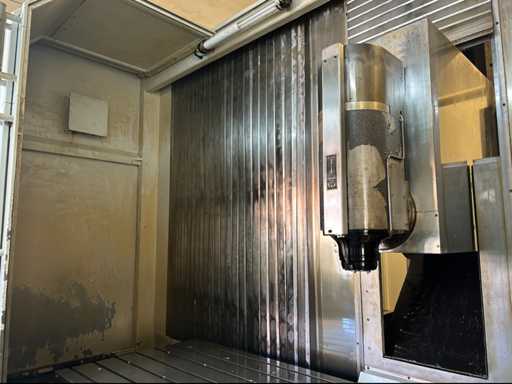

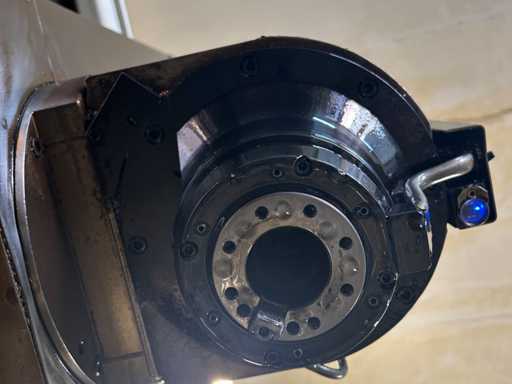

• Spindle mount: SK 40
• Max. spindle speed: 12,000 1/min (increased in the course of an overhaul)
• Positioning accuracy: ±0.0075 mm
• Repeatability: ±0.005 mm
• Operating mode: Release for operating mode 3
• Direct measuring system: integrated
Travel:
• X-axis: 2,600 mm
• Y-axis: 900 mm
• Z-axis: 900 mm
Rotary axes:
• C-axis: 360°
• B-axis: ±100° swivel range
Dimensions:
• External dimensions (L × W × H): 6,000 × 4,100 × 3,500 mm
• Estimated space requirement: approx. 10,000 × 5,000 × 3,500 mm
• Machine weight: approx. 26,000 kg
Equipment included:

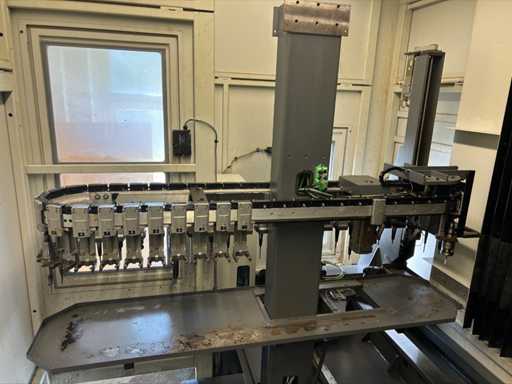

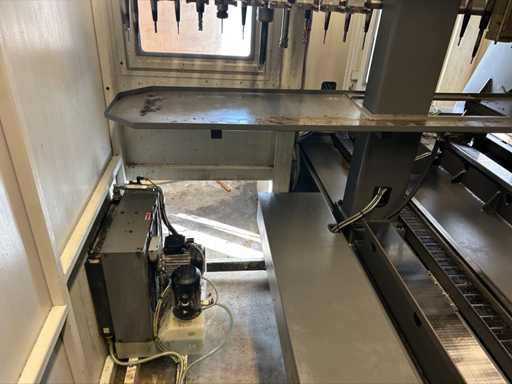

• 40-fold tool changer (chain cabinet)

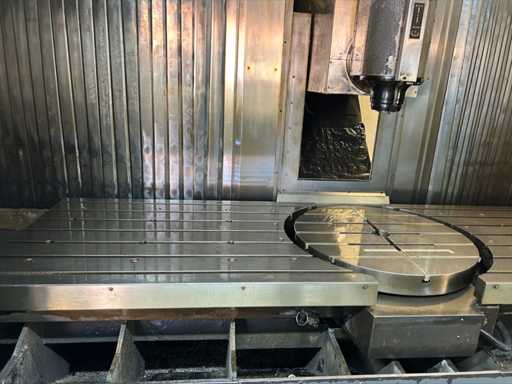

• NC rotary table RTA 4L-800

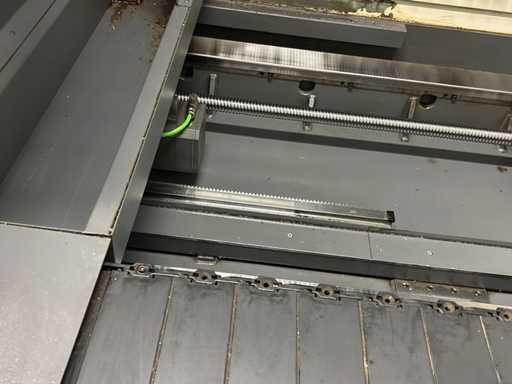

• Hinged belt chip conveyor
• 2 hand dishwashing
guns • Electric handwheel
• Renishaw OMP40 3D probe incl. receiver
Maintenance & Documentation:v • 2018: Overhaul of the tool spindle & installation of a new spindle drive motor
• 2020: Further overhaul of the tool spindle

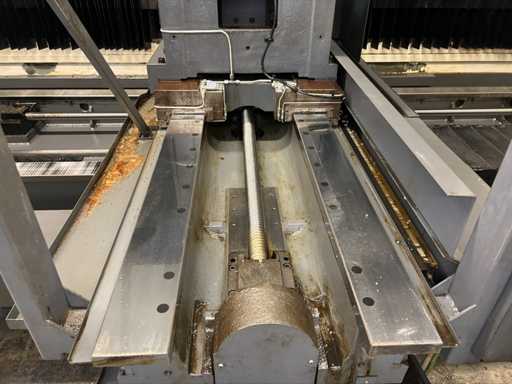

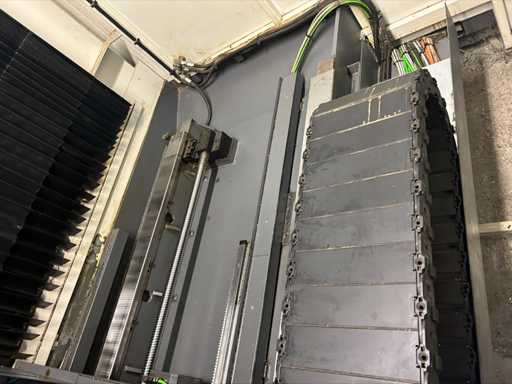

• 2023: Renewal of the Z-axis
ball screw (KGT) • 2024: Execution of a complete geometry survey
Documentation:
• Full service reports from 2018 to 2024 available
• EC declaration of conformity with CE marking is available
Contact:
Kristina Kreimer / Auction Agent
k.kreimer@tbauctions.com
Heidenhain TNC 530 Heros 5 Control – NC Rotary Table RTA 4L-800
Specifications:
• Year of manufacture: 2012
• Control runtime: approx. 79,500 hours
• Spindle mount: SK 40
• Max. spindle speed: 12,000 1/min (increased in the course of an overhaul)
• Positioning accuracy: ±0.0075 mm
• Repeatability: ±0.005 mm
• Operating mode: Release for operating mode 3
• Direct measuring system: integrated
Travel:
• X-axis: 2,600 mm
• Y-axis: 900 mm
• Z-axis: 900 mm
Rotary axes:
• C-axis: 360°
• B-axis: ±100° swivel range
Dimensions:
• External dimensions (L × W × H): 6,000 × 4,100 × 3,500 mm
• Estimated space requirement: approx. 10,000 × 5,000 × 3,500 mm
• Machine weight: approx. 26,000 kg
Equipment included:
• 40-fold tool changer (chain cabinet)
• NC rotary table RTA 4L-800
• Hinged belt chip conveyor
• 2 hand dishwashing
guns • Electric handwheel
• Renishaw OMP40 3D probe incl. receiver
Maintenance & Documentation:v • 2018: Overhaul of the tool spindle & installation of a new spindle drive motor
• 2020: Further overhaul of the tool spindle
• 2023: Renewal of the Z-axis
ball screw (KGT) • 2024: Execution of a complete geometry survey
Documentation:
• Full service reports from 2018 to 2024 available
• EC declaration of conformity with CE marking is available
Contact:
Kristina Kreimer / Auction Agent
k.kreimer@tbauctions.com
Remarks
The machine was used exclusively in model and mould making and is therefore ideal for precise and complex applications – without any heavy machining.

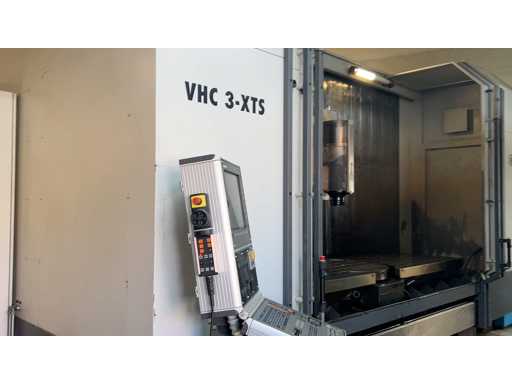

Video
