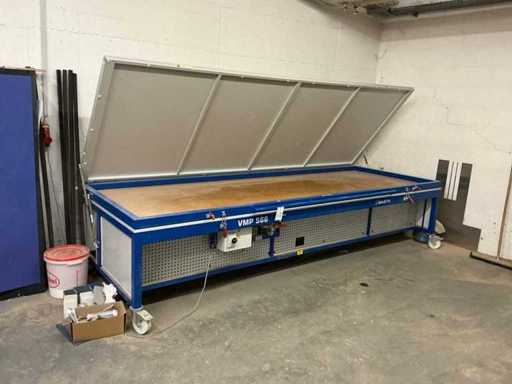

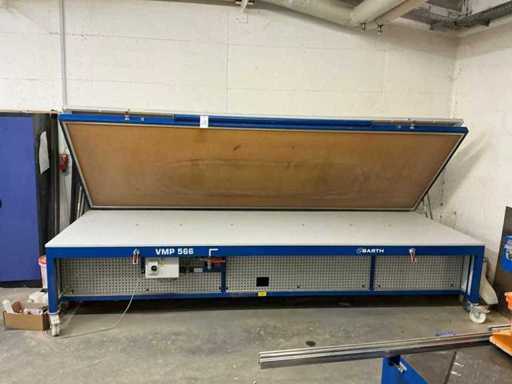

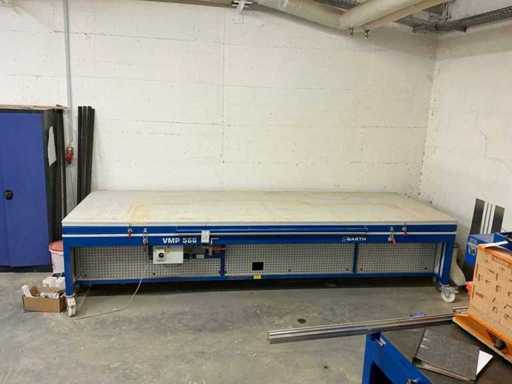

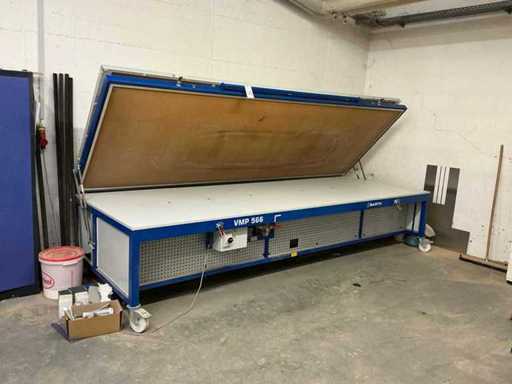

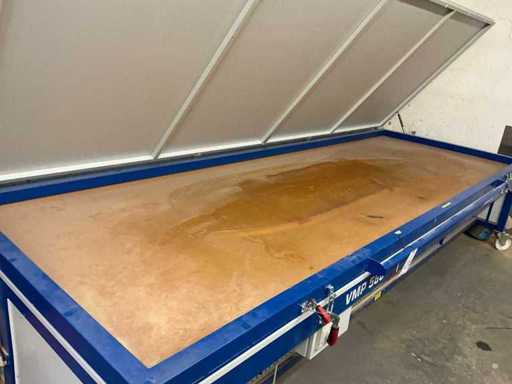

BARTH VMP 566 Vacuum Diaphragm Press (2012)
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BARTH
- Type
- VMP 566
- Year of build
- 2012

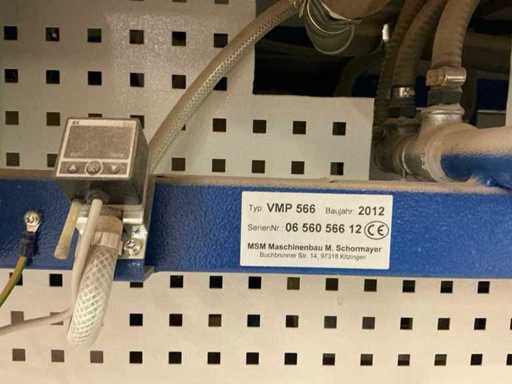

- Serial number
- 0656056612
- Electric connection
- 400V
- Manual present
- Yes
- Machine weight
- 450kg
- Dimension l
- 4200mm
- Dimension w
- 1480mm
- Dimension h
- 1000mm
- Terms of delivery
- Loaded on truck
Description

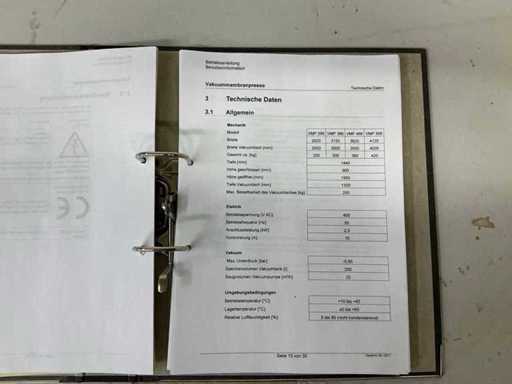

Technical data
Model: VMP 566Machine width: 4120 mm

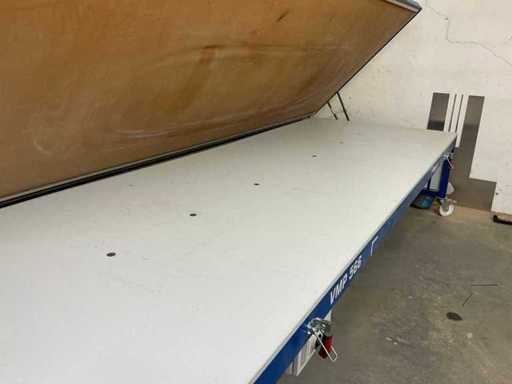

Width vacuum table: 4000 mm
Machine weight: approx. 420 kg
Machine depth: 1440 mm
Height closed: 900 mm
Height open: 1900 mm
Vacuum table depth: 1300 mm
Max. load capacity vacuum table: 200 kg
Electrics
Operating voltage: 400 VFrequency: 50 Hz
Connected load: 4.0 kW
Fuse: 16 A

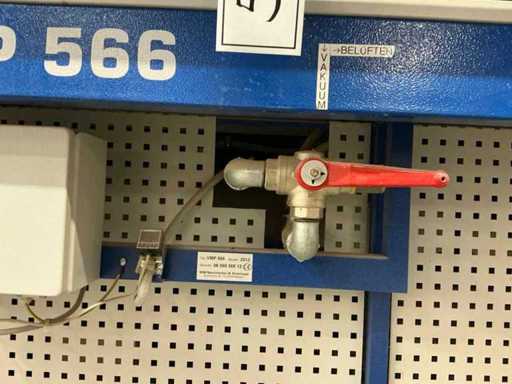

Vacuum
Max. vacuum: -0.95 barStorage volume vacuum tank: 25 l
Suction volume vacuum pump: 25 m³/h
Environmental conditions
Operating temperature: +10 to +45 °CStorage temperature: -10 to +55 °C
Relative humidity: 5-80% (non-condensing)
Remarks
Unaudited
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing days: 03.03.2026 between 10:00 a.m. and 3:00 p.m.
A viewing is only possible after prior registration at p.schulze@tbauctions.com.
Pick-up days: 20 - 24.04.2026 08:00 - 16:00 & 27 - 30/04 08:00 am - 04:00 pm
Pick-up is by arrangement.
