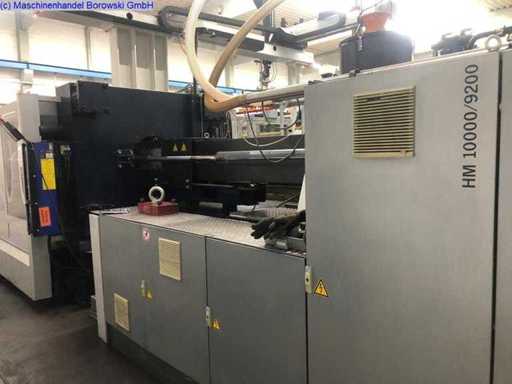

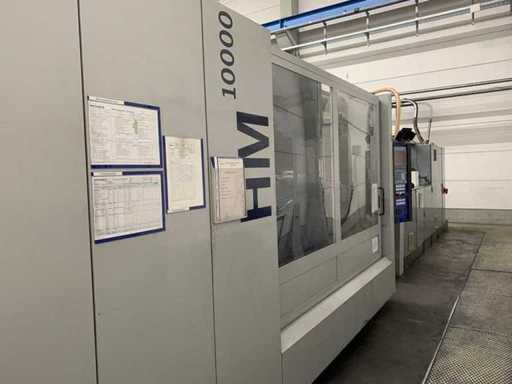

BATTENFELD - HM 10000-9200 UNILOG B4 - 2003 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BATTENFELD
- Type
- HM 10000-9200 UNILOG B4
- Year of build
- 2003
- Screw diameter
- 120mm
- Injection volume
- 5655cm³
- Injection pressure
- 1632bar
- Closing force
- 10000kN

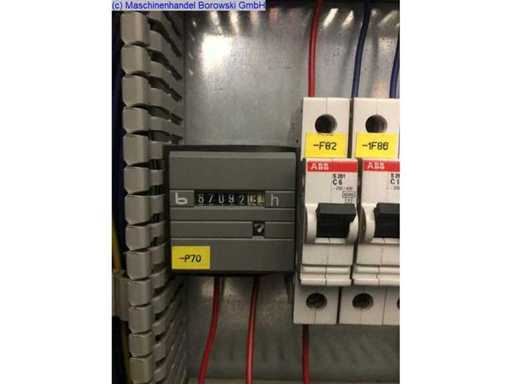

- Hours on display
- 67092
- Machine weight
- 76500kg
- Total dimension L
- 11600mm
- Total dimension W
- 2900mm
- Total dimension Height
- 2500mm
- Terms of delivery
- Free on truck
Description
Viewing is desired!
We ask you to coordinate your collection with us separately in advance, as necessary steps must be prepared for the collection of the machine.
Technical data closing page
Clamping force: 10000 kN
Wooden dimensions h x v: 1120 x 1400 mm
Panel size h x v: 1960 x 1690 mm
Min. installation height: 550 mm
Max. installation height: 1020 mm
Plate spacing max.: 2120 mm
Opening travel: 1100 mm
Ejector stroke: 300 mm
Ejector force: 118 kN
Centering of movable plate D: 250 mm
Centering fixed plate D: 315 mm

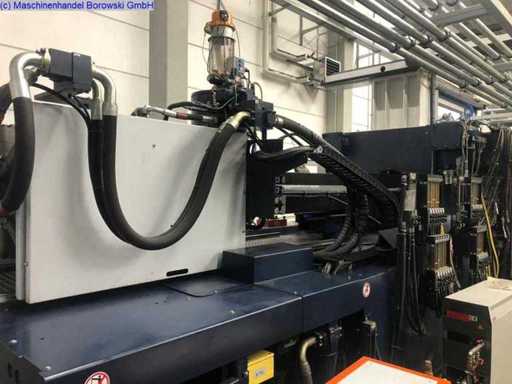

Technical Data Spray Side
Screw diameter: 120 mm
Displacement: 5655 cc
Spray pressure: 1632 bar
Screw length: 22 l/d
Screw stroke: 500 mm
Screw speed: 130 min
Worm torque: 11370 N
Plasticizing Current: 144 g/s PS
Outdoor injection flow: 1144 g/s hp
Number of heating zones: 8
Nozzle travel: 700 mm
Dimensions & Weight
Machine dimensions LxWxH: 11.6m x 2.9m x 2.5m
Gross vehicle weight: 76500 KG
Equipment
Screen text German
Compact Flash Drive
Core pull hydraulic 4x
Levelling elements
Interface EUROMAP 12
Interface for temperature control unit
enlarged oil cooler
Tool heater 16x
Remarks
Function-tested - comes from ongoing production.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
