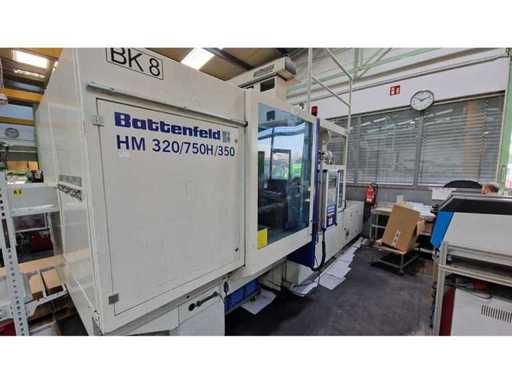

BATTENFELD - HM 320/750H/350S - 2006 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BATTENFELD
- Type
- HM 320/750H/350S
- Year of build
- 2006
- Screw diameter
- 45-35mm
- Injection volume
- 358-169cm³
- Injection pressure
- 2116-2083bar
- Closing force
- 3200kN
- Machine weight
- 18000kg
- Total dimension L
- 6500mm
- Total dimension W
- 1950mm
- Total dimension Height
- 2200mm
- HS Code
- 84771000
- Terms of delivery
- Free on truck
Description
Clamping unit: 320 HM 2K
Clamping force : 3200 kN
Lights spar spacing: H 800 x V 630 mm
Tool installation height min. : 350 mm
Injection unit: 750 H -Horizontal-
Auger blade: 45 mm
Specific spray pressure : 2116 bar
Calculated displacement : 358 cm*
Injection unit: 350 S -Vertical-
Auger blade: 35 mm
Specific spray pressure : 2083 bar
Calculated displacement : 169 cm

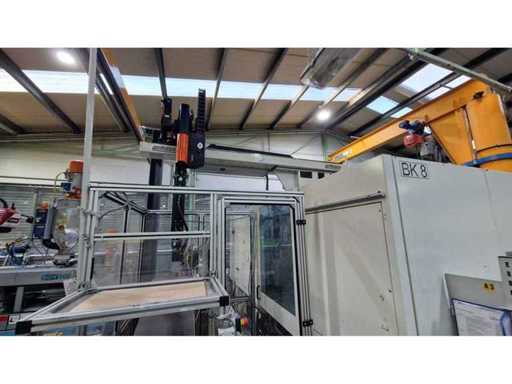

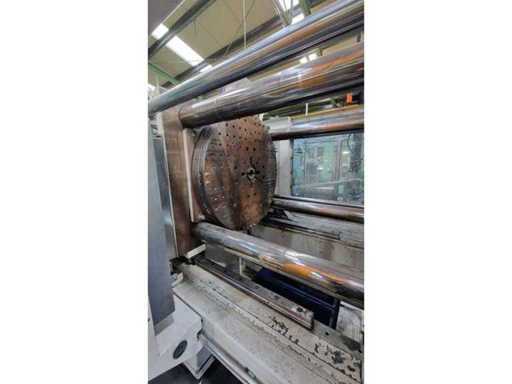

Including turntable and Wittmann robot!
Viewing is desired!
Clamping force : 3200 kN
Lights spar spacing: H 800 x V 630 mm
Tool installation height min. : 350 mm
Injection unit: 750 H -Horizontal-
Auger blade: 45 mm
Specific spray pressure : 2116 bar
Calculated displacement : 358 cm*
Injection unit: 350 S -Vertical-
Auger blade: 35 mm
Specific spray pressure : 2083 bar
Calculated displacement : 169 cm
Including turntable and Wittmann robot!
Viewing is desired!
Remarks
The machine comes from ongoing production and can be viewed at the NRW site until the end of February.
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

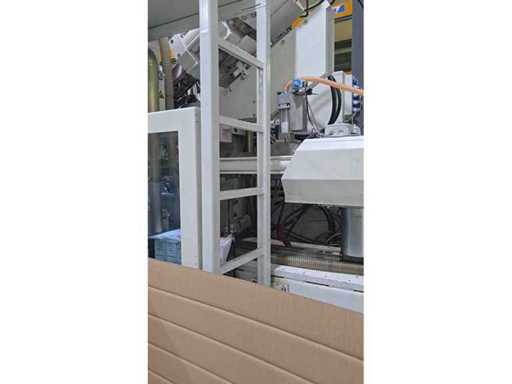

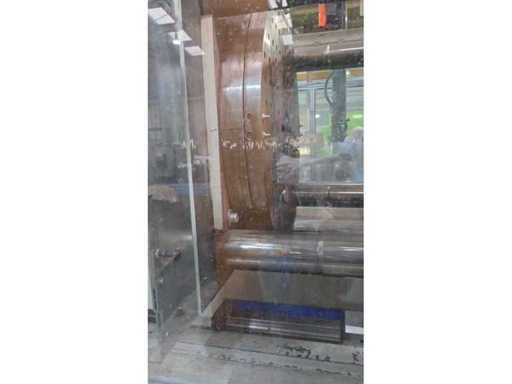

Video
