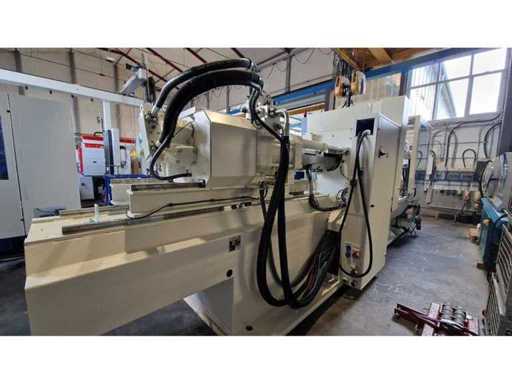

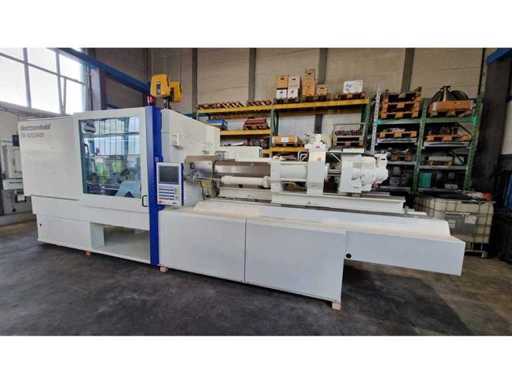

BATTENFELD - TM 400-3400 UNILOG B6S - 2008 - Injection moulding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BATTENFELD
- Type
- TM 400-3400 UNILOG B6S
- Year of build
- 2008
- Screw diameter
- 75mm
- Injection volume
- 1657cm³
- Injection pressure
- 2022bar
- Closing force
- 4000kN
- Machine weight
- 16400kg
- Total dimension L
- 7200mm
- Total dimension W
- 1750mm
- Total dimension Height
- 2420mm
- Terms of delivery
- Free on truck
Description
Technical data closing page
Clamping force: 4000 kN
Wooden dimensions h x v: 710 x 710 mm
Panel size h x v: 1010 x 1010 mm
Min. installation height: 300 mm
Max. installation height: 710 mm
Plate spacing max.: 1380 mm
Opening travel: 670 mm
Ejector stroke: 200 mm
Ejector force: 59 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Technical Data Spray Side
Screw diameter: 75 mm
Displacement: 1657 cc
Spray pressure: 2022 bar
Screw length: 22 l/d
Screw stroke: 375 mm
Screw speed: 178 min
Worm torque: 3759 N
Plasticizing current: 67 g/s PS
Outdoor injection flow: 346 g/s hp
Nozzle travel: 600 mm
Dimensions & Weight
Machine dimensions LxWxH: 7.2m x 1.75m x 2.42m
Total Weight: 16400KG
Equipment

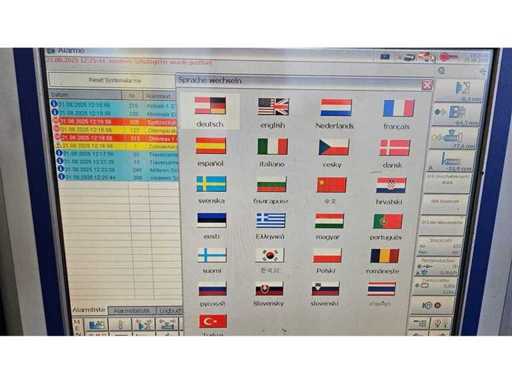

On-Screen Text Multi-Language
CEE socket 16A

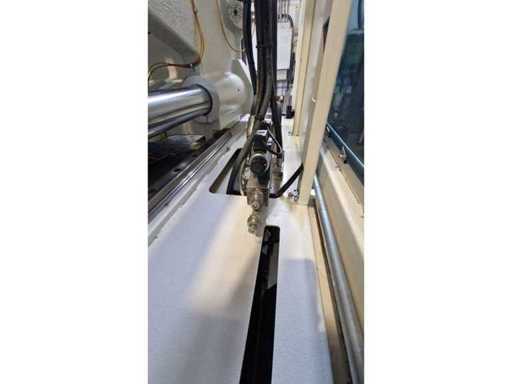

Core pull hydraulic 1x
Air valve 1x
Levelling elements
EUROMAP 67 Handling
Interface Interface USB
Schuko socket 16A
Viewing is desired!
Clamping force: 4000 kN
Wooden dimensions h x v: 710 x 710 mm
Panel size h x v: 1010 x 1010 mm
Min. installation height: 300 mm
Max. installation height: 710 mm
Plate spacing max.: 1380 mm
Opening travel: 670 mm
Ejector stroke: 200 mm
Ejector force: 59 kN
Centering of movable plate D: 160 mm
Centering fixed plate D: 160 mm
Technical Data Spray Side
Screw diameter: 75 mm
Displacement: 1657 cc
Spray pressure: 2022 bar
Screw length: 22 l/d
Screw stroke: 375 mm
Screw speed: 178 min
Worm torque: 3759 N
Plasticizing current: 67 g/s PS
Outdoor injection flow: 346 g/s hp
Nozzle travel: 600 mm
Dimensions & Weight
Machine dimensions LxWxH: 7.2m x 1.75m x 2.42m
Total Weight: 16400KG
Equipment
On-Screen Text Multi-Language
CEE socket 16A
Core pull hydraulic 1x
Air valve 1x
Levelling elements
EUROMAP 67 Handling
Interface Interface USB
Schuko socket 16A
Viewing is desired!
Remarks
Function tested! Test run possible at any time!
Additional details
Loading conditions: free loading truck
Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment.
Exact pick-up information can be found on the last page of the invoice.
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

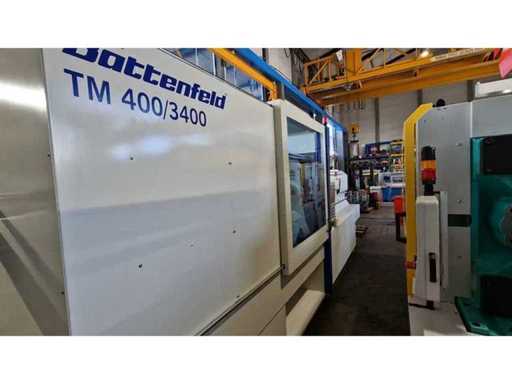

Video
See the details and take a closer look at the item in this video.
