BIESSE AKRON1440A Automatic machine for applying edgebands from rolls

Technical details

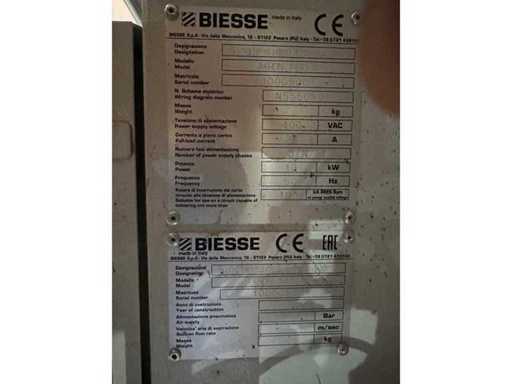

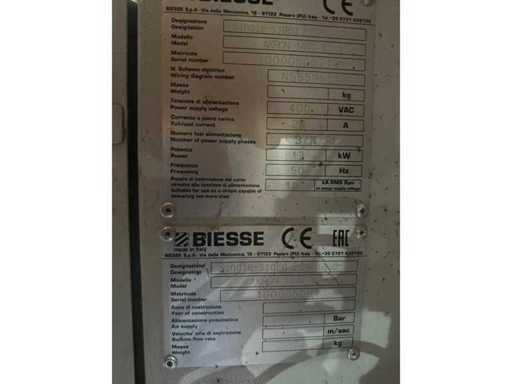

Manufacturer: Biesse
Model: Akron 1440A
Serial number: 1000050071
Type: Automatic edgebanding machine
Configuration:
- Automatic edgeband feeding from rolls and strips
- NC-controlled automatic group adjustment

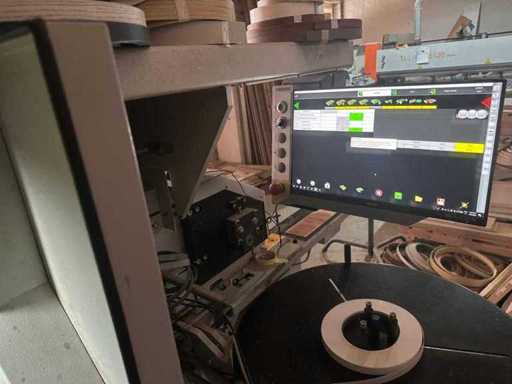

- Automatic program selection and diagnostics
- Production statistics and maintenance software
- Feed speed: 12–18 m/min
- Geared feed motor: 1.5 kW
- Panel thickness: 10–60 mm
- Edge thickness (rolls): 0.4–3 mm
- Edge thickness (strips): 0.4–12 mm
- Glue pot capacity: Approx. 2 kg
- Glue heating time: Approx. 10 min
- Working voltage: 400 V / 50 Hz / 3 Ph + N
- Control voltage: 24 V DC
Equipment:
- Antistatic spraying unit

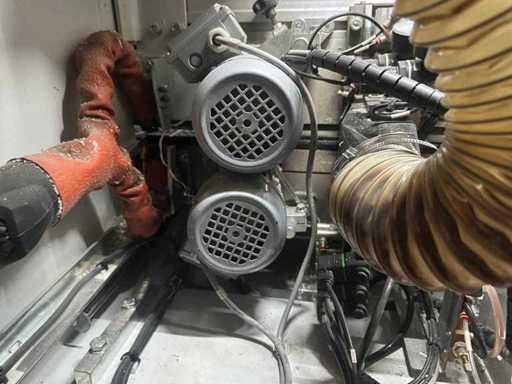

- Pre-milling unit with 2 × 1.8 kW HF motors
- Glue application and pressure unit
- End trimming unit
- Top/bottom trimming unit
- Corner rounding unit
- Radius scraping unit
- Surface scraping unit
- Textile polishing brushes
- Cleaning liquid spray unit
- Hot air blower
Application:
- Edgebanding of melamine, PVC, ABS, veneer and solid wood strips
Condition: Used
Observed condition:
- Complete automatic edgebanding line
- NC-controlled operating groups
- Operational status not independently verified
