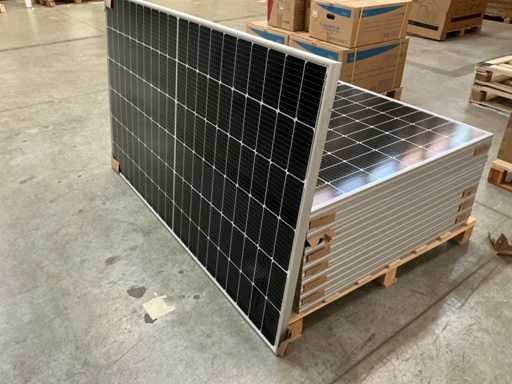

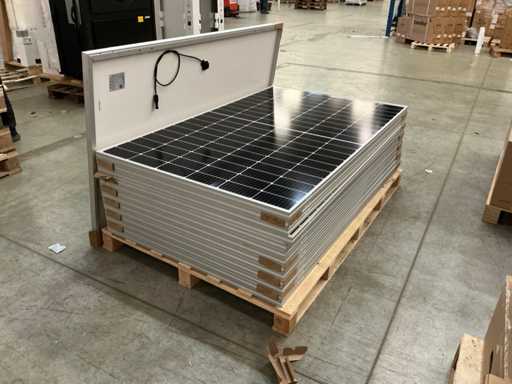

CANADIANSOLAR 380P PV Module - Mono Perc High Power (REF: 4005365) (5 PCS)

CSSL-380MS – Technical

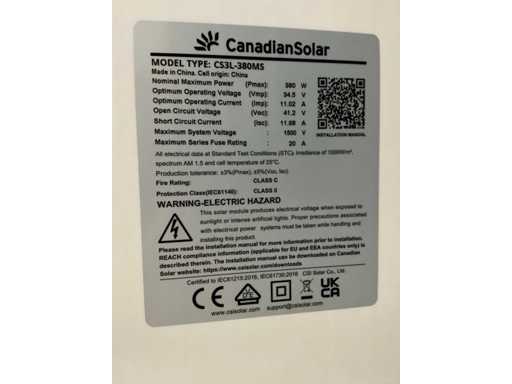

Data ELECTRICAL DATA | STC
Maximum Power Rating (Pmax): 380W
Voltage at maximum power point (Vmp): 34.5 V
Current at maximum power point (Imp): 11.02 A
Open Circuit Voltage (Voc): 41.2 V
Short-circuit current (Isc): 11.68 A
Module efficiency: 20.5 %
Operating temperature: −40°C ~ +85°C
Maximum system voltage: 1500 V (IEC/UL) – 1000 V (IEC/UL)
Reaction to fire of the module: TYPE 1 (UL 61730 1500 V); TYPE 2 (UL 61730 1000 V) or CLASS C (IEC 61730)
Maximum fuse gauge: 20 A
Application Classification: Class A
Power tolerance: 0 ~ +10 W

ELECTRICAL DATA | NMOT
Maximum Power Rating (Pmax): 284W
Voltage at maximum power point (Vmp): 32.2 V
Current at maximum power point (Imp): 8.81 A
Open Circuit Voltage (Voc): 38.8 V
Short-circuit current (Isc): 9.42 A

MECHANICAL DATA
Cell Type: Monocrystalline
Cell configuration: 120 [2 × (10 × 6)]
Dimensions: 1765 × 1048 × 40 mm
Weight: 21.1 kg
Front: 3.2mm
tempered glass Frame: Anodized

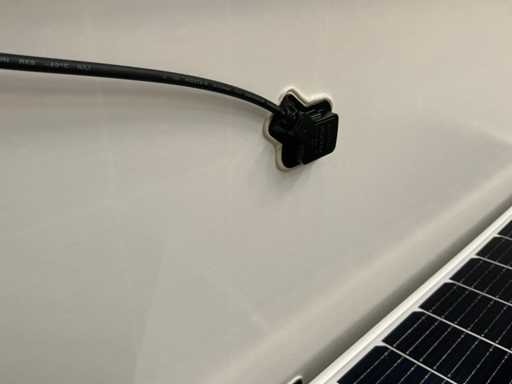

aluminum alloy Junction box: IP68, 3 bypass
diodes Cable: 4.0 mm² (IEC), 12 AWG (UL)
Cable length (with connector): vertical 400 mm (+) / 280 mm (−); horizontal 1250 mm

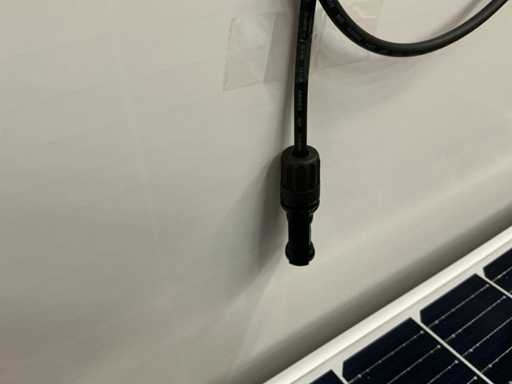

Connector: T4 or H4 UTX or MC4-EVO2
Series Per pallet: 27 units
Per container (40' HQ): 702 units

TEMPERATURE
CHARACTERISTICS Temperature coefficient (Pmax): −0.35 %/°C
Temperature coefficient (Voc): −0.27 %/°C
Temperature coefficient (Isc): +0.05 %/°C
Module rated operating temperature: 42 ± 3 °C

Single piece loading dimensions: 1750 x 1050 x 200 mm
