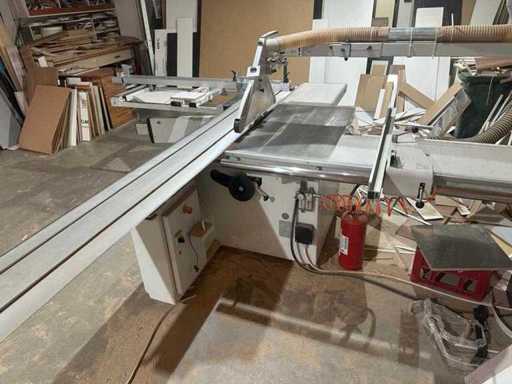

CASOLIN ASTRA SE400 Circular shaping saw with mobile table
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CASOLIN
- Year of build
- 2021
- Machine weight
- 900kg
- Total dimension Height
- 1mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical details
Manufacturer: Casolin
Model: ASTRA SE 400
Type: Sliding table panel saw
Configuration:
- Sliding aluminium table
- Reinforced steel frame with concrete filling
- Hardened steel guide bars with roller system
- Extendable crosscut fence with measuring system

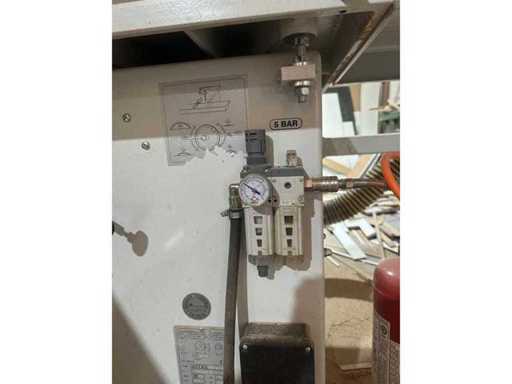

- Parallel fence with pneumatic cleaning and lubrication
- Digital blade tilt indicator
- Manual blade tilt adjustment
Table dimensions:
- Sliding table length: 3200 mm
- Table width: 360 mm
Maximum rip capacity: 1500 mm
Main saw blade:
- Diameter: 400 mm
- Bore: 30 mm
- Speed: 4000 rpm
- Tilt: 0–45°
Cutting height:
- 133 mm at 90°
- 94 mm at 45°
Scoring unit:
- Blade diameter: 120 mm
- Bore: 20 mm
- Speed: 8000 rpm
Main motor: 5.5 kW
Scoring motor: 0.55 kW
Application:
- Panel cutting
- Furniture manufacturing
- Cabinet production
- Joinery and woodworking
Weight: 900 kg
Condition: Used
Observed condition:
- Heavy-duty industrial construction
- Digital blade angle indicator installed
- Pneumatic fence cleaning and lubrication system
- Operational status not independently verified
Remarks
unchecked
