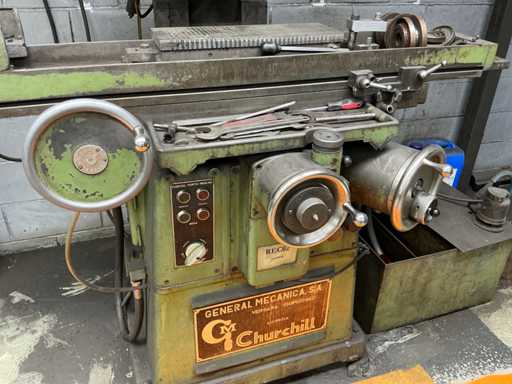

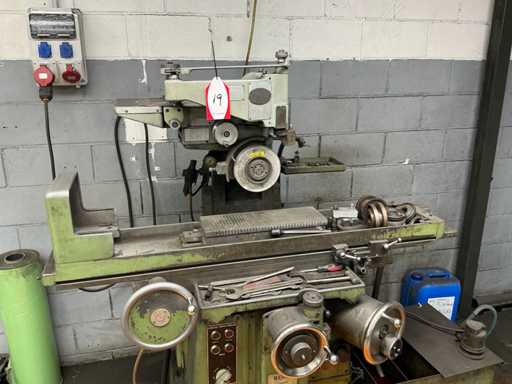

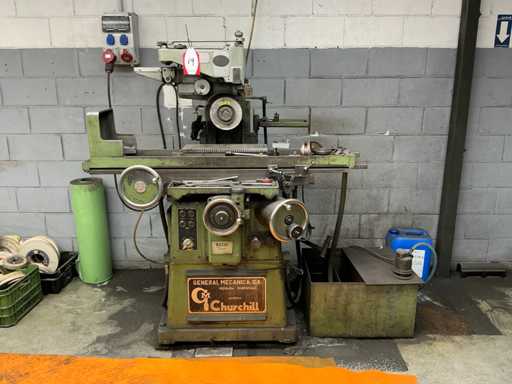

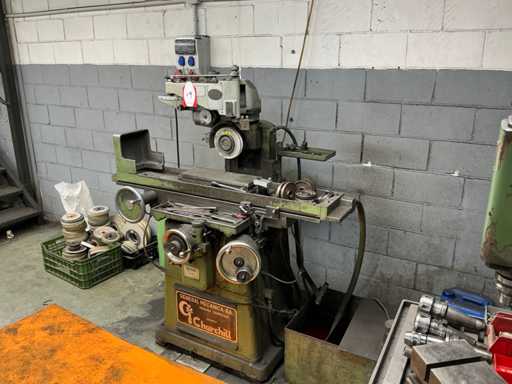

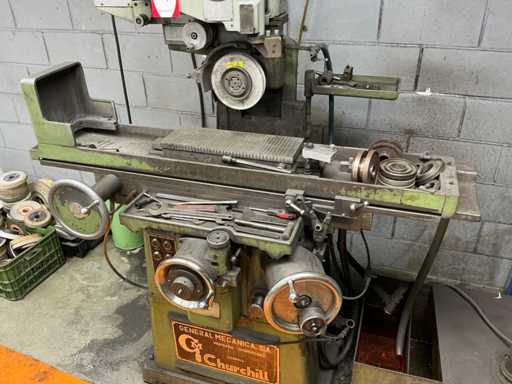

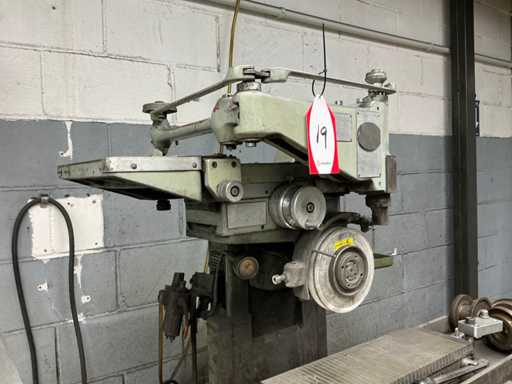

CHURCHILL - Flat grinding machine

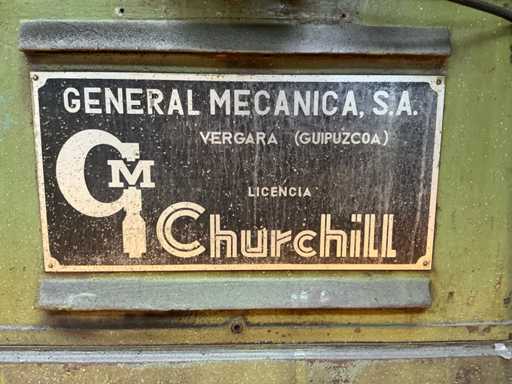

Brand: Churchill (under license General Mecánica S.A.)

Manufacturer: General Mecánica S.A. – Vergara (Guipúzcoa), Spain

Machine Type: Manual

Flat Grinding Machine

Overview:

- Machine tool for grinding flat surfaces with high precision.

- Use an abrasive wheel mounted on a horizontal head to remove material from the work surface.

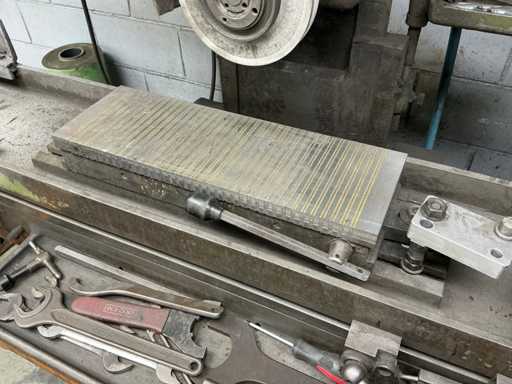

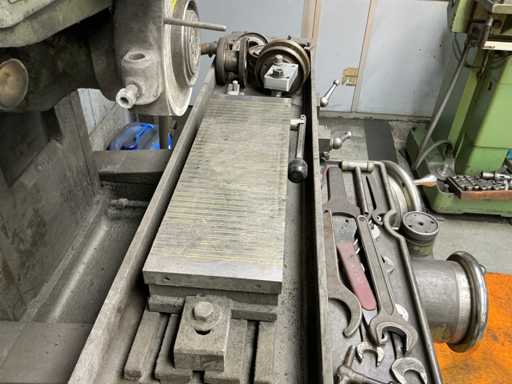

- Work table with manual or motorized longitudinal displacement.

- Heavy cast construction provides rigidity and stability.

Typical features (estimated by visible configuration):

- Table dimensions: approx. 600 x 250 mm

- Longitudinal movement by zipper

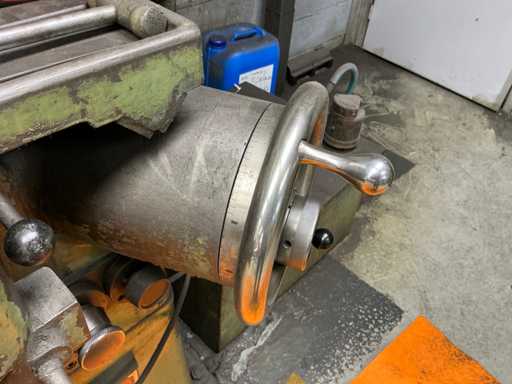

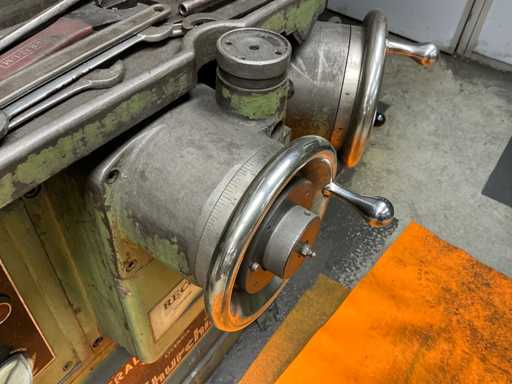

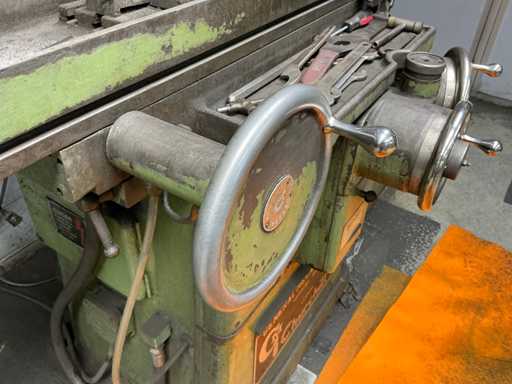

- Manual vertical and transverse movement with steering wheels

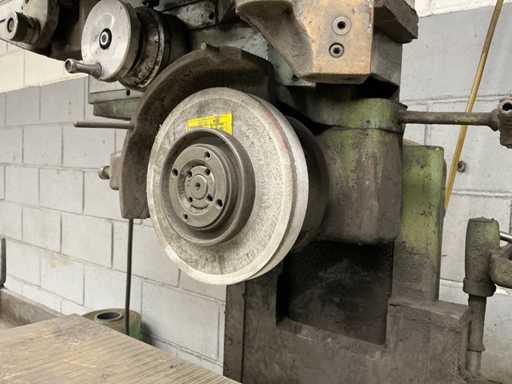

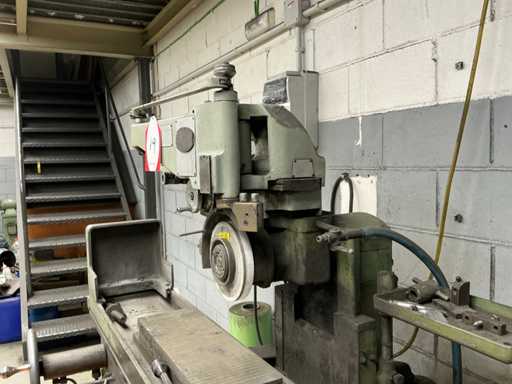

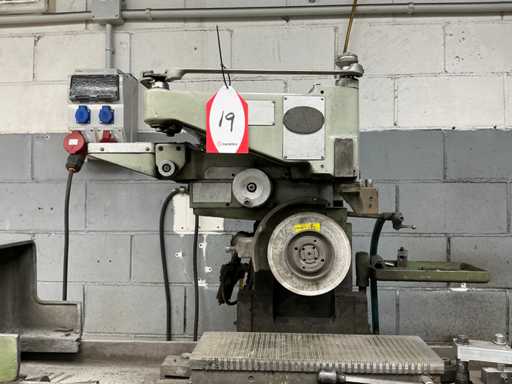

- Head with grinding wheel and front

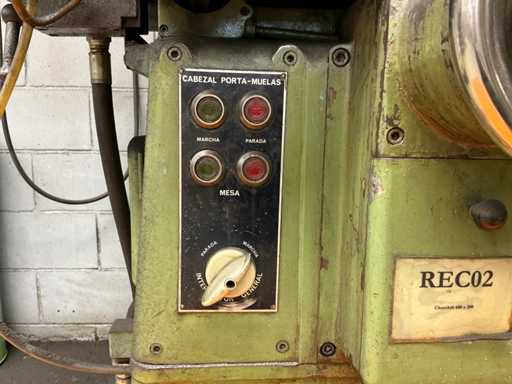

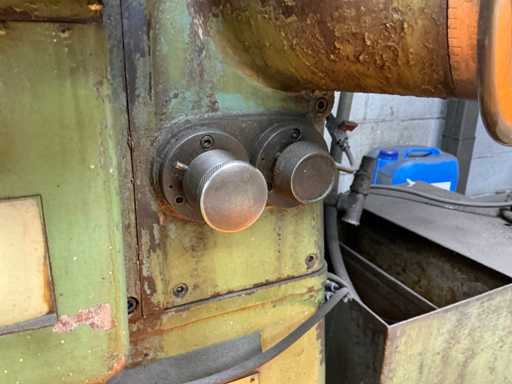

guard - Control panel for head and table control

Common Applications:

- Grinding of flat metal parts with tight

tolerance

- Mold making, tooling, and surface

calibration

- Fine finishing operations in precision

machining

remarks:

- Robust and reliable machine, very common in precision and tooling

workshops

- Manufactured under license from Churchill, a historic UK

brand

Untested functionality
