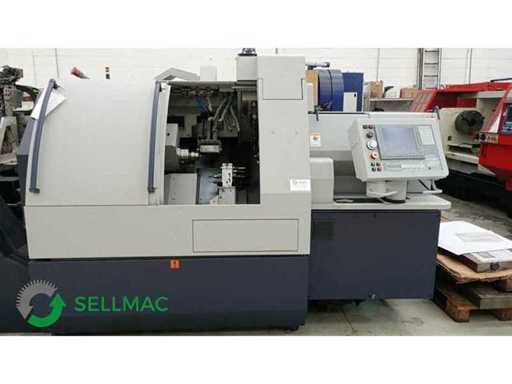

CITIZEN - C 32 - VIII - CNC LATHE - 2005
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CITIZEN
- Type
- C 32 - VIII
- Year of build
- 2005
- Terms of delivery
- Free on truck
Description
CNC Mitsubishi Mieldas 635 LC
Axis
travel X1 axis 108 mm
Y1 axis 275 mm
Z1 axis 325 mm
X2 axis 228 mm
Z2 axis 130 mm
Z3 axis 410 mm
Max machining diameter Ø 32 mm (from Ø 10 mm)
Max machining length 320 mm for chuck
Max front hole diameter Ø 12 mm
Max front tapping diameter M 10 (male) - M 8 (dies)
Spindle through-hole diameter Ø36 mm
Main spindle speed from 200 to 8,000 min ̄¹
Main Spindle Speed Change Stepless - S + 4-digit
numeric value Tool holder
spindle Max tapping diameter Ø 7 mm
Spindle speed M 6
Spindle speed change from 200 to 5,000 min ̄¹ - Continuous - S + 4-digit

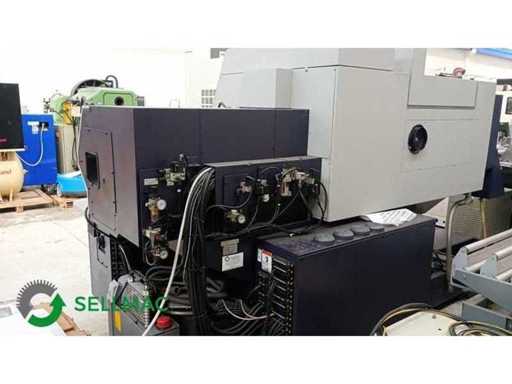

numerical value IEMCA BOSS 332-E BAR CONVEYOR AND BAR LOADER INCLUDED
Machinery equipped with manuals and EC declaration of conformity.
Well used, seen and liked in the state of fact and law in which it finds itself.
All technical data shown are indicative and may be changed without notice and therefore should not be considered binding
FOR MORE INFORMATION CONTACT THE NUMBER 0119969391
Axis
travel X1 axis 108 mm
Y1 axis 275 mm
Z1 axis 325 mm
X2 axis 228 mm
Z2 axis 130 mm
Z3 axis 410 mm
Max machining diameter Ø 32 mm (from Ø 10 mm)
Max machining length 320 mm for chuck
Max front hole diameter Ø 12 mm
Max front tapping diameter M 10 (male) - M 8 (dies)
Spindle through-hole diameter Ø36 mm
Main spindle speed from 200 to 8,000 min ̄¹
Main Spindle Speed Change Stepless - S + 4-digit
numeric value Tool holder
spindle Max tapping diameter Ø 7 mm
Spindle speed M 6
Spindle speed change from 200 to 5,000 min ̄¹ - Continuous - S + 4-digit
numerical value IEMCA BOSS 332-E BAR CONVEYOR AND BAR LOADER INCLUDED
Machinery equipped with manuals and EC declaration of conformity.
Well used, seen and liked in the state of fact and law in which it finds itself.
All technical data shown are indicative and may be changed without notice and therefore should not be considered binding
FOR MORE INFORMATION CONTACT THE NUMBER 0119969391
