machine

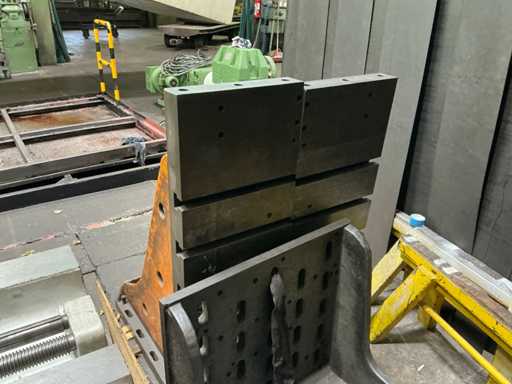

• Designation: 3 pieces clamping bracket
• Machine type: Precision clamping angle made of cast iron / cast steel
• Application: Workpiece clamping and alignment devices for drilling or milling machines

data

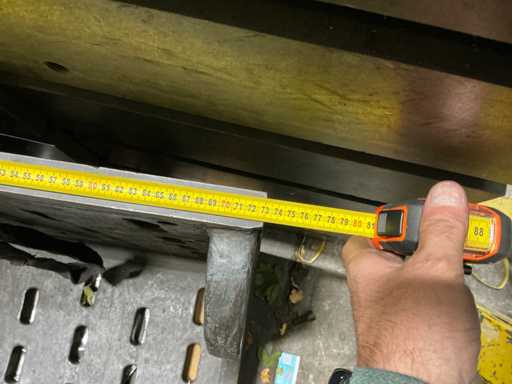

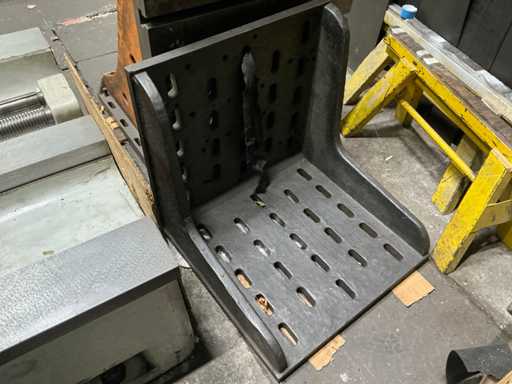

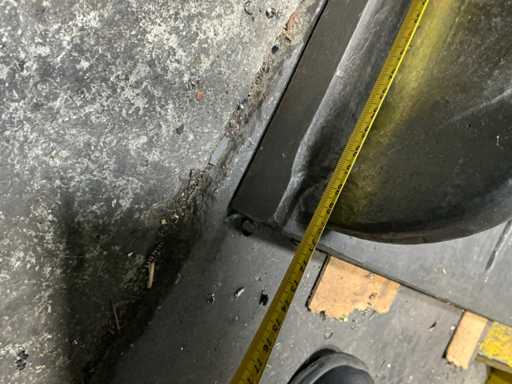

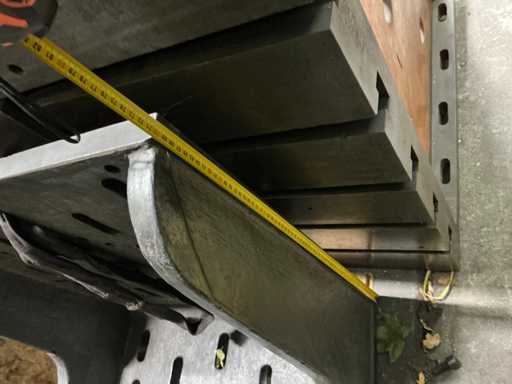

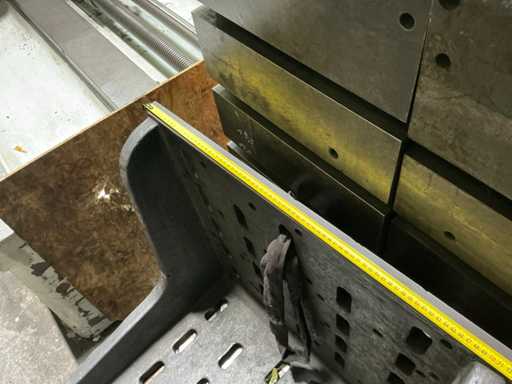

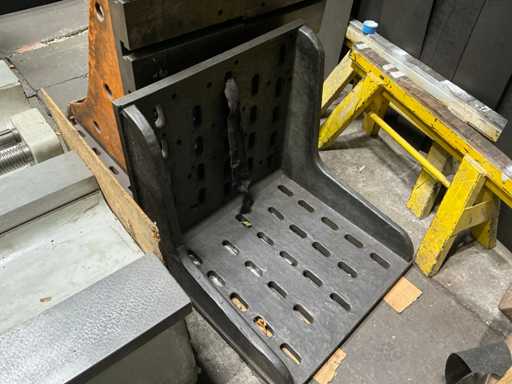

• 1 × clamping angle: 730 mm (W) × 700 mm (H) × 710 mm (L)

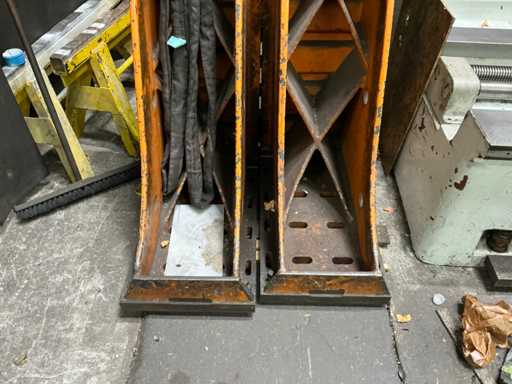

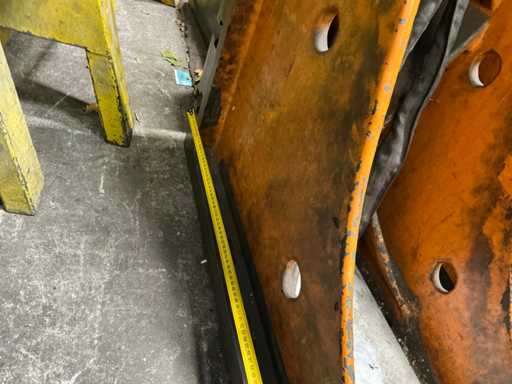

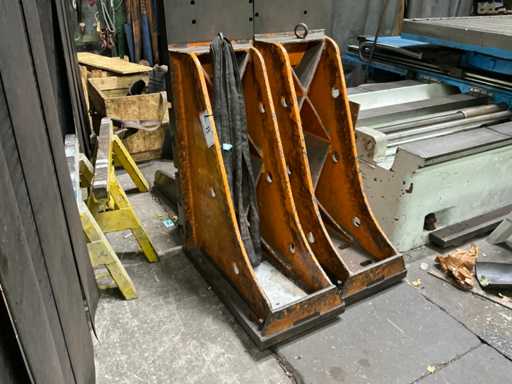

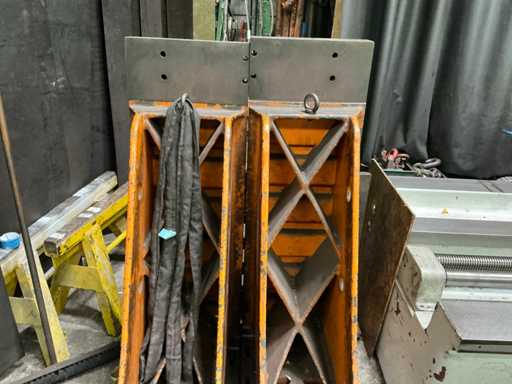

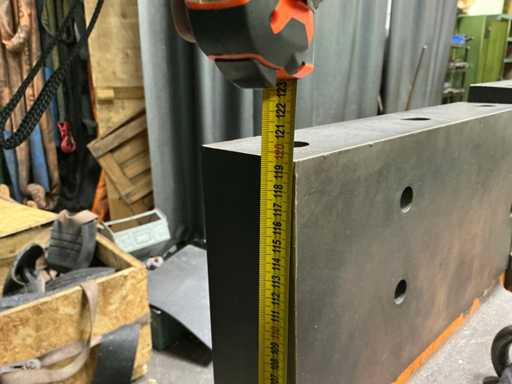

• 2 × clamping bracket: 400 mm (W) × 1 200 mm (H) × 790 mm (L)
• Material: Cast iron / cast steel, with through and tension holes
• Surface: Precision Ground, Right Angle Machined

Dimensions

• Total floor space: approx. 1.2 m²
• Weight: approx. 450 – 550 kg total

Accessories

• No other parts, loose on pallet
