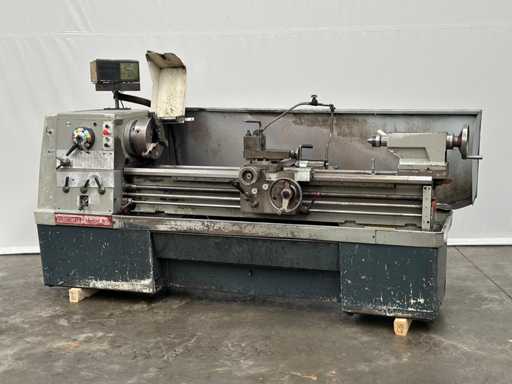

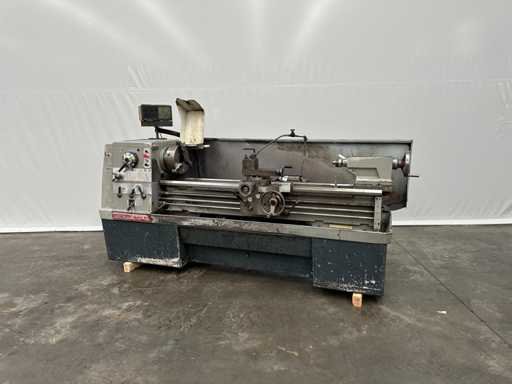

Colchester - Mascot 1600 - Centre lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Colchester
- Type
- Mascot 1600
- Turning length
- 1600mm
- Turning Ø
- 440mm
- Spindle boring Ø
- 75mm
- Speed from n=
- 10rpm
- Speed till n=
- 1600rpm
- Control, brand, type
- Mitutoyo
- Electric connection
- 380V
- Machine weight
- 3000kg
- Dimension l
- 3100mm
- Dimension w
- 1200mm
- Dimension h
- 1800mm
- Terms of delivery
- Loaded on truck
Description
Brand Colchester
Type Mascot 1600
Distance between centers 1600 mm
Centre height 220 mm
Turning diameter above the bed 440 mm ø
Turning diameter above support 300 mm ø

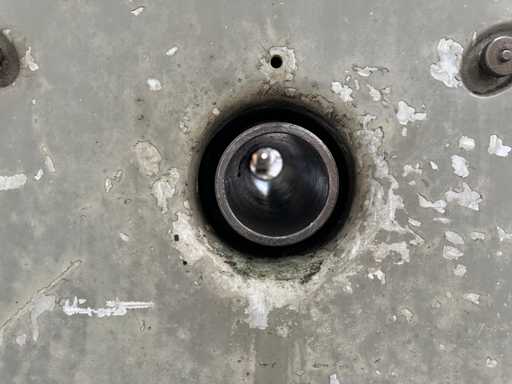

Passage 75 mm ø
3-jaw chuck 310 mm ø

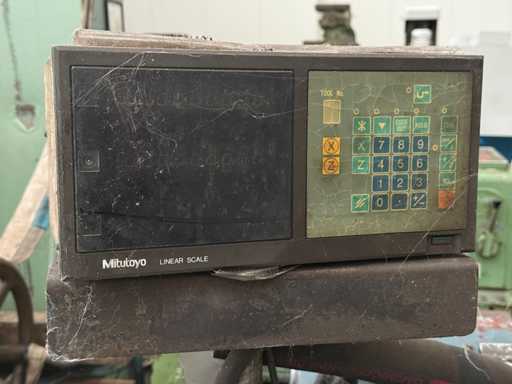

Digital readout Mitutoyo
Speed 10 - 1,600 RPM
Power 380 V
Machine dimensions (LxWxH) 3.100 x 1.200 x 1.800 mm
Weight 3.000 kg
Additional details
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize.
