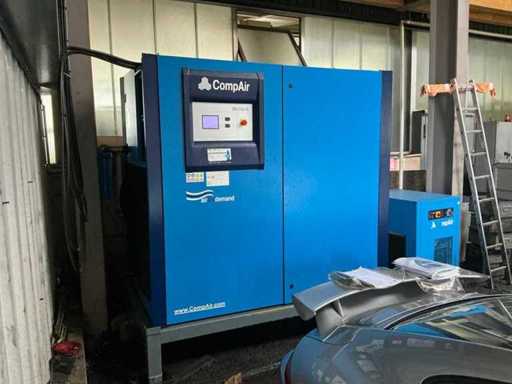

COMPAIR - L75RS - Screw compressor - 2013
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- COMPAIR
- Type
- L75RS
- Year of build
- 2013

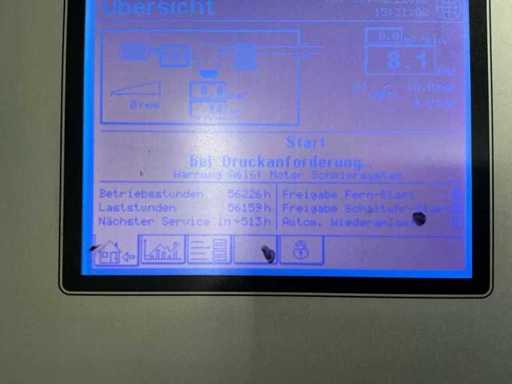

- Hours on display
- 56226
- Electric connection
- 400V
- Own weight
- 1800kg
- Total dimension L
- 2200mm
- Total dimension W
- 1300mm
- Total dimension Height
- 2400mm
- Terms of delivery
- Ex foundation-unpackaged
Description

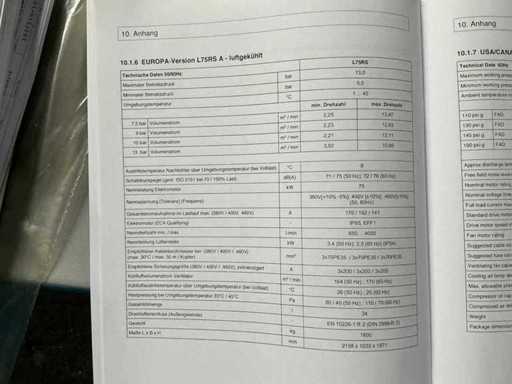

1. Operating pressures and environment
Maximum operating pressure: 13.0 bar.
Minimum operating pressure: 5.0 bar.
Ambient temperature: 1 ... 45 °C.
2. Volume flow rate (depending on operating pressure) — m³/min
7.5 bar: min speed 2.25 m³/min — max speed 13.47 m³/min.
9 bar: min speed 2.23 m³/min — max speed 12.63 m³/min.
10 bar: min speed 2.21 m³/min — max speed 12.11 m³/min.
13 bar: min speed 3.92 m³/min — max speed 10.69 m³/min.
3. Temperatures & Cooling System
Outlet temperature aftercooler above ambient temperature (at full load): +8 °C.
Fan cooling air flow rate: 164 m³/min (50 Hz) · 170 m³/min (60 Hz).
Cooling air outlet temperature above ambient temperature (at full load): 26 °C (50 Hz) · 25 °C (60 Hz).
4. Pressure ratios / residual pressure
Residual pressing at ambient temperature 35 °C / 45 °C (Pa): 80 / 40 Pa (50 Hz) · 110 / 70 Pa (60 Hz).
Total oil volume: 34 l.
Compressed air connection (external thread): EN 10226-1 R 2 (DIN 2999-R 2).
Maximum operating pressure: 13.0 bar.
Minimum operating pressure: 5.0 bar.
Ambient temperature: 1 ... 45 °C.
2. Volume flow rate (depending on operating pressure) — m³/min
7.5 bar: min speed 2.25 m³/min — max speed 13.47 m³/min.
9 bar: min speed 2.23 m³/min — max speed 12.63 m³/min.
10 bar: min speed 2.21 m³/min — max speed 12.11 m³/min.
13 bar: min speed 3.92 m³/min — max speed 10.69 m³/min.
3. Temperatures & Cooling System
Outlet temperature aftercooler above ambient temperature (at full load): +8 °C.
Fan cooling air flow rate: 164 m³/min (50 Hz) · 170 m³/min (60 Hz).
Cooling air outlet temperature above ambient temperature (at full load): 26 °C (50 Hz) · 25 °C (60 Hz).
4. Pressure ratios / residual pressure
Residual pressing at ambient temperature 35 °C / 45 °C (Pa): 80 / 40 Pa (50 Hz) · 110 / 70 Pa (60 Hz).
Total oil volume: 34 l.
Compressed air connection (external thread): EN 10226-1 R 2 (DIN 2999-R 2).
Remarks
Used and untested
Additional details
Delivery conditions: ex foundation
The buyer is responsible for dismantling and loading. There is no forklift on site to move the large machines.
The auctions are public and voluntary.
All items are sold in the condition in which they lie and stand. It is expressly pointed out that no complete inventory and verification of the functionality of the auction objects will be carried out.
Bidders are strongly advised to make use of the opportunity granted to them to inspect/examine the purchased items before submitting bids.
No warranty.
VAT DEPOSIT: Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Germany on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

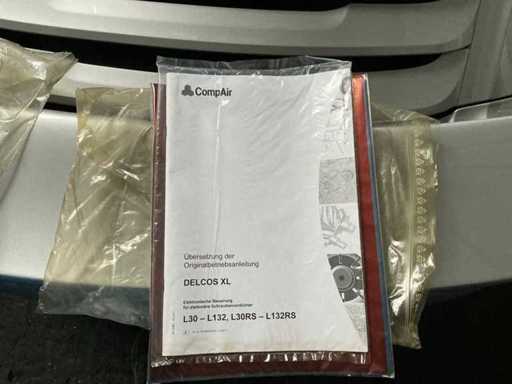

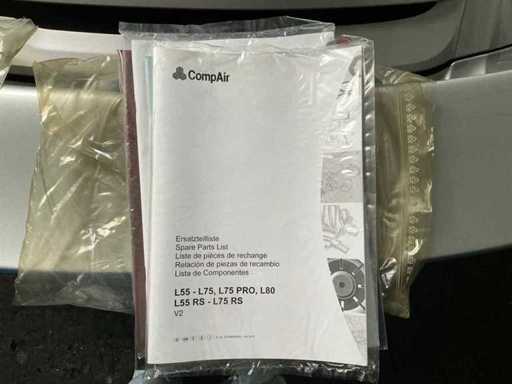

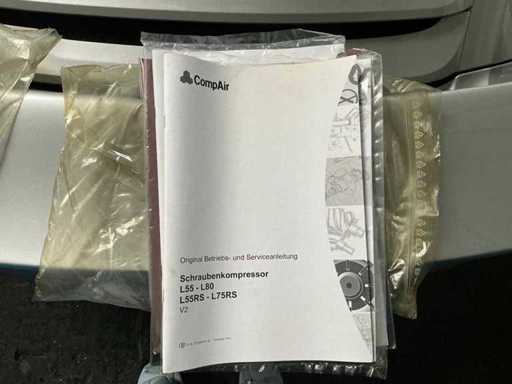

Documents
