Containex - 20ft Office / 16ft. Office - 14-person container system/office complex/mobile office incl. air conditioning - 2022 (14x)
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 14
- Margin
- No
- Brand
- Containex
- Type
- 20ft Büro / 16ft. Büro
- Year of build
- 2022
- Modular unit
- Yes
- Total dimension L
- 17140mm
- Total dimension W
- 10100mm
- Total dimension Height
- 3000mm
- Terms of delivery
- Loaded on truck
Description

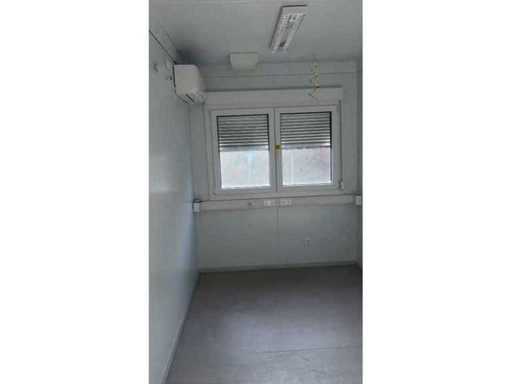

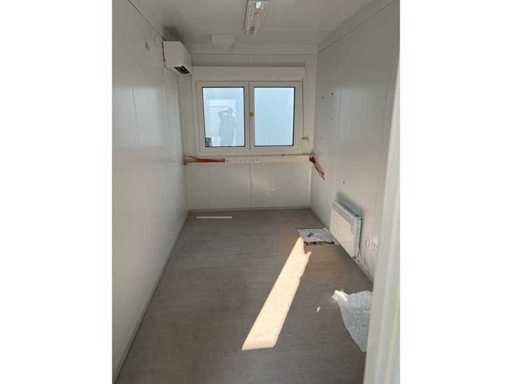

Each module is equipped with an air conditioner split unit + outdoor unit.
All containers have a fire resistance classification

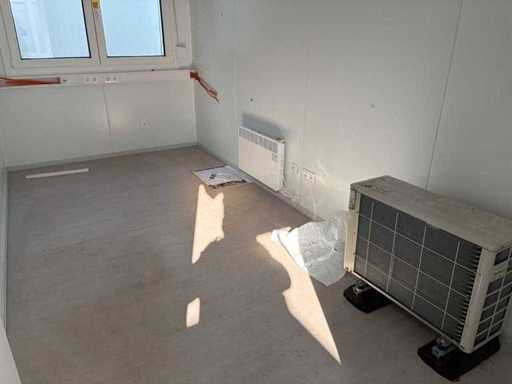

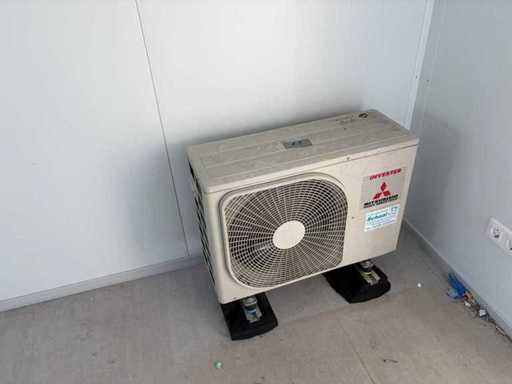

Plant completely dismantled and ready for loading. Air conditioners expertly separated. Outdoor units stored in a module (outdoor units numbered)
Consisting of 7x 16ft. & 7x 20ft. Containers
- Container exterior height 2960mm
- Room interior height 2660mm
- Roof frame standard design
- Corner column standard version
- Floor construction: Double floor crossbeams
- Parapet height 1030mm above the top of the floor (FOK)
- Container color RAL9010 pure white
- Interior décor: Coated sheet steel white
- Interior décor: ceiling, fire protection plasterboard with coated sheet metal, similar RAL9010
Insulation
- Wall insulation PIR foam 110mm
- Roof insulation PU foam 140mm
- Fire protection version REI30/60 roof group, 1X15fire protection board
- Floor insulation PU foam100mm
- Partition wall insulation rock wool60mm
Electrics
- Electrical connection design incl. CEE recesses, incl. Distribution box
- Electrics VDE standard (400V/32A/5-pole)
Facilities
14 pcs wall reinforcement
14 double windows
Pole Outer Dimension:1970X1200mm
Clear window opening: 879X1076mm
7 pcs Steel Exterior Door
Standard dimensions (width):875mm
Clear passage width:811mm
Clear passage height:2065mm
Rising Inside
1 pcs.steel exterior door
Standard dimension (width):1000mm
Clear passage width:936mm
Clear passage height:2065mm
Exterior rising
Anti-Panic Fitting: Outside Handle, Inside Bar
7 pcs door panel without door leaf, width standard 875mm
Clear passage height:2065mm
1 pc door panel without door leaf, width standard 1000mm
Clear clearance height :2065mm
1 door closer
Partition walls
15 m interior partition wall
Rock wool 60mm
Coated Sheet Steel White
7 Interior Door
Standard dimensions (width):875mm
Clear passage width:811mm
Clear passage height:2065mm
Profile double cylinder
Electrical equipment
30 pcs.socket,1-way
47 pcs.socket,2-way
7 pcs.socket,2-way
Remarks

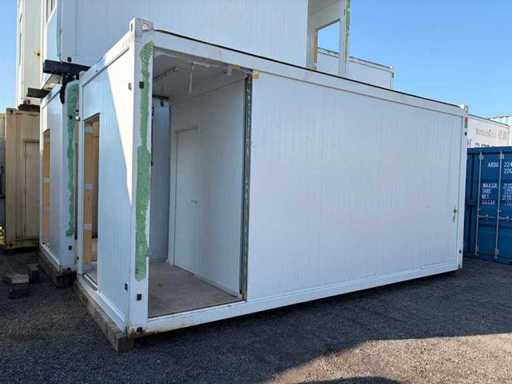

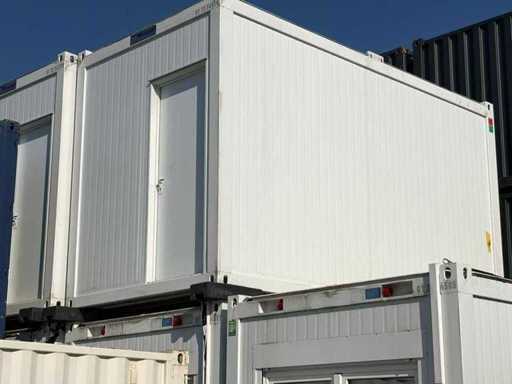

Container system is dismantled into 14 individual modules (7x 16ft. & 7x 20ft.)
Incl. 14x Air Conditioner Split unit
System is loaded by crane at our depot / additional costs refer to crane loading, 100€ / module
