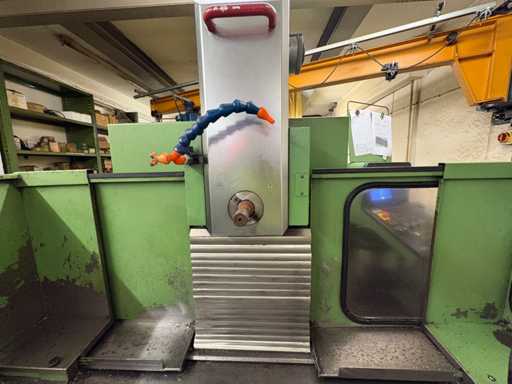

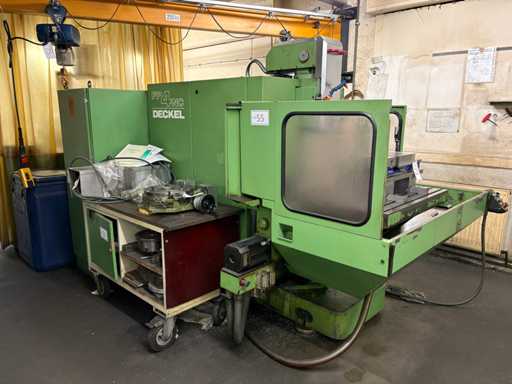

DECKEL - FP4NC - CNC Universal Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DECKEL
- Type
- FP4NC
- Serial number
- 25141
- Taper iso
- SK40
- Travel x-axis
- 560mm
- Travel y-axis
- 500mm
- Travel z-axis
- 450mm
- Speed from n=
- 31.5rpm
- Speed till n=
- 5000rpm

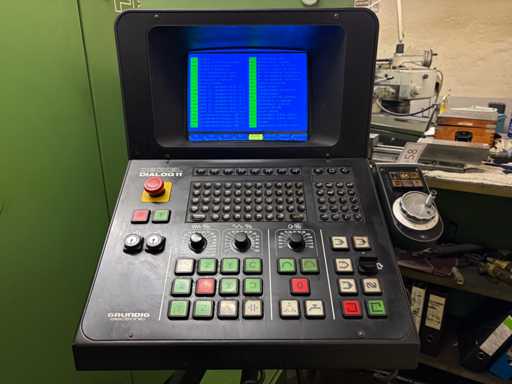

- CNC control, brand, type
- Deckel Dialog 11
- Coolant pump
- Yes
- Workpiece weight max.
- 450kg
- T-slot fixture table size W
- 14mm
- T-slot fixture table size L
- 530mm
- Engine power (kW)
- 7.5kW
- Electric connection
- 380V
- Total dimension W
- 3100mm
- Total dimension L
- 2010mm
- Machine weight
- 2650kg
- Terms of delivery
- Loaded on truck
Description

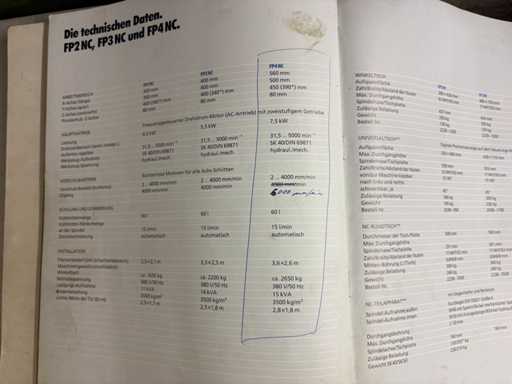

Technical data

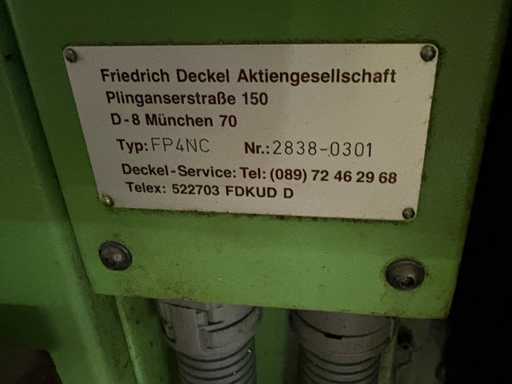

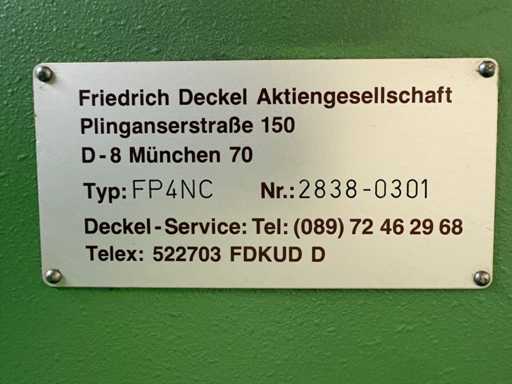

Manufacturer: Friedrich Deckel AG, MunichModel: FP4NC
Engine No.: 2838-0301

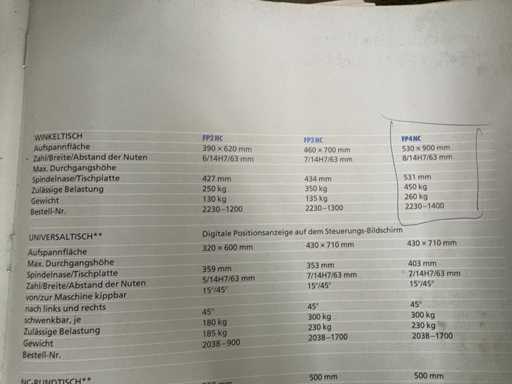

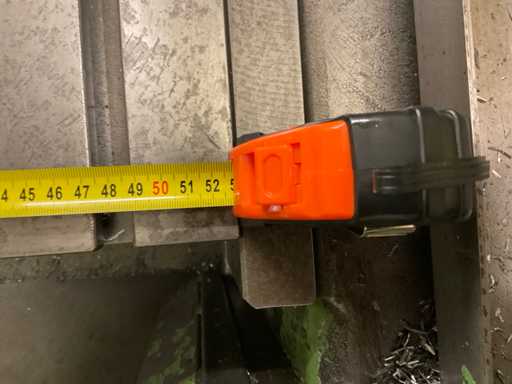

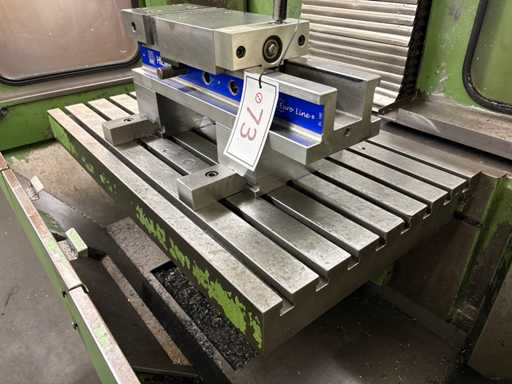

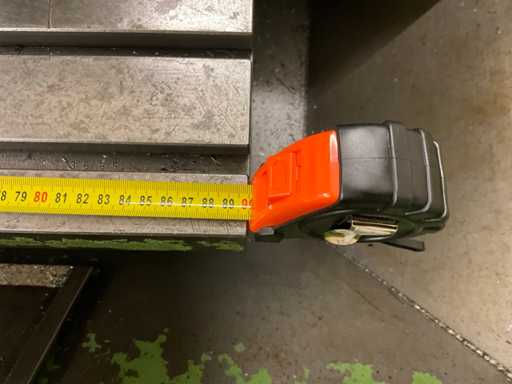

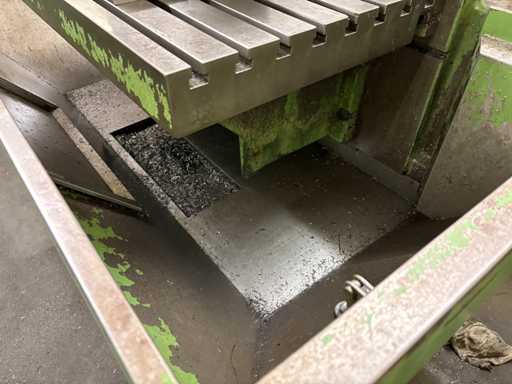

Table size: 530 × 900 mm
T-slots: 8 pieces, 14H7, spacing 63 mm
Travel (X / Y / Z): 560 / 500 / 450 mm
Quill stroke: 80 mm
Max. passage height: 531 mm (spindle nose – table top)
Permissible table load: 450 kg
Clamping weight: 260 kg
Spindle holder: SK40 according to DIN 69871
Speed range: 31.5 – 5000 rpm (two-stage transmission)
Feed range: 2 – 5000 mm/min
Rapid traverse: 5000 mm/min
Drive power: 7.5 kW
Coolant tank: 60 litres
Coolant pump: 15 l/min, automatic

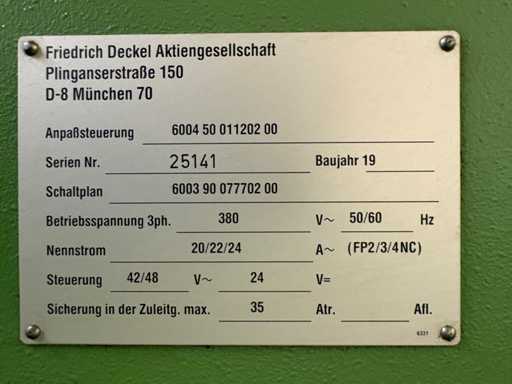

Operating voltage: 380 V / 50 Hz
Rated current: 20 / 22 / 24 A

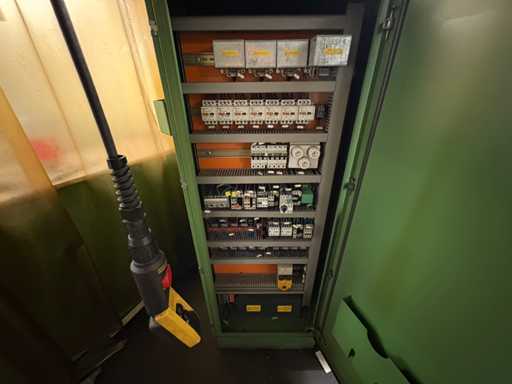

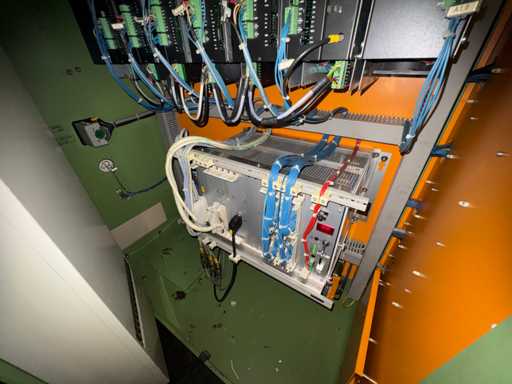

Control voltage: 24 V DC / 42–48 V AC
Fuse: max. 35 A
Connected load: 15 kVA
Machine weight: approx. 2650 kg
Dimensions set-up: 3.6 × 2.6 m
Door passage (min.): 2.8 × 1.8 m
Floor load: 3500 kg/m²
Remarks
Used and untested
Additional details
Pick-up:
02.02.-13.02.2026 (by appointment)
Viewing:
19.01.2026, 11 a.m. - 1 p.m. (only by appointment at david.polotzek@surplex.com)
Payment term: within three days
A viewing is only possible after prior registration at D.Polotzek@tbauctions.com.
Please note that all items – unless expressly stated otherwise – are sold used and unchecked. The respective article description is decisive.
For detailed information on guarantee and warranty conditions, please refer to the auction conditions.
Note: Late pick-up may incur additional storage, handling or dismantling costs that will be borne by the buyer.

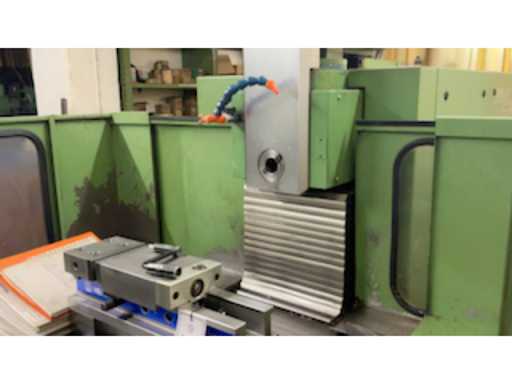

Video
