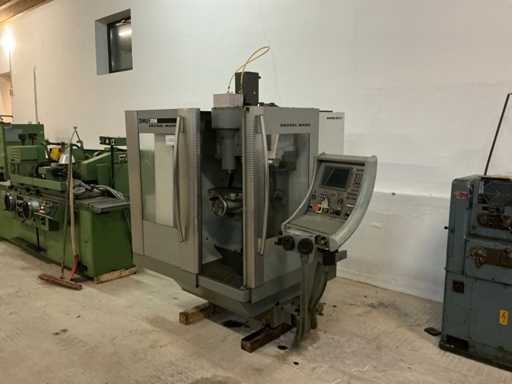

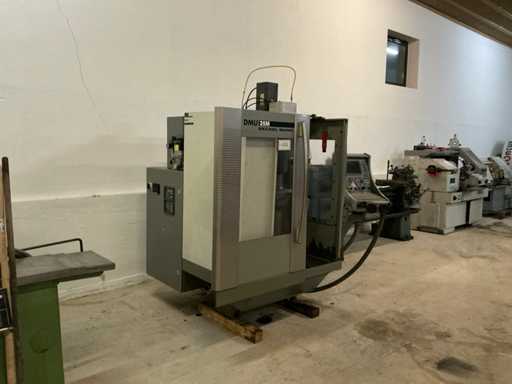

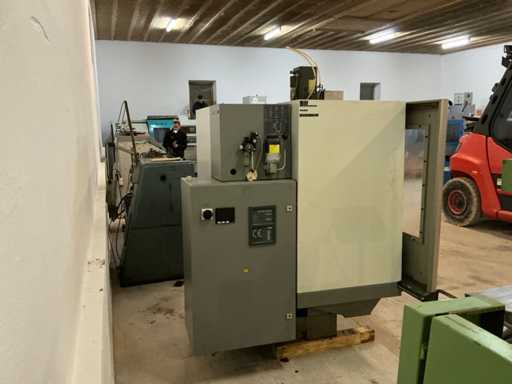

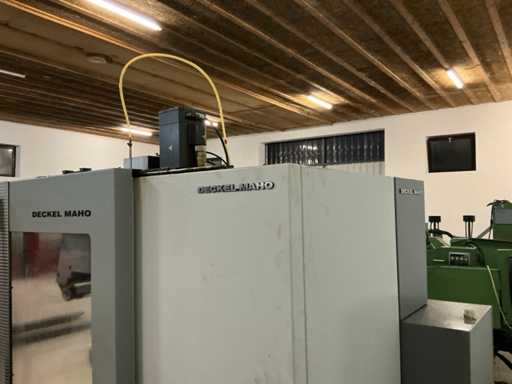

DECKEL MAHO - DMU 35M - 2001 - Universal Milling Center [5 Axis]
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DECKEL MAHO
- Type
- DMU 35M
- Year of build
- 2001

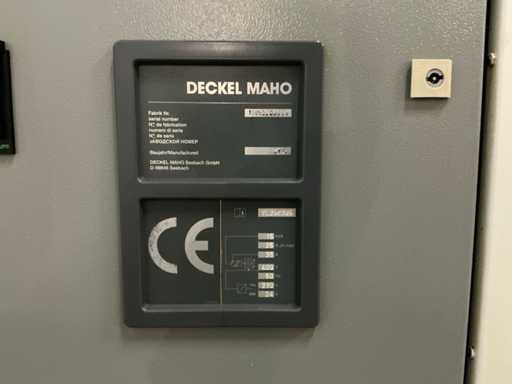

- Serial number
- 11065353124
- Travel x-axis
- 350mm
- Travel y-axis
- 240mm
- Travel z-axis
- 340mm
- Taper
- SK 40
- Speed from n=
- 20rpm
- Speed till n=
- 6300rpm
- T-slot fixture table size L
- 400mm
- T-slot fixture table size W
- 290mm
- Workpiece weight max.
- 100kg
- Engine power (kW)
- 6,3kW
- Electric connection
- 400V

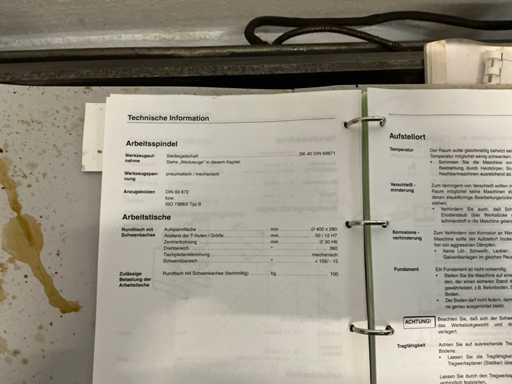

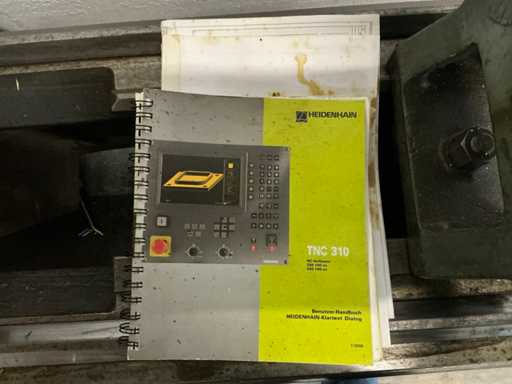

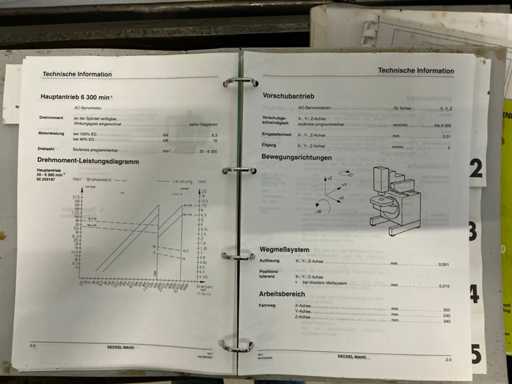

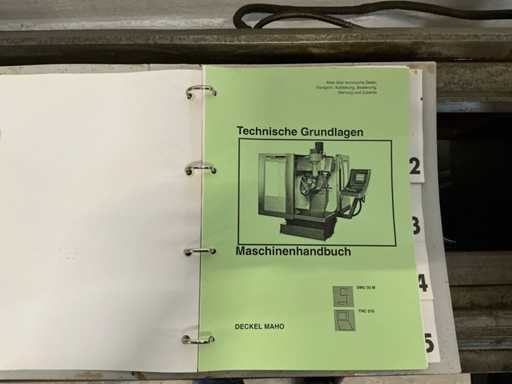

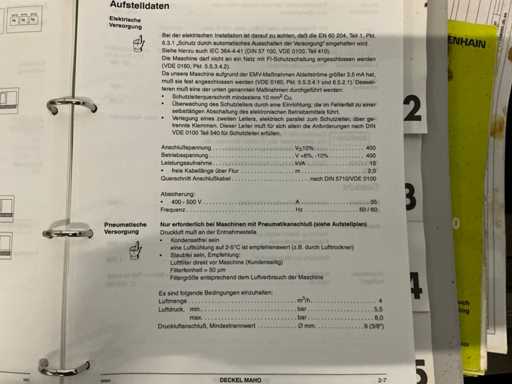

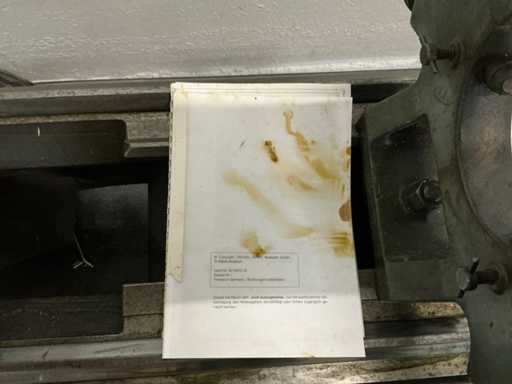

- Manual present
- Yes
- Machine weight
- 2000kg
- Dimension l
- 2000mm
- Dimension w
- 1800mm
- Dimension h
- 2100mm
- Terms of delivery
- Loaded on truck
Description
machine
- Manufacturer: DECKEL MAHO
- Type: DMU 35 M
- Year of Make: 2001
- Machine type: CNC universal milling center (3+2 axes)
data
- Feed drive: AC servo motors for X, Y, Z axis
- Feed speed X/Y/Z: infinitely programmable up to 5,000 mm/min
- Rapid traverse X/Y/Z: 5 m/min
- Input unit X/Y/Z: 0.001 mm

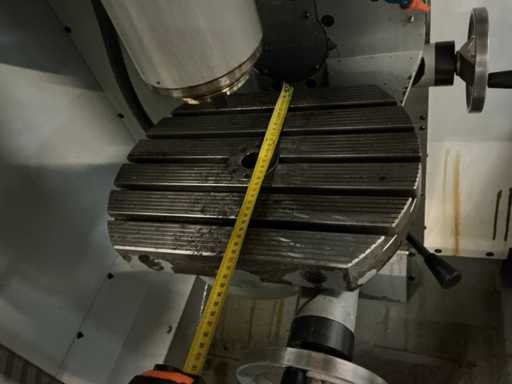

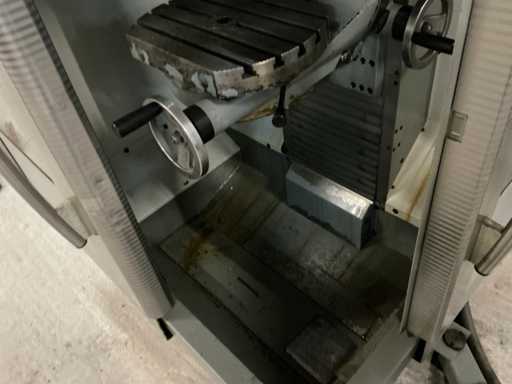

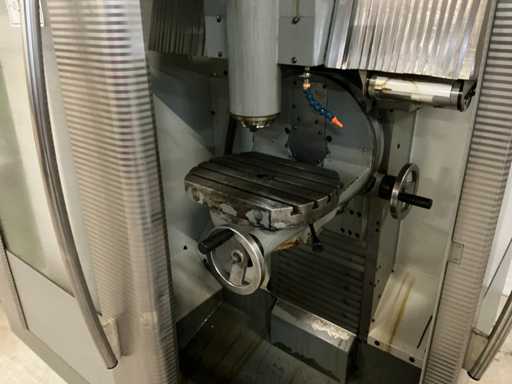

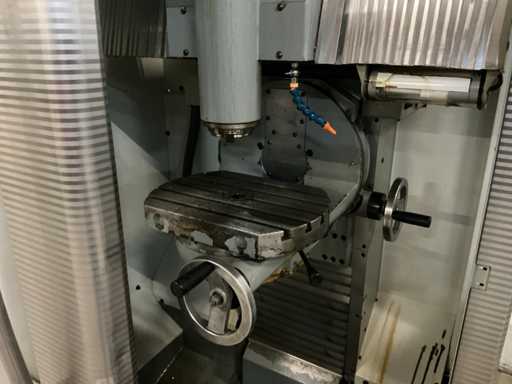

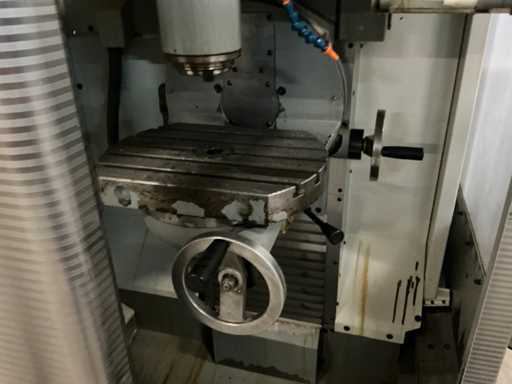

- Work table: rotary table with swivel axis

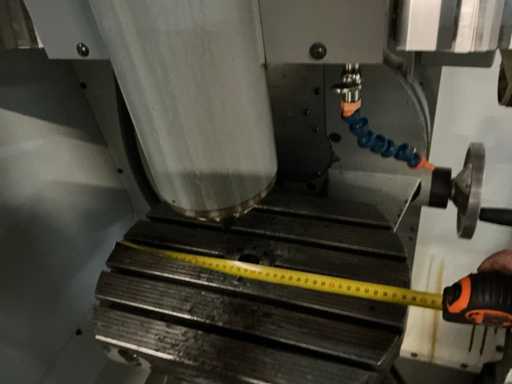

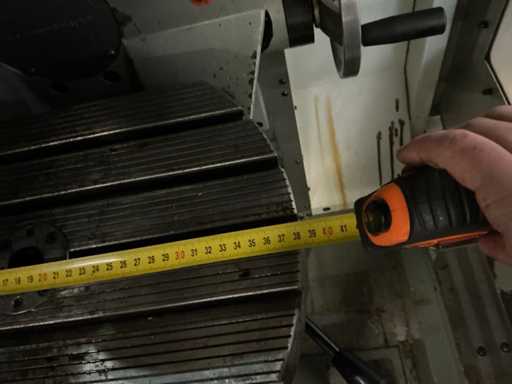

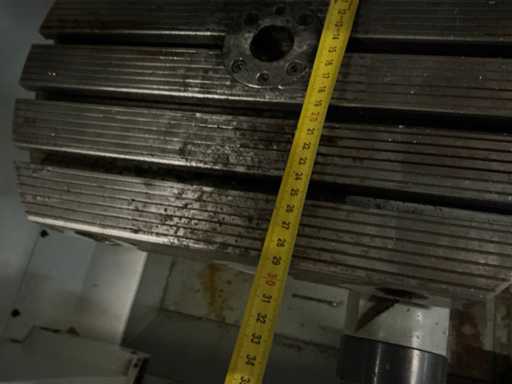

- Clamping surface: 400 × 280 mm
- T-slot spacing / size: 50 / 12 H7
- Centering bore: Ø 30 H6
- Rotary table rotation range: 360°
- Desktop clamping: mechanical
- Swivel range: 105° / 15°
- Permissible load rotary table (centre of the table): 100 kg
Dimensions

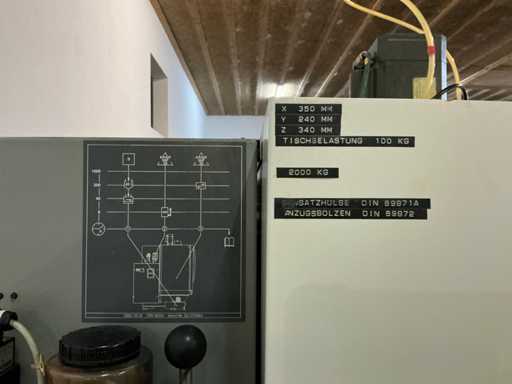

- Travel X/Y/Z: 350 × 240 × 340 mm
- Weight: approx. 1,700 kg

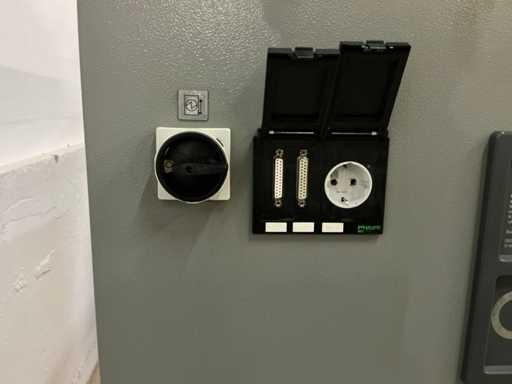

Electrical details
- Voltage: 400 V
- Power: approx. 15 kVA
Remarks
Unaudited
Additional details
All items are sold as used and uninspected unless otherwise noted.
Viewing appointments are possible on 28.01.2026 from 09:00 to 15:00. Please note that a viewing is only possible by appointment at anabela.decastro@surplex.com.
Pick-up possible in the following period:
09.02.2026 – 13.02.2026 and 16.02.2026 – 20.02.2026 from 09:00 to 12:00 and from 13:00 to 16:30
Please note: Pick-up is not possible on public holidays and weekends.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
!!! Attention: "The invoice must be created within 24 hours after the end of the auction; if this is not done, we reserve the right to cancel or credit the invoice."
