DECKEL MAHO DMU 35M CNC Universal Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DECKEL MAHO
- Type
- DMU 35M
- Year of build
- 1998
- Taper iso
- ISO 40/SK40
- Travel x-axis
- 350mm
- Travel y-axis
- 250mm
- Travel z-axis
- 300mm
- Speed from n=
- 20rpm
- Speed till n=
- 8000rpm
- CNC control, brand, type
- Siemens Sinumerik 810D/840D
- Coolant pump
- Yes
- Workpiece weight max.
- 200kg
- T-slot fixture table size W
- 380mm
- T-slot fixture table size L
- 600mm
- Engine power (kW)
- 7kW
- Manual present
- Yes
- Electric connection
- 400V
- Total dimension Height
- 2200mm
- Total dimension W
- 1800mm
- Total dimension L
- 2200mm
- Machine weight
- 3000kg
- HS Code
- 84571090
- Terms of delivery
- Ex foundation-unpackaged
Description

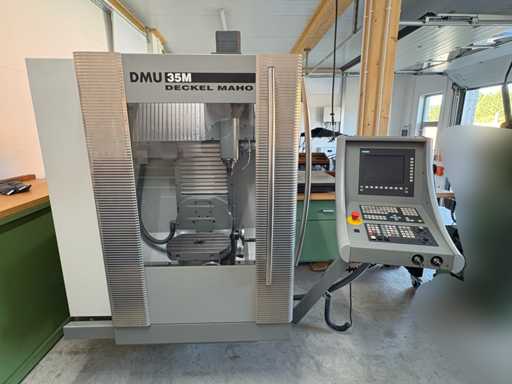

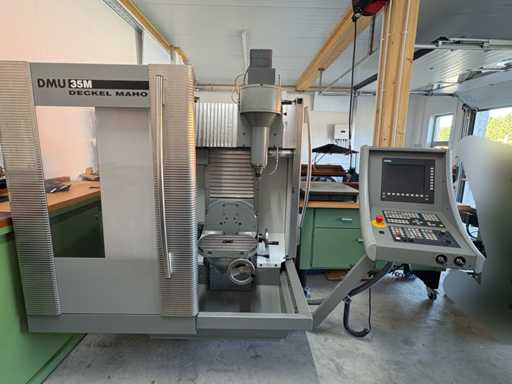

Deckel Maho DMU 35M – CNC universal milling machine with Siemens control and integrated swivel/rotary table
Technical data (excerpt):
• Manufacturer: Deckel Maho GmbH
• Model: DMU 35M
• Control: Siemens Sinumerik 840D/810D ShopMill
• Table size: approx. 700 × 350 mm
• Travel distances (X / Y / Z): approx. 350 / 250 / 300 mm
• Spindle speed: up to 8,000 rpm
• Motor power: approx. 7 kW
• Tool holder: SK 40
• Weight: approx. 3,000 kg
• Operating hours: 116.9h
Equipment & Features:

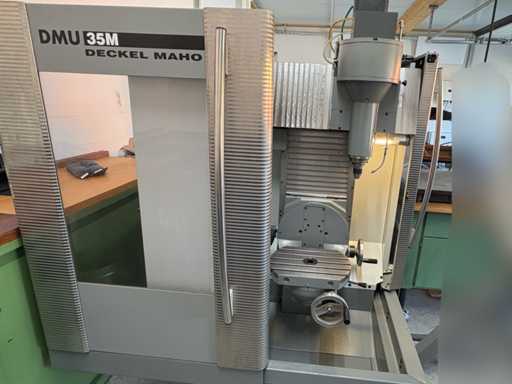

• Integrated swivel and rotary table → enables 5-sided machining and flexible workpiece positioning

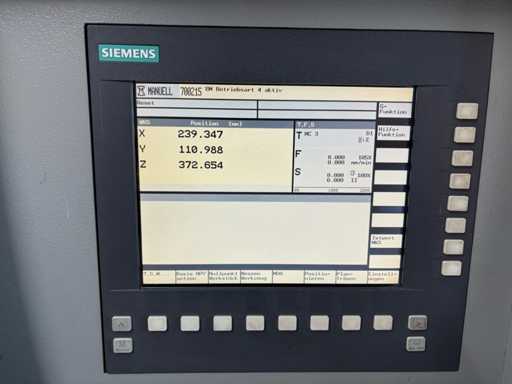

• Siemens Sinumerik control system with color display, handwheel and dialog programming
• 3-axis machine with high stability, prepared for complex workpieces

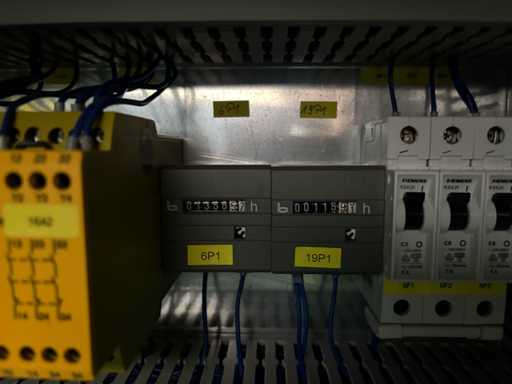

• Electrical control cabinet, neat and clearly arranged
• Automatic central lubrication (Vogel system) for long service life
• Extensive documentation: operating manuals, circuit diagrams, service documents
• Stable work table with T-slots
Particularities:
• Compact design for workshop or training
• Very short spindle running time → not used productively, therefore technically very well preserved
• Swivel and rotary table allows complex machining without time-consuming reclamping
• Ideal for precise milling work in toolmaking and production
Technical data (excerpt):
• Manufacturer: Deckel Maho GmbH
• Model: DMU 35M
• Control: Siemens Sinumerik 840D/810D ShopMill
• Table size: approx. 700 × 350 mm
• Travel distances (X / Y / Z): approx. 350 / 250 / 300 mm
• Spindle speed: up to 8,000 rpm
• Motor power: approx. 7 kW
• Tool holder: SK 40
• Weight: approx. 3,000 kg
• Operating hours: 116.9h
Equipment & Features:
• Integrated swivel and rotary table → enables 5-sided machining and flexible workpiece positioning
• Siemens Sinumerik control system with color display, handwheel and dialog programming
• 3-axis machine with high stability, prepared for complex workpieces
• Electrical control cabinet, neat and clearly arranged
• Automatic central lubrication (Vogel system) for long service life
• Extensive documentation: operating manuals, circuit diagrams, service documents
• Stable work table with T-slots
Particularities:
• Compact design for workshop or training
• Very short spindle running time → not used productively, therefore technically very well preserved
• Swivel and rotary table allows complex machining without time-consuming reclamping
• Ideal for precise milling work in toolmaking and production
Remarks
The DMU 35M is ready to use right out of the box and is ideal for tooling, prototyping, training and small batches.
