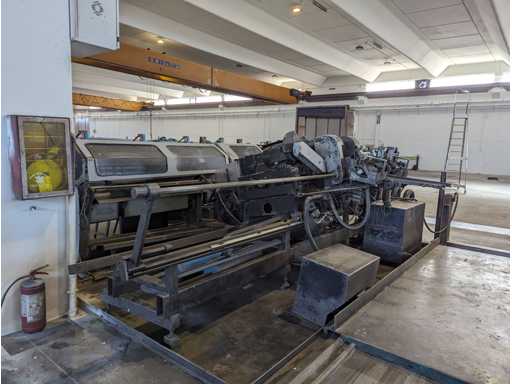

Double tube cutting machine with deburring machine BEWO DCH76
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BEWO
- Type
- DCH76
- Year of build
- 2007
- Machine weight
- 6200kg
- Dimension l
- 5600mm
- Dimension w
- 2300mm
- Dimension h
- 1800mm
- Terms of delivery
- Loaded on truck
Description

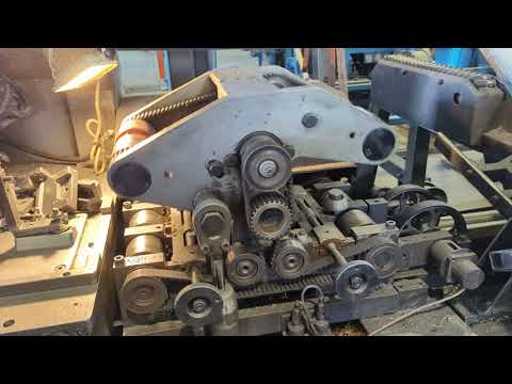

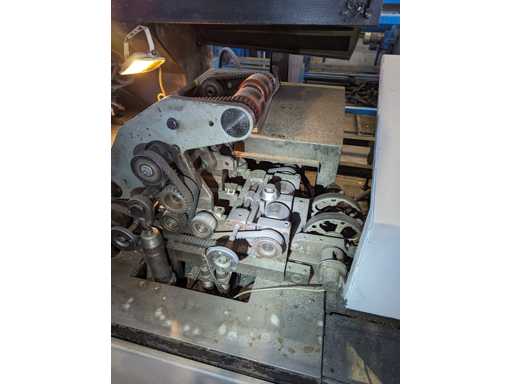

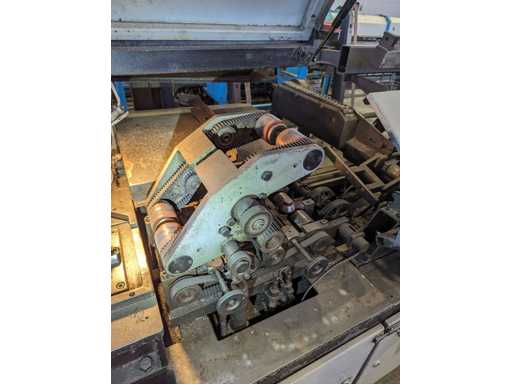

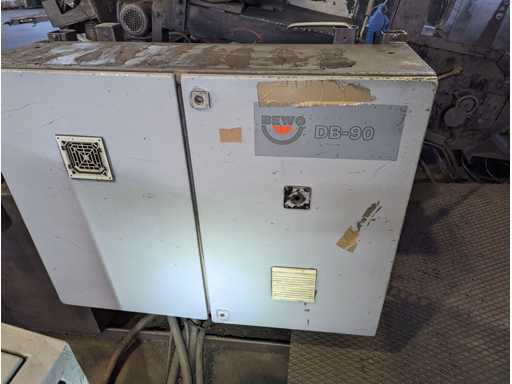

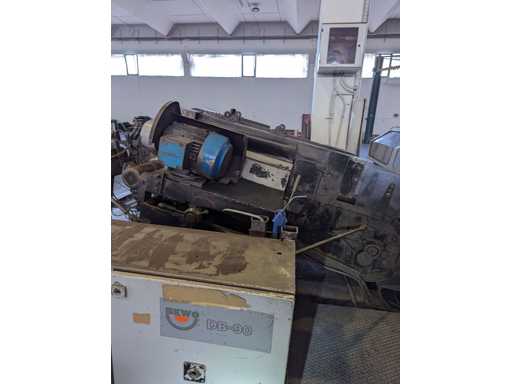

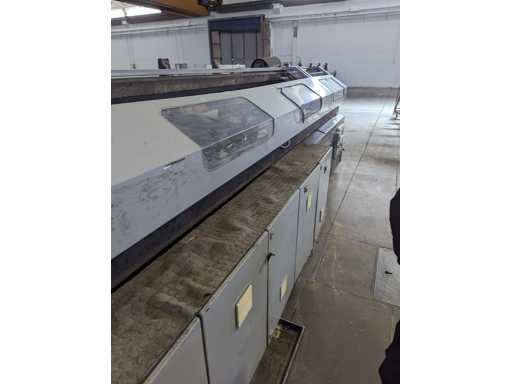

DCH76M twin-tube tube cutting machine with BEWO DB 90 deburring machine
Suitable for cutting operations with a cut-off machine, on two pipes at the same time and brushing them.

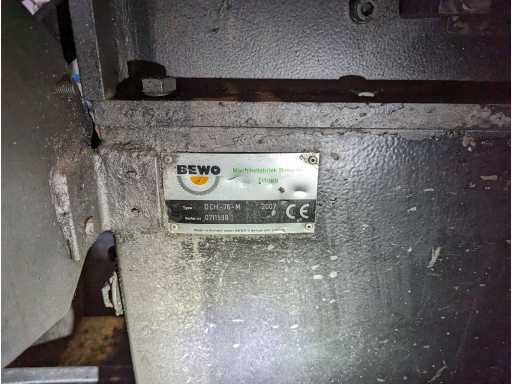

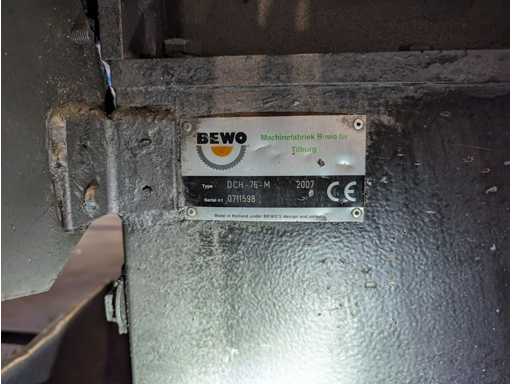

N° 0711598
Specifications:
Machinable diameter: 8 - 76 mm
Machinable length range: 40 - 2000 mm
Brushable length range: 140 - 2000 mm
Nominal power of the cut-off unit: 5.5 kW
Speed range of the cut-off unit: 30 -180 m/min
Machine equipped with:

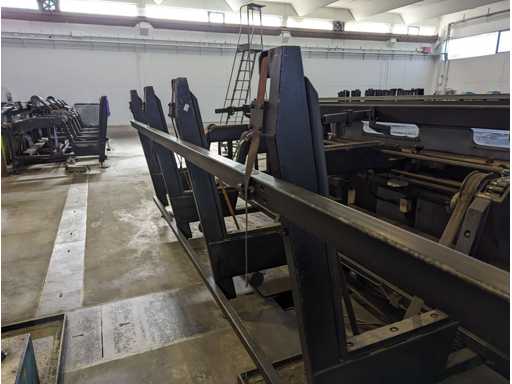

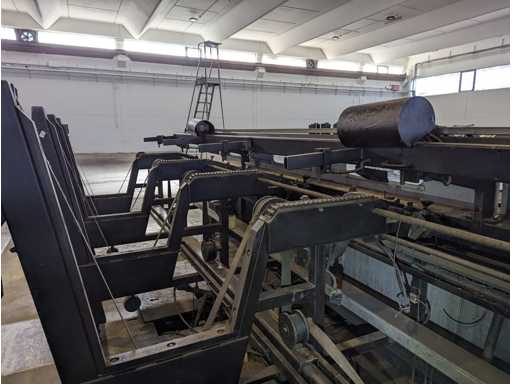

Bar loader with 5-guide

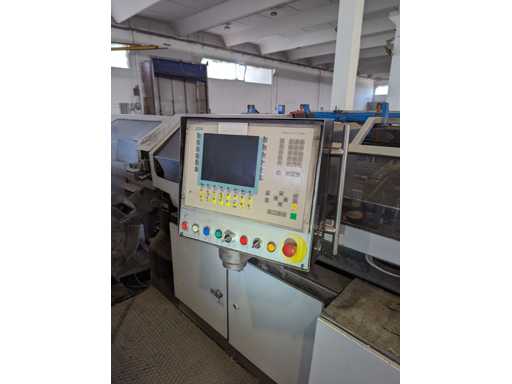

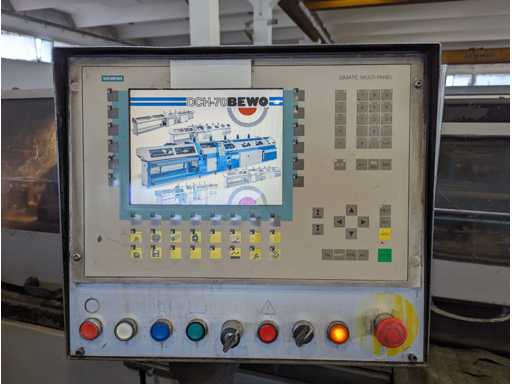

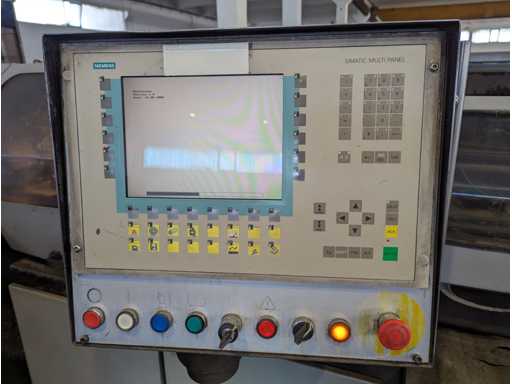

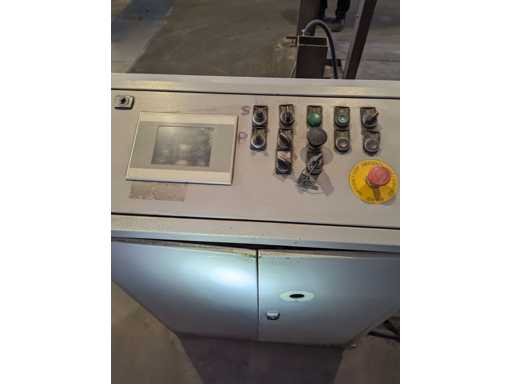

bundle magazineControl panel containing PLC SIEMENS 57
Packaging
change table Ducted
air tube cleaning system Use and maintenance
manual Harmonization of CE
standardsMachine components:

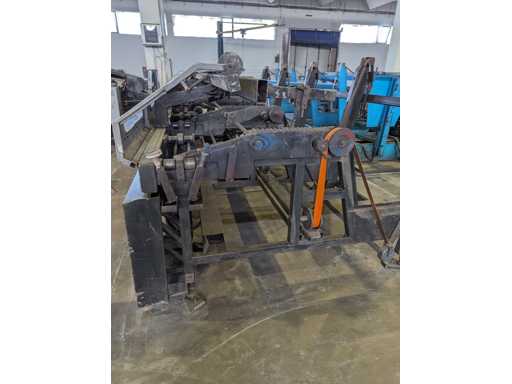

Loader: 5600x2300mm - 1200 Kg

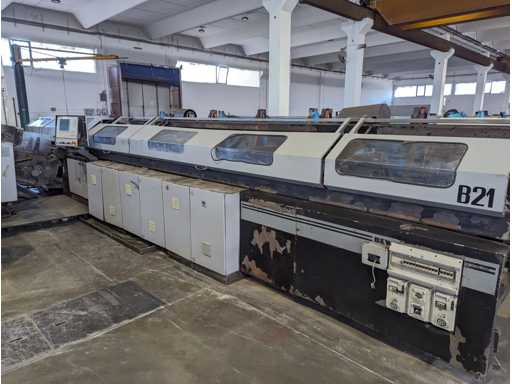

Deburring machine: 4600x2300mm - 2200 Kg

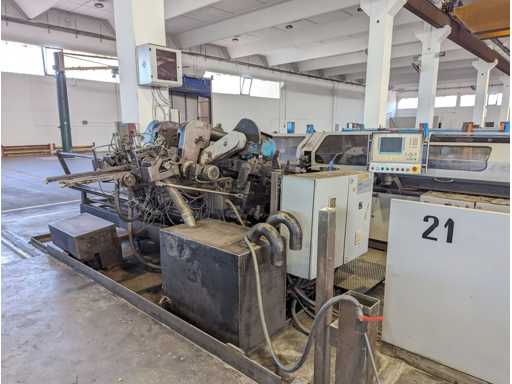

Cutting unit: 4500 x 1300mm - 2800 Kg
Additional details
All items are sold as unverified.
