EDM & Wire Erosion Machine - SODICK - K1C - 2007
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- SODICK
- Type
- K1C
- Year of build
- 2007

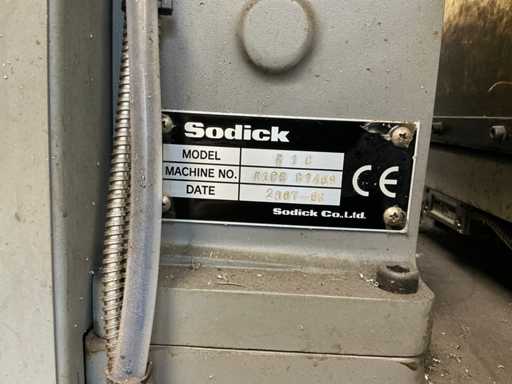

- Serial number
- K1CS G1469
- Dimension l
- 900mm
- Dimension w
- 1000mm
- Dimension h
- 2050mm
- Terms of delivery
- Loaded on truck
Description

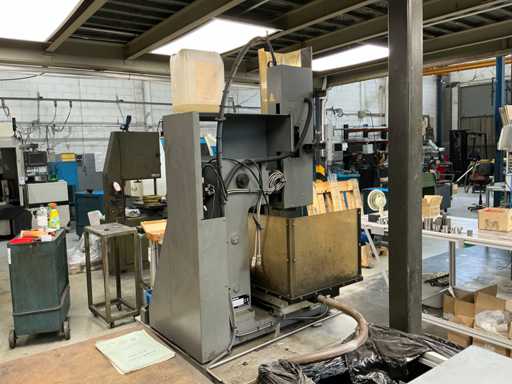

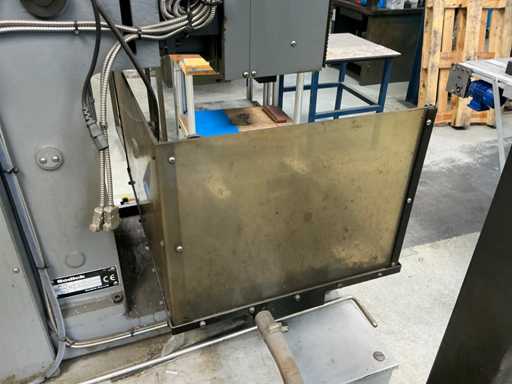

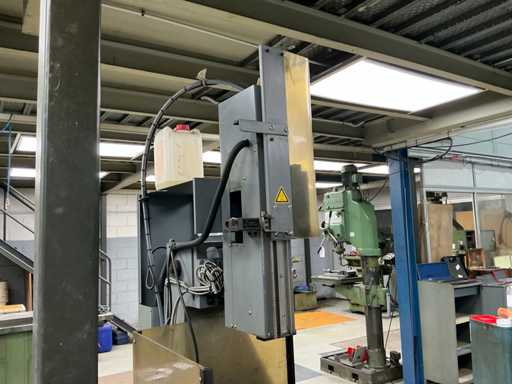

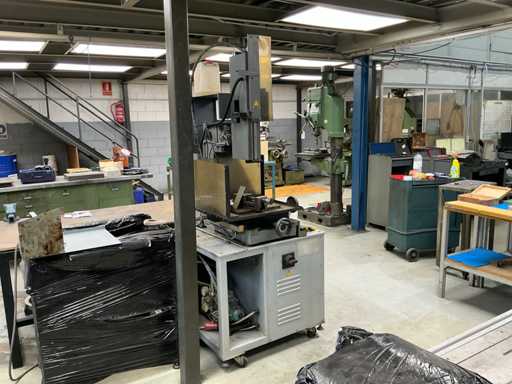

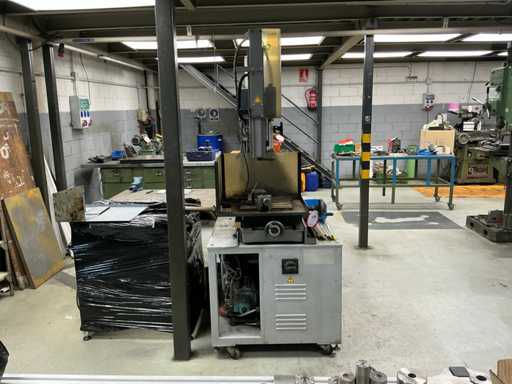

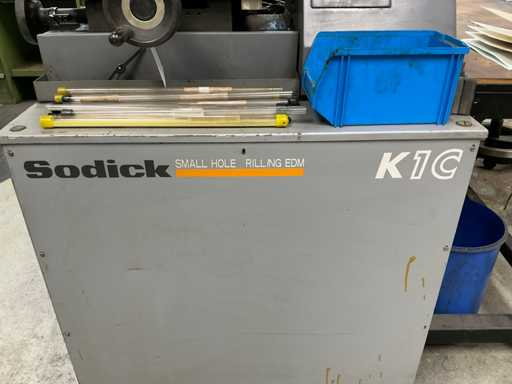

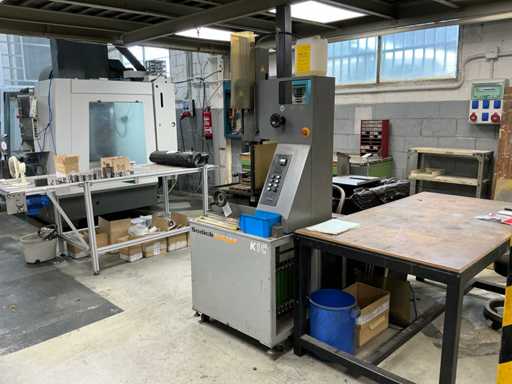

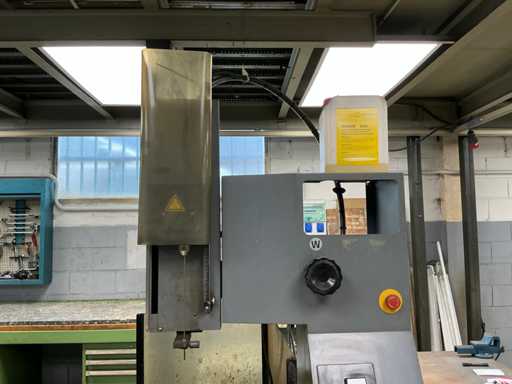

Sodick K1C EDM Drilling Machine (CE)
Year of manufacture: n/a

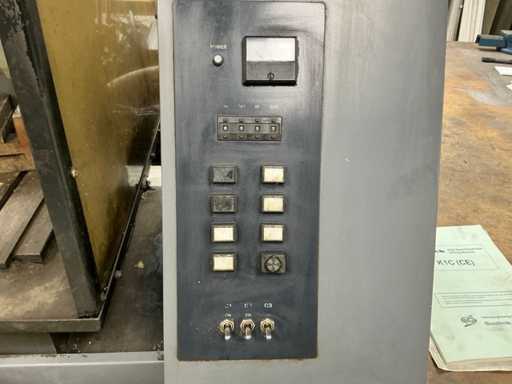

Control: Sodick

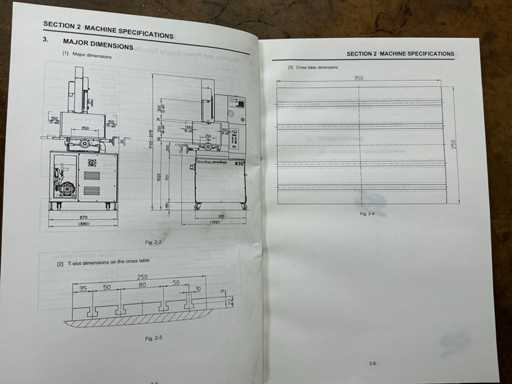

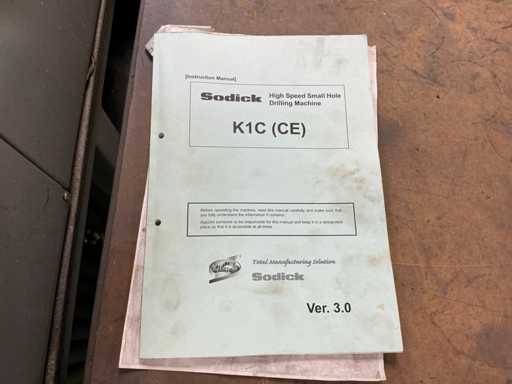

Specifications (according to manual):

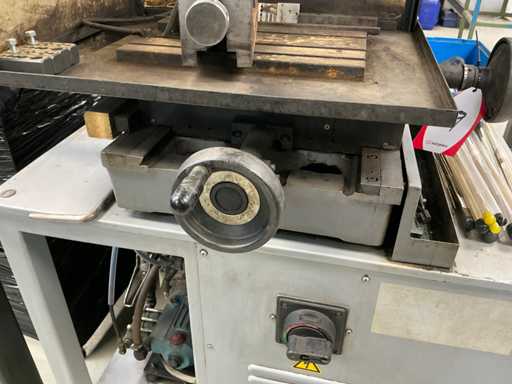

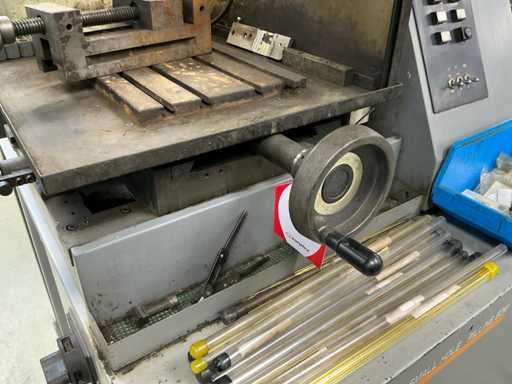

- Table size: 250 × 350 mm
- X-Travel: 200 mm
- Y-Travel: 300 mm
- Z-Travel: 250 mm

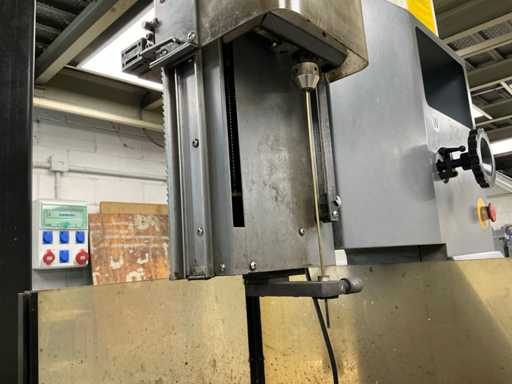

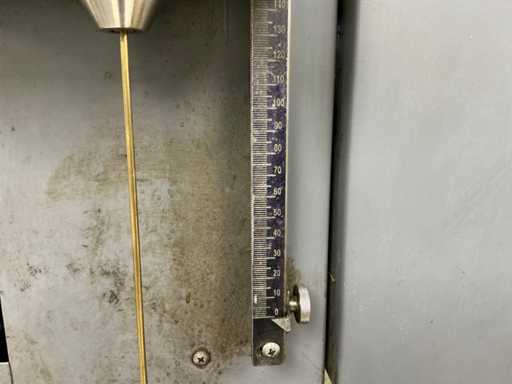

- Vertical spindle travel (W-axis): 300 mm
- Maximum part weight: 100 kg
- Max. workpiece dimensions: 250 × 350 × 300 mm
- Applicable electrode diameter: 0.25 – 3.0 mm
- Approximate external dimensions: 810 × 870 × 2015 mm
- Machine weight: 550 kg
- Electrical capacity: 3.3 kVA

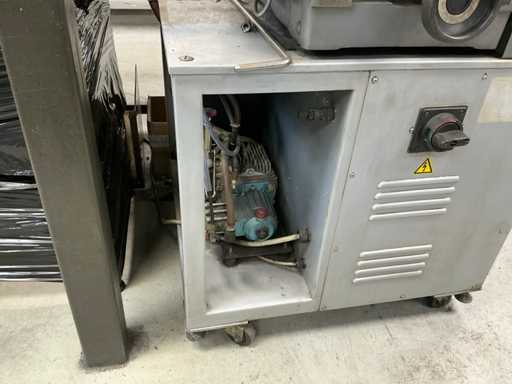

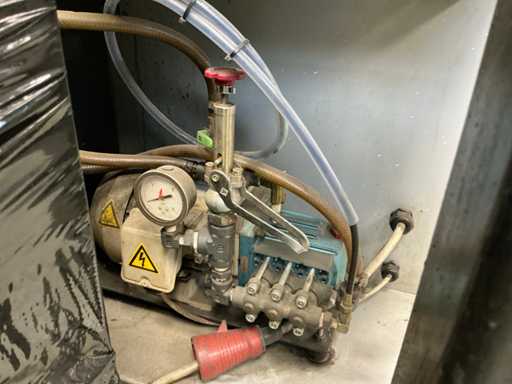

Dielectric Fluid Unit:
- Fluid: demineralized water
- Tank capacity: 20 L
- Filtration Method: Interchangeable Sponge Filter
Power:
- Voltage: 3 phases, 200/220 V, 50/60 Hz
- Maximum machining current: 30 A
- Selection of machining current steps: 15
- Pulse duration selection: 15 steps ON/OFF
Untested functionality
Remarks
Untested functionality
Additional details
All items are sold as used and uninspected, unless otherwise expressly stated.
We recommend that you carefully review the description of each item.
For more information on the warranty, please refer to the auction conditions.
Pick-up can be made between 03/11/2025 and 14/11/2025, by appointment only.
