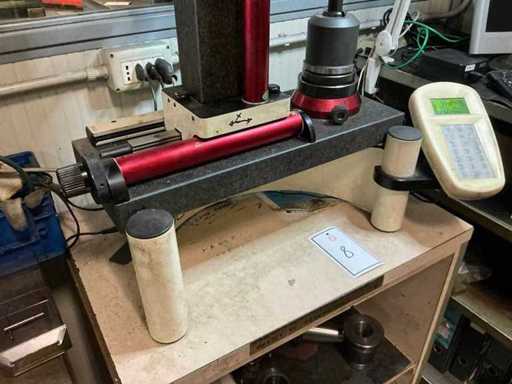

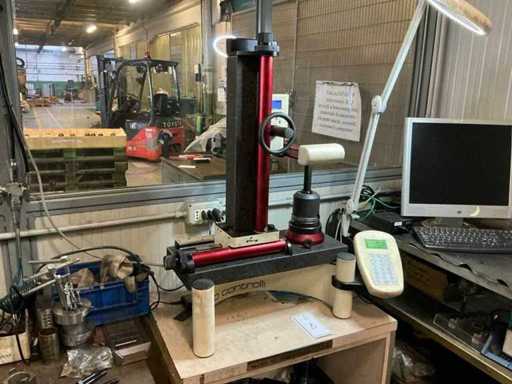

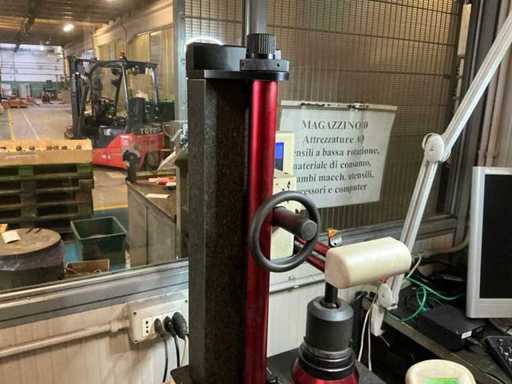

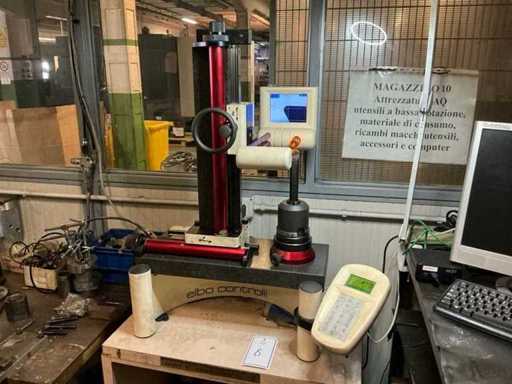

ELBO CONTROLLI - E238 - Tool setter - 2000
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ELBO CONTROLLI
- Terms of delivery
- Free on truck
Description

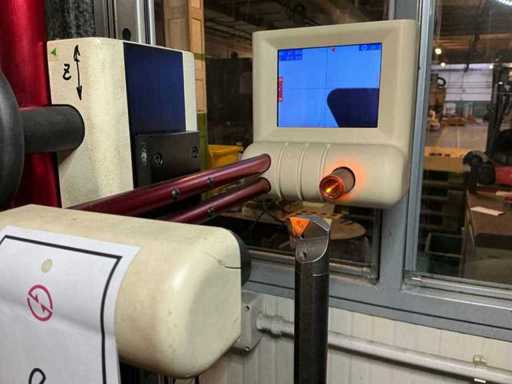

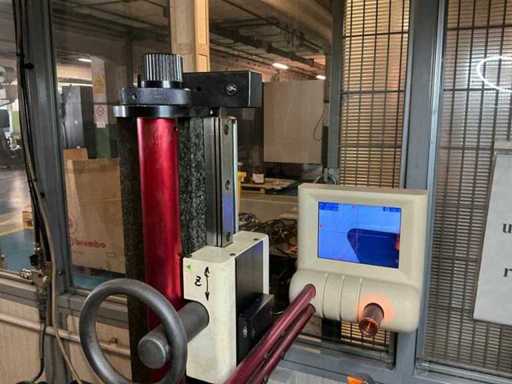

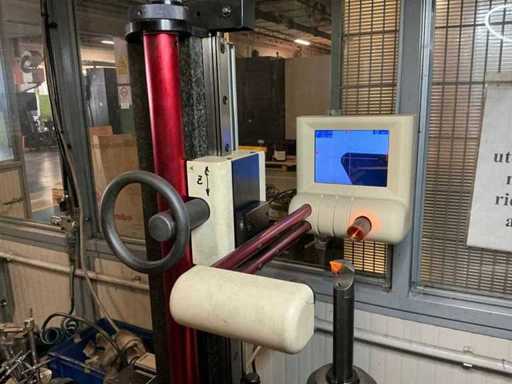

TECHNICAL FEATURES: PANVISION

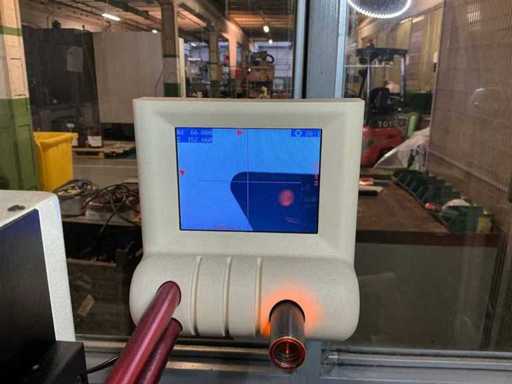

5.6" color LCD monitor resolution 320x240 pixels
C-MOS image sensor, 640x480 pixel
resolution Frame Area: Approx. 6.4mm x 4.8mm (20X)
Hardware zoom 3.2mm x 2.4mm (40X)
Measurement resolution 5 μm
Amber
LED lighting Focus control bars on the two X and Z
axes Collimation with analogue scale for exact tangency ris. lum. Width 80 μm
Full-screen
automatic measurement possible Tool profile orientation recognition DX/SX – UP/DW
Display of the measurement on the screen
Angular reticle on settable
position Circular
reticle Dimensions 800 x 600 x 600 mm

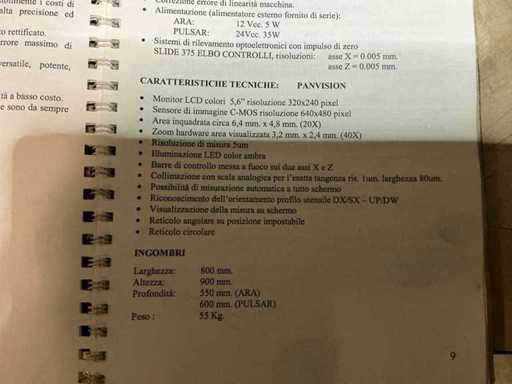

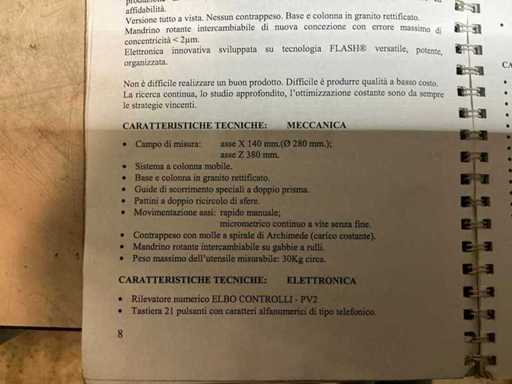

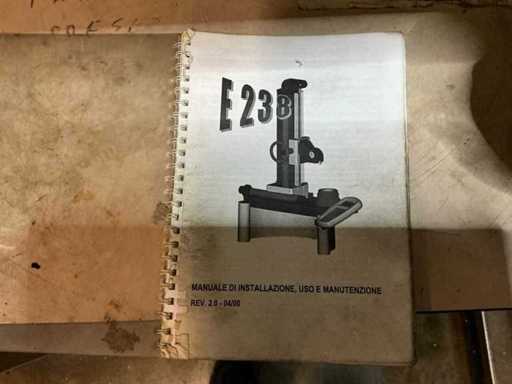

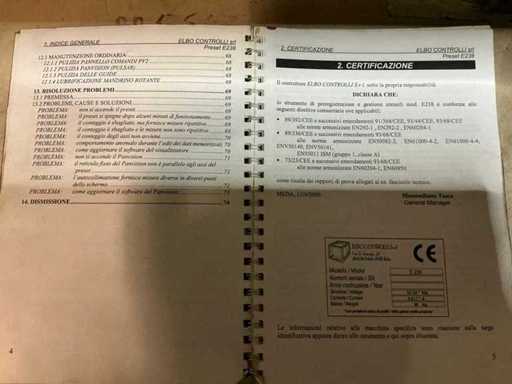

The information reported has been taken from the manual visible in the photo.
Desk and computer NOT included - presetting only.
5.6" color LCD monitor resolution 320x240 pixels
C-MOS image sensor, 640x480 pixel
resolution Frame Area: Approx. 6.4mm x 4.8mm (20X)
Hardware zoom 3.2mm x 2.4mm (40X)
Measurement resolution 5 μm
Amber
LED lighting Focus control bars on the two X and Z
axes Collimation with analogue scale for exact tangency ris. lum. Width 80 μm
Full-screen
automatic measurement possible Tool profile orientation recognition DX/SX – UP/DW
Display of the measurement on the screen
Angular reticle on settable
position Circular
reticle Dimensions 800 x 600 x 600 mm
The information reported has been taken from the manual visible in the photo.
Desk and computer NOT included - presetting only.
Additional details
ITEMS SOLD IN UNVERIFIED
STATUS SALES RESTRICTIONS - CE
