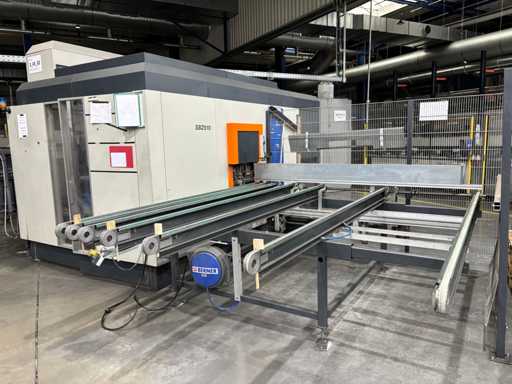

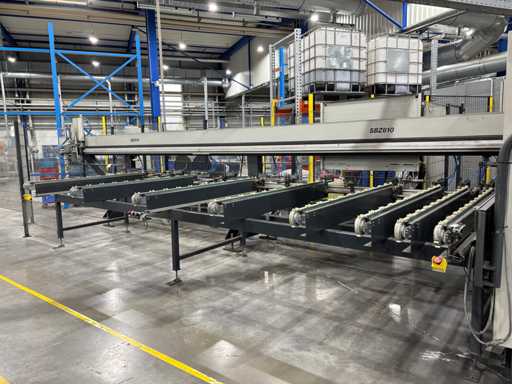

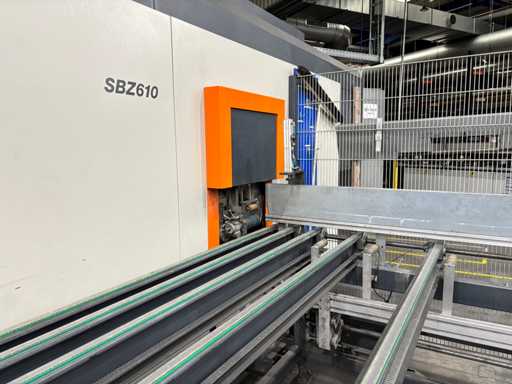

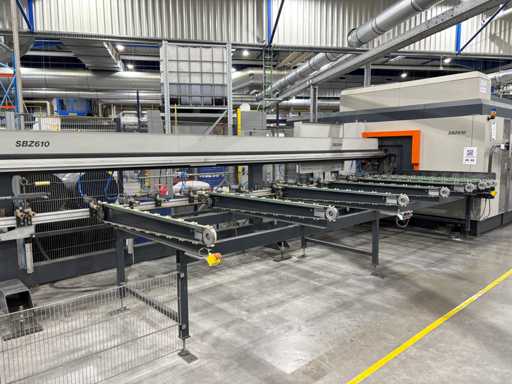

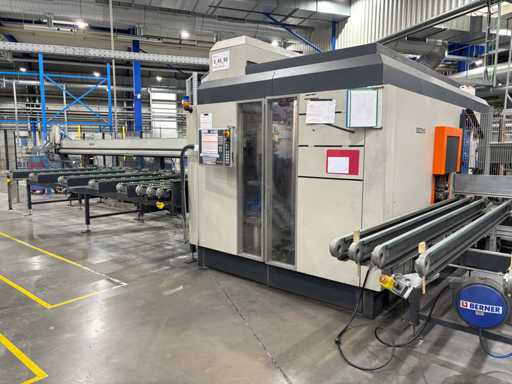

ELUMATEC SBZ 610 CNC Bar Machining Center with Milling and Sawing Unit
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Elumatec
- Type
- SBZ 610
- Year of build
- 2007
- Total dimension Height
- 2900mm
- Total dimension W
- 2900mm
- Total dimension L
- 26000mm
- Machine weight
- 6900kg
- Terms of delivery
- Ex foundation-unpackaged
Description

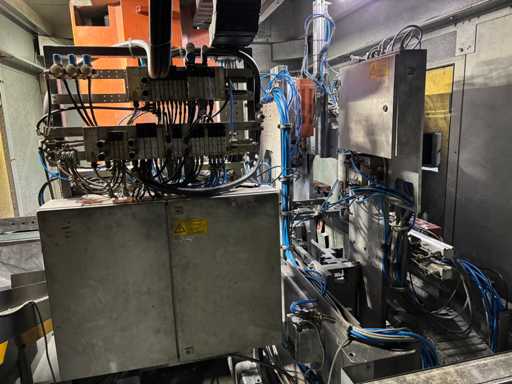

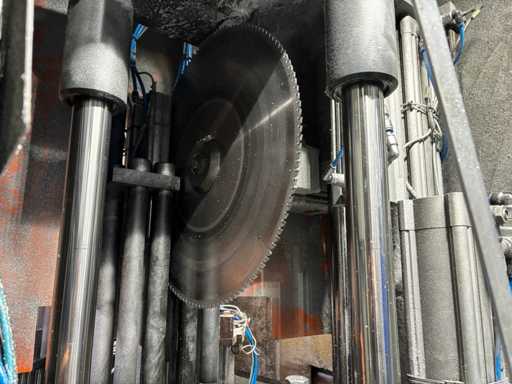

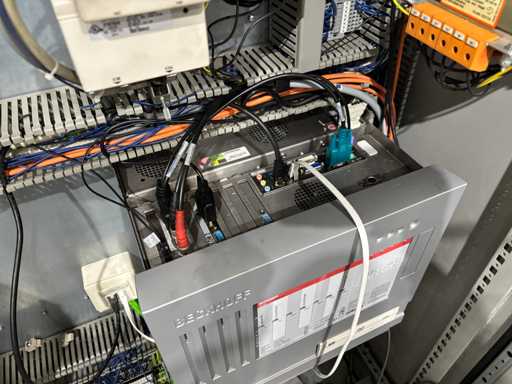

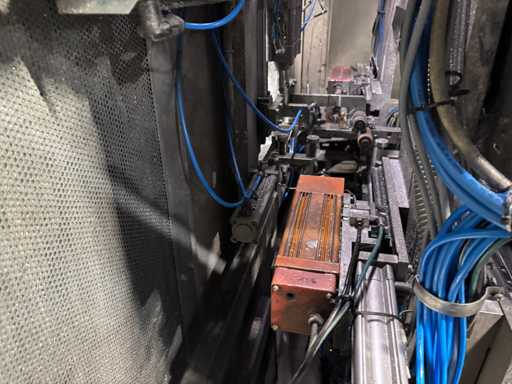

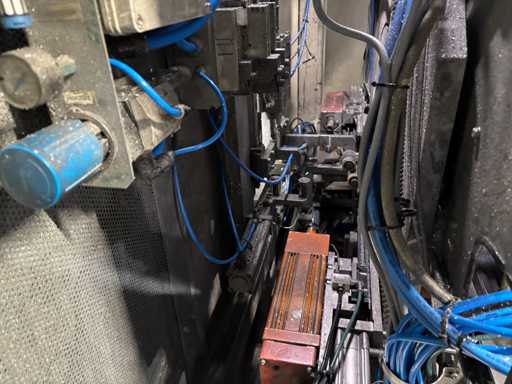

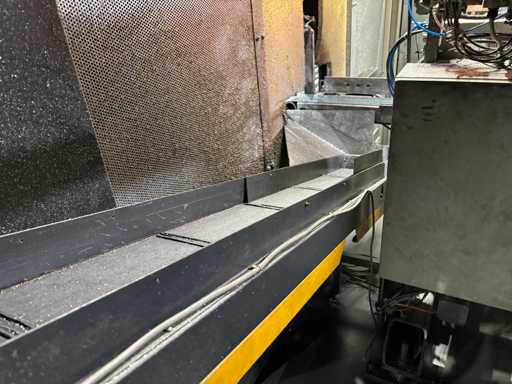

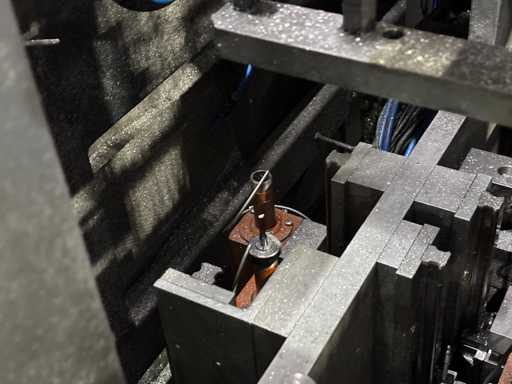

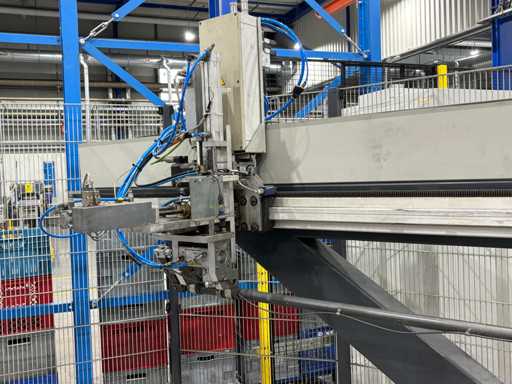

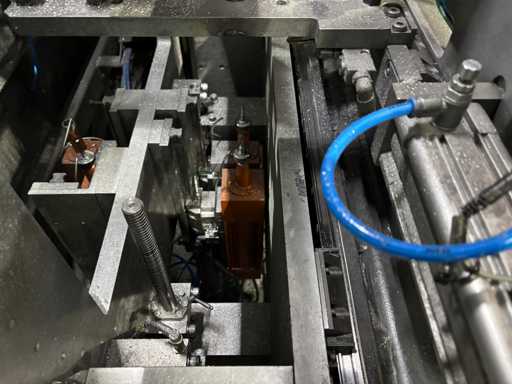

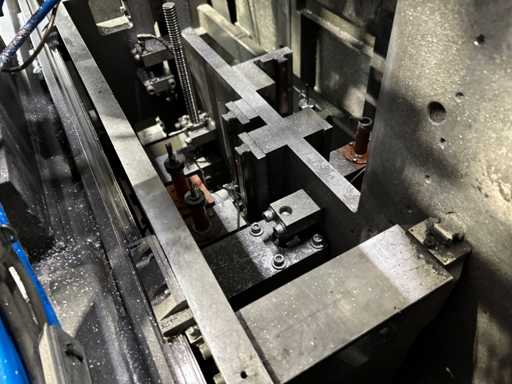

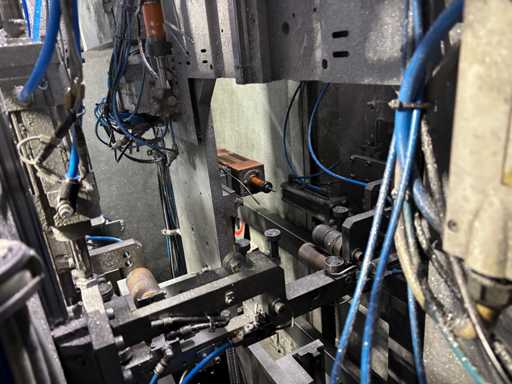

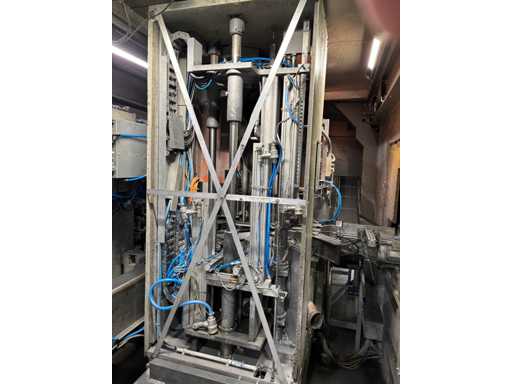

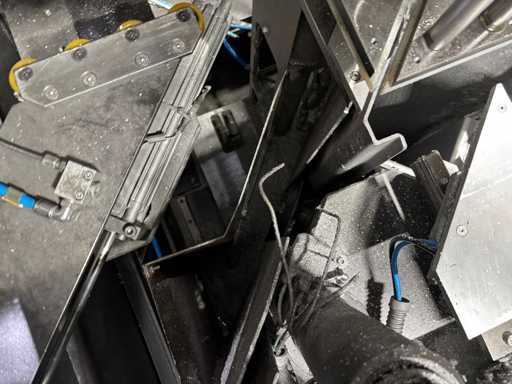

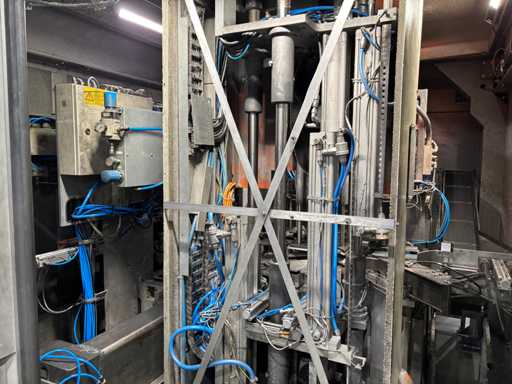

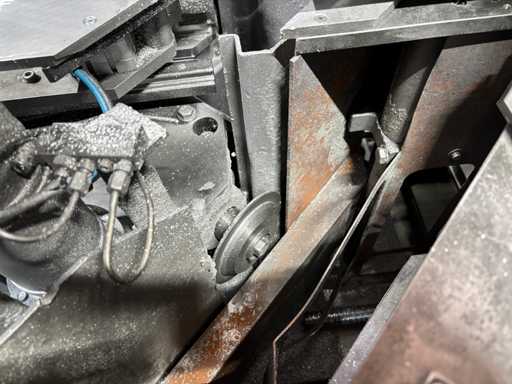

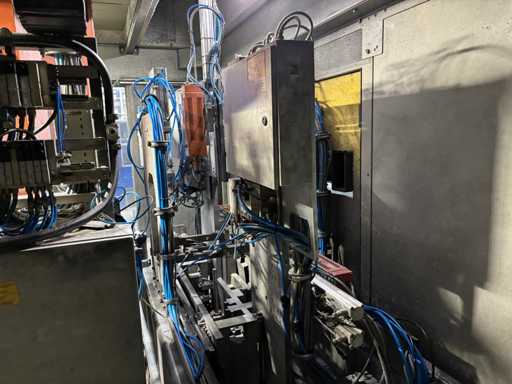

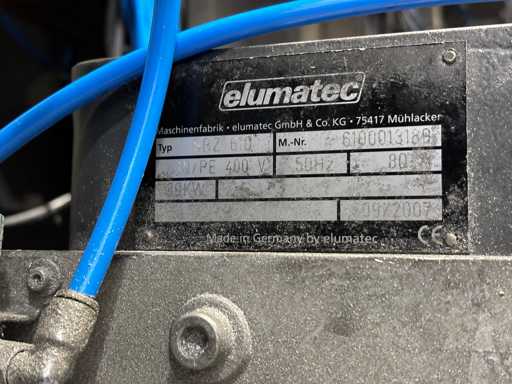

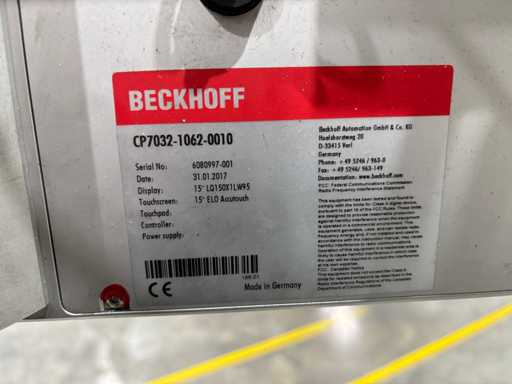

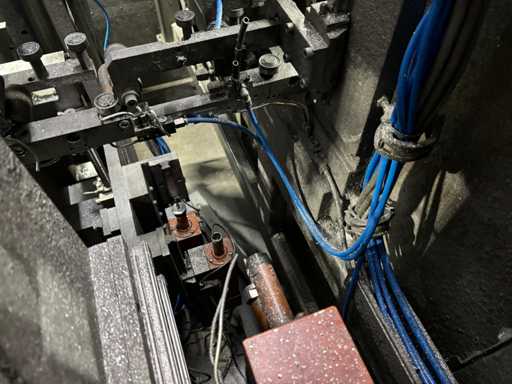

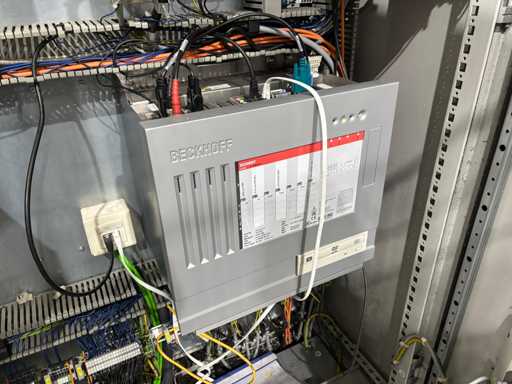

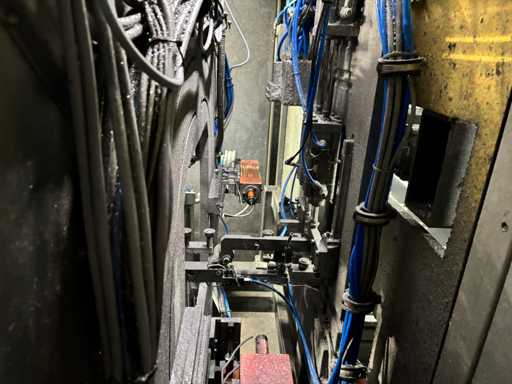

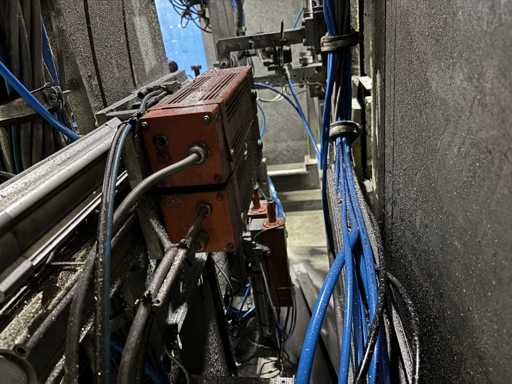

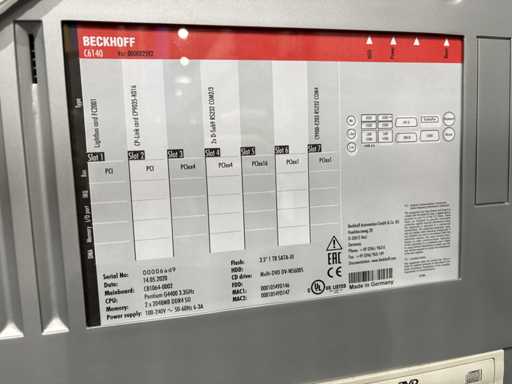

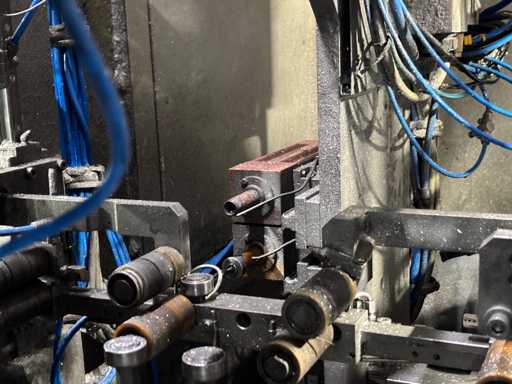

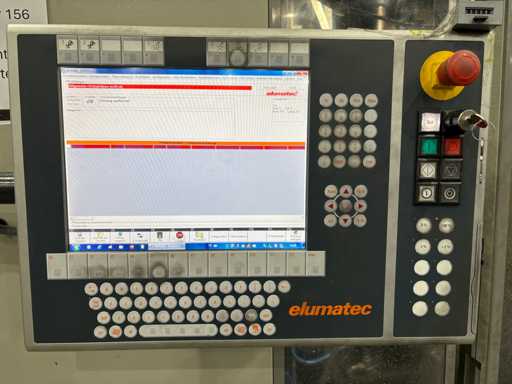

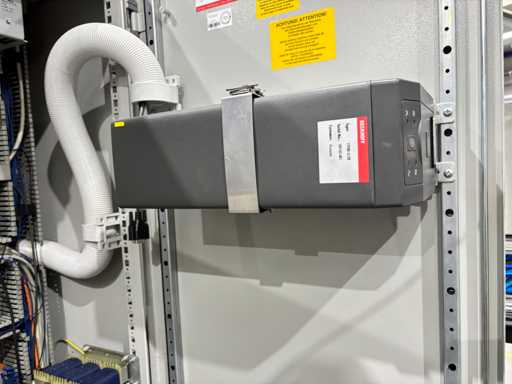

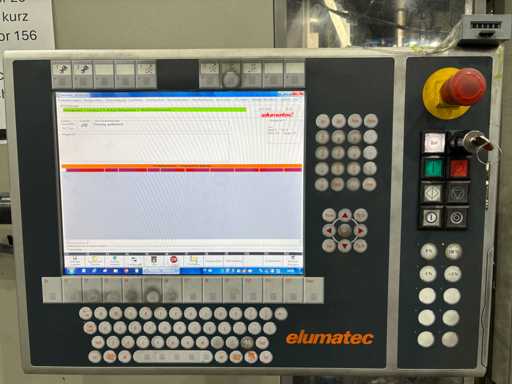

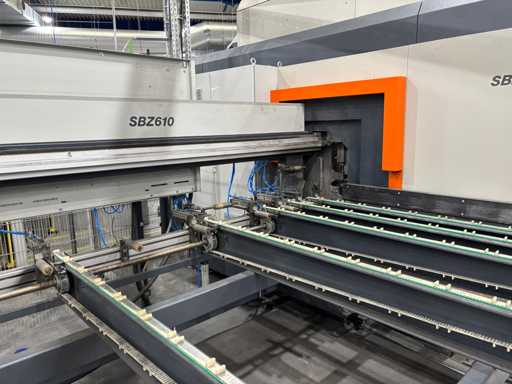

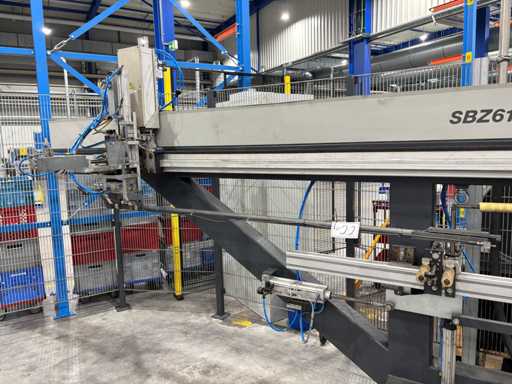

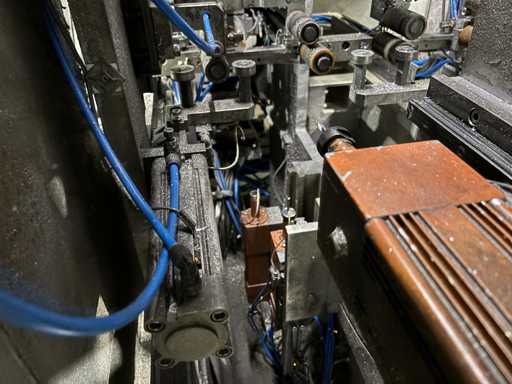

CNC Bar Machining Center for Aluminum, Machine No. 6100013180, control Beckhoff C6140 renewed in 2020, infeed of the extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 2 pieces) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! If you have any further questions, contact Ludger Reuther, mail: lre@surplex.com or mobile: +49 173 6172604)
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Pick-up possible in the following period:
23 – 27 March 2026 from 08:30 - 16:00
Please note: Pick-up is not possible on public holidays and weekends.
!!! Attention: All items are sold from the foundation!!
Viewing day: 3 March 2026 from 9:00 a.m. to 1:00 p.m.
A viewing is only possible after prior registration at ludger.reuther@surplex.com.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Contact for technical questions:
Ludger Reuther
Senior Project Manager Germany
Wood Technician & Master Carpenter
Mobile: +491736172604
E-mail: ludger.reuther@surplex.com
