EMANUEL STEEL CONSTRUCTION Metal hall
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- EMANUEL
- Year of build
- 2026
- Total dimension Height
- 30000mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical details

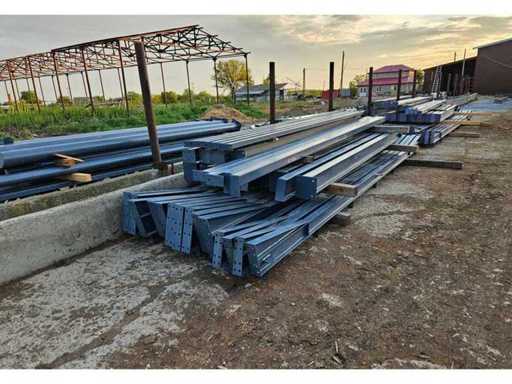

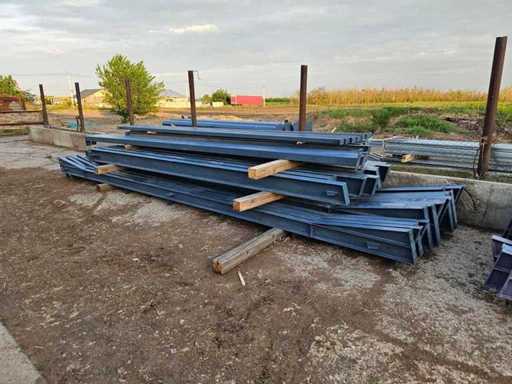

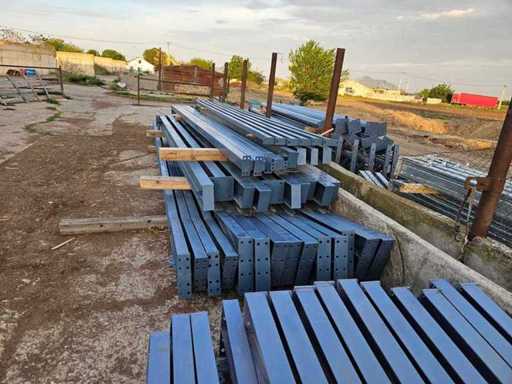

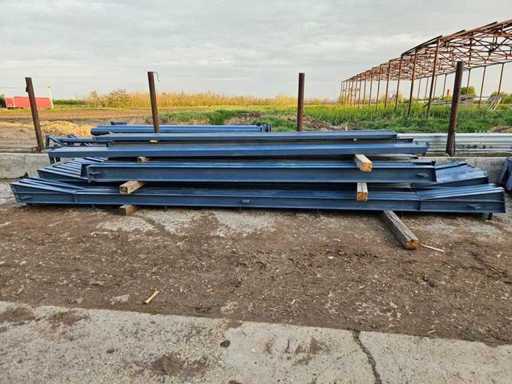

Type: Industrial metal warehouse structure
Year: 2026
Construction: Bolted steel structure (demountable)
Material: Steel
Dimensions:
- Width: 15000 mm
- Length: 30000 mm
- Total area: 450 m²
- Post height: 4500 mm
- Ridge height: 6500 mm
Roof slope: 20°
Color: RAL 5023 painted finish
Structural components:
- 2 end trusses made from IPE 160 profiles
- 5 intermediate trusses made from IPE 220 profiles
- 4 end posts made from IPE 160 profiles
- 10 intermediate posts made from IPE 220 profiles
- 4 door posts made from 100 × 100 × 4 mm square tube
- 6 bracing struts made from Ø76 × 4 mm pipe
- Wind bracing for beams and posts with galvanized steel tensioning system and 16 mm tensioners
Configuration:
- Fully bolted construction
- Removable and relocatable structure
Documentation included:
- Certificate of conformity for materials
- Construction drawings/sketch
- Foundation plan
Loading: Free loading included
Condition: New / unused
