EMANUEL STEEL CONSTRUCTION Metal hall
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- EMANUEL
- Year of build
- 2026
- Total dimension Height
- 20000mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical details
Type: Metal hall
Year: 2026
Construction: Bolted steel structure (demountable)
Material: Steel

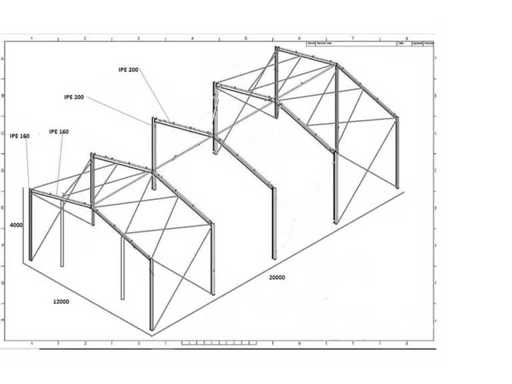

Dimensions:
- Width: 12000 mm
- Length: 20000 mm
- Total area: 240 m²
- Pillar height: 4000 mm
- Ridge height: 5800 mm
Roof slope: 20°
Color: RAL 5023 painted finish

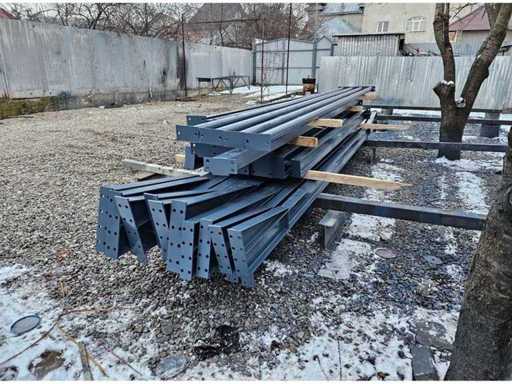

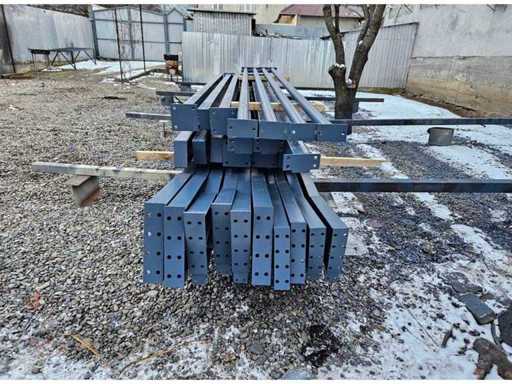

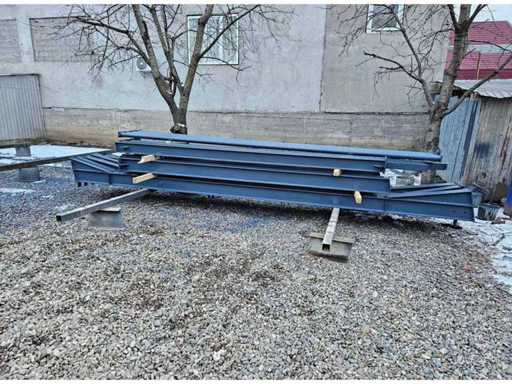

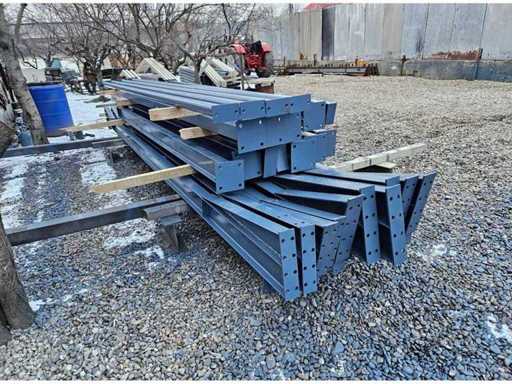

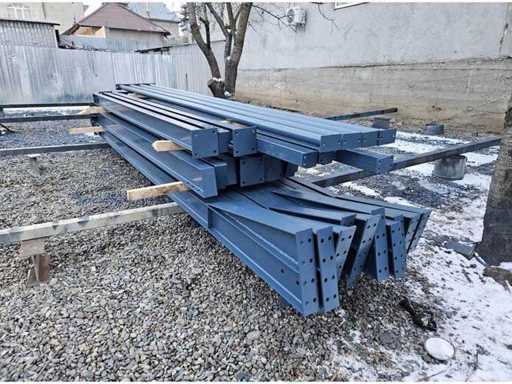

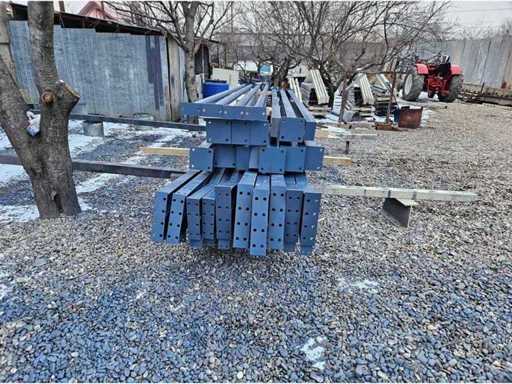

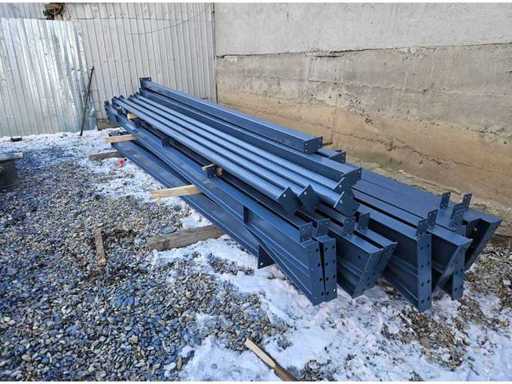

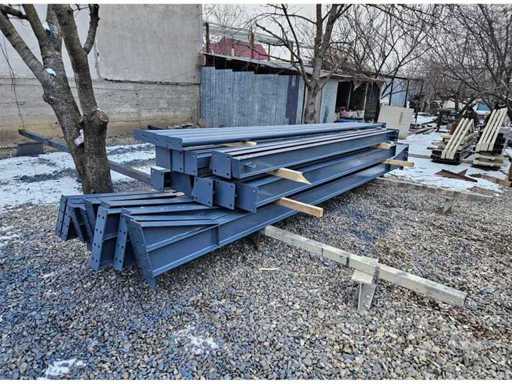

Structural components:
- 2 end trusses made from IPE 160 profiles
- 3 intermediate trusses made from IPE 200 profiles
- 4 end pillars made from IPE 160 profiles
- 6 intermediate pillars made from IPE 200 profiles
- 3 door pillars made from 100 × 100 × 4 mm square tube
- 4 bracing uprights made from Ø76 × 4 mm pipe
- Wind bracing for beams and posts with galvanized steel tensioning system and 16 mm tensioners
Configuration:
- Fully bolted construction
- Removable and relocatable structure
Documentation included:
- Certificate of conformity for materials
- Construction sketch/drawings
- Foundation plan
Loading: Free loading included
Condition: New / unused
Remarks
unchecked
