ENGEL - VICTORY 200-80 Tech - 2005 - Injection moulding machine

Current bid
Status

Total bid amount

See total breakdown

Max bid amount

See total breakdown
Lot specifications
Quantity
1
Margin
No
Brand
ENGEL
Type
VICTORY 200-80 Tech
Year of build
2005
Screw diameter
30mm
Injection volume
99cm³
Injection pressure
1450bar
Closing force
800kN
Hours on display
76988
Machine weight
5200kg
Total dimension L
4050mm
Total dimension W
1930mm
Total dimension Height
2200mm
Terms of delivery
Free on truck
Description

Technical data closing page

Clamping force: 800 kN
Plate size (h × v): 670 × 600 mm
Min. installation height: 250 mm
Plate spacing max.: 700 mm
Opening travel: 450 mm
Ejector stroke: 100 mm
Ejector force: 40 kN
Centering of movable plate D: 125 mm
Centering of fixed plate D: 125 mm
Tool weight: 675 kg

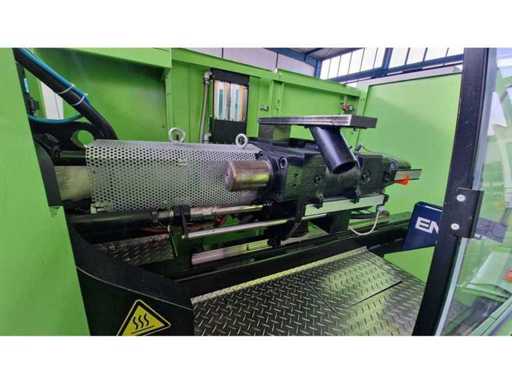

Technical Data Spray Side

Screw diameter: 30 mm
Displacement: 99 cc
Spray pressure: 1450 bar
Screw length: 20 l/d
Screw stroke: 140 mm
Plasticizing current: 17 g/s PS
Injection flow to the outside: 150 g/s hp
Number of heating zones: 4
Nozzle travel: 200 mm

Equipment

On-screen text: German
CEE socket 16 A
Core pull hydraulic 1×
Machine including conveyor belt
Machine including handling
Machine with water battery
Machine without material hopper
Levelling elements
Schuko socket 10 A

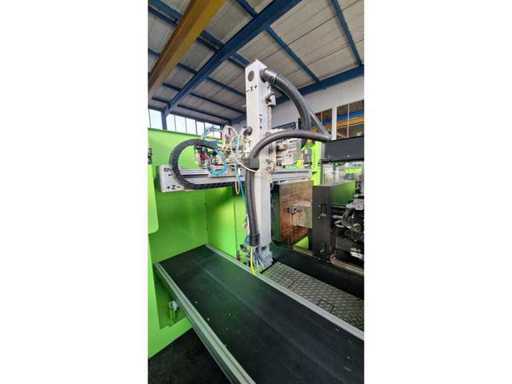

Technical Data Handling

Machine type: Linear handling
Make: Engel
Control: ER-HLI 31 VC
Year of Make: 2005
Handling weight: 2 kg
On-screen text: German
Total weight: 250 kg
Remarks
Function tested! Test run possible!
Viewing desired
Additional details
Loading conditions: free loading truck Pick-up days 10 to 13.03.2026 and 16 to 20.03.2026 09:00 to 16:00 by appointment. Exact pick-up information can be found on the last page of the invoice. Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer: • EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund. • Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.

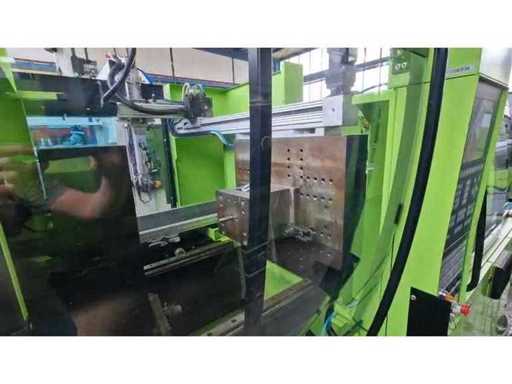

Video

See the details and take a closer look at the item in this video.

WhatsApp%2520Video%25202026-02-09%2520at%252014.09.44.mp4
