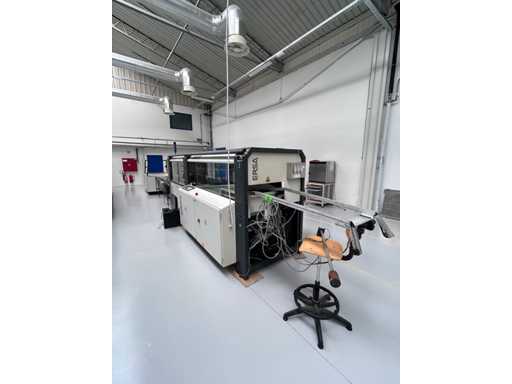

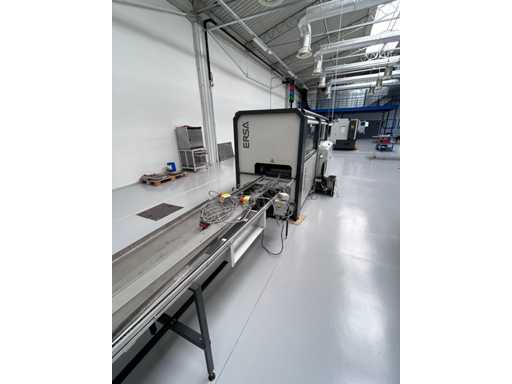

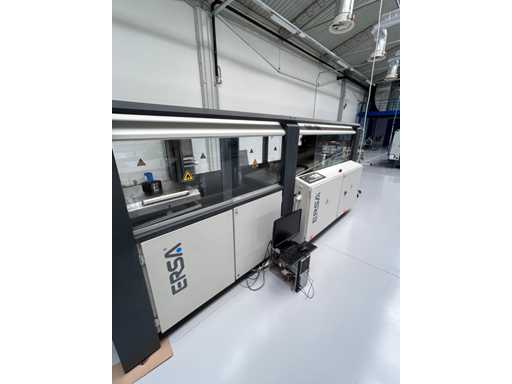

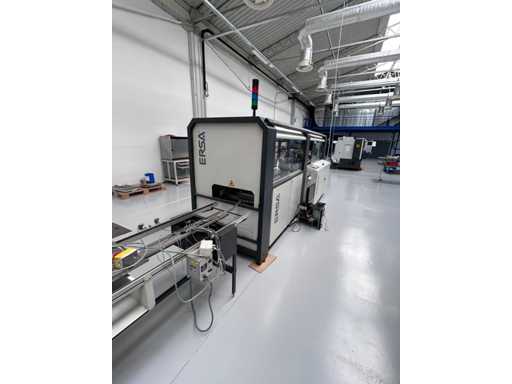

ERSA - EWS 400 - Wave Soldering Machine ERSA EWS 400 2006 - 2006
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ERSA
- Type
- EWS 400
- Year of build
- 2006

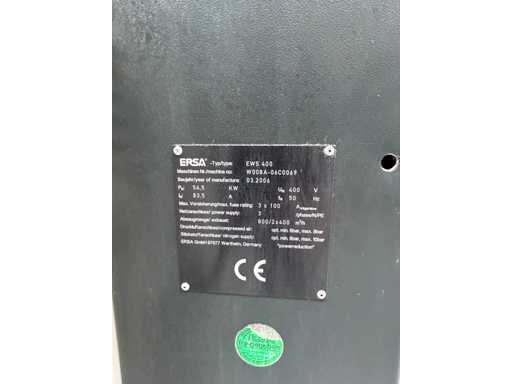

- Serial number
- W008A-06C0069
- Own weight
- 2500kg
- Total dimension L
- 6000mm
- Total dimension W
- 1300mm
- Total dimension Height
- 1800mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Power: 54.5 kW • Additional Notes: Equipped with nitrogen (N₂) supply installation. Includes approx. 4-meter infeed conveyor (removable). Exhaust requirement: 800/2×400 m³/h. Compressed air supply: min. 6 bar, max. 8 bar. Nitrogen supply: min. 6 bar, max. 10 bar. General: A wave soldering machine designed for through-hole soldering processes, enabling high-quality soldering with integrated fluxing and preheating zones.
Remarks
unchecked
Important information
legalLotImportantInformationSpxSi
Additional details
The items are at different locations (see item description).
Viewing by appointment only!
