FANUC Star Micronics CNC Swiss Lathe SA-12 - Other Lathes
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- FANUC Star Micronics
- Type
- CNC-Langdrehautomat SA-12

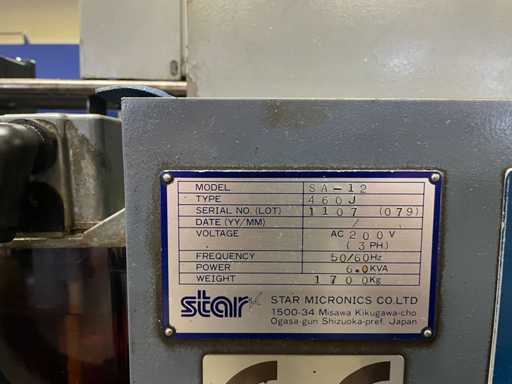

- Serial number
- 1107 (079)
- Turning Ø
- 12mm
- Spindle boring Ø
- 12mm
- Speed from n=
- 200rpm
- Speed till n=
- 10000rpm
- Coolant pump
- Yes
- CNC control, brand, type
- FANUC
- Engine power (kW)
- 6kW
- Electric connection
- 200V
- Machine weight
- 1700kg
- Dimension l
- 2200mm
- Dimension w
- 1200mm
- Dimension h
- 1700mm
- HS Code
- 84581100
- Terms of delivery
- Ex foundation-unpackaged
Description

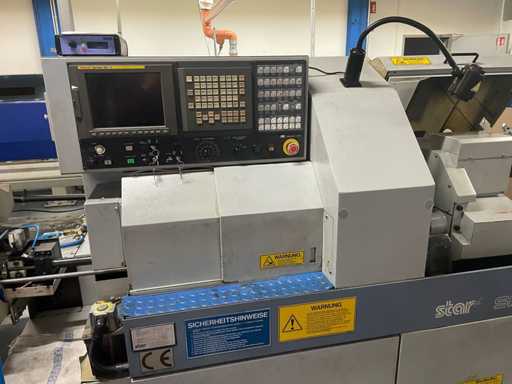

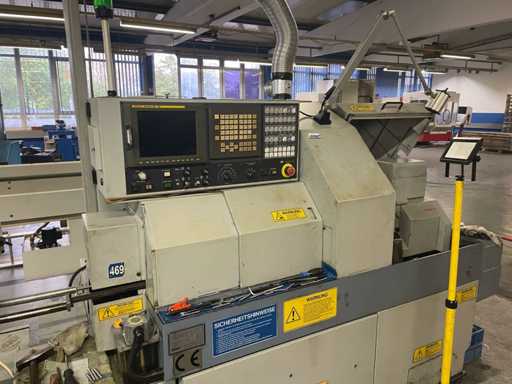

The STAR Micronics SA-12 is a compact and proven CNC Swiss lathe for the precise series production of small turned parts up to Ø 12 mm. The machine is particularly suitable for applications in the precision mechanics, medical technology, electronics and automotive supply industries, where high repeatability and process stability are required.

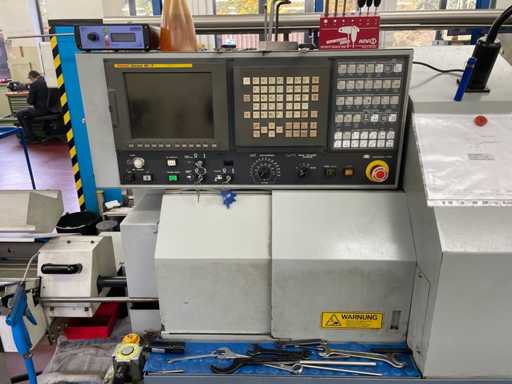

Equipped with a FANUC CNC control, the SA-12 offers reliable and user-friendly operation as well as flexible programming options. The CNC-controlled spindle drive enables a wide speed range and precise machining even with demanding materials. Several tool stations allow cost-effective complete machining in a single operation.

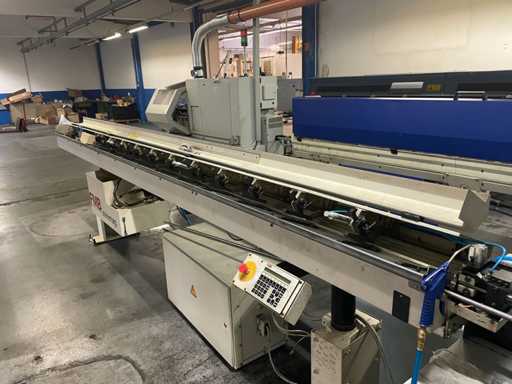

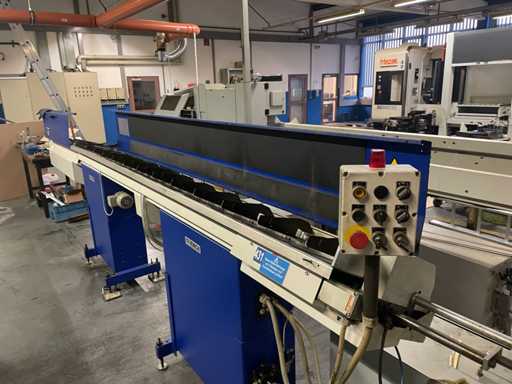

The machine has a complete protective cover, integrated coolant system, chip removal and connections for extraction. The scope of delivery includes a bar loading magazine (FMB minimag), which enables automated material feeding and makes the machine ideal for low-manned series operation.
The SA-12 comes from an industrial production environment and is in a used, well-maintained overall condition. Usual signs of wear are present, but no missing main components are recognizable. The machine was used before dismantling, a current function test is not documented. The sale is therefore made without guarantee or warranty.
Overall, it is a robust and reliable CNC Swiss lathe that is ideal for companies looking for a compact solution for the precise serial production of small turned parts.
Equipped with a FANUC CNC control, the SA-12 offers reliable and user-friendly operation as well as flexible programming options. The CNC-controlled spindle drive enables a wide speed range and precise machining even with demanding materials. Several tool stations allow cost-effective complete machining in a single operation.
The machine has a complete protective cover, integrated coolant system, chip removal and connections for extraction. The scope of delivery includes a bar loading magazine (FMB minimag), which enables automated material feeding and makes the machine ideal for low-manned series operation.
The SA-12 comes from an industrial production environment and is in a used, well-maintained overall condition. Usual signs of wear are present, but no missing main components are recognizable. The machine was used before dismantling, a current function test is not documented. The sale is therefore made without guarantee or warranty.
Overall, it is a robust and reliable CNC Swiss lathe that is ideal for companies looking for a compact solution for the precise serial production of small turned parts.
Remarks
The STAR Micronics SA-12 is in pre-owned, neat and complete condition. The machine comes from an ongoing production plant and was used until dismantling. All essential assemblies such as CNC control (FANUC), spindle, tool holders, coolant system, protective cover and electrical components are available.
Visually, signs of wear and tear due to age and use, such as dirt and slight paint wear, are recognizable. No obvious damage or missing main components are visible.
All in all, it is a compact CNC Swiss lathe in near-operational condition, suitable for recommissioning or spare parts extraction.
Visually, signs of wear and tear due to age and use, such as dirt and slight paint wear, are recognizable. No obvious damage or missing main components are visible.
All in all, it is a compact CNC Swiss lathe in near-operational condition, suitable for recommissioning or spare parts extraction.
