FERMAT CZ WFT MILL CNC Drilling and Milling Center
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Fermat CZ s.r.o. (Tschechien)
- Type
- WFT MILL CNC
- Year of build
- 2013
- Serial number
- F-01-0197
- Taper iso
- ISO 50, DIN 69871
- Travel x-axis
- 3000mm
- Travel y-axis
- 2000mm
- Travel z-axis
- 1500mm

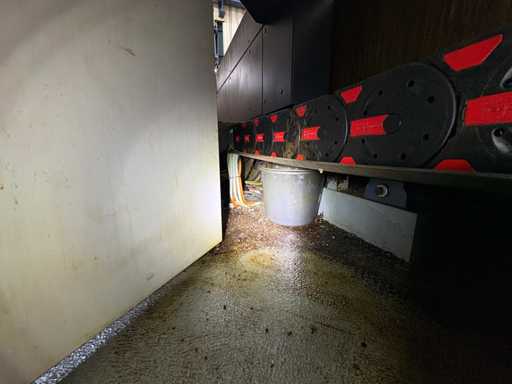

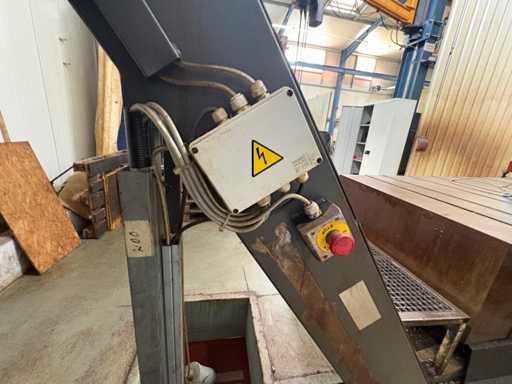

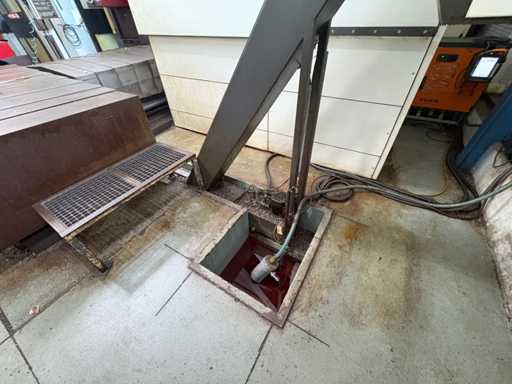

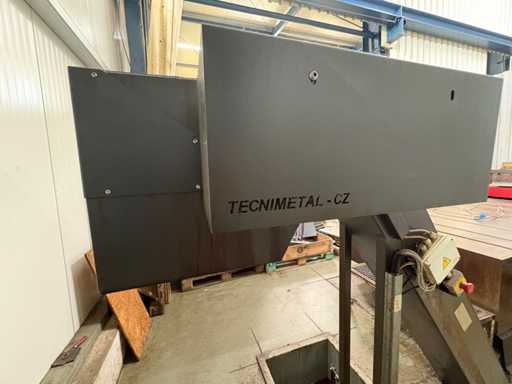

- Chip conveyor
- Yes

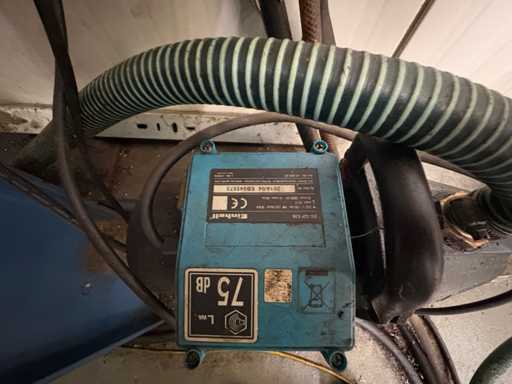

- Coolant pump
- Yes
- Workpiece weight max.
- 15000kg

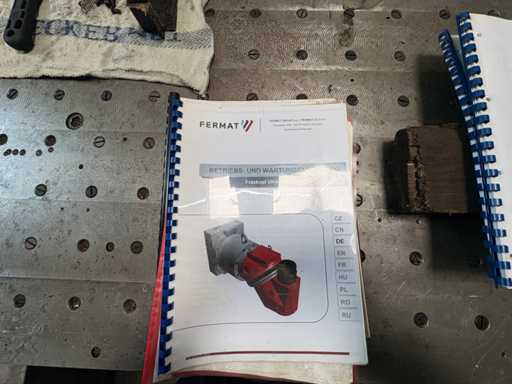

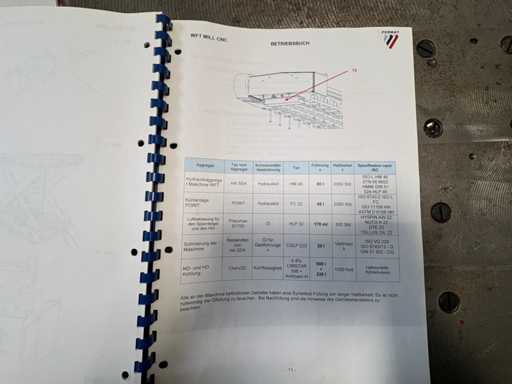

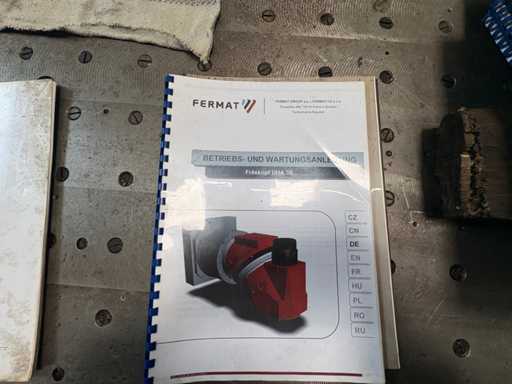

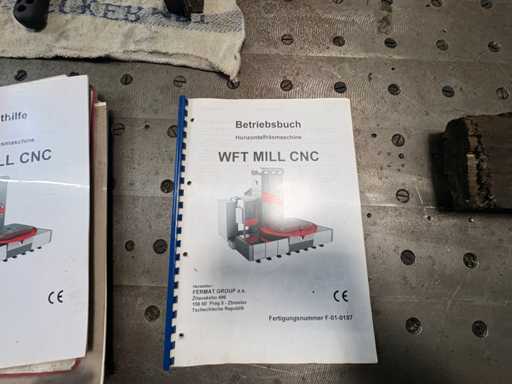

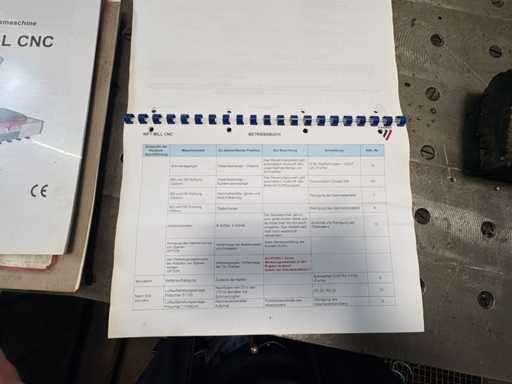

- Manual present
- Yes
- Total dimension Height
- 4750mm
- Total dimension W
- 4740mm
- Total dimension L
- 7470mm
- Machine weight
- 52500kg
- Terms of delivery
- Ex foundation-unpackaged
Description

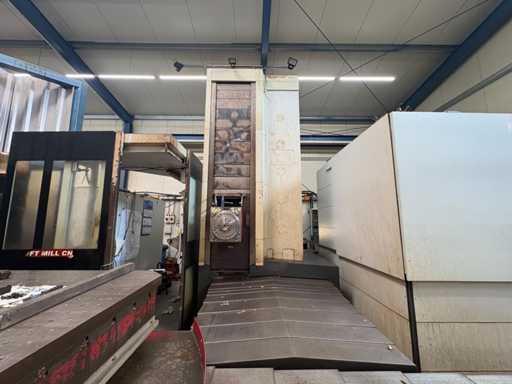

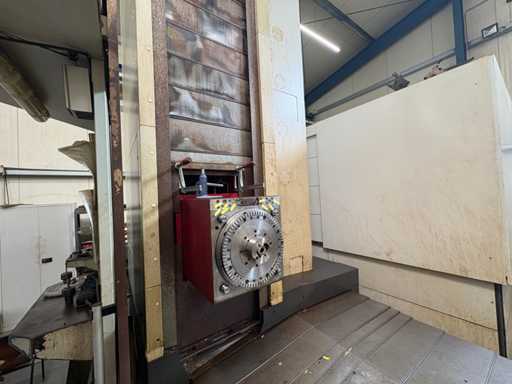

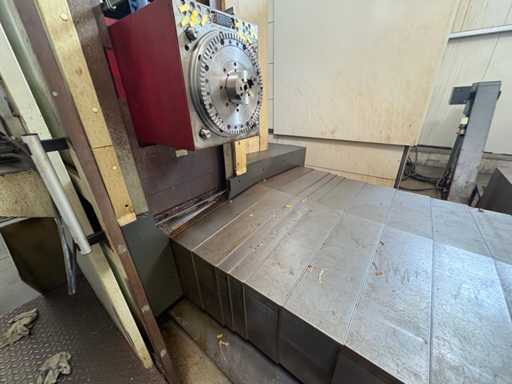

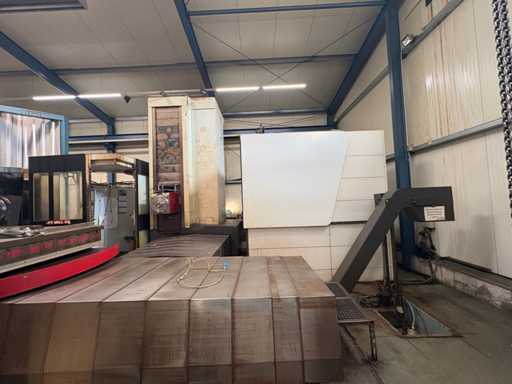

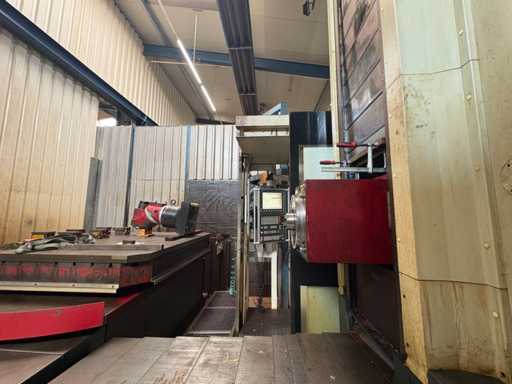

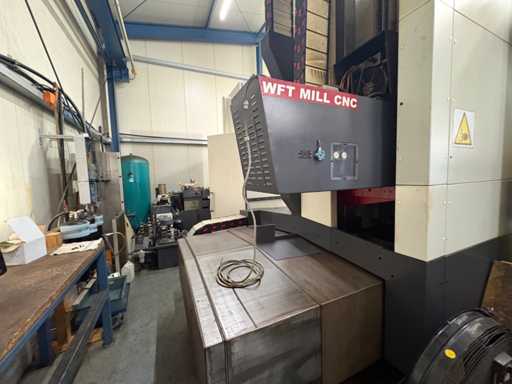

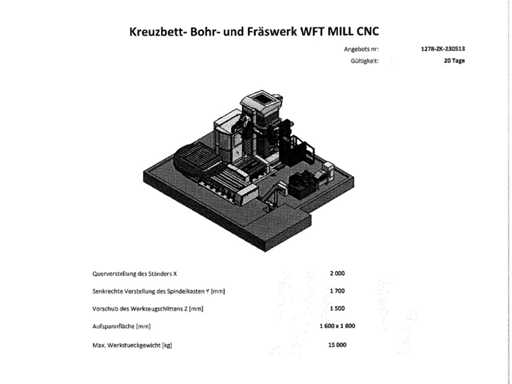

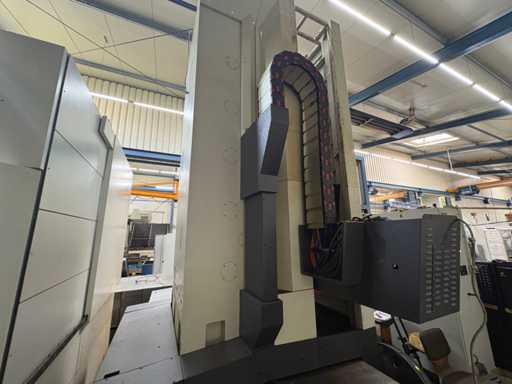

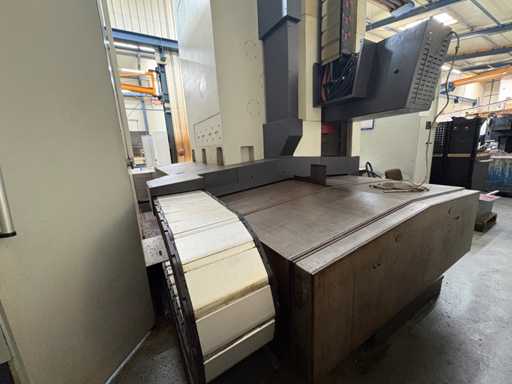

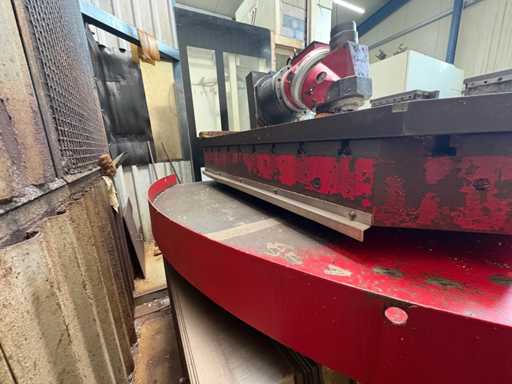

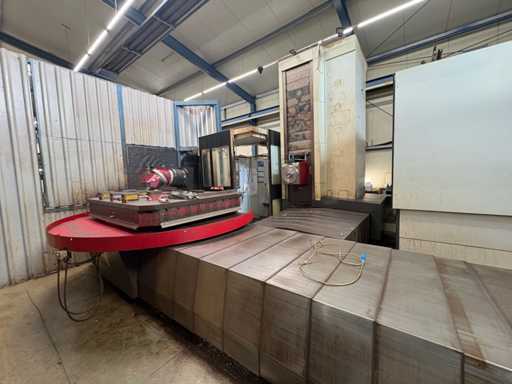

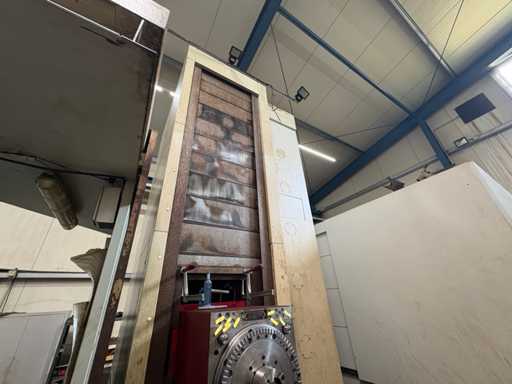

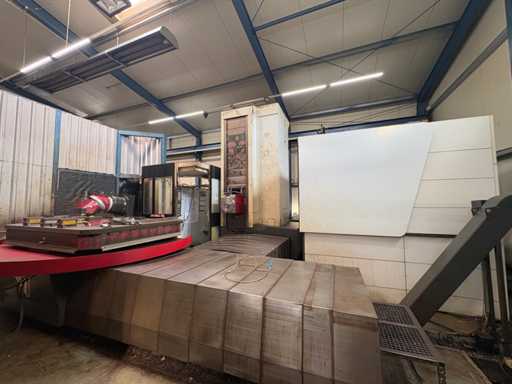

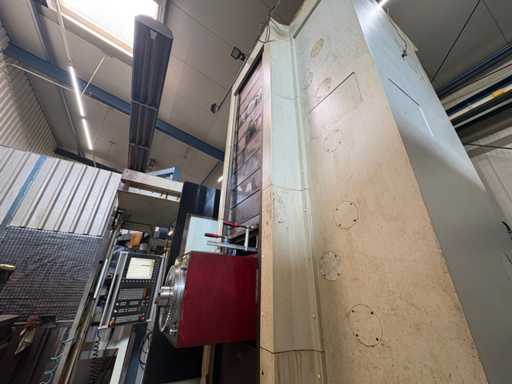

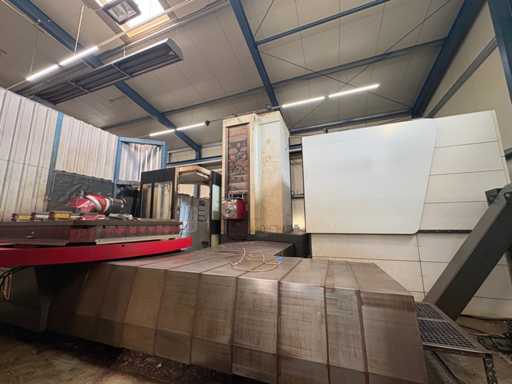

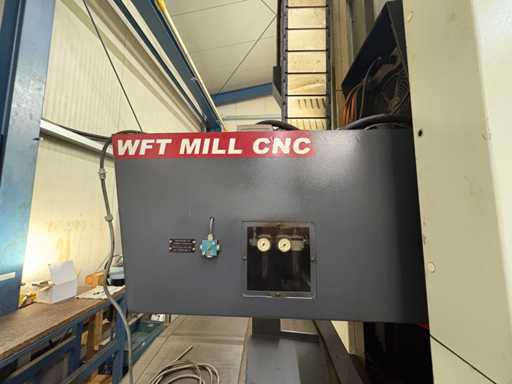

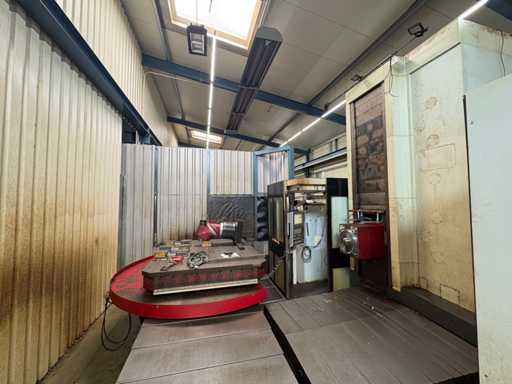

Fermat WFT MILL CNC – Cross-bed boring and milling machine (built in 2013)

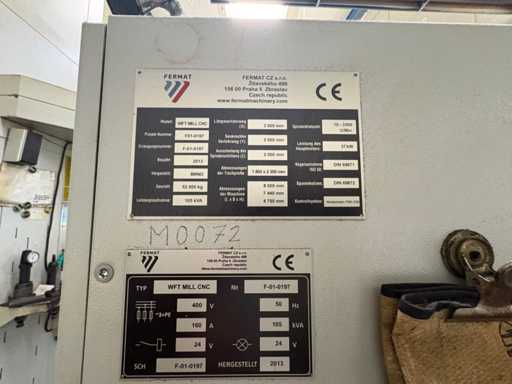

Main technical data
• Manufacturer: FERMAT CZ s.r.o., Czech Republic
• Model: WFT MILL CNC
• Year of construction: 2013
• Project No.: F-01-0197

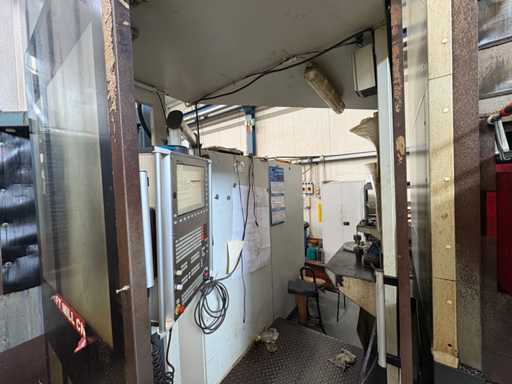

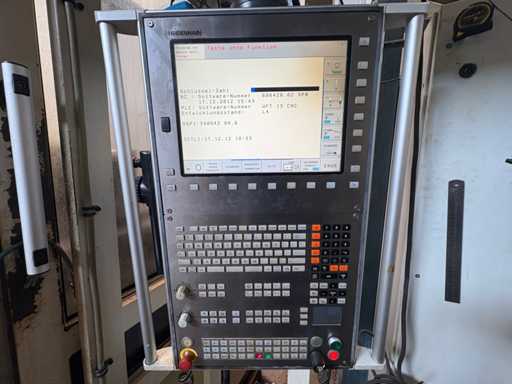

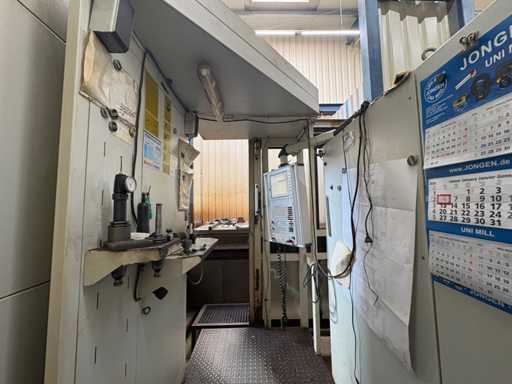

• Control: Heidenhain iTNC 530
• Spindle speed: 10 – 3000 rpm
• Power main drive: 37 kW
• Total power consumption: 105 kVA
•Travel:
• X-axis: 3000 mm
• Y-axis: 2000 mm
• Z-axis: 1500 mm
• W-axis (spindle slide extension): 800 mm

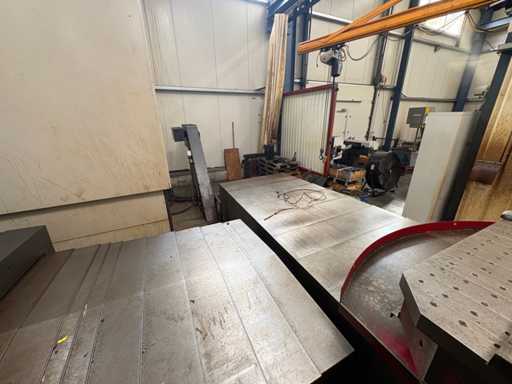

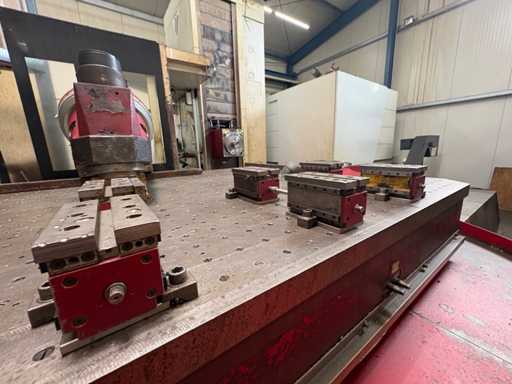

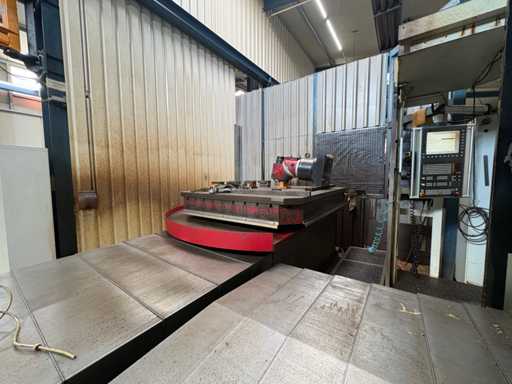

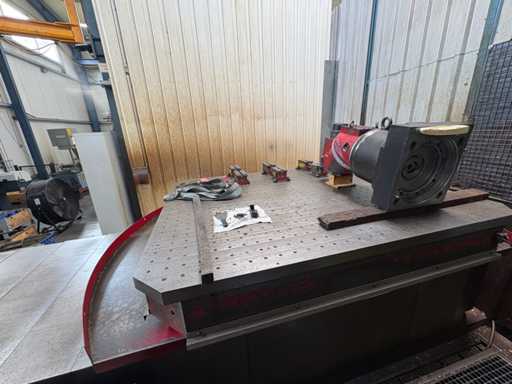

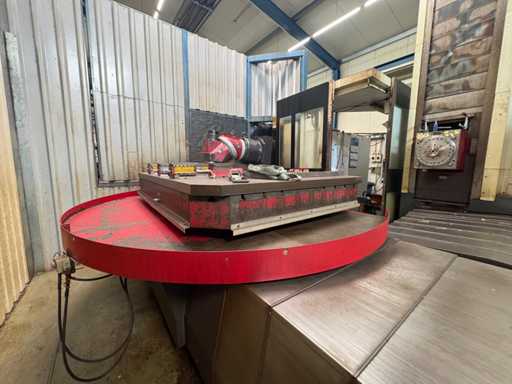

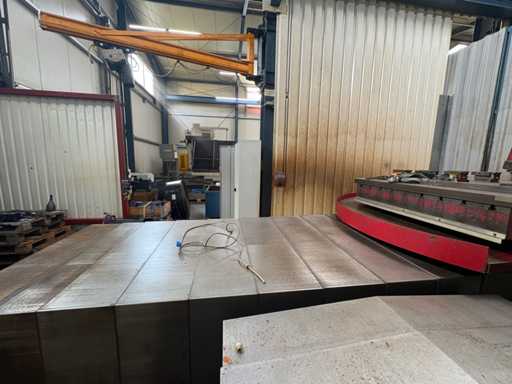

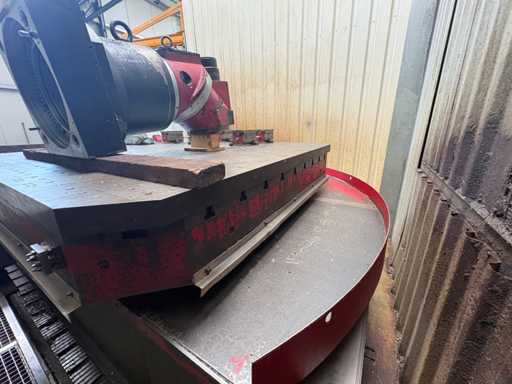

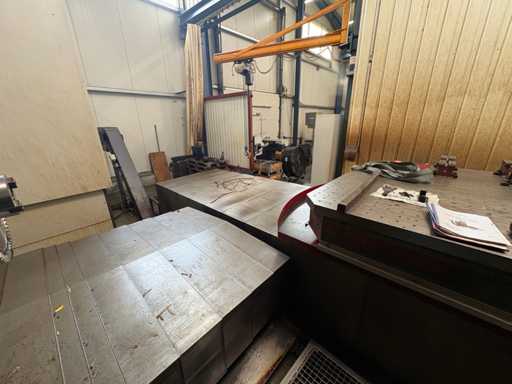

• Table size: 1800 × 2200 mm
• Max. table load: 15,000 kg
• Tool holder: ISO 50 (DIN 69871)
• Machine weight: approx. 52 500 kg

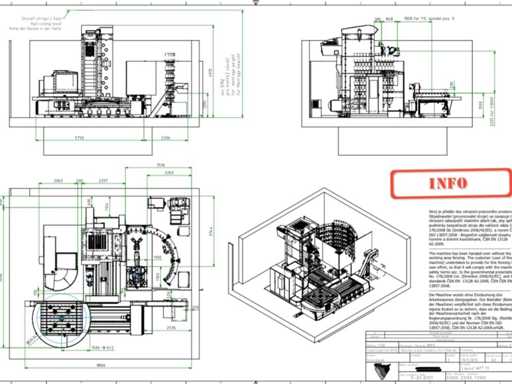

• Dimensions (L × W × H): approx. 7470 × 4740 × 4750 mm
Features include:

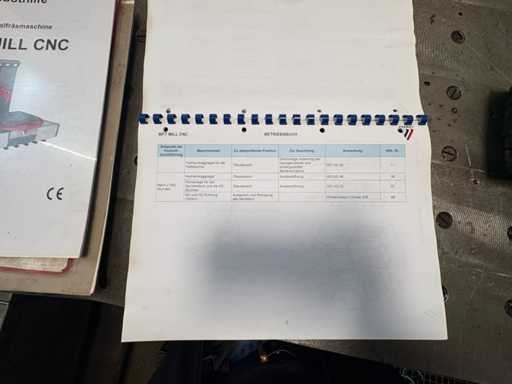

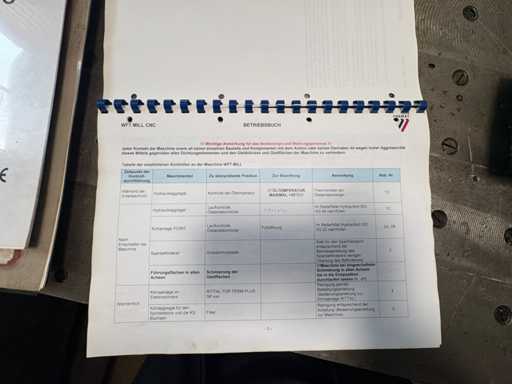

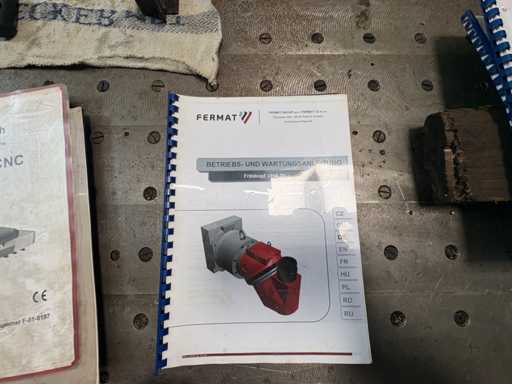

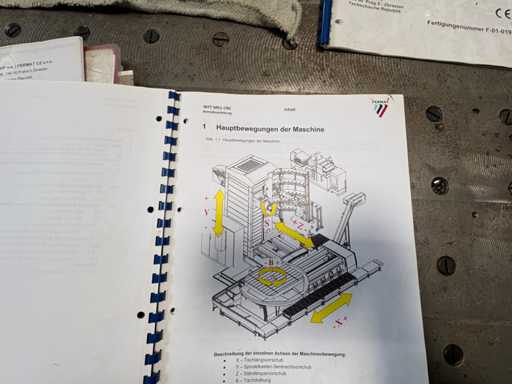

CNC control Heidenhain iTNC 530, automatic tool changer, chip conveyor, coolant system, extensive clamping surface, accessories and operating manual.
Main technical data
• Manufacturer: FERMAT CZ s.r.o., Czech Republic
• Model: WFT MILL CNC
• Year of construction: 2013
• Project No.: F-01-0197
• Control: Heidenhain iTNC 530
• Spindle speed: 10 – 3000 rpm
• Power main drive: 37 kW
• Total power consumption: 105 kVA
•Travel:
• X-axis: 3000 mm
• Y-axis: 2000 mm
• Z-axis: 1500 mm
• W-axis (spindle slide extension): 800 mm
• Table size: 1800 × 2200 mm
• Max. table load: 15,000 kg
• Tool holder: ISO 50 (DIN 69871)
• Machine weight: approx. 52 500 kg
• Dimensions (L × W × H): approx. 7470 × 4740 × 4750 mm
Features include:
CNC control Heidenhain iTNC 530, automatic tool changer, chip conveyor, coolant system, extensive clamping surface, accessories and operating manual.
Remarks
Known defects / notes according to the operator
• Kinematic faulty (presumably weighing system)
• Spindle clearance too large
• X-axis does not stop correctly in manual mode
in cutting mode • Axle clamping / operating status faulty
These points were documented, but not further verified.
A technical overhaul or repair may be necessary.
Sightseeing
A viewing of the machine is expressly desired and recommended in order to personally convince yourself of the condition and scope of delivery.
A viewing appointment can be arranged by prior arrangement.
Mail: h.kronsbein@tbauctions.com
• Kinematic faulty (presumably weighing system)
• Spindle clearance too large
• X-axis does not stop correctly in manual mode
in cutting mode • Axle clamping / operating status faulty
These points were documented, but not further verified.
A technical overhaul or repair may be necessary.
Sightseeing
A viewing of the machine is expressly desired and recommended in order to personally convince yourself of the condition and scope of delivery.
A viewing appointment can be arranged by prior arrangement.
Mail: h.kronsbein@tbauctions.com
