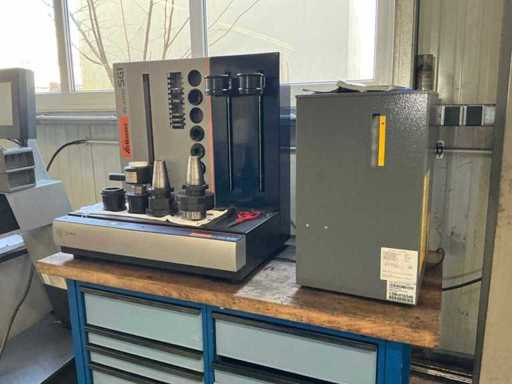

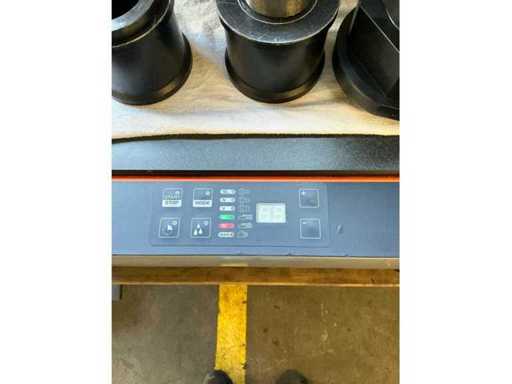

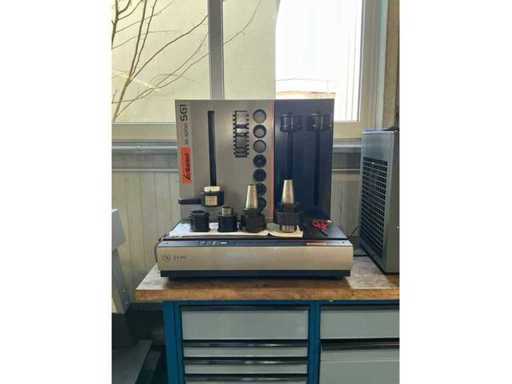

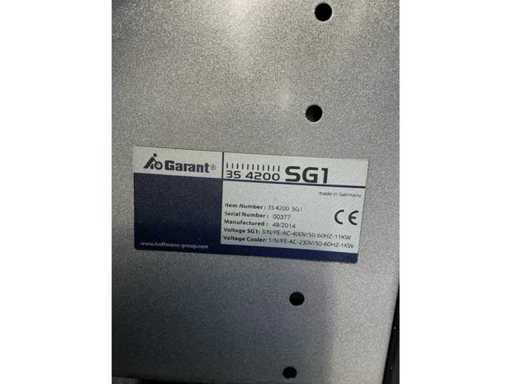

GARANT SG1 Shrink Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- GARANT
- Type
- SG1
- Year of build
- 2014
- Length
- 145cm
- Width
- 55cm
- Height
- 80cm
- Terms of delivery
- Ex foundation-unpackaged
Description

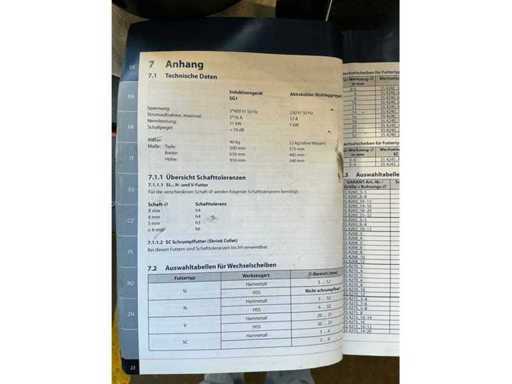

1. Overview of shaft tolerances

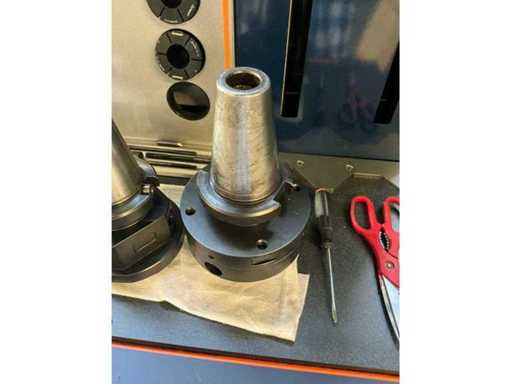

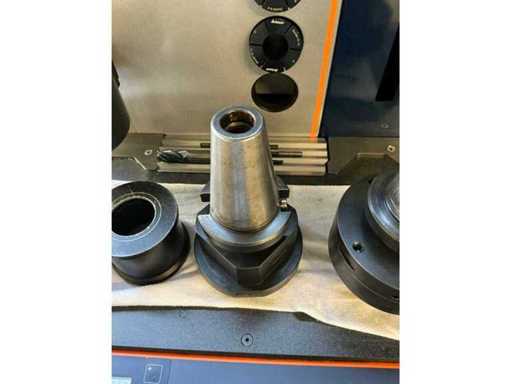

1.1 SL, N and V chucks
Shank-Ø | Shaft tolerance
3 mm | h4
4 mm | h4
5 mm | h5
≥ 6 mm | h6
1.2 SC Shrink Collet
For these chucks, shaft tolerances up to h9 can be used.

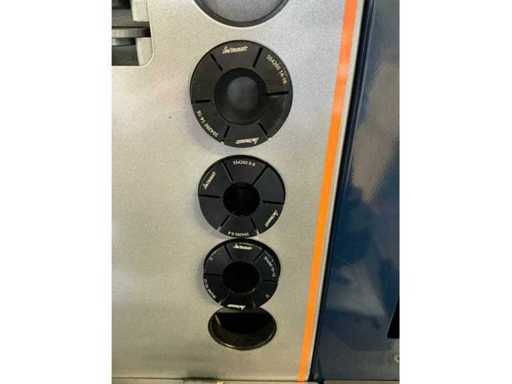

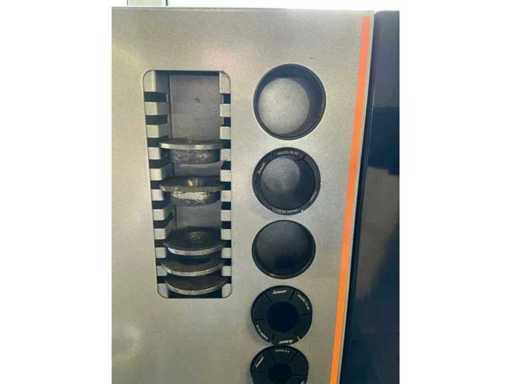

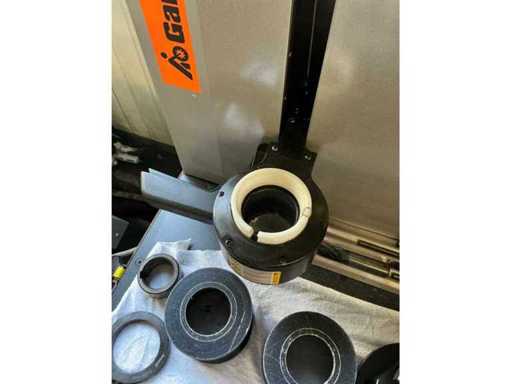

2. Selection tables for interchangeable lenses
Lining Type | Tool Type | Ø range (mm)
SL | Tungsten Carbide | 3 – 12
SL | HSS | Non-shrinkable
N | Tungsten Carbide | 3 – 32
N | HSS | 6 – 32
V | Tungsten Carbide | 20 – 25
V | HSS | 20 – 25
SC | Tungsten Carbide | 3 – 6

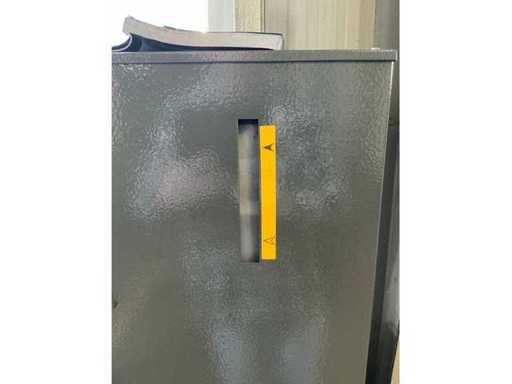

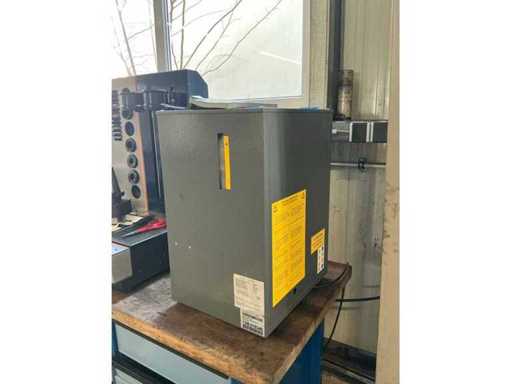

General information National Lab (Proficool Genius)

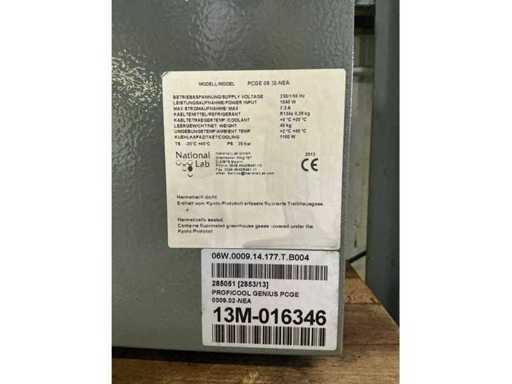

Manufacturer / Brand: National Lab (Proficool Genius) Model / Model: PCGE 09.02-NEA Year of manufacture (on sign): 2013 CE marking: available.
Electrical data
Mains voltage / Supply voltage: 230 V / 1 ~ / 50 Hz
Power input: 1040 W
Max. current consumption: 7.3 A

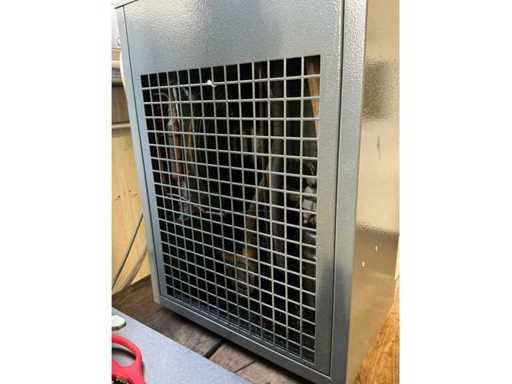

Refrigerant / Coolant Specifications
Refrigerant / Refrigerant: R134a, Quantity: 0.36 kg
Coolant operating range: +5 °C ... +20 °C (as application indication on the sign)
Cooling capacity: 1100 W (indicated on the sign)
Temperature / Pressure Range
Operating temperature range (TS): −20 °C ... +45 °C (on nameplate)
Max. test/operating pressure (hp): 20 bar (on nameplate)
Without workbench
1.1 SL, N and V chucks
Shank-Ø | Shaft tolerance
3 mm | h4
4 mm | h4
5 mm | h5
≥ 6 mm | h6
1.2 SC Shrink Collet
For these chucks, shaft tolerances up to h9 can be used.
2. Selection tables for interchangeable lenses
Lining Type | Tool Type | Ø range (mm)
SL | Tungsten Carbide | 3 – 12
SL | HSS | Non-shrinkable
N | Tungsten Carbide | 3 – 32
N | HSS | 6 – 32
V | Tungsten Carbide | 20 – 25
V | HSS | 20 – 25
SC | Tungsten Carbide | 3 – 6
General information National Lab (Proficool Genius)
Manufacturer / Brand: National Lab (Proficool Genius) Model / Model: PCGE 09.02-NEA Year of manufacture (on sign): 2013 CE marking: available.
Electrical data
Mains voltage / Supply voltage: 230 V / 1 ~ / 50 Hz
Power input: 1040 W
Max. current consumption: 7.3 A
Refrigerant / Coolant Specifications
Refrigerant / Refrigerant: R134a, Quantity: 0.36 kg
Coolant operating range: +5 °C ... +20 °C (as application indication on the sign)
Cooling capacity: 1100 W (indicated on the sign)
Temperature / Pressure Range
Operating temperature range (TS): −20 °C ... +45 °C (on nameplate)
Max. test/operating pressure (hp): 20 bar (on nameplate)
Without workbench
Additional details
Delivery conditions: ex foundation
The buyer is responsible for dismantling and loading. There is no forklift on site to move the large machines.
The auctions are public and voluntary.
All items are sold in the condition in which they lie and stand. It is expressly pointed out that no complete inventory and verification of the functionality of the auction objects will be carried out.
Bidders are strongly advised to make use of the opportunity granted to them to inspect/examine the purchased items before submitting bids.
No warranty.
