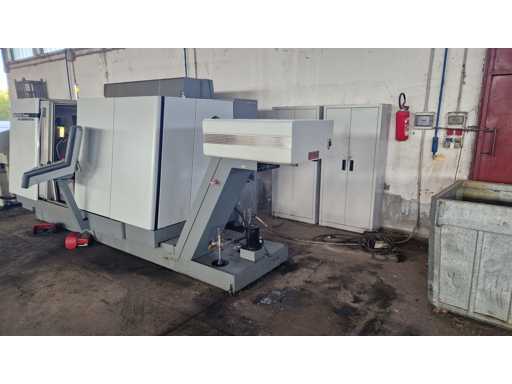

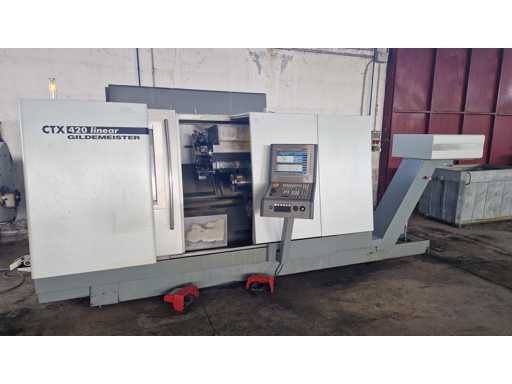

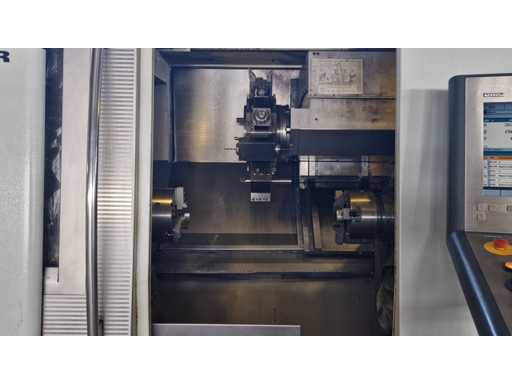

GILDEMEISTER - CTX 420 LINEAR V6 - CNC lathe - 2007
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- GILDEMEISTER
- Type
- CTX 420 LINEAR V6

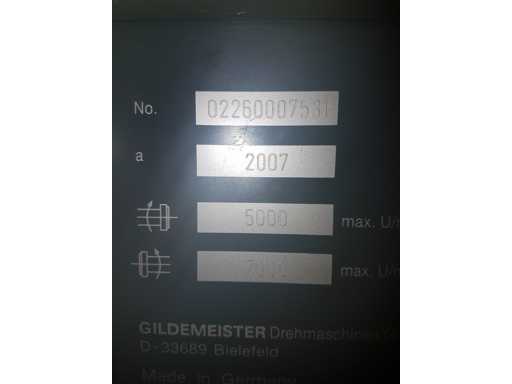

- Year of build
- 2007
- Terms of delivery
- Loaded on truck
Description

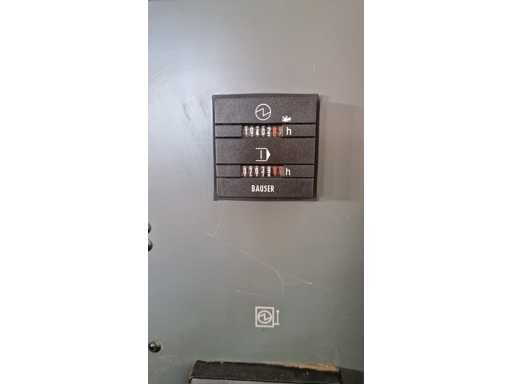

Hours worked: 7039

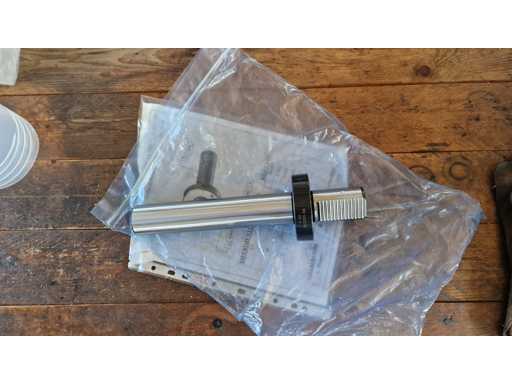

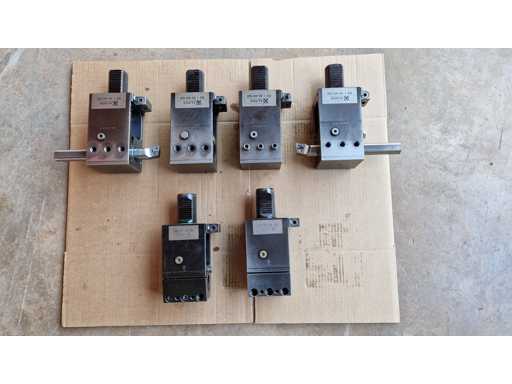

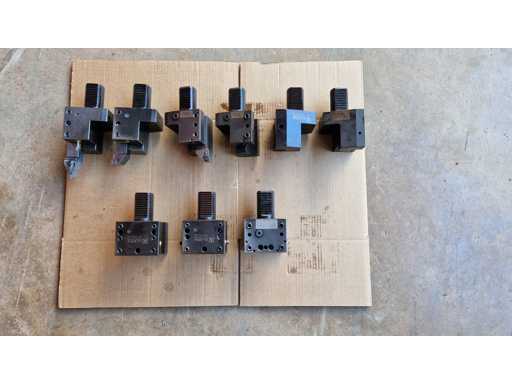

Includes extensive equipment of fixed

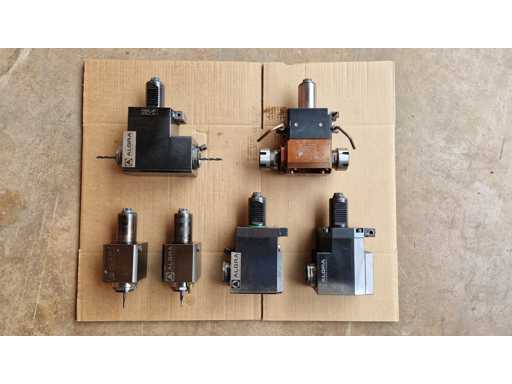

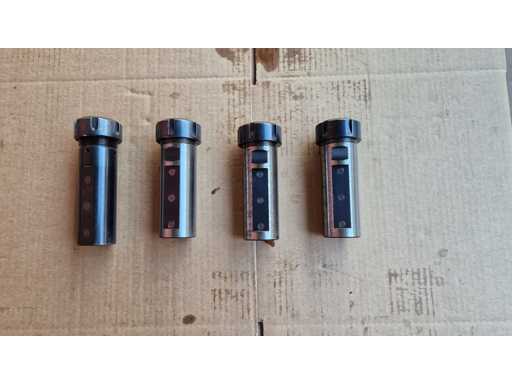

tool holders Including live
tool holders Including TOP AUTOMAZIONI
bar feeder Technical
specifications Max. rotating diameter on bench: 680 mm
Rotating diameter on cross rail: 565 mm
Axis travel (X): 185 mm
Axis travel (Y): ±40 mm
Axis travel (Z): 620 mm

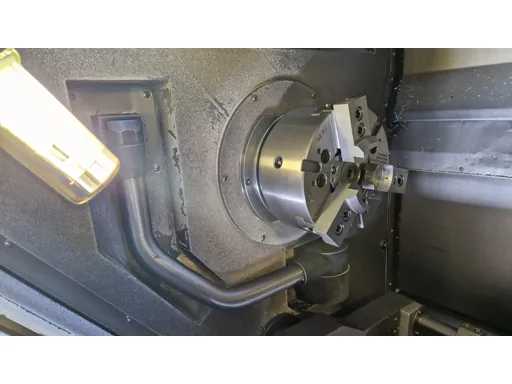

Integrated

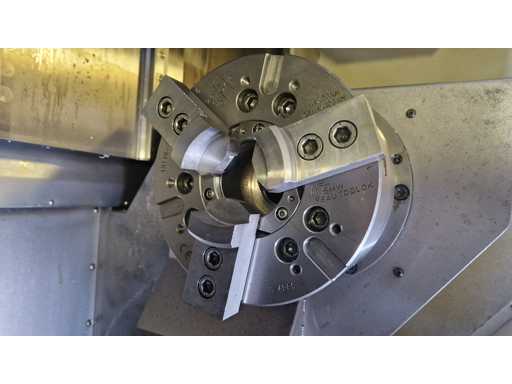

electrospindle Clamping spindle diameter: 210 mm
Bar Passage: 65 mm
Power: 37 kW
Maximum torque: 390 Nm
Rpm range: 20 – 6,000 min⁻¹

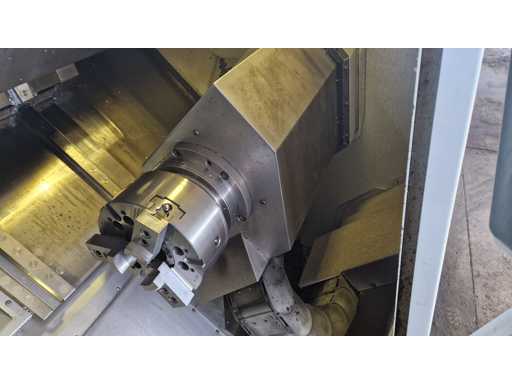

Electro-subspindle
Clamping spindle diameter: 210 mm
Spindle bore: 65 mm
Power: 33 kW
Maximum torque: 213 Nm
Rpm range: 20 – 6,000 min⁻¹

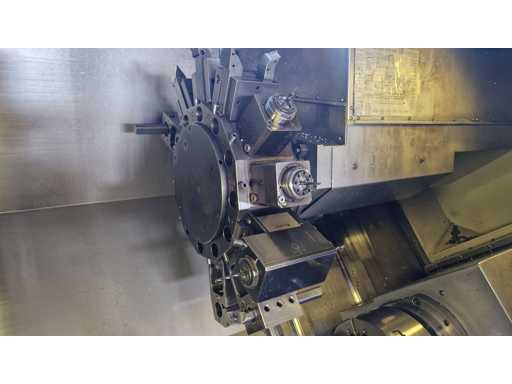

Tool
Number of stationary tool stations: 12
Number of live tool stations: 12
Shank diameter (DIN 69880): 40 mm
Motor power: 12.2 kW
Maximum torque: 27 Nm
Max. rpm range: 4,500 min⁻¹
Maximum clamping diameter of live tools: 20 mm

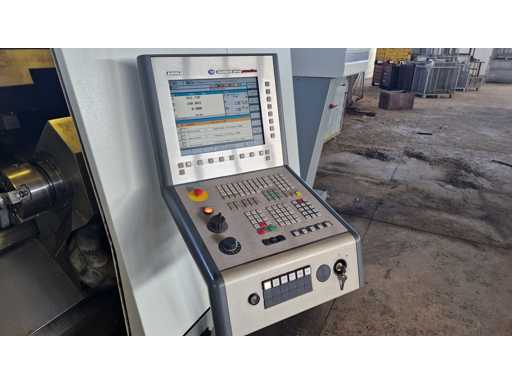

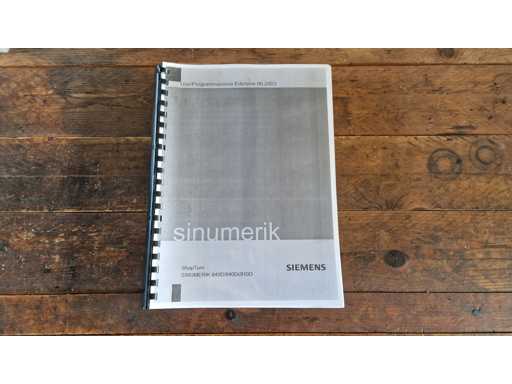

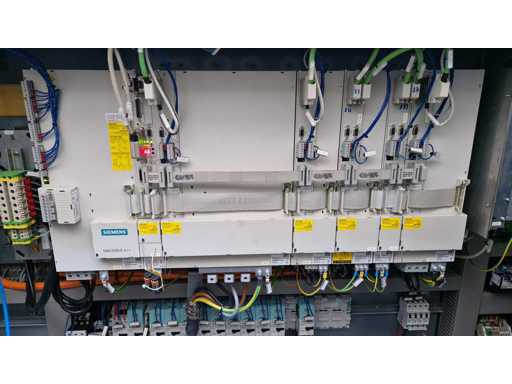

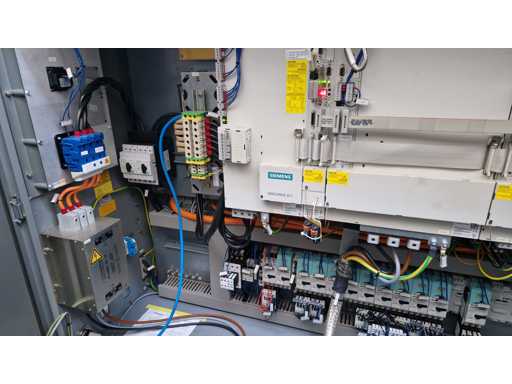

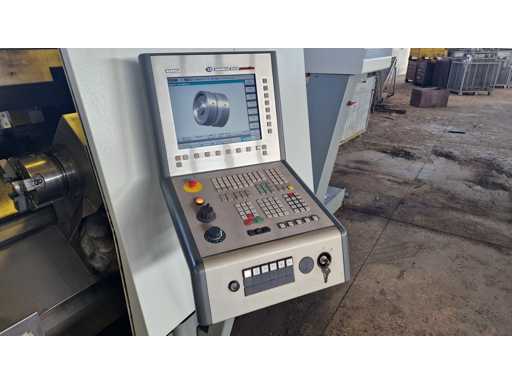

important: CNC control: Siemens Sinumerik 840D Power Line 3D
Linear
X-axis Spindles
Integrated and automatic

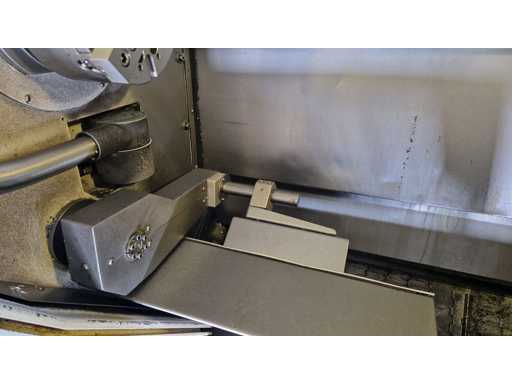

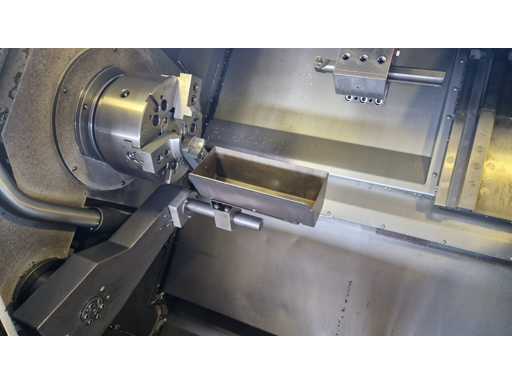

tool setting Finished piece ejector on conveyor

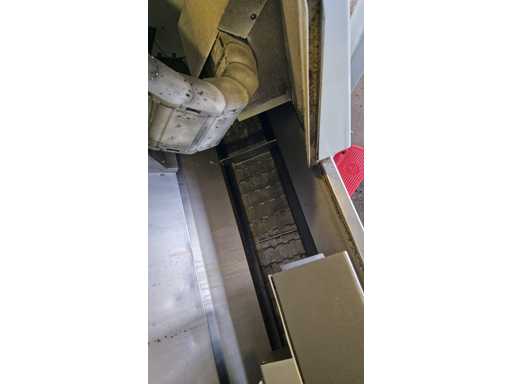

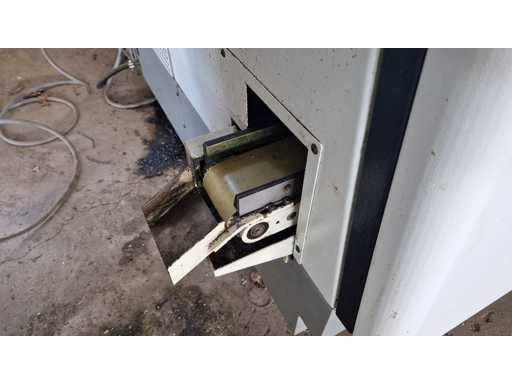

belt Chip

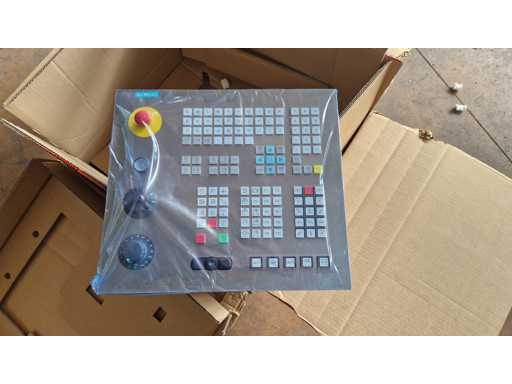

conveyor New replacement
keyboard X-axis
control plug Bar

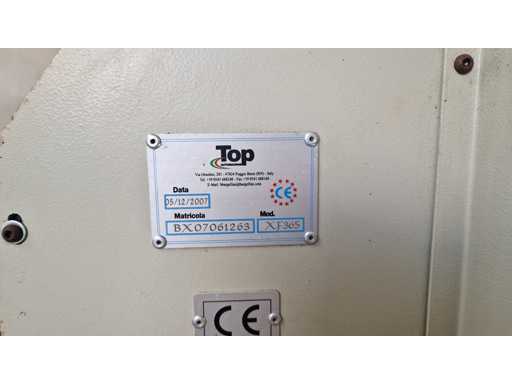

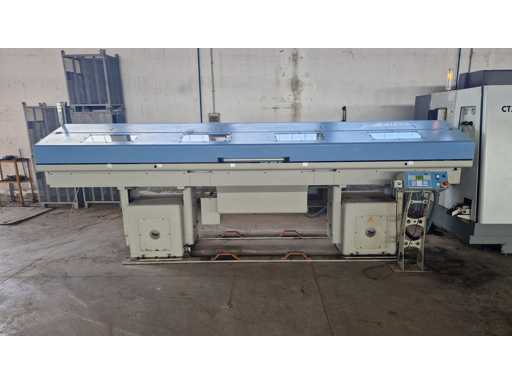

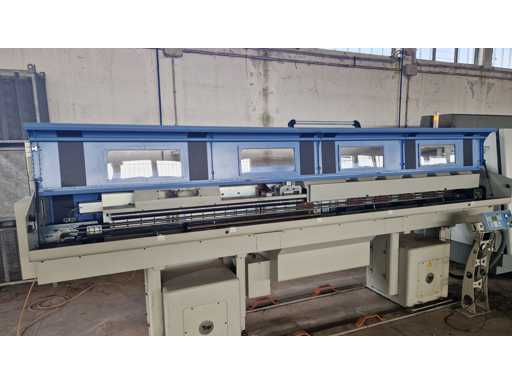

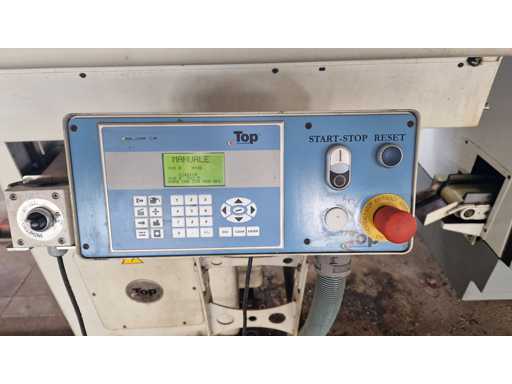

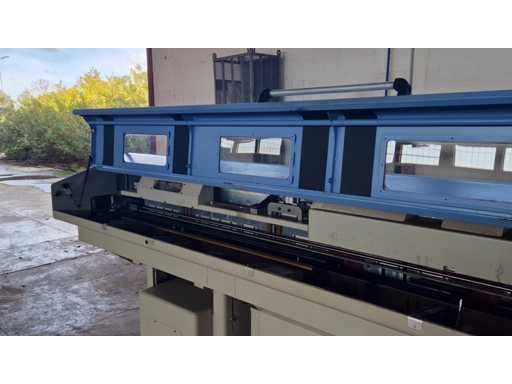

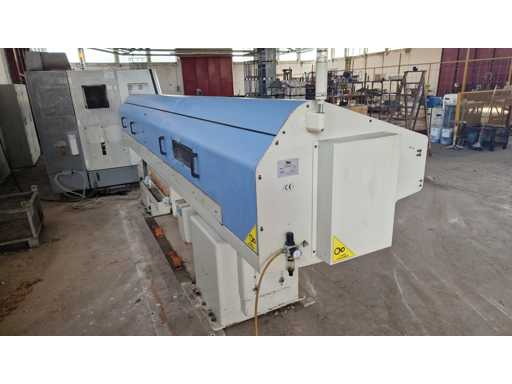

feeder Brand TOP AUTOMAZIONI mod. X-FILES 365
Bar Passage:65 mm
Maximum bar length: 3200 mm
Weight with chip conveyor: 7000 kg
The actual characteristics of the machinery may differ from the information given, careful inspection is recommended.
For information: m.tosin@tbauctions.com

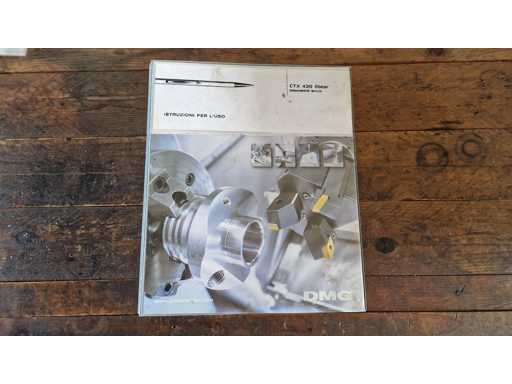

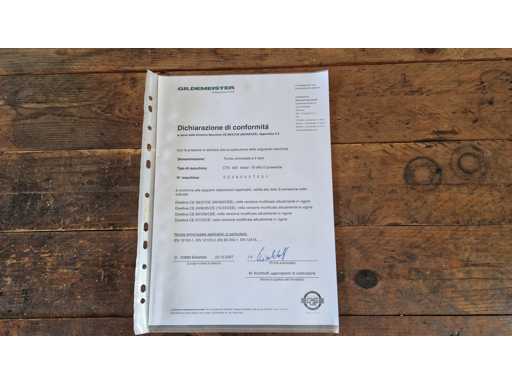

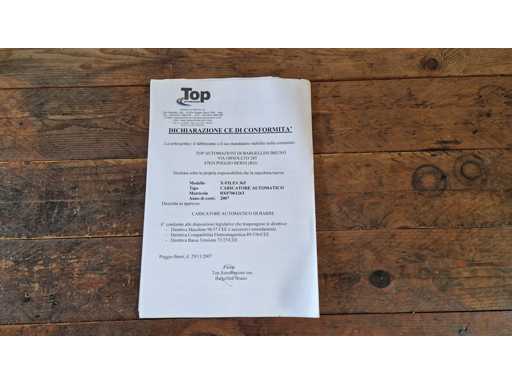

Further documentation is attached.
Item sold in NOT verified status.
Item NOT subject to sales restrictions.
Includes extensive equipment of fixed
tool holders Including live
tool holders Including TOP AUTOMAZIONI
bar feeder Technical
specifications Max. rotating diameter on bench: 680 mm
Rotating diameter on cross rail: 565 mm
Axis travel (X): 185 mm
Axis travel (Y): ±40 mm
Axis travel (Z): 620 mm
Integrated
electrospindle Clamping spindle diameter: 210 mm
Bar Passage: 65 mm
Power: 37 kW
Maximum torque: 390 Nm
Rpm range: 20 – 6,000 min⁻¹
Electro-subspindle
Clamping spindle diameter: 210 mm
Spindle bore: 65 mm
Power: 33 kW
Maximum torque: 213 Nm
Rpm range: 20 – 6,000 min⁻¹
Tool
Number of stationary tool stations: 12
Number of live tool stations: 12
Shank diameter (DIN 69880): 40 mm
Motor power: 12.2 kW
Maximum torque: 27 Nm
Max. rpm range: 4,500 min⁻¹
Maximum clamping diameter of live tools: 20 mm
important: CNC control: Siemens Sinumerik 840D Power Line 3D
Linear
X-axis Spindles
Integrated and automatic
tool setting Finished piece ejector on conveyor
belt Chip
conveyor New replacement
keyboard X-axis
control plug Bar
feeder Brand TOP AUTOMAZIONI mod. X-FILES 365
Bar Passage:65 mm
Maximum bar length: 3200 mm
Weight with chip conveyor: 7000 kg
The actual characteristics of the machinery may differ from the information given, careful inspection is recommended.
For information: m.tosin@tbauctions.com
Further documentation is attached.
Item sold in NOT verified status.
Item NOT subject to sales restrictions.
Documents
Additional details
ITEMS SOLD IN UNVERIFIED STATUS.

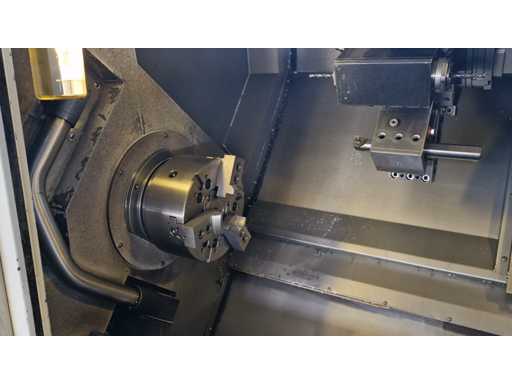

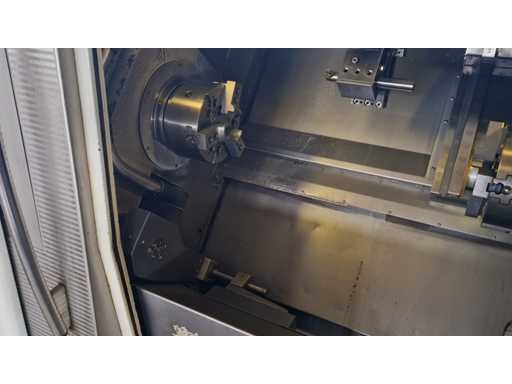

Video
