Gleason-Pfauter - P 630 - Various milling machines - 1976
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Gleason-Pfauter
- Type
- P 630
- Year of build
- 1976
- Machine weight
- 8200kg
- Dimension l
- 2850mm
- Dimension w
- 1950mm
- Dimension h
- 2100mm
- Terms of delivery
- Loaded on truck
Description

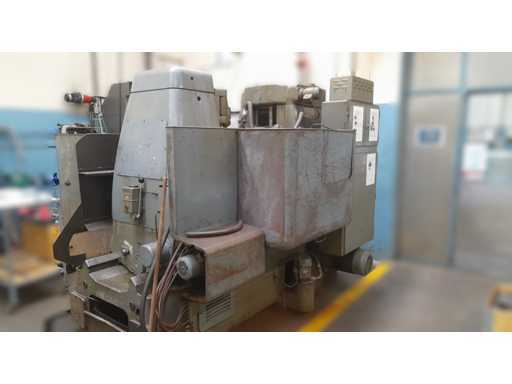

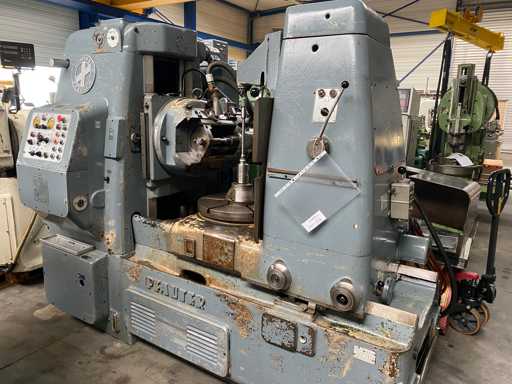

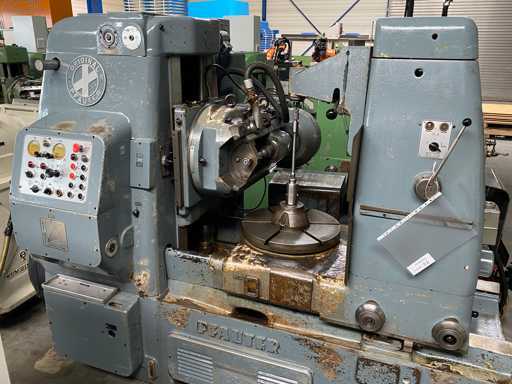

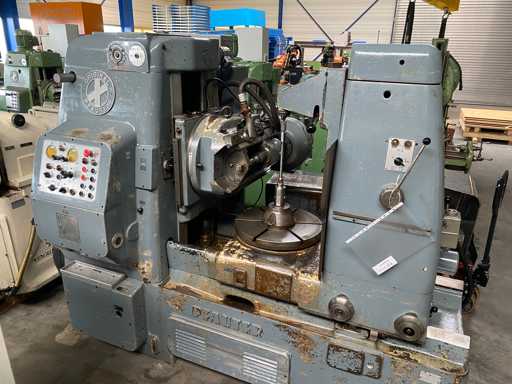

Gear hobbing machine – vertical:
Make: Pfauter
Type: P 630
Year of manufacture: unknown

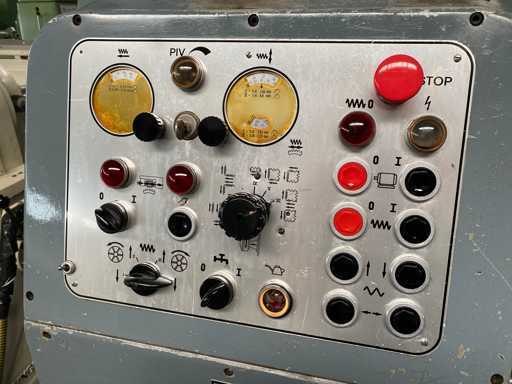

Control type: conventional
Technical details:
- Condition good
- Wheel diameter - max. 630 mm
- Wheel width 375 mm
- Module - max. 10
- Clamping table 550 mm
- Table bore 125 mm
- Milling cutter speeds infinitely variable 62 - 390 rpm
- Mounting cone MORSE 5
- Axial feeds 0.40 - 6.80 mm/rev
- Radial feeds 0.10 - 1.76 mm/rev
- Distance between milling spindle and clamping spindle 50 - 425 mm
- Tooth count range min. 8
- Milling cutter diameter x width 192 / 215 mm
- Milling cutter displacement 200 mm
- Main drive motor 7.5 kW
- Total power requirement 21 kVa
- Machine weight approx. 8.2 t
Additional information:
Equipment of Machine:
- Universal milling head with tangential displacement
- Pressure reducing valve for counter holder
- Magnetic chip conveyors
Remarks
Item condition: used and unchecked
