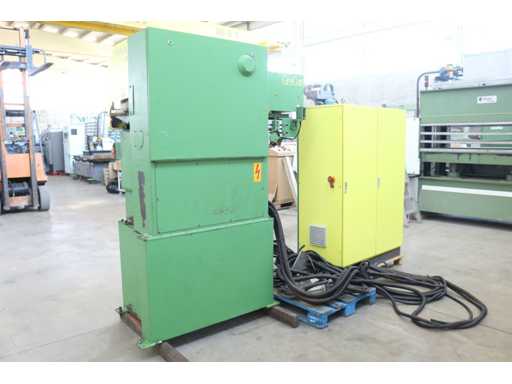

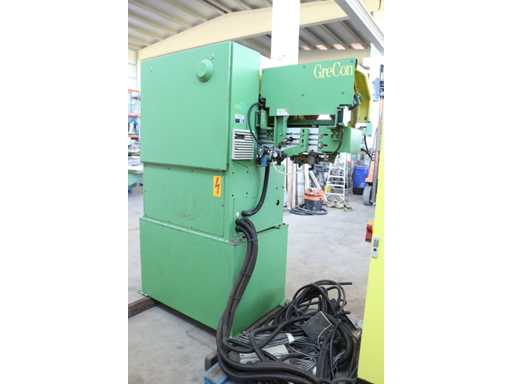

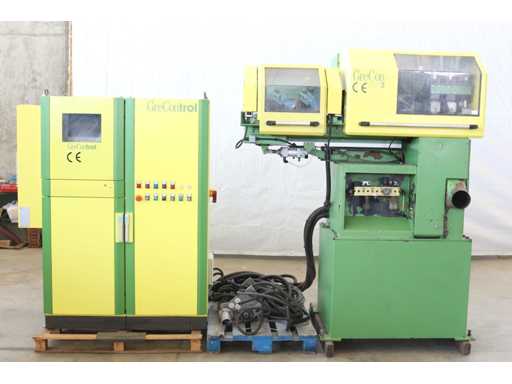

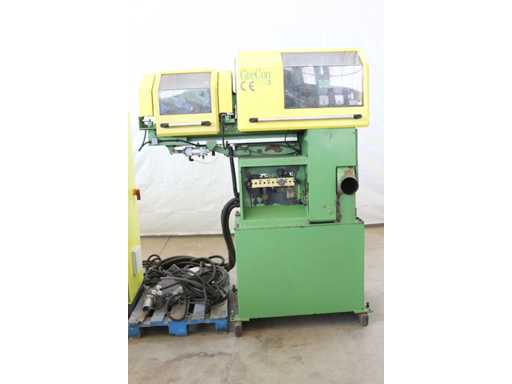

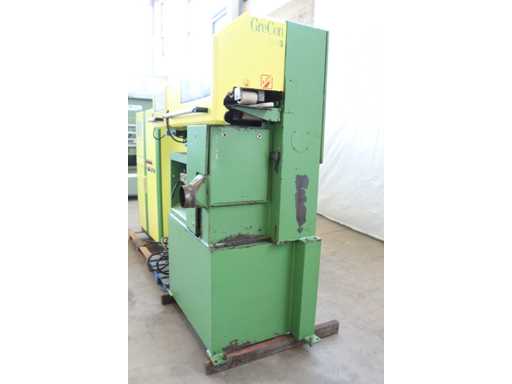

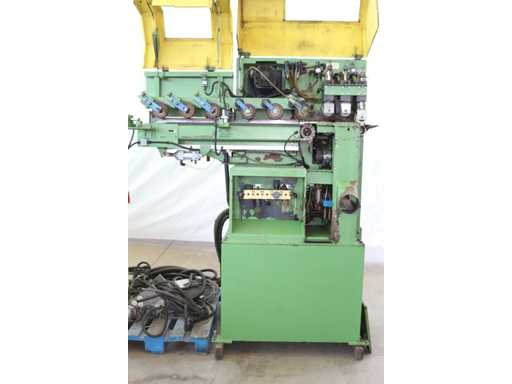

GRECON 1003 Cutting Optimizer
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- GRECON
- Type
- 1003

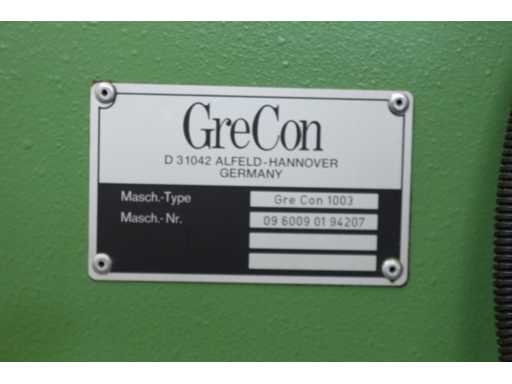

- Serial number
- 09 6009 01 94207
- Dimension l
- 25400mm
- Dimension w
- 2000mm
- Dimension h
- 2250mm
- Electric connection
- 380V
- Machine weight
- 5000kg
- Terms of delivery
- Loaded on truck
Description
- Total installed power 18 kW.

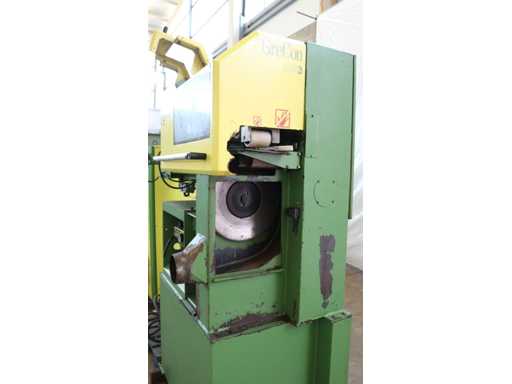

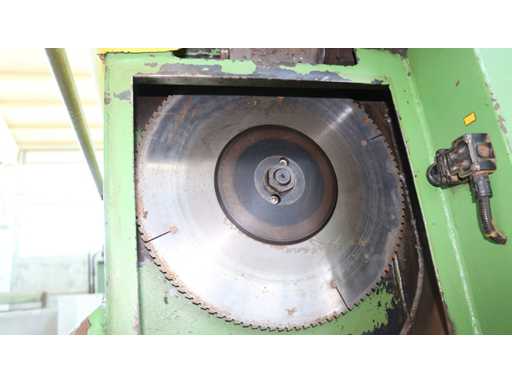

- Disc diameter 450 mm.
- Piece width from 25 mm to 150 mm.
- Part thickness from 10 mm to 80 mm.
- Minimum cutting length 800 mm.

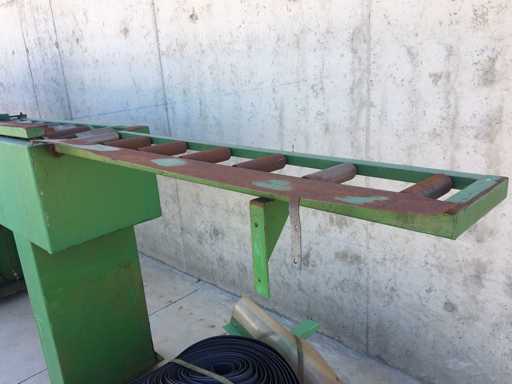

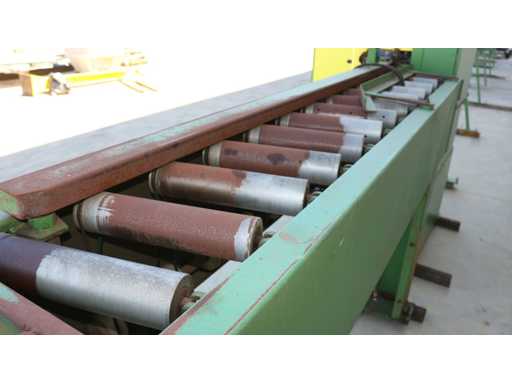

- Roller inlet transfer length 1700 mm.

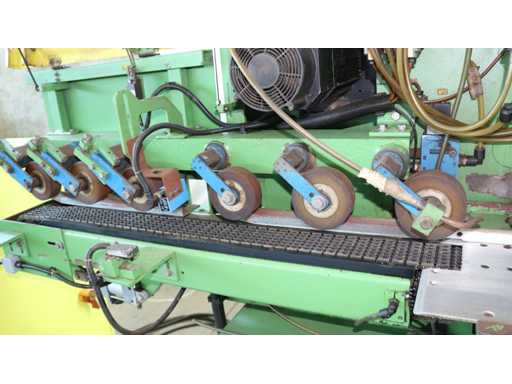

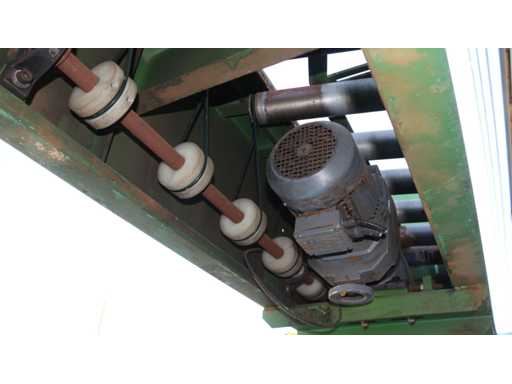

- Motorized roller inlet transfer with a length of 2900 mm.

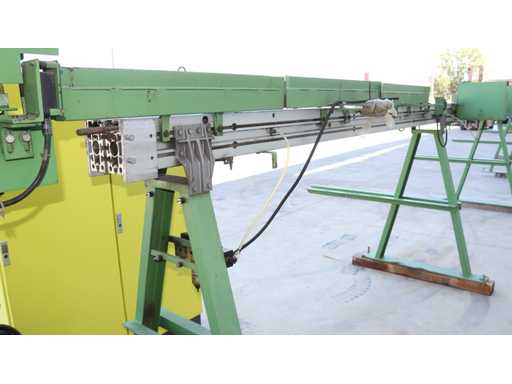

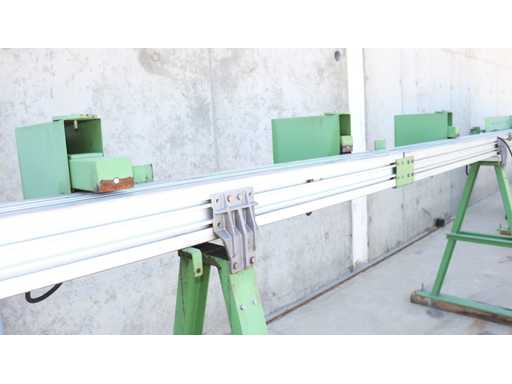

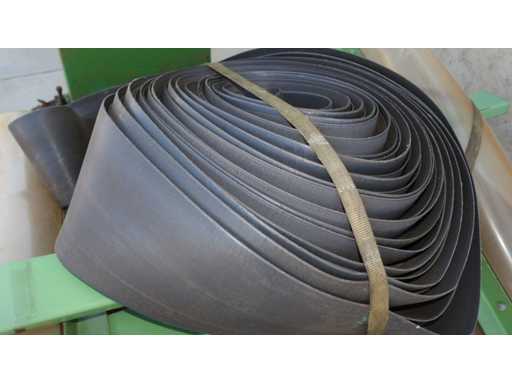

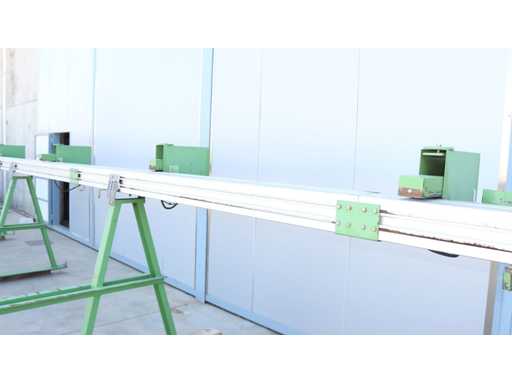

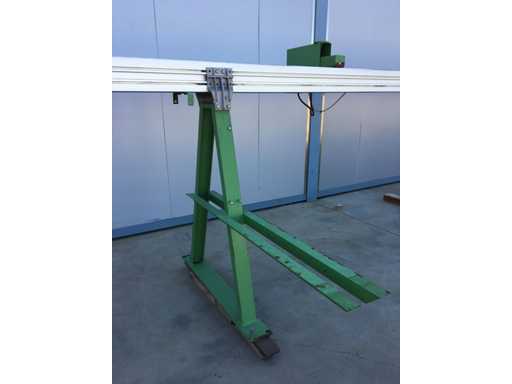

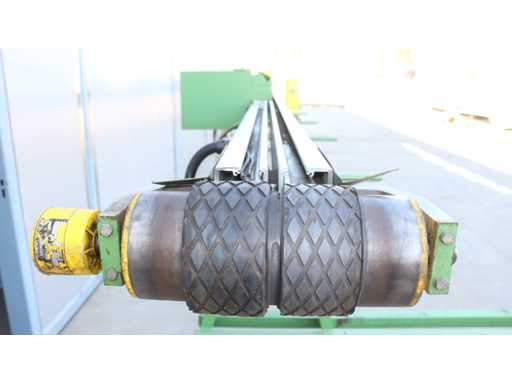

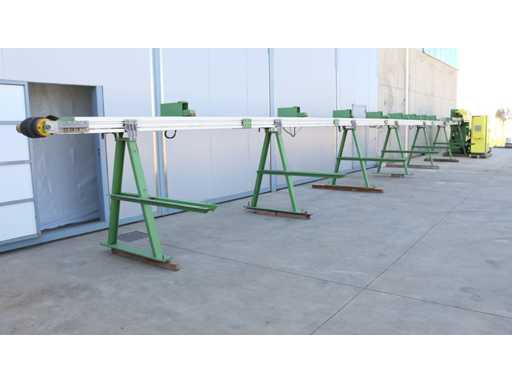

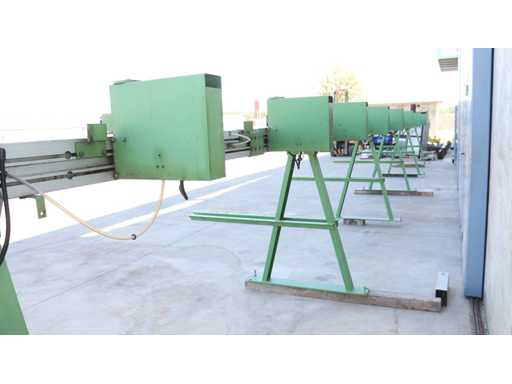

- Motorized output belt transfer of length 19000 mm separated into 2 pieces of length 5000 mm plus 3 pieces of length 3000 mm.

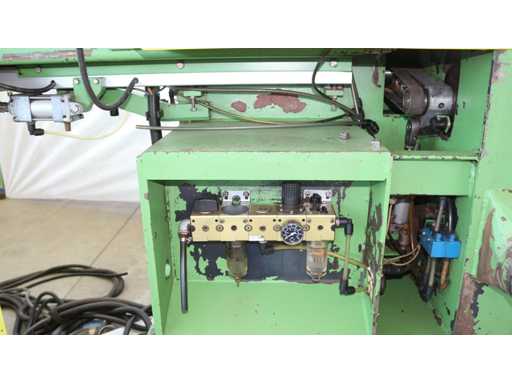

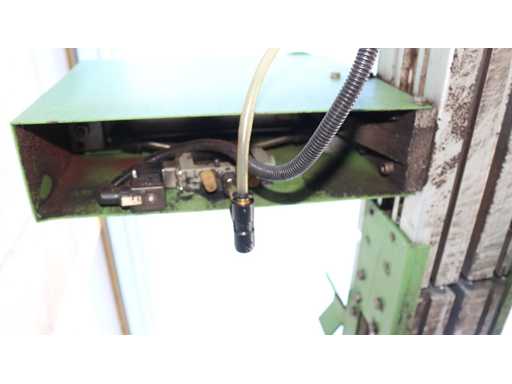

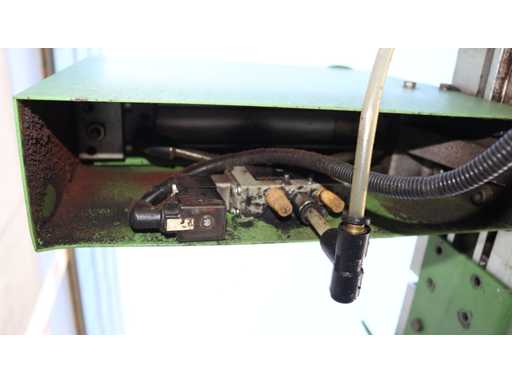

- 8 pneumatic side ejectors.

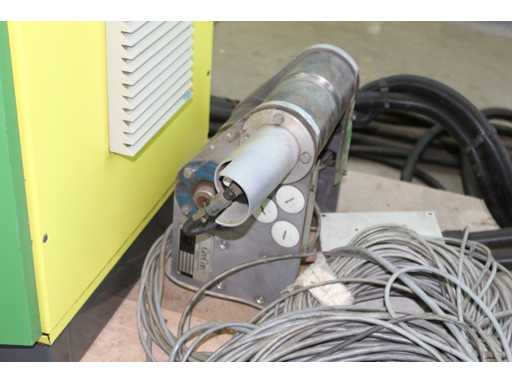

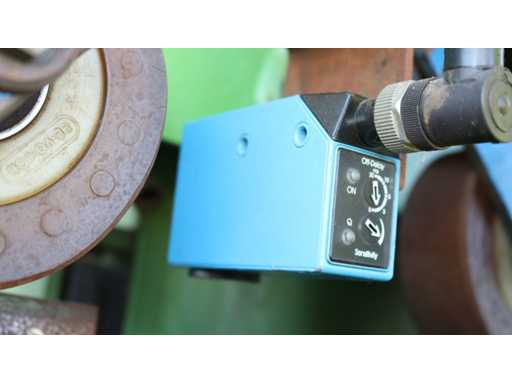

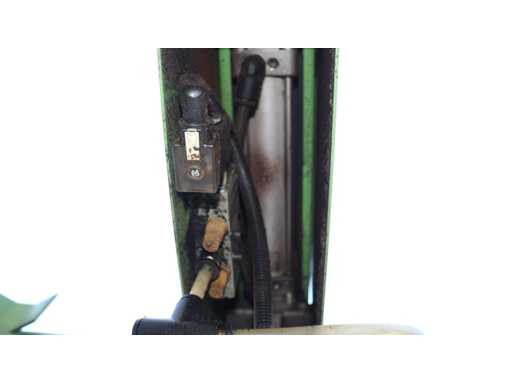

- With luminescence sensor for fluorescent chalk mark recognition.
- Variable feed speed from 0 m/min to 140 m/min.
- Dimensions for transport 7000 x 2450 x 2400 mm.

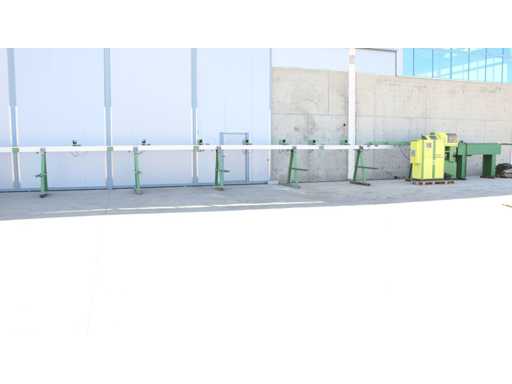

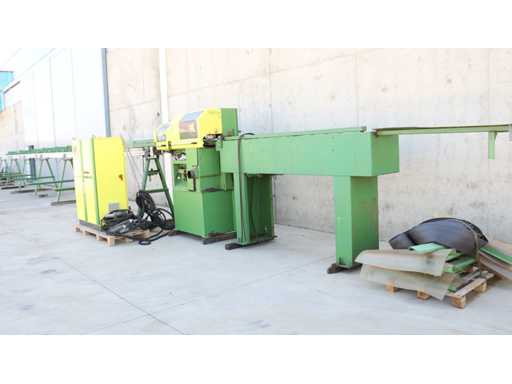

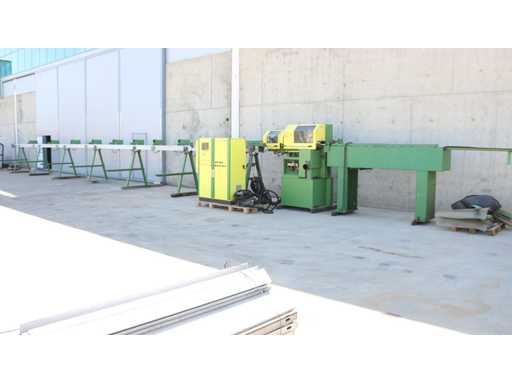

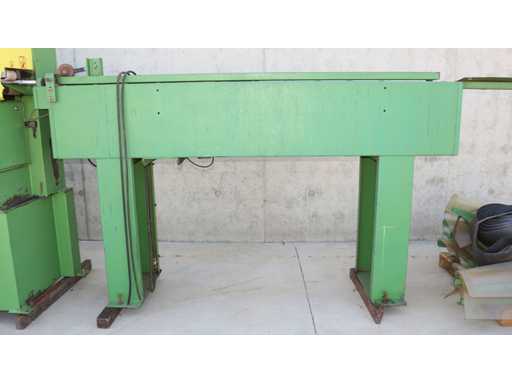

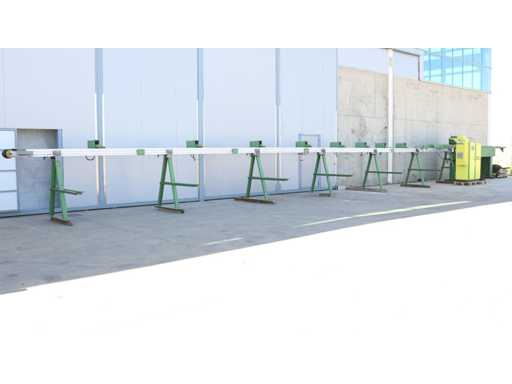

NOTE: in the photographs, the input and output transfers are placed repositioned
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
- Disc diameter 450 mm.
- Piece width from 25 mm to 150 mm.
- Part thickness from 10 mm to 80 mm.
- Minimum cutting length 800 mm.
- Roller inlet transfer length 1700 mm.
- Motorized roller inlet transfer with a length of 2900 mm.
- Motorized output belt transfer of length 19000 mm separated into 2 pieces of length 5000 mm plus 3 pieces of length 3000 mm.
- 8 pneumatic side ejectors.
- With luminescence sensor for fluorescent chalk mark recognition.
- Variable feed speed from 0 m/min to 140 m/min.
- Dimensions for transport 7000 x 2450 x 2400 mm.
NOTE: in the photographs, the input and output transfers are placed repositioned
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: e.sobrado@tbauctions.com
Pick-up is only possible on the following dates and by appointment: from 27.10.2025 to 30.10.2025 from 9:00 a.m. to 1:00 p.m. and from 3:30 p.m. to 6:00 p.m. and on 31.10.2025 from 9:00 a.m. to 1:00 p.m.
