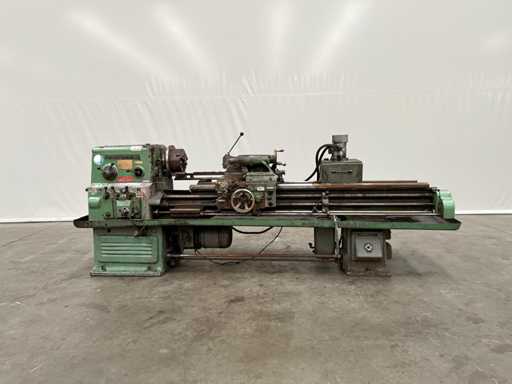

H.Ernault - Batignolles - 250 x 1.500 - Centre lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- H.Ernault - Batignolles
- Type
- 250 x 1.500
- Turning Ø
- 500mm
- Spindle boring Ø
- 40mm
- Speed from n=
- 32rpm
- Speed till n=
- 1600rpm
- Dimension l
- 3600mm
- Dimension w
- 1200mm
- Dimension h
- 1400mm
- Terms of delivery
- Loaded on truck
Description
Brand H.ernault - Batignolles
Type 250 x 1,500
Distance between centers 1.500 mm
Center height 250 mm
Turning diameter above the bed 500 mm ø
Turning diameter above the support 280 mm ø
Turning diameter in the bag 700 mm ø
Passage 40 mm ø
3-Jaw Chuck 250 mm ø
conical ruler
Copier

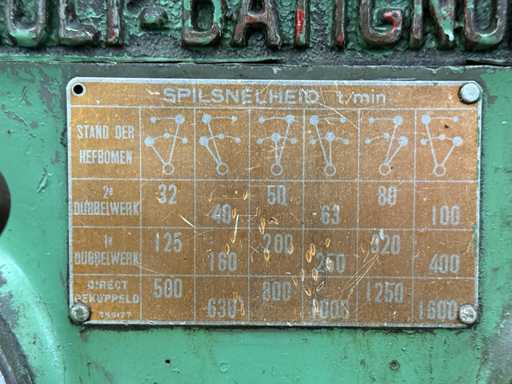

Speed 32 - 1,600 RPM
Voltage 380V
Machine size (lxwxh) 3.600 x 1.200 x 1.400 mm
Remarks
Electric back gauge: Defective
Additional details
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize.
