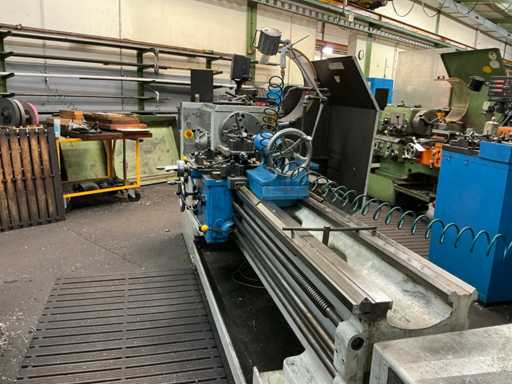

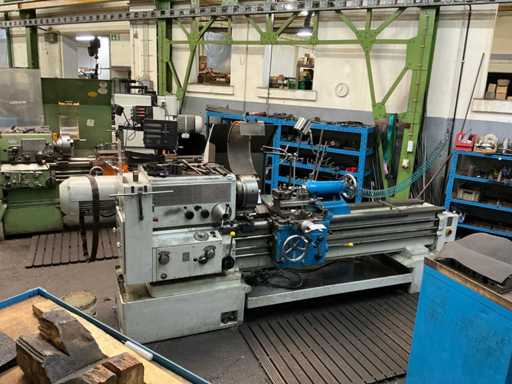

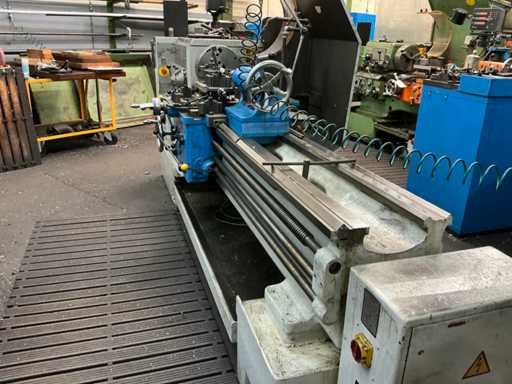

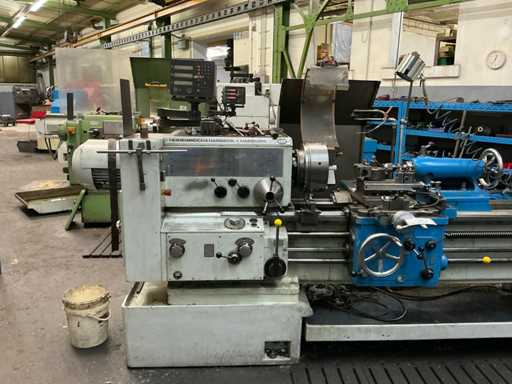

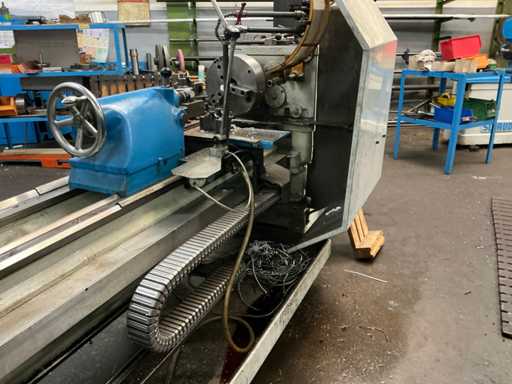

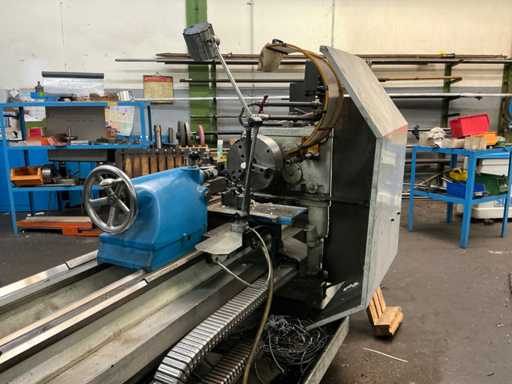

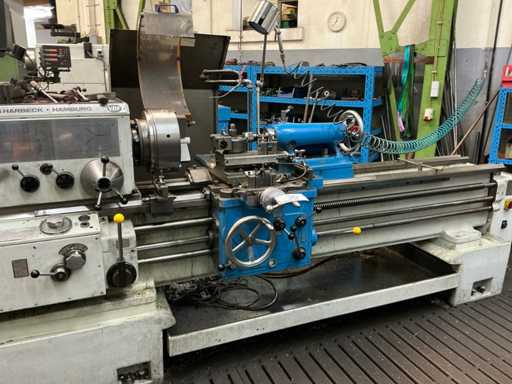

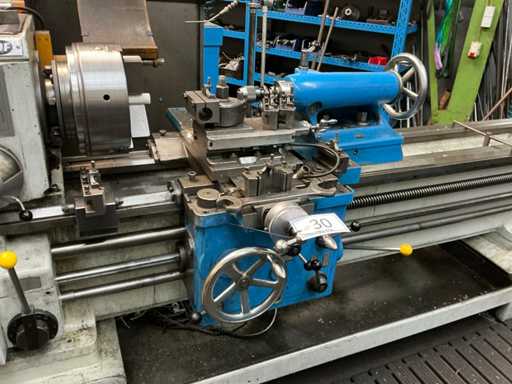

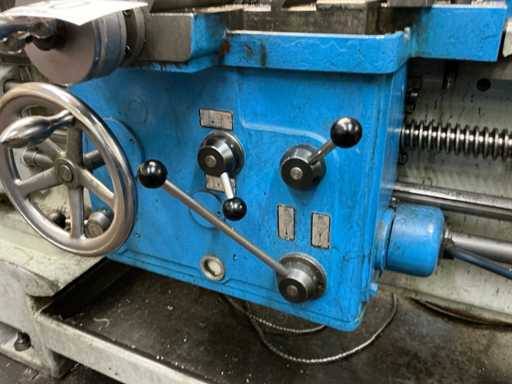

H&H V3 Lead & Pull Spindle Lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- H & H
- Type
- V3
- Serial number
- 80-0121-4445
- Turning Ø
- 200mm
- Number of speeds
- 18
- Speed from n=
- 18rpm
- Speed till n=
- 900rpm
- Electric connection
- 400V

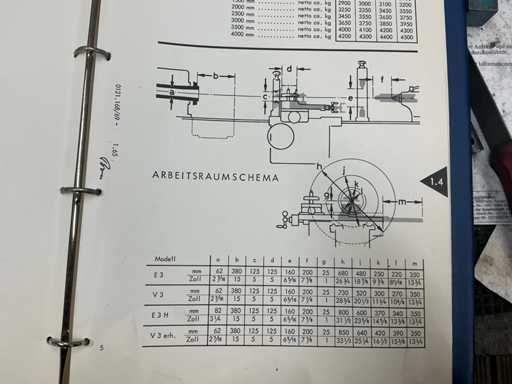

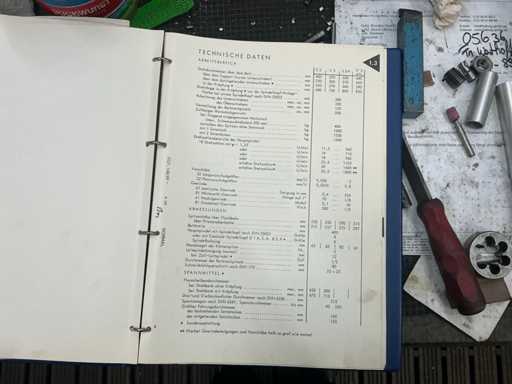

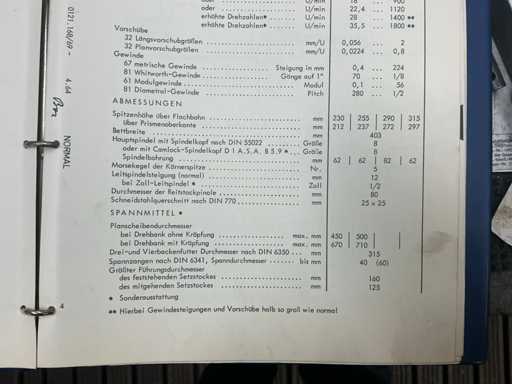

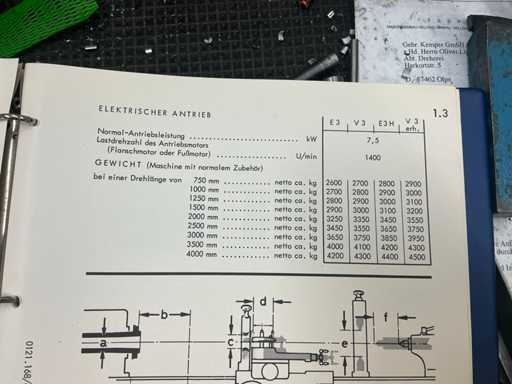

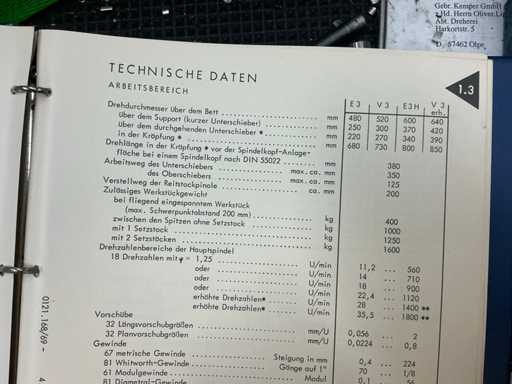

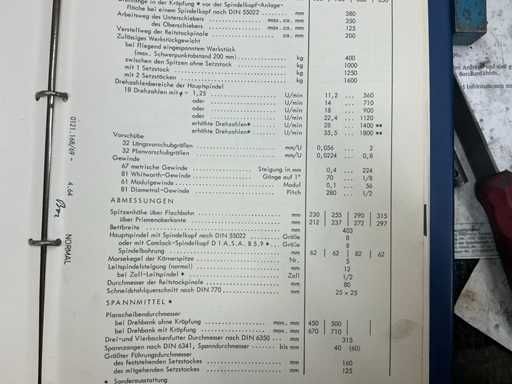

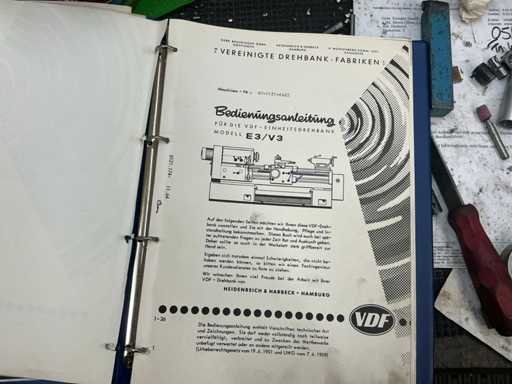

- Manual present
- Yes
- Dimension l
- 3600mm
- Dimension w
- 1100mm
- Dimension h
- 2400mm
- Terms of delivery
- Loaded on truck
Description
machine

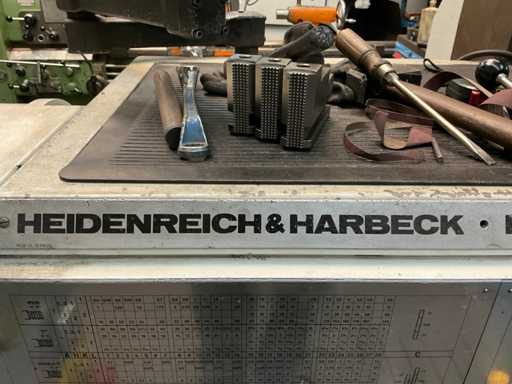

- Manufacturer: Heidenreich & Harbeck, Hamburg
- Type: V3

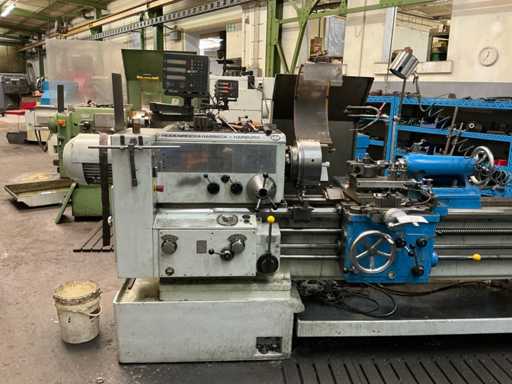

- Machine type: Lead and pull spindle lathe
- Engine No.: 80-0121-4445
data
- Motor power: 11 kW

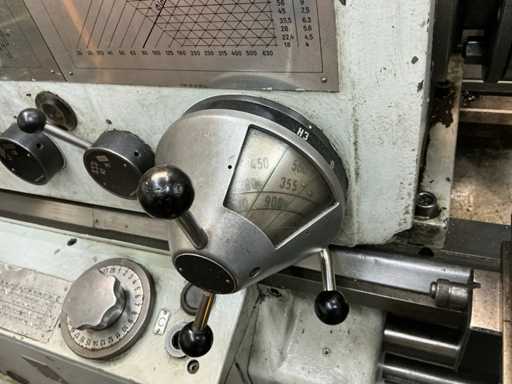

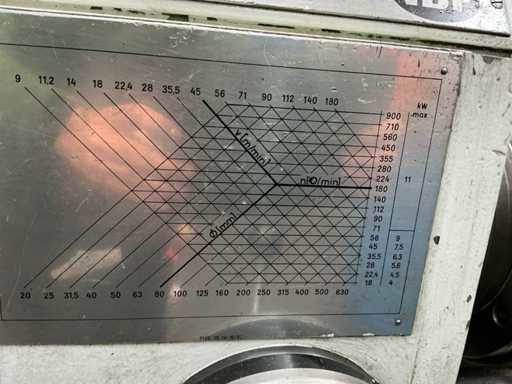

- Speed ranges: 11.2–560 / 14–710 / 18–900 / 22.4–1120 rpm; increased 28–1400 or 35.5–1800 rpm
- Turning diameter over bed: 520 mm
- over support: 300 mm
- over continuous slide: 270 mm
- Turning length in offset: 730 mm
- Working path of lower/upper slider: 380 mm / 350 mm

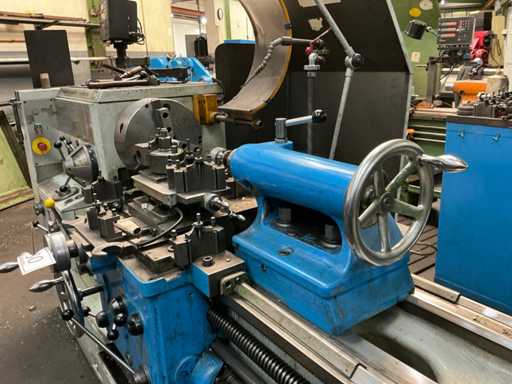

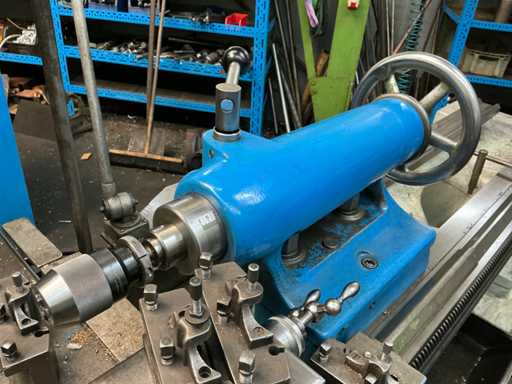

- Tailstock quill adjustment: 125 mm
- Workpiece weight: 400 / 1000 / 1250 / 1600 kg
- Tip height (flat/prism): 255 / 237 mm
- Bed width: 403 mm
- Spindle bore: 62 mm
- Tailstock quill Ø: 80 mm
- Morse Taper Tailstock: No. 5

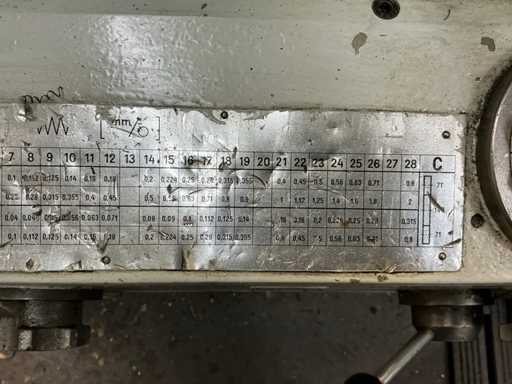

- Lead screw pitch: 12 mm
- Cutting steel cross-section: 25×25 mm

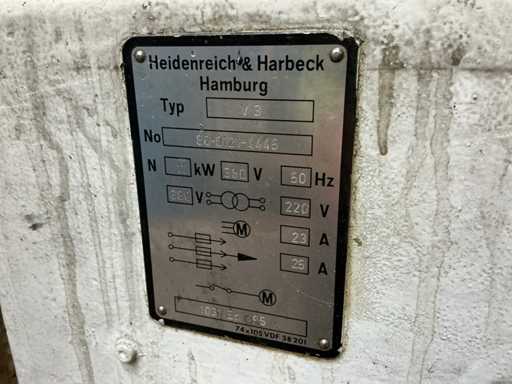

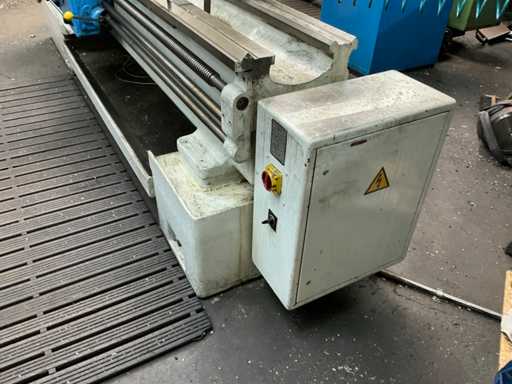

Electrical details
- Voltage: 380 V
- Current: 23–25 A
- Power: 11 kW
If you have any questions, please contact Project Manager Dustin Richter by phone at +49 1709792229.
Typos cannot be ruled out.
Remarks
Unchecked
Additional details
Pick-up possible in the following period:
17.11.2025 – 21.11.2025
24.11.2025-28.11.2025
Viewing possible on 29.10.2025
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.

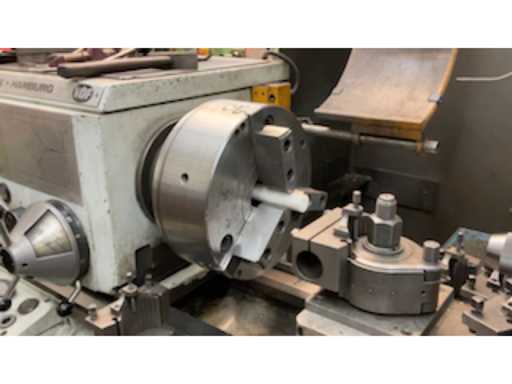

Video
See the details and take a closer look at the item in this video.
