HACO ERM 30100 Conventional Hydraulic Press Brakes 100 Tons – 3,100 mm
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HACO
- Type
- ERM 30100
- Machine weight
- 7000kg
- Dimension l
- 3600mm
- Dimension w
- 1700mm
- Dimension h
- 2700mm
- Terms of delivery
- Loaded on truck
Description
Manufacturer: HACO
Model: ERM 30100
Type: Conventional Hydraulic Press

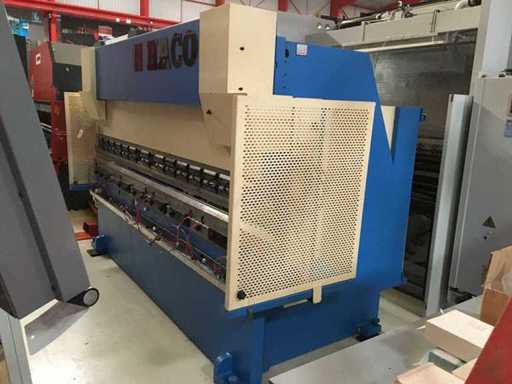

Brake Conventional hydraulic press brake for sheet metal bending operations in boilermaking and industrial sheet metal workshops. Machine equipped with a motorized backgauge and a robust construction suitable for common bending work.
Main features:
- Maximum force: 100 tons
- Useful folding length: 3100 mm
- Passage between uprights: 2600 mm
- Gooseneck depth: 250 mm
- Maximum distance from the slide table: 325 mm
- Slide stroke: 130 mm
- Table width: 90 mm

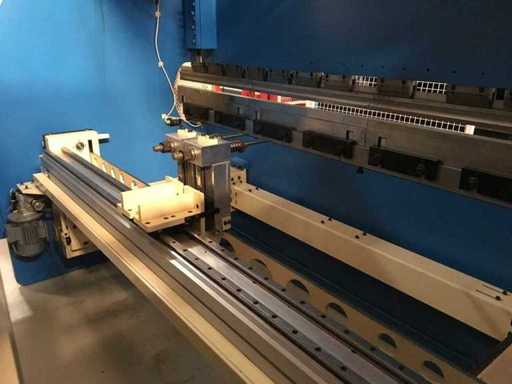

- Motorized rear gauge
- Working speed: 11 mm per second
- Return speed: 100 mm per second
- Maximum hydraulic pressure: 250 bar
- Power supply: 380 V
Model: ERM 30100
Type: Conventional Hydraulic Press
Brake Conventional hydraulic press brake for sheet metal bending operations in boilermaking and industrial sheet metal workshops. Machine equipped with a motorized backgauge and a robust construction suitable for common bending work.
Main features:
- Maximum force: 100 tons
- Useful folding length: 3100 mm
- Passage between uprights: 2600 mm
- Gooseneck depth: 250 mm
- Maximum distance from the slide table: 325 mm
- Slide stroke: 130 mm
- Table width: 90 mm
- Motorized rear gauge
- Working speed: 11 mm per second
- Return speed: 100 mm per second
- Maximum hydraulic pressure: 250 bar
- Power supply: 380 V
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
