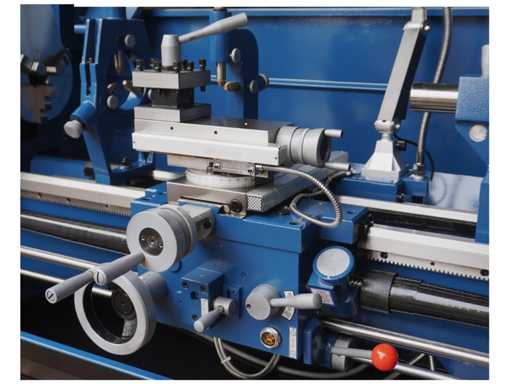

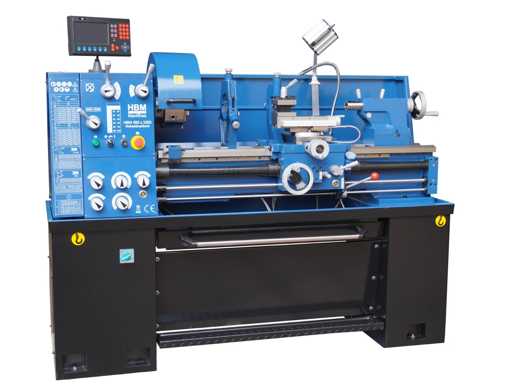

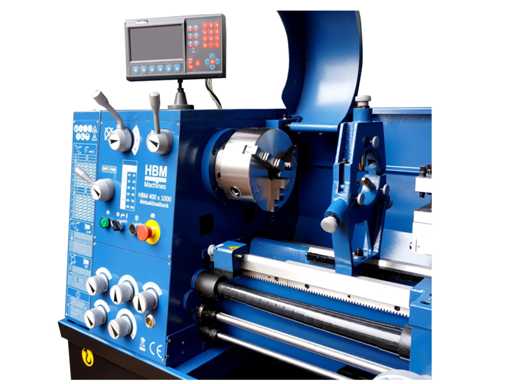

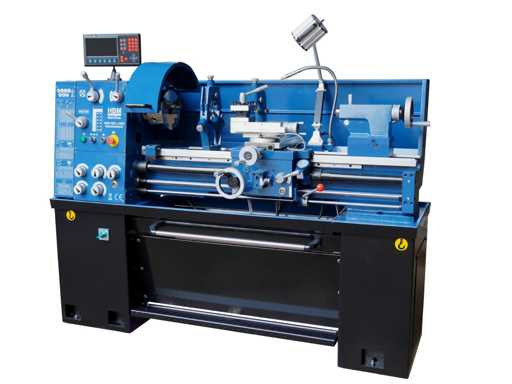

HBM 400 X 1000 DRO Lead and Pull Spindle Lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- 400 x 1000 DRO
- Machine weight
- 900kg
- Dimension l
- 1900mm
- Dimension w
- 800mm
- Dimension h
- 1560mm
- Terms of delivery
- Loaded on truck
Description
3-axis digital display
3-jaw chuck 200
mm.4-jaw chuck 200
mm.Face plate 320mm
steady
rest fixed bezel with
4-fold steel holder.
Halogen machine light
Machine light
Foot brake
Removable chip tray, chip protection wall
Hardened and ground bed tracks
Complete coolant system
Chuck protection
Machine tools
Turning diameter over bed 400 mm
Turning diameter over support 264 mm
Turning length 1000 mm
Turning diameter in offset 550 mm
Speed 44 - 2000 rpm
Center height 200 mm
Spindle bore 52 mm
Tailstock quill holder MK 4 MK
Connection voltage 400 V
Total power requirement 1.5 / 2.4 kW
Machine weight approx. 0.9 t
Space requirement approx. 1.9 x 0.8 x 1.56 m
Condition: never used / new (5)
3-jaw chuck 200
mm.4-jaw chuck 200
mm.Face plate 320mm
steady
rest fixed bezel with
4-fold steel holder.
Halogen machine light
Machine light
Foot brake
Removable chip tray, chip protection wall
Hardened and ground bed tracks
Complete coolant system
Chuck protection
Machine tools
Turning diameter over bed 400 mm
Turning diameter over support 264 mm
Turning length 1000 mm
Turning diameter in offset 550 mm
Speed 44 - 2000 rpm
Center height 200 mm
Spindle bore 52 mm
Tailstock quill holder MK 4 MK
Connection voltage 400 V
Total power requirement 1.5 / 2.4 kW
Machine weight approx. 0.9 t
Space requirement approx. 1.9 x 0.8 x 1.56 m
Condition: never used / new (5)
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 01.04.2026 to Thursday, 09.04.2026
Loading times:
Mon. – Thurs. from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
The descriptions of the individual positions were given to the best of our knowledge and belief. No liability is assumed for their correctness.
Accessories and tools shown are only part of the object of purchase if expressly named.
For warranty services and returns:
Freight costs are generally at the expense of the buyer.
