HBM BF 25 Drilling and Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- BF 25
- Machine weight
- 150kg
- Dimension l
- 670mm
- Dimension w
- 550mm
- Dimension h
- 910mm
- Terms of delivery
- Loaded on truck
Description

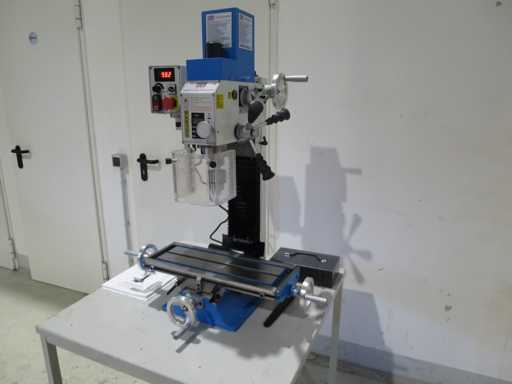

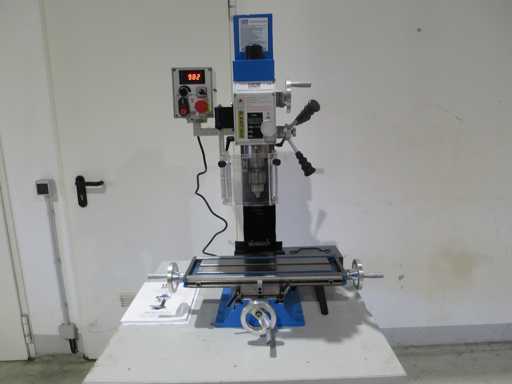

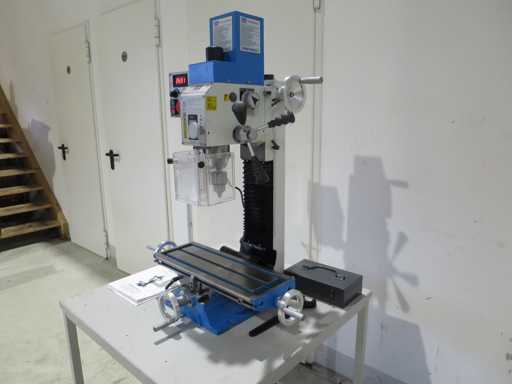

Drilling and milling machines:

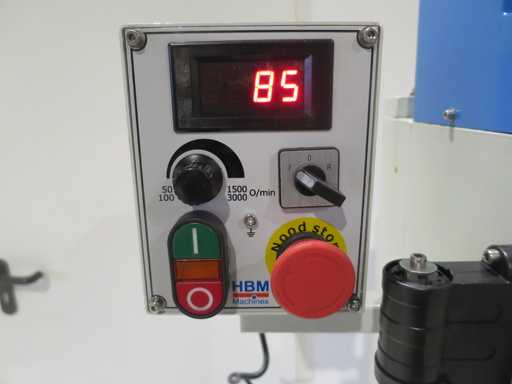

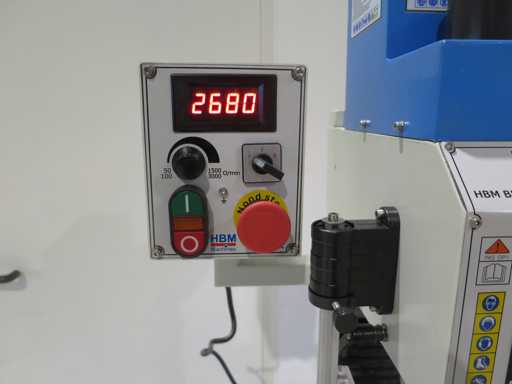

digital depth and speed display,
2 gear stages

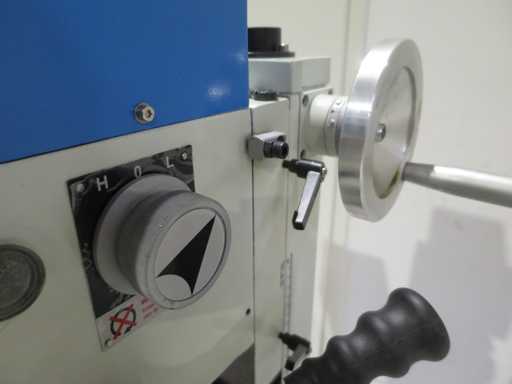

with fine adjustment and variable speed,
Includes left-right switch
Left and right swivel head
Comes with associated tools
Drilling capacity in steel 25 mm
Projection 170 mm
Drilling stroke 50 mm
Capacity finger milling machine 16 mm
Spindle Holder MK 2
Spindle speeds: 50 - 3000 rpm
Table adjustment transverse 280 mm
Table adjustment longitudinal 155 mm
Table clamping area 500 x 180 mm
Connection voltage 230 V
max. distance between work table and spindle nose max. 320 mm
Total power requirement 0.8 kW
Machine weight approx. 150 kg
Dimensions approx. 670 x 550 x 910 m
Condition: never used / new (5)
Remarks
Item condition: unchecked and used
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
