HBM BF 30 DRO BIG Drilling and Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- BF 30 DRO big
- Machine weight
- 230kg
- Dimension l
- 750mm
- Dimension w
- 1050mm
- Dimension h
- 1300mm
- Terms of delivery
- Loaded on truck
Description

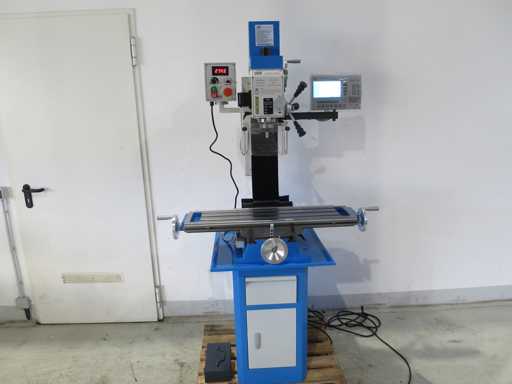

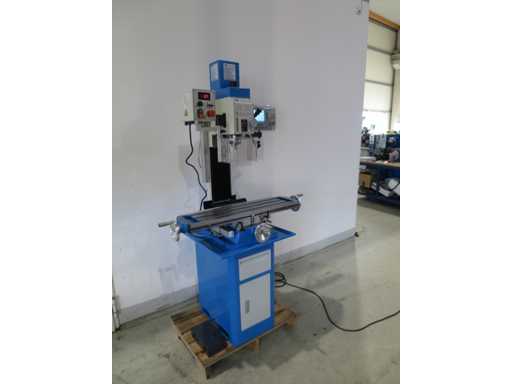

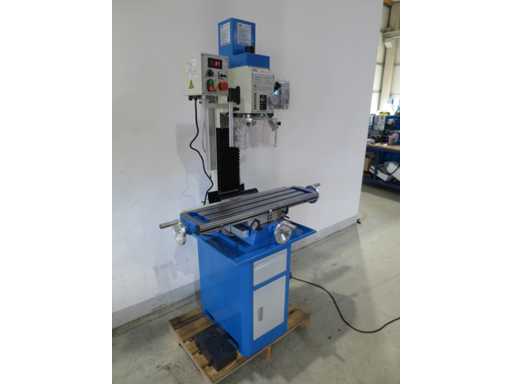

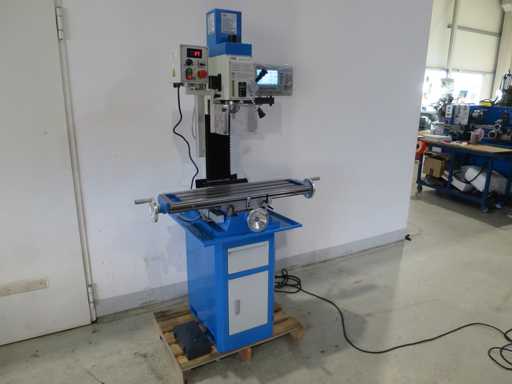

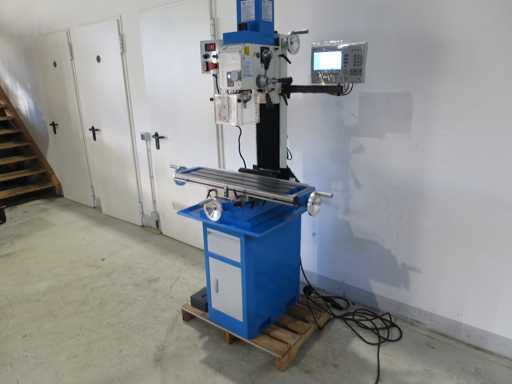

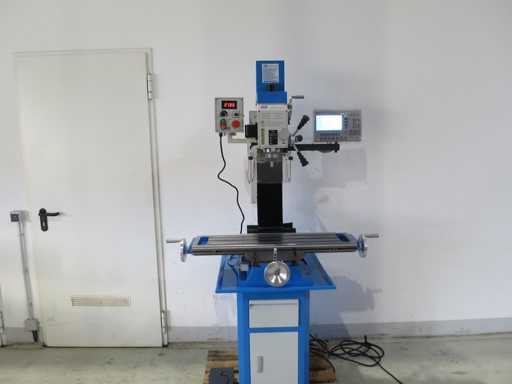

Drilling and milling machine with large table

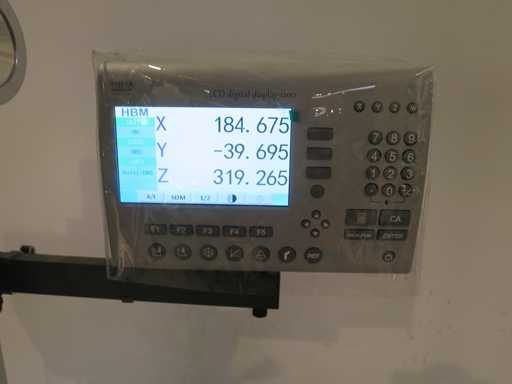

digital display SINO 3-axis.

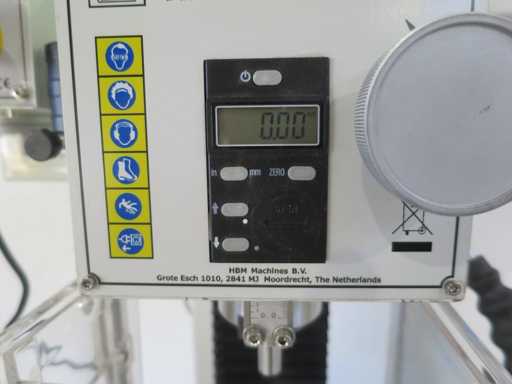

Digital display quill stroke.

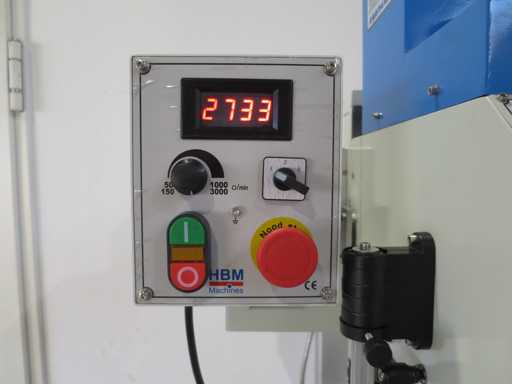

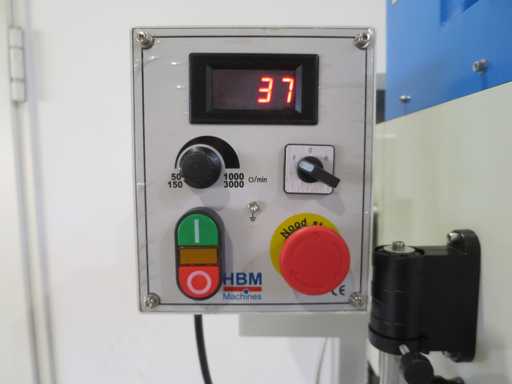

Powerful 2-speed engine.
Left/right switch
head swivel left/right 90°
mount MC 3 - B16.
Drill chuck 3 - 16
mm.Spindle protection.

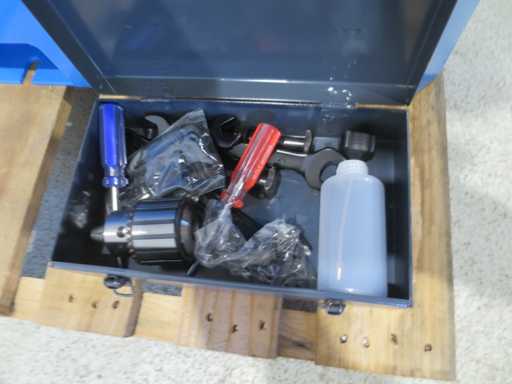

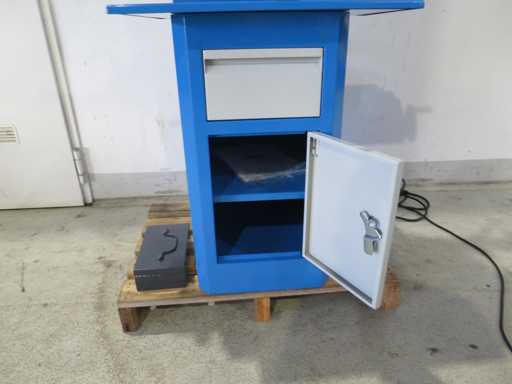

incl. toolbox with various tools
Drilling capacity in steel30 mm
Projection 200 mm
Drilling stroke 70 mm
Capacity finger milling machine 16 mm
Spindle holder MK3
Spindle speeds 50 - 3000 rpm
Table adjustment transverse 565 mm
Table adjustment longitudinal 220 mm

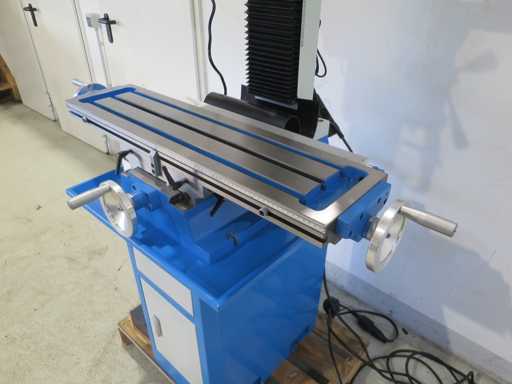

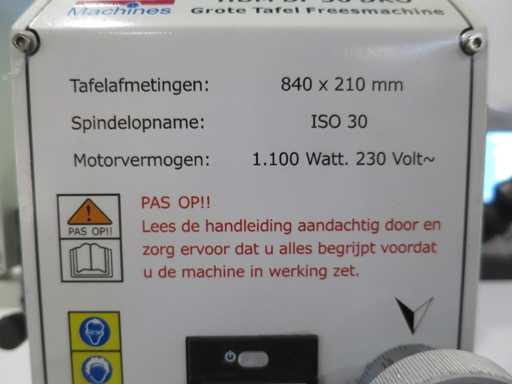

Table clamping surface 840 x 210 mm
Connection voltage 400 V
max. distance between work table and spindle nose max. 470 mm
Total power requirement 1.1 kW
Machine weight approx. 230 kg
Dimensions approx. 0.75 x 1.05 x 1.3 m
Condition: never used / new (5)
digital display SINO 3-axis.
Digital display quill stroke.
Powerful 2-speed engine.
Left/right switch
head swivel left/right 90°
mount MC 3 - B16.
Drill chuck 3 - 16
mm.Spindle protection.
incl. toolbox with various tools
Drilling capacity in steel30 mm
Projection 200 mm
Drilling stroke 70 mm
Capacity finger milling machine 16 mm
Spindle holder MK3
Spindle speeds 50 - 3000 rpm
Table adjustment transverse 565 mm
Table adjustment longitudinal 220 mm
Table clamping surface 840 x 210 mm
Connection voltage 400 V
max. distance between work table and spindle nose max. 470 mm
Total power requirement 1.1 kW
Machine weight approx. 230 kg
Dimensions approx. 0.75 x 1.05 x 1.3 m
Condition: never used / new (5)
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 01.04.2026 to Thursday, 09.04.2026
Loading times:
Mon. – Thurs. from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
The descriptions of the individual positions were given to the best of our knowledge and belief. No liability is assumed for their correctness.
Accessories and tools shown are only part of the object of purchase if expressly named.
For warranty services and returns:
Freight costs are generally at the expense of the buyer.
