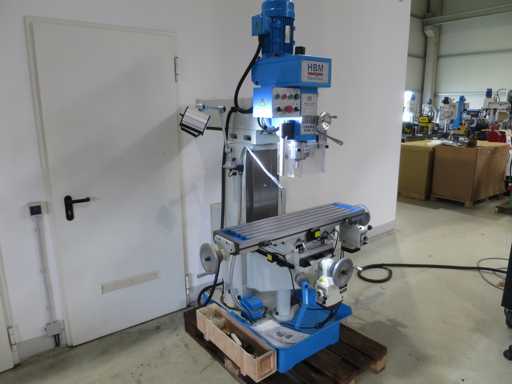

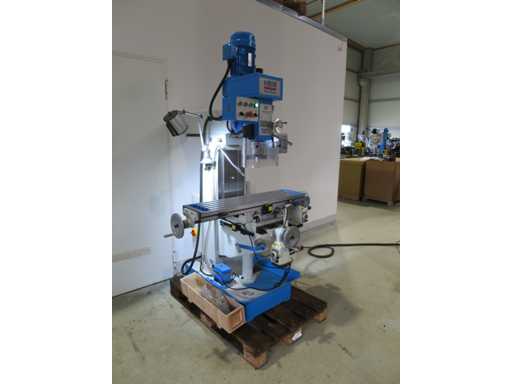

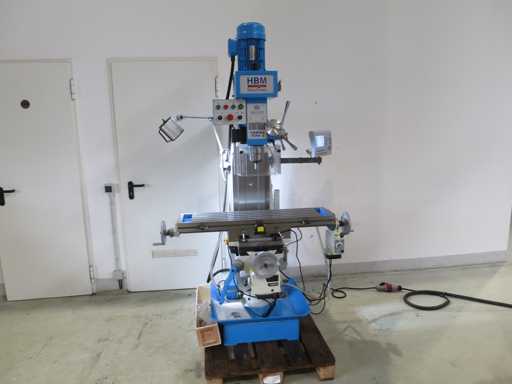

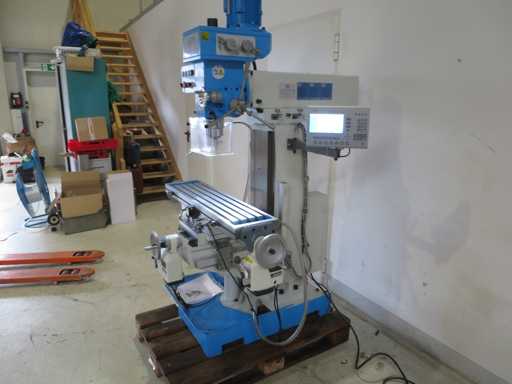

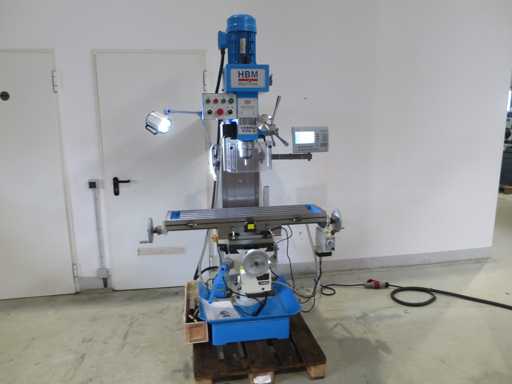

HBM BF 60 DRO Drilling and Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- BF 60 DRO
- Machine weight
- 950kg
- Dimension l
- 1300mm
- Dimension w
- 1200mm
- Dimension h
- 2100mm
- Terms of delivery
- Loaded on truck
Description
Equipment:

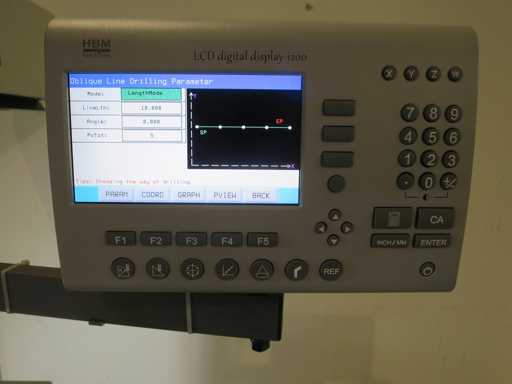

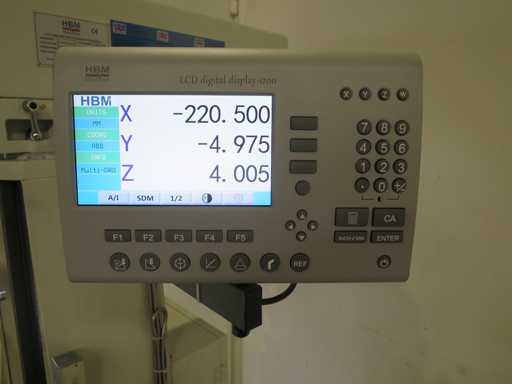

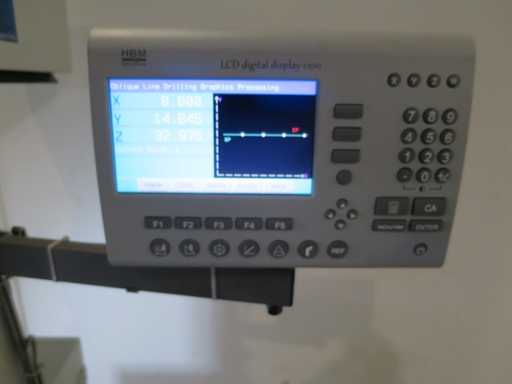

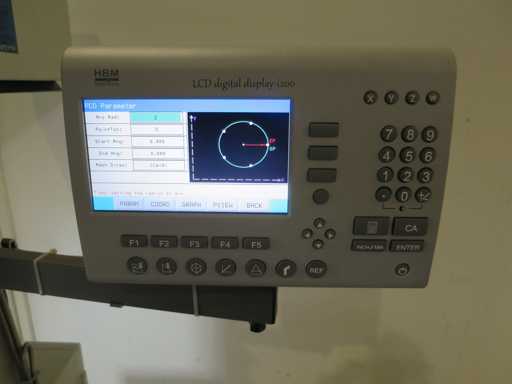

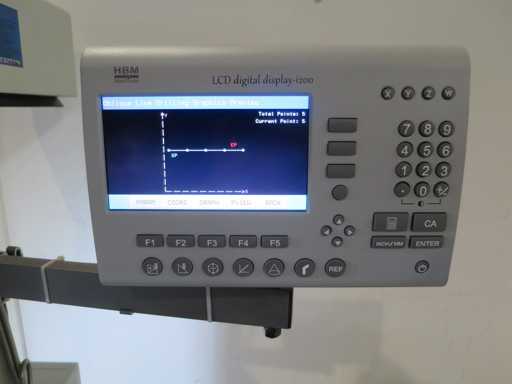

3-axis digital display
Digital depth display
Motorized feed for X and Y
Left/Right Run

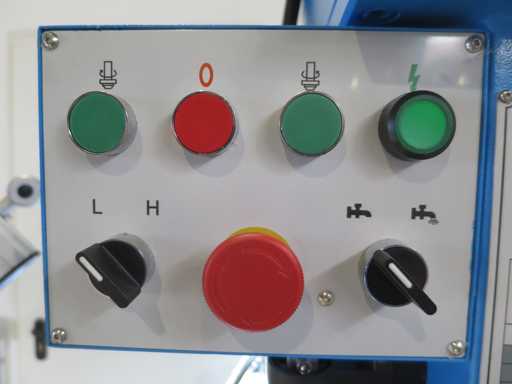

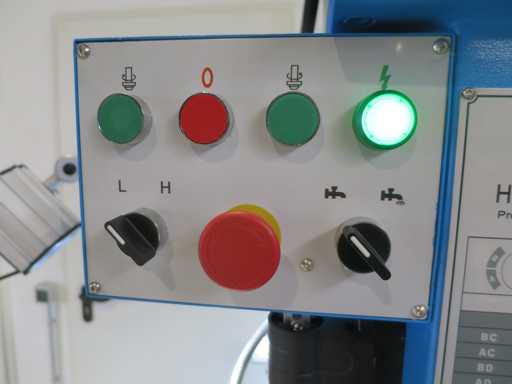

Emergency stop

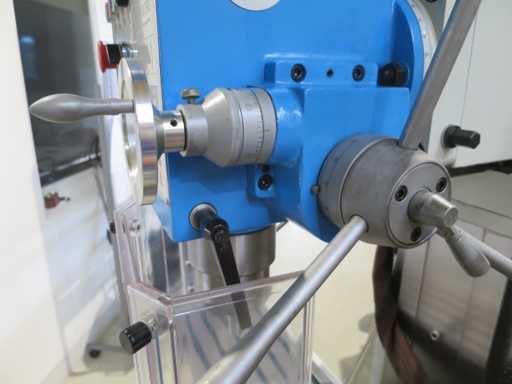

Swivelling drill head
Spindle protection.
Machine Light

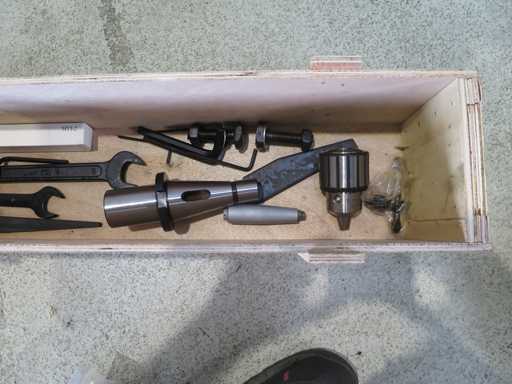

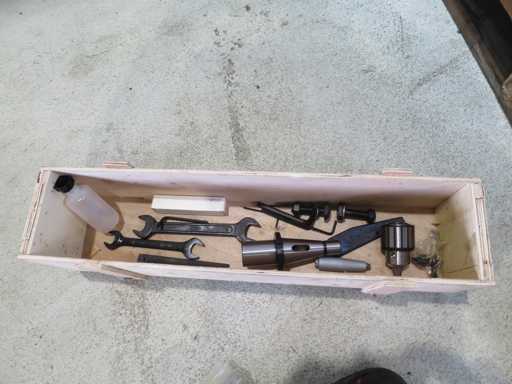

Tool case with contents
Drilling capacity in steel 35 mm
Projection 230 mm
Drilling stroke 125 mm
Spindle holder ISO 40

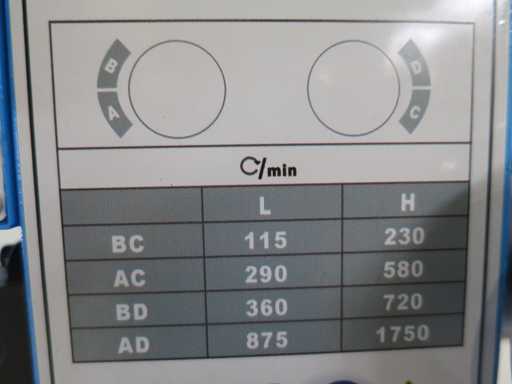

Spindle speeds 115 - 1750 rpm
Table adjustment transverse 375 mm
Table adjustment longitudinal 175 mm

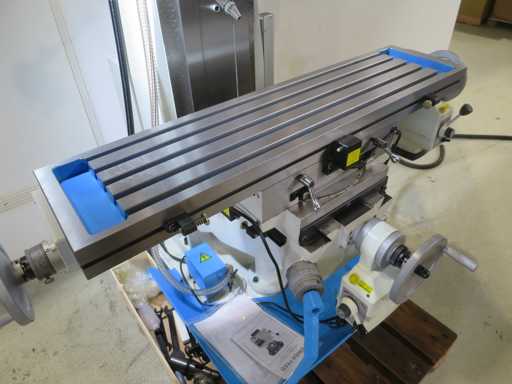

Table clamping area 1000 x 240 mm
Max. distance between work table and spindle nose 120 - 375 mm

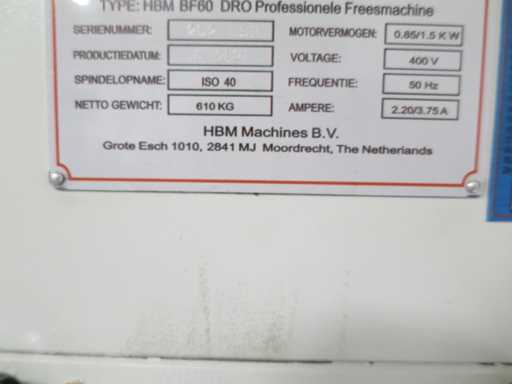

Connection voltage 400 V
Total power requirement 0.85 / 1.5 kW
Machine weight approx. 0.95 t
Space requirement approx. 1.3 x 1.2 x 2.1 m
Condition: never used / new (5)
Remarks
Item condition: unchecked and used
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
