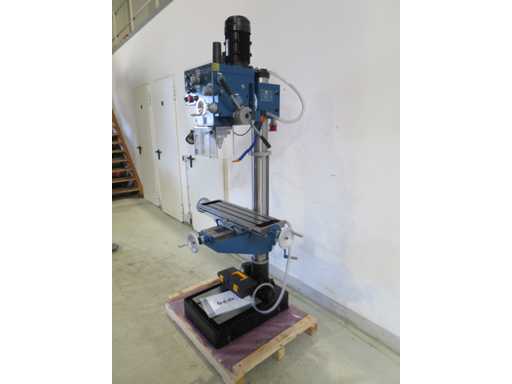

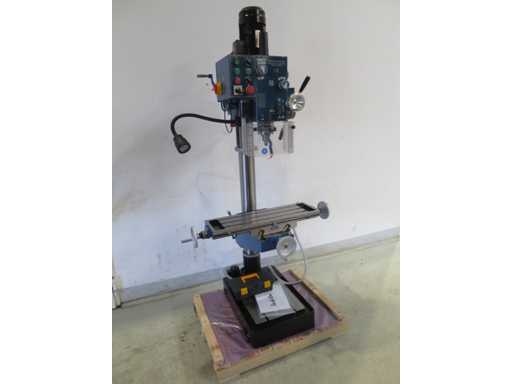

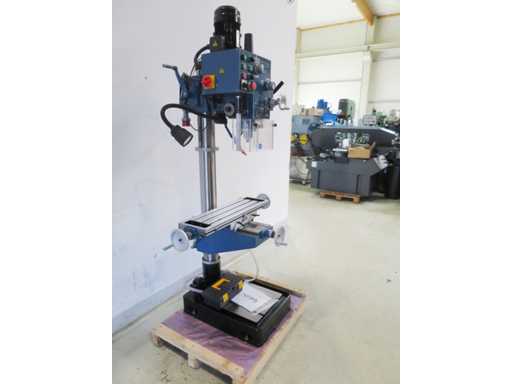

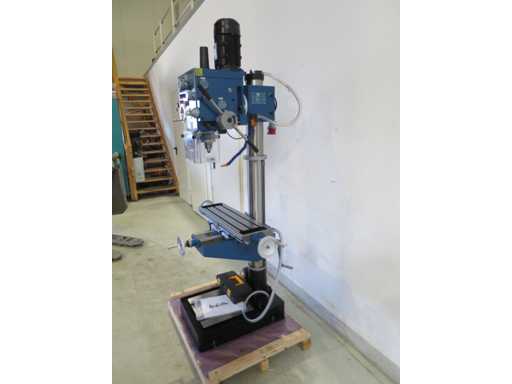

HBM HBM 40H Drilling and Milling Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- HBM 40H
- Machine weight
- 350kg
- Dimension l
- 800mm
- Dimension w
- 750mm
- Dimension h
- 1850mm
- Terms of delivery
- Loaded on truck
Description
Drilling/milling machine with:
• Tapping device

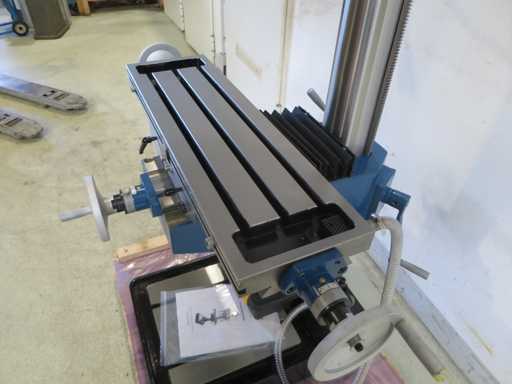

• Cross table with adjustable guides

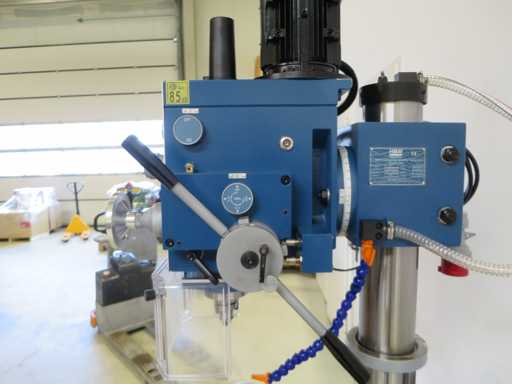

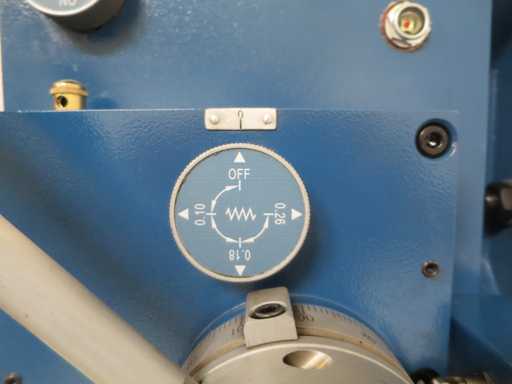

• Drill quill feed
• Manual transmission
• SK 40 mount
Drilling capacity in steel 40 mm
Projection 275 mm
Drilling stroke 120 mm
Spindle Holder MK 4

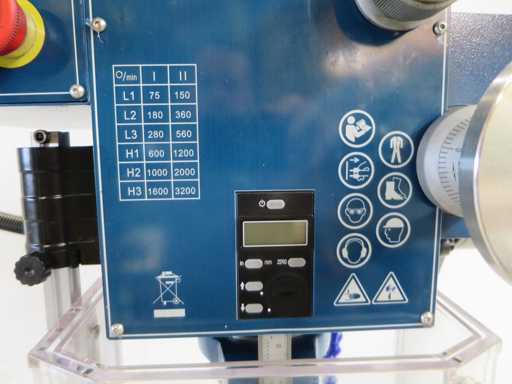

Speed range 75 - 3200 rpm
Table adjustment transverse 190 mm
Table adjustment longitudinal 490 mm
Table clamping area 700 x 210 mm
Connection voltage 400 V
Milling cutter diameter max. 80 mm
Total power requirement 1.1/1.5 kW
Condition: never used / new (5)
Remarks
Item condition: unchecked and used
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
