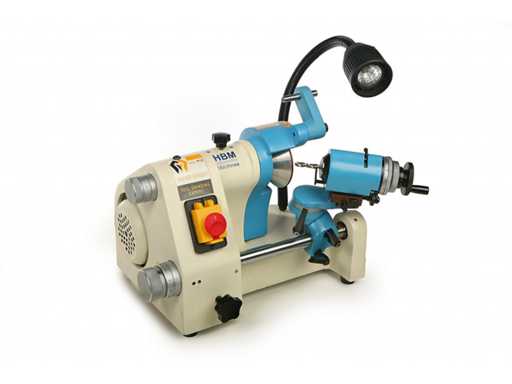

HBM PP-U5 Drill Bit Grinding Machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HBM
- Type
- PP-U5
- Machine weight
- 45kg
- Dimension l
- 500mm
- Dimension w
- 400mm
- Dimension h
- 400mm
- Terms of delivery
- Loaded on truck
Description
This grinder is ideal for regrinding tools such as
face mills, drills, TIG welding needles and much more.
comes standard with:
Accessories for lathe tools
Accessories for drills
Accessories for milling

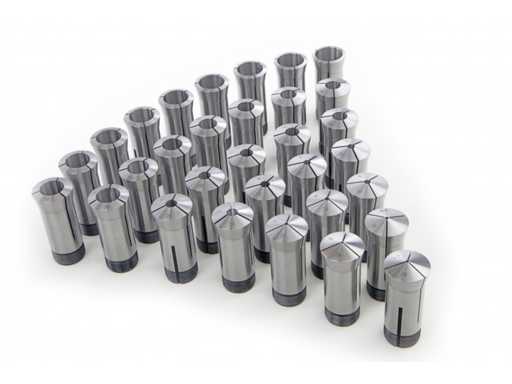

5C Spring Collet (4-6-8-10-12 mm)
Clutch wrench 38-42
Grinding wheel wrench
Allen key M3-M8
Screwdriver
Diamond grinding wheel Ø 100 x 50 x 20
Grinding wheel: Ø 100 x 50 x 20
Diamond Pen
Spring Collet: 3/16" - 5/16" - 3/8" - 1/2"
Grinding range 3 -28 mm
Angle adjustable from - to horizontal 0-180 degrees
Angle adjustable from - to vertical 0-45 degrees
Angle adjustable from - to negative 0-52 degrees
Clamping range 3 - 28mm mm
Speed 5200 rpm
Connected load 230 / 250 volts / watt
Disc diameter 100 x 50 x 20 mm
Machine weight approx. 45 kg
Dimensions L x W x H 0.5 x 0.4 x 0.4 m
Condition: never used / new (5)
Remarks
Item condition: used and unchecked
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 28.01.2026 to Thursday, 05.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
For warranty services and returns: Freight costs are generally at the expense of the buyer.
