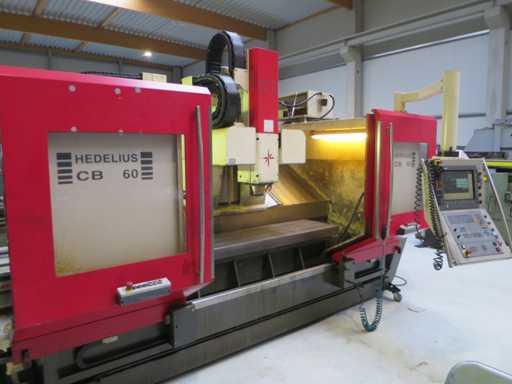

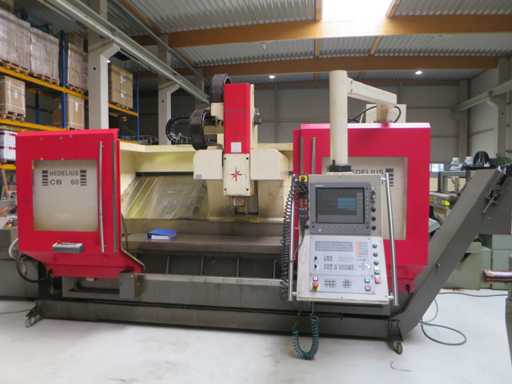

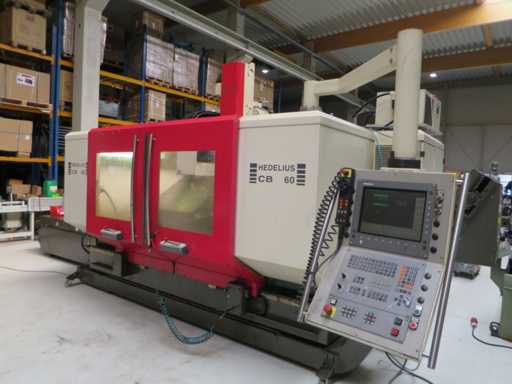

HEDELIUS CB 60 - 2000 Machining Center
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HEDELIUS
- Type
- CB 60 - 2000
- Year of build
- 2003
- Machine weight
- 10500kg
- Dimension l
- 8000mm
- Dimension w
- 2600mm
- Dimension h
- 2750mm
- Terms of delivery
- Loaded on truck
Description

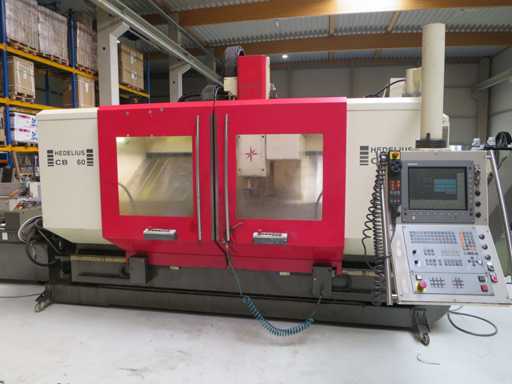

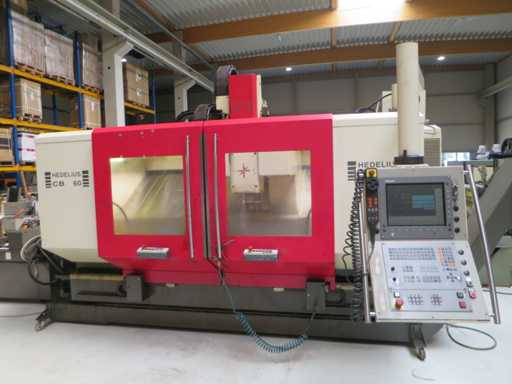

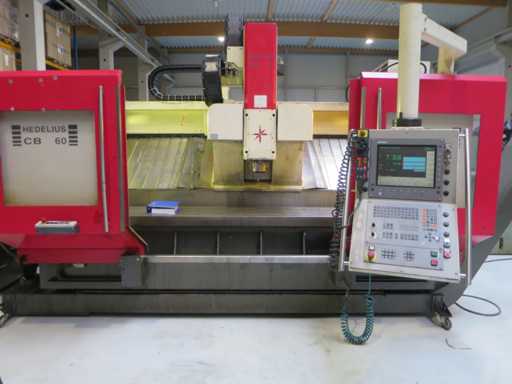

CNC Machining Center Vertical
- 30-fold tool changer
- Handwheel

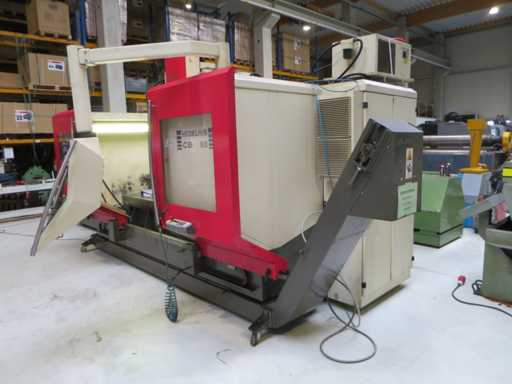

- Chip conveyors

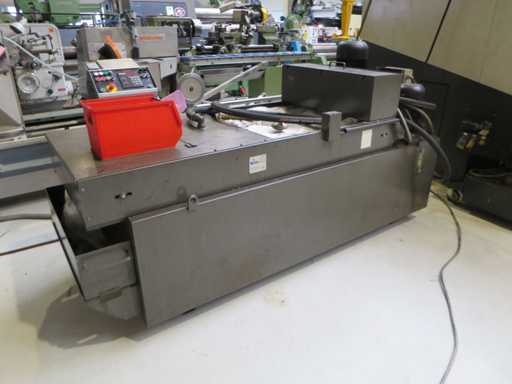

- Belt filter system
- some SK40 tool holders
System can be dismantled to 2.45m.
x-travel 2000 mm
y-travel: 620 mm
z-travel 520 mm

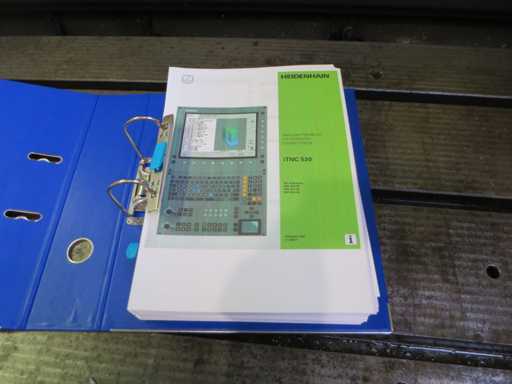

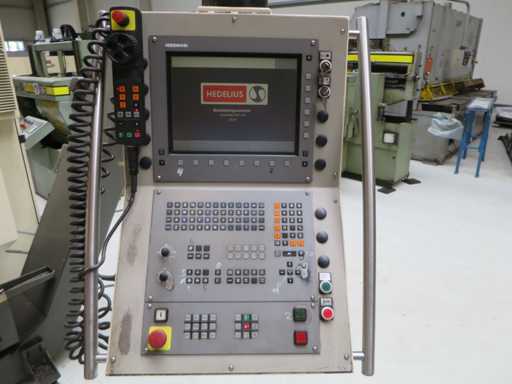

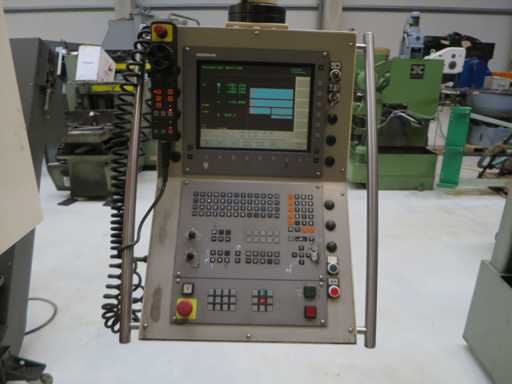

Control Heidenhain TNC CNC

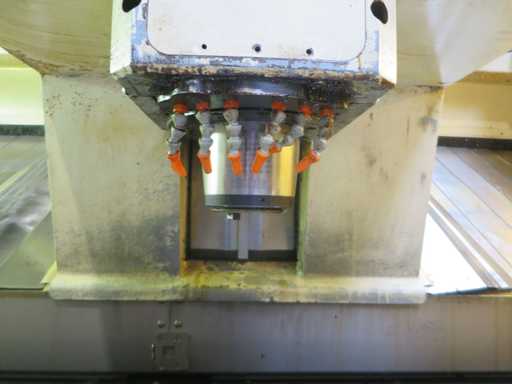

Speed range - main spindle max. 15000 rpm/-1
Tool holder BT 40

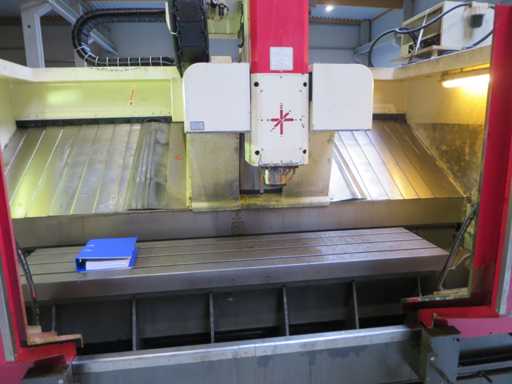

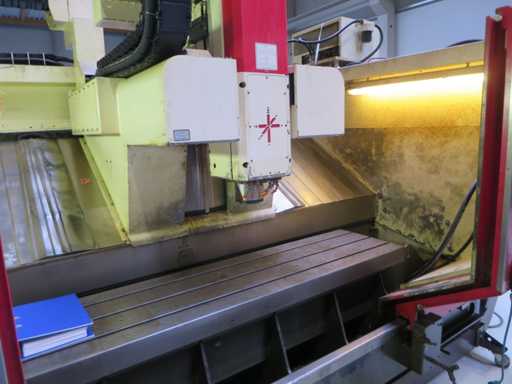

Table clamping surface: 2500 x 550 mm
Tool changing device 30-fold
Connected load 25 KVA
Weight 10.5 t
Dimensions LxWxH 8.0 x 2.6 x 2.75 m
Remarks
Item condition: unchecked and used
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Viewing:
No fixed date. Viewing by arrangement!
A viewing is only possible after prior registration at anabela.decastro@surplex.com.
Pick-up:
From Wednesday, 11.02.2026 to Thursday, 19.02.2026
Loading times:
from 8:30 a.m. to 1:00 p.m. and 1:30 p.m. to 4:00 p.m.
Please note: Pick-up is not possible on public holidays and weekends.
The descriptions of the individual positions were given to the best of our knowledge and belief.
No liability is assumed for their correctness.
Accessories and tools in the pictures are only part of the object of purchase if expressly named.
