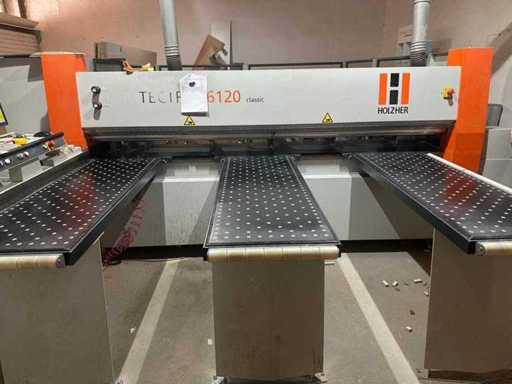

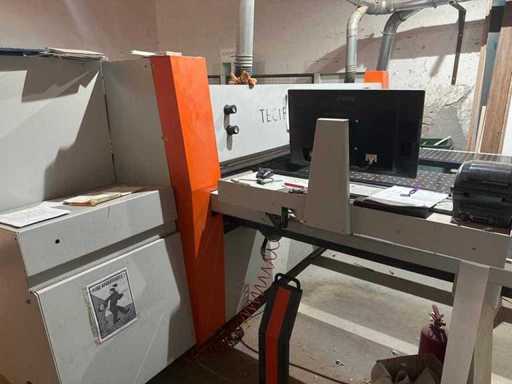

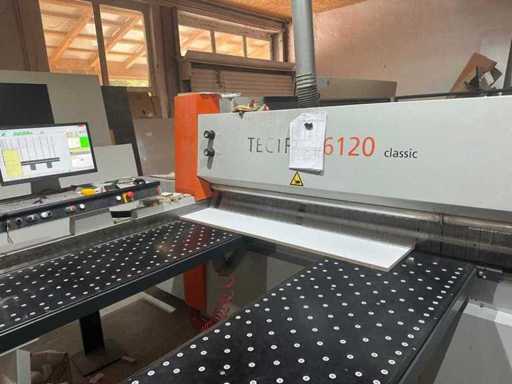

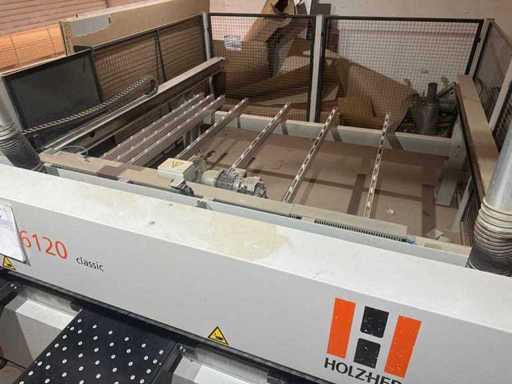

HOLZ-HER TECTRA 6120 CLASSIC Horizontal Panel Saw

Technical details

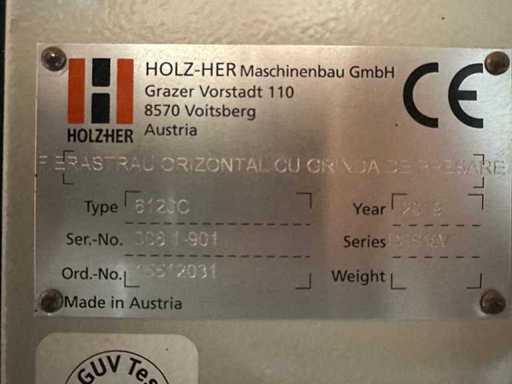

Manufacturer: Holz-Her
Model: TECTRA 6120 Classic
Serial number: 3081-901
Type: CNC horizontal panel saw
Cutting length: 3100 mm
Main saw motor: 7.5 kW
Scoring saw motor: 2.2 kW
Power supply: 400 V, 50/60 Hz
Configuration:
- Modular machine frame
- Left-hand control panel, angle stop and tool changer
- Width stop with CNC positioning
- Feed speed: 25 m/min
- Return speed: 100 m/min
- Press beam with adjustable pressure
- Automatic cutting stroke optimisation
- Automatic blade height adjustment
- Motorised scoring blade adjustment (0–30 mm)
- Main blade Ø350 × 30 mm
- Magnetic measuring system with continuous monitoring
- Optical panel length recognition system
- Dust cleaning blower for sensor
- Linear guides and rack drive

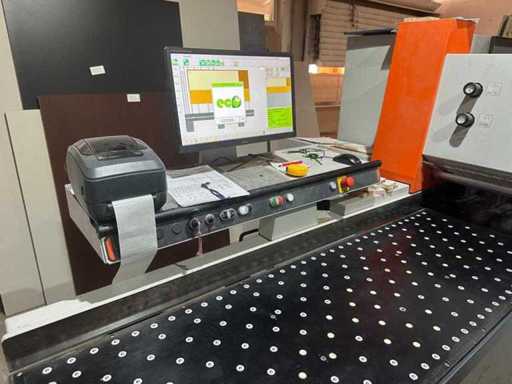

- CUTCONTROL 2 control with 21.5" TFT display
- EasyLabel printer
- EASY-PLAN optimisation software (USB dongle)
Application:
- Precision cutting of wood-based panels
- Furniture production
- Interior fit-out
- Cabinet manufacturing
Dimensions:
- Cutting length: 3100 mm
Condition: Used
Observed condition:
- Complete CNC panel saw with optimisation software and label printer
- Equipped with automatic positioning and cutting optimisation
- Operational status not independently verified
