HOMAG - BOF 311/60/F/KC - 5-Axis machining center - 2007
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HOMAG
- Type
- BOF 311/60/F/KC
- Year of build
- 2007
- Machine weight
- 9000kg
- Terms of delivery
- Loaded on truck
Description

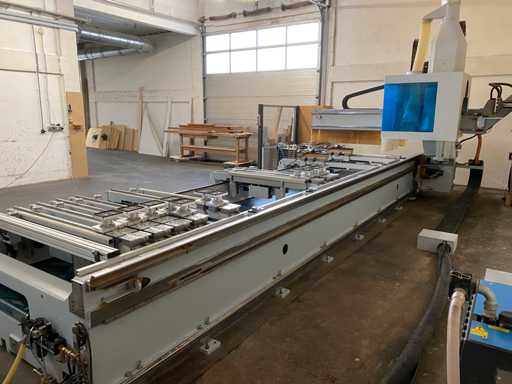

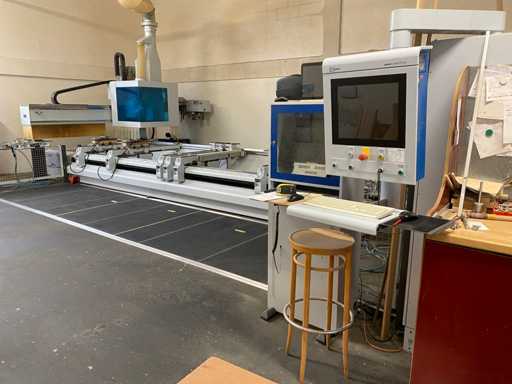

HOMAG PROFI BOF311/60/F/KC 5 axis processing centre
↵

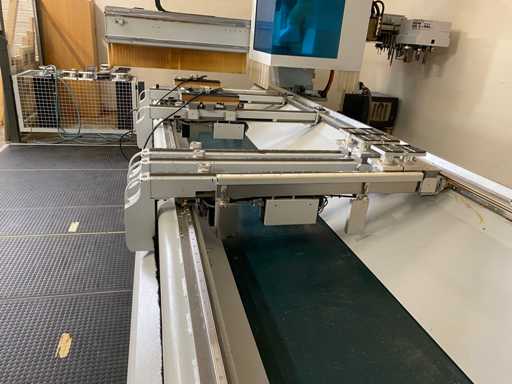

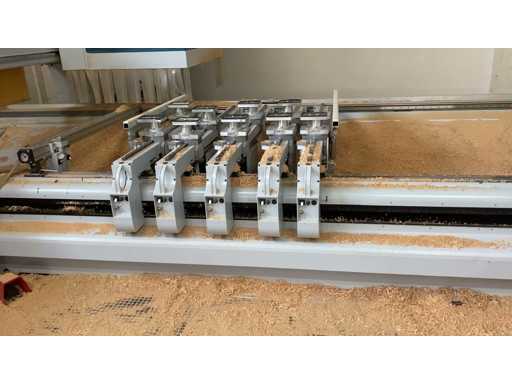

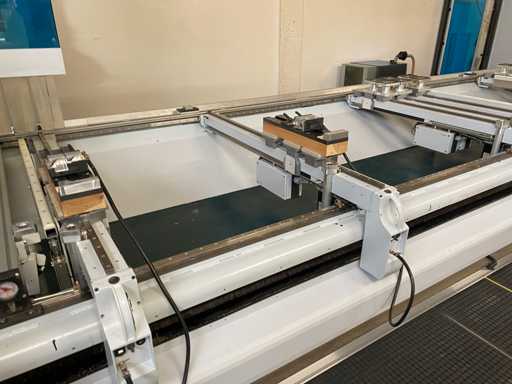

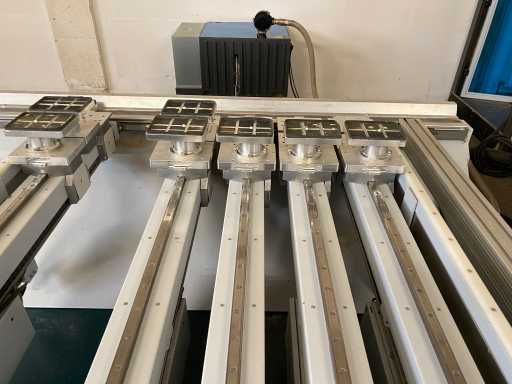

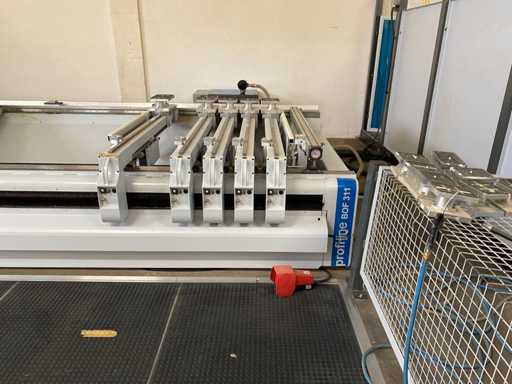

↵• Fully automatic CONSOLES - CLAMPING TABLE KC
↵ - 10 clamping consoles with automatic positioning unit

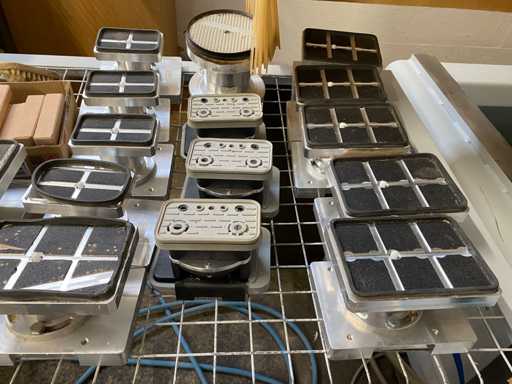

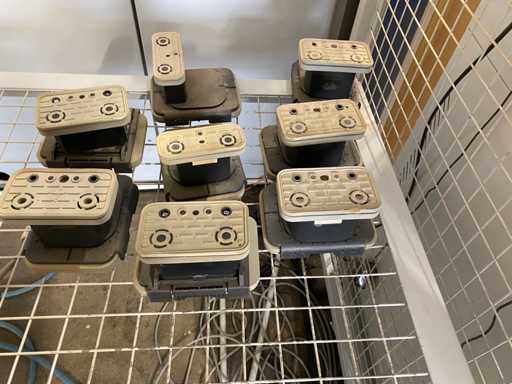

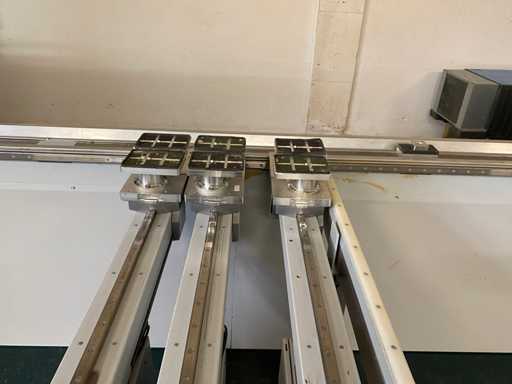

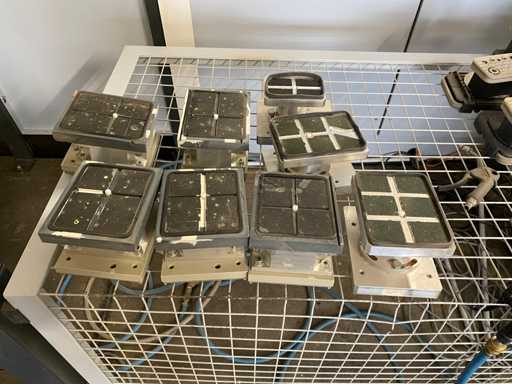

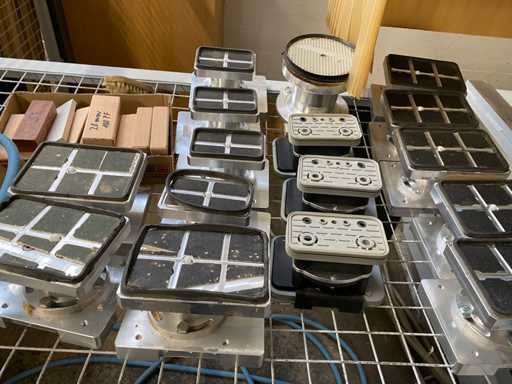

↵ - 30 automatically positionable platforms for holding the vacuum clamps
↵ - 4 lifting rails attached to the side of the consoles
↵

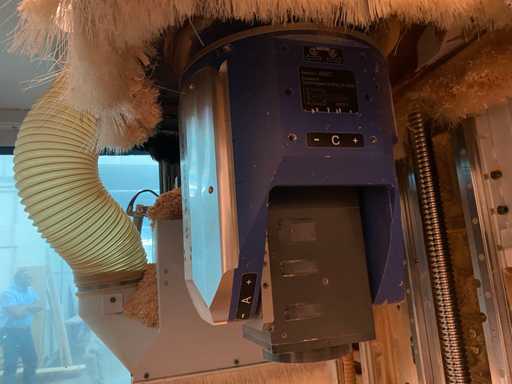

↵• 5 axis main spindle 15 kW liquid cooled.
↵ - Speed range continuously programmable from 1000 - 24000 rpm.
↵
↵• Drive 5+ unit interface for the use of machining units.
↵

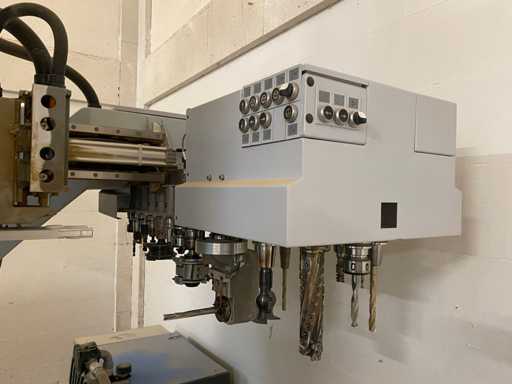

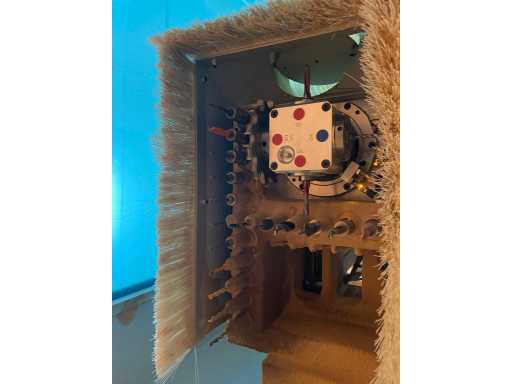

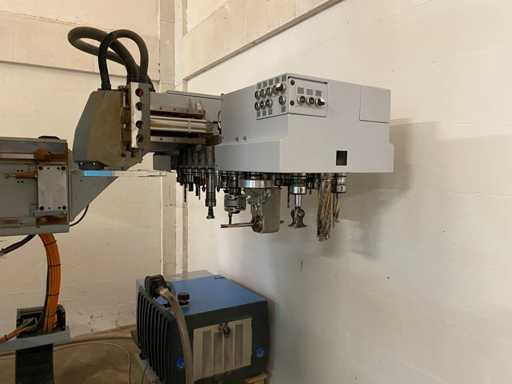

↵• Drilling head 17 spindles vertical
↵ - 1 motor 2,7 kW, frequency controlled Speed max. 7500 1/min
↵ - 7 spindles vertical in X-direction
↵ - 11 spindles vertical in Y-direction
↵- 4 spindles horizontal drilling and sawing unit
↵
↵• Chain changer for 30 tool / unit positions with upstream double gripper for
↵ quick tool change
↵

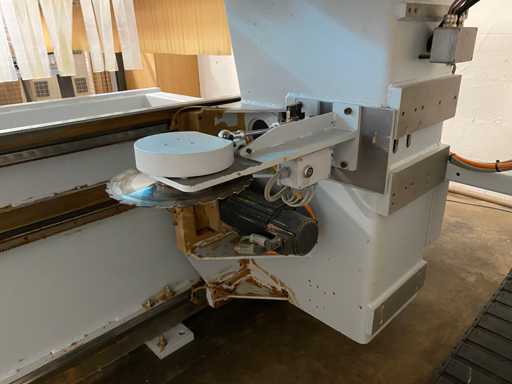

↵• Pick-up place for saw blade 350 mm
↵

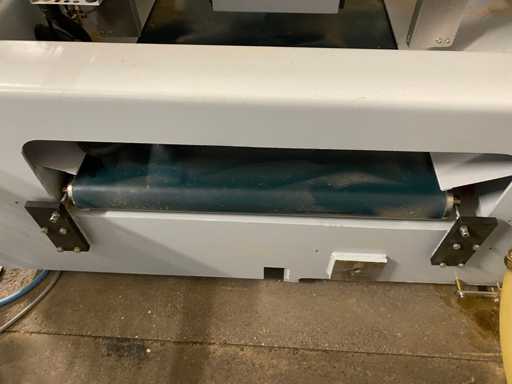

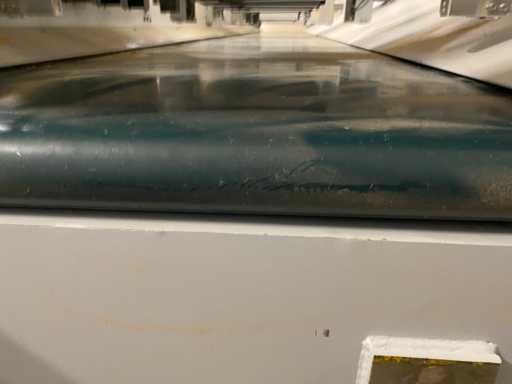

↵• Chip conveyor integrated in machine table
↵

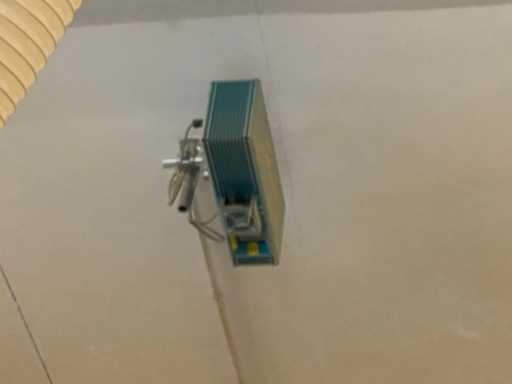

↵• Laser projection
↵ for displaying the milling contour programmed in woodWOP or the position of the vacuum
↵ clamps defined in woodWOP
↵

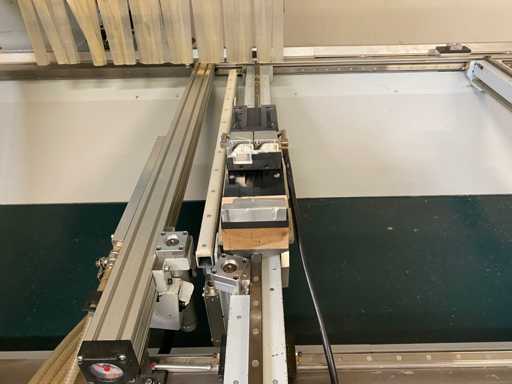

↵• 2 clamping devices for posts and scantlings
↵ mechanical/pneumatic clamping element with adjustable clamping jaws for
↵ clamping of stair posts or similar rectangular wooden scantlings
↵
↵The tools shown in the tool changer and aggregates, chucks are not included in the scope of delivery↵
↵
↵• Fully automatic CONSOLES - CLAMPING TABLE KC
↵ - 10 clamping consoles with automatic positioning unit
↵ - 30 automatically positionable platforms for holding the vacuum clamps
↵ - 4 lifting rails attached to the side of the consoles
↵
↵• 5 axis main spindle 15 kW liquid cooled.
↵ - Speed range continuously programmable from 1000 - 24000 rpm.
↵
↵• Drive 5+ unit interface for the use of machining units.
↵
↵• Drilling head 17 spindles vertical
↵ - 1 motor 2,7 kW, frequency controlled Speed max. 7500 1/min
↵ - 7 spindles vertical in X-direction
↵ - 11 spindles vertical in Y-direction
↵- 4 spindles horizontal drilling and sawing unit
↵
↵• Chain changer for 30 tool / unit positions with upstream double gripper for
↵ quick tool change
↵
↵• Pick-up place for saw blade 350 mm
↵
↵• Chip conveyor integrated in machine table
↵
↵• Laser projection
↵ for displaying the milling contour programmed in woodWOP or the position of the vacuum
↵ clamps defined in woodWOP
↵
↵• 2 clamping devices for posts and scantlings
↵ mechanical/pneumatic clamping element with adjustable clamping jaws for
↵ clamping of stair posts or similar rectangular wooden scantlings
↵
↵The tools shown in the tool changer and aggregates, chucks are not included in the scope of delivery↵
„A transport frame from HOMAG is required for transporting the dismantled machine, for which costs of EUR 12.500,00€ plus VAT will be charged.
↵After return of the transport rack to SURPLEX, the amount will be refunded minus a value reduction of 10 %.
Remarks
Item condition: unchecked/used
Location: 49492 Westerkappeln
Additional details
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
A viewing is only possible after prior registration at a.decastro@surplex.com.
Pick-up is only possible after prior written arrangement.
Please note that pick-up is not possible on public holidays and weekends.

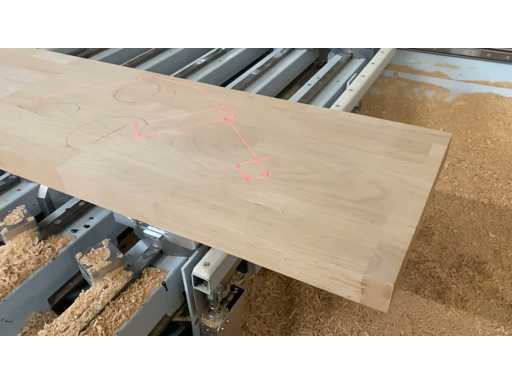

Video

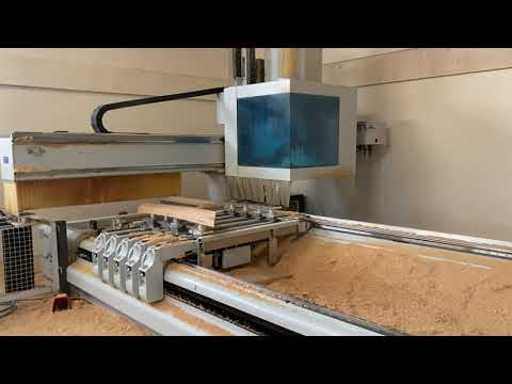

See the details and take a closer look at the item in this video.
