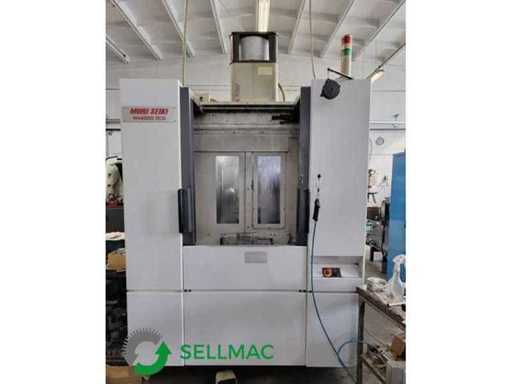

HORIZONTAL MACHINING CENTER MORI SEIKI NH 4000 YEAR 2010
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MORI SEIKI
- Type
- NH 4000
- Year of build
- 2010

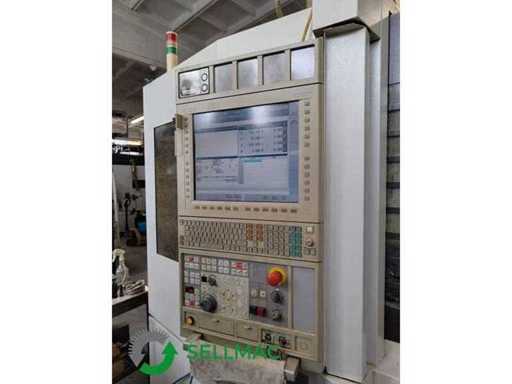

- CNC control, brand, type
- M57-701 IV
Description
X-axis travel 560 mm
Y-axis travel 560 mm
Z axis travel 630 mm
Continuous
B-axis Table load capacity 400 kg
Spindle speed 14,000 rpm
BT 40
tool holder Tool magazine 60 positions
Accessories
Pallet cubes 250x250x600
Pallet cubes 400x150x600
Miscellaneous
tooling D'Andrea
boring head attachment Machine equipped with manuals
All technical data shown are indicative and may be changed without notice and therefore should not be considered binding
Y-axis travel 560 mm
Z axis travel 630 mm
Continuous
B-axis Table load capacity 400 kg
Spindle speed 14,000 rpm
BT 40
tool holder Tool magazine 60 positions
Accessories
Pallet cubes 250x250x600
Pallet cubes 400x150x600
Miscellaneous
tooling D'Andrea
boring head attachment Machine equipped with manuals
All technical data shown are indicative and may be changed without notice and therefore should not be considered binding
